When do machine vision defect detection systems fail?

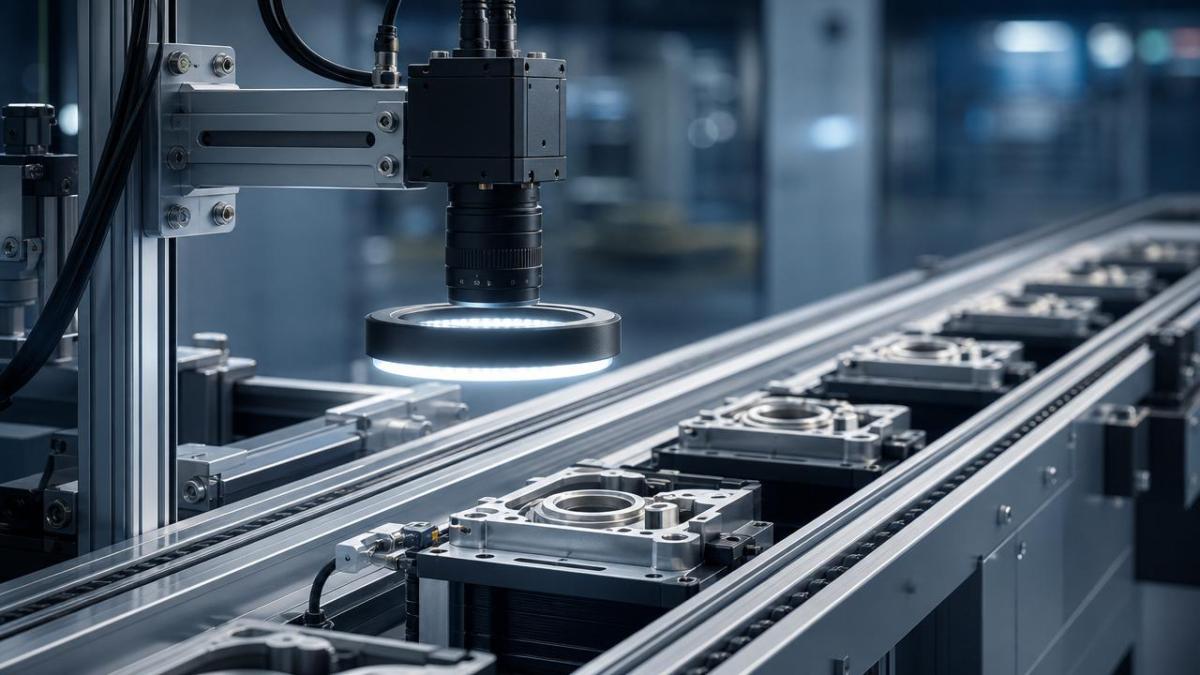

Even advanced machine vision defect detection systems can fail when production conditions move outside validated limits. The biggest danger is often not a missed scratch, void, or burr alone. It is the false confidence that follows a green pass result from an unstable inspection process. In mixed manufacturing environments, inspection reliability depends on lighting stability, optical cleanliness, representative training data, part presentation, and disciplined ongoing validation.

Across electronics, automotive, aerospace, packaging, medical devices, and precision machining, the same pattern appears repeatedly. A system works well during setup, then performance drifts as materials, operators, ambient light, lens condition, and upstream variation change. Knowing when machine vision defect detection systems fail is the first step toward reducing escapes, controlling false rejects, and making decisions based on engineering truth rather than dashboard optimism.

Why checklist-based evaluation matters for machine vision defect detection systems

Failure in vision inspection is rarely caused by a single factor. Most breakdowns result from stacked tolerances: small lighting shifts, slight focus drift, incomplete defect libraries, and inconsistent part orientation. A checklist forces each variable into view before yield losses become expensive escapes.

This approach is especially useful in cross-industry operations where one inspection cell may see changing SKUs, reflective surfaces, textured materials, or tight cosmetic standards. Instead of assuming the algorithm is the problem, a structured review isolates whether the weakness is optical, mechanical, statistical, or procedural.

Core failure checklist: when do machine vision defect detection systems fail?

Use this checklist to identify where machine vision defect detection systems are most likely to break down in real production.

• Verify lighting repeatability across shifts, seasons, and maintenance cycles; unstable illumination changes contrast, hides low-signal defects, and makes previously accepted thresholds unreliable.
• Check lens cleanliness, focus lock, and vibration exposure; small optical degradation often reduces edge clarity long before operators notice obvious image quality loss.
• Review part presentation consistency; rotation, tilt, height variation, conveyor wobble, and fixture wear can shift the feature location outside the trained inspection window.
• Test sample diversity in the training set; systems fail when they learn only ideal parts and a narrow defect range rather than full process variation.
• Compare validation data with live production data; many machine vision defect detection systems pass factory acceptance tests but fail under real throughput and noise conditions.
• Measure defect size against pixel resolution; if the target flaw occupies too few pixels, detection becomes probabilistic regardless of software claims.
• Audit changeovers carefully; new materials, coatings, lot colors, or surface textures can invalidate models trained on older production conditions.
• Inspect synchronization timing between camera, trigger, encoder, and motion stage; timing drift causes blur, spatial offset, and inconsistent image capture.
• Monitor false reject trends separately from false accepts; rising nuisance rejects may signal process drift before catastrophic missed-defect escapes appear.
• Confirm that pass/fail thresholds match the actual quality standard; some systems fail because cosmetic rules, engineering limits, and customer criteria were never aligned.
• Stress-test against contamination, oil, dust, glare, and residue; factory environments often introduce noise sources absent during laboratory commissioning.
• Revalidate after maintenance or software updates; small parameter edits in exposure, filtering, or classification logic can shift defect sensitivity unexpectedly.

How failure appears in different production scenarios

Reflective metal and machined surfaces

On polished metal, turned parts, or coated housings, glare is the main enemy. A scratch may appear clearly at one angle and disappear at another. In these cases, machine vision defect detection systems fail not because the algorithm is weak, but because the image itself is unstable.

Cross-polarized lighting, dome lighting, and tighter part fixturing usually help. However, if surface finish varies significantly between lots, even a well-designed optical setup needs ongoing revalidation.

High-speed packaging and label inspection

In packaging lines, motion blur and registration drift dominate. Missing print, skewed labels, seal defects, and code readability issues often become intermittent at higher throughput. A system may perform perfectly at pilot speed and fail at target line speed.

Here, encoder accuracy, trigger timing, shutter settings, and mechanical stability matter as much as the inspection model. Performance claims without throughput-specific data are incomplete.

Electronics and micro-defect inspection

For solder joints, trace defects, connector pins, and tiny contamination, resolution limits become critical. If the defect signature occupies too few pixels, the system cannot reliably separate signal from noise. This is a physics issue before it becomes a software issue.

Depth of field also matters. Slight board warp or component height variation can push fine features out of focus, reducing classification confidence and increasing both escapes and false calls.

Complex composite or textured materials

In aerospace composites, castings, fabric-backed materials, or natural textures, acceptable variation can resemble real defects. Systems trained on oversimplified labels often confuse benign pattern variation with cracks, voids, or inclusions.

The solution is not always a more complex model. Often it requires better annotation rules, defect taxonomy refinement, and agreement on what truly matters to structural or cosmetic function.

Commonly ignored risk factors

Weak ground truth

If defect labels are inconsistent, machine vision defect detection systems learn ambiguity. A model cannot outperform the engineering discipline used to define defect classes and acceptance rules.

Unmanaged process drift

Tool wear, raw material shifts, surface oxidation, and thermal expansion slowly reshape the image distribution. Many failures appear gradual, not sudden, which makes trend monitoring essential.

Overreliance on demo metrics

Lab accuracy, curated image sets, and short pilot runs can hide real error rates. Production acceptance should include long-duration testing, mixed lots, dirty conditions, and borderline defects.

No measurement of confidence bands

Binary pass/fail logic hides uncertainty. Borderline images should trigger review queues or secondary inspection, especially where defect escape cost is high.

Poor maintenance discipline

A dusty lens, aging light source, loose mount, or drifting camera setting can degrade performance quickly. Optical maintenance should be treated like gauge control, not housekeeping.

Practical execution steps to improve reliability

1. Build a defect library from real production, not only seeded samples, and include borderline acceptable parts, lot variation, and known nuisance patterns.
2. Set separate control plans for optics, lighting, fixtures, and model performance, with routine checks tied to shift start, maintenance, and changeover events.
3. Track false accept rate, false reject rate, review rate, and image quality drift as independent metrics rather than one simplified accuracy number.
4. Use golden samples and challenge sets to revalidate machine vision defect detection systems after software changes, camera replacement, or process adjustments.
5. Escalate uncertain images to manual review when defect cost is critical, especially in regulated, safety-sensitive, or high-value assemblies.
6. Document validated operating windows for exposure, standoff distance, lighting intensity, speed, and part orientation so drift becomes measurable.

Conclusion: use machine vision defect detection systems with engineering discipline

So, when do machine vision defect detection systems fail? They fail when optical reality, process variation, and decision rules exceed the boundaries used to design and validate the system. Most failures are traceable to unstable inputs, weak training coverage, poor synchronization, or unmanaged drift.

The practical next step is simple: audit the inspection cell using a structured checklist, challenge it with real production variation, and treat vision performance as an engineering control loop. Better data, tighter tolerances, and disciplined revalidation will do more for inspection reliability than marketing claims ever can.
