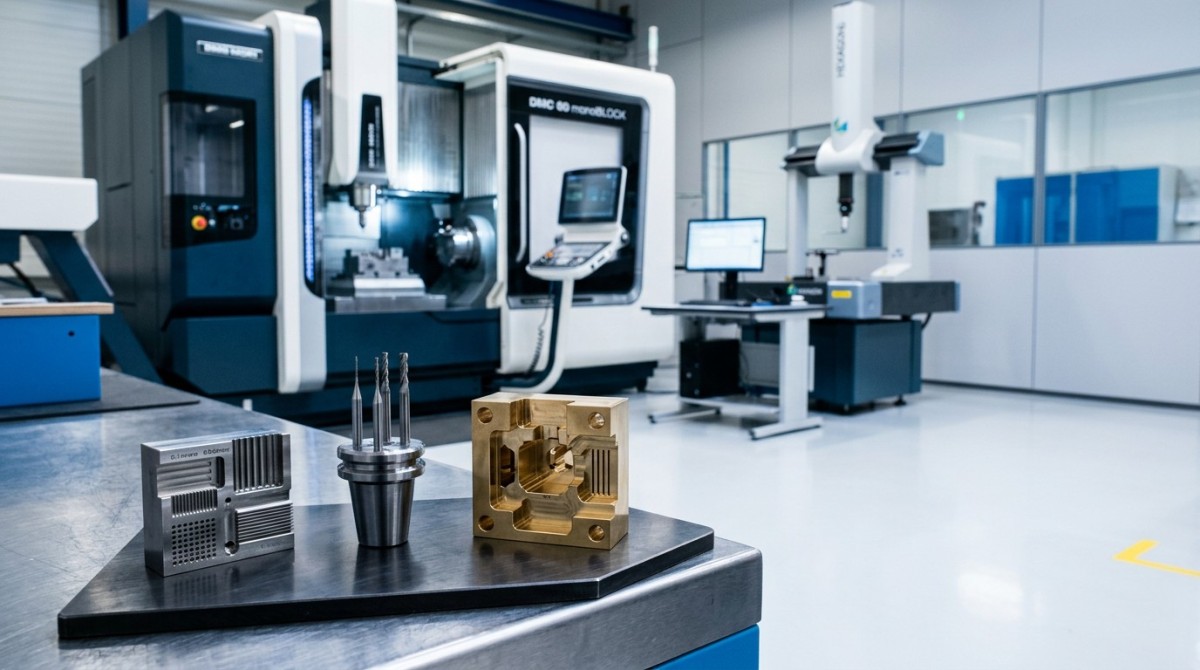

When micro machining tolerance limits raise cost too fast

Publication Date

Apr 22, 2026

author

Dr. Marcus Vance

In micro machining, tighter tolerance limits can improve fit and function, but cost often rises faster than expected once process windows collapse. For engineers, buyers, and sourcing leaders, understanding micro machining tolerance limits alongside cnc milling chatter frequency analysis, edm surface integrity analysis, and 5 axis cnc surface finish ra is essential to balancing performance, risk, and total manufacturing cost.

That tradeoff is no longer a niche issue limited to watch parts or medical needles. It now affects aerospace sensor housings, UAV micro brackets, edge AI optics mounts, high-frequency connector features, and precision tooling inserts. In many of these applications, moving from a tolerance of ±10 µm to ±5 µm does not double cost; under unstable process conditions, it can raise inspection effort, scrap exposure, and setup time by 2 to 5 times.

For B2B decision-makers, the real question is not whether tighter limits are technically possible. The question is where the economic cliff begins. TechStat Vanguard approaches this topic from an engineering benchmark perspective: what actually drives cost acceleration, which tolerances are function-critical, and how procurement teams can write specifications that protect performance without paying for unnecessary precision.

Why micro machining tolerance limits become expensive faster than expected

When micro machining tolerance limits raise cost too fast

In conventional machining, moderate tolerance tightening may be absorbed through better fixtures, tool offsets, or additional inspection. In micro machining, the margin is far smaller. A feature width of 0.20 mm, a wall thickness of 0.10 mm, or a hole below 0.30 mm changes the physics of cutting. Tool runout, spindle vibration, thermal drift, burr formation, and even operator handling begin to consume a large share of the allowed variation.

Cost rises sharply when the process capability index no longer supports the specified band with stable yield. For example, a supplier may hold ±8 µm consistently on a micro slot in stainless steel, but moving to ±3 µm may require lower feed rates, shorter tool life, 100% inspection, extra temperature control within 20–22°C, and more trial cuts. The machining cycle may increase by 30% to 80%, while scrap risk can rise beyond 10% if the feature is thin and unsupported.

This is where buyers often misread supplier quotes. The price increase is not simply “precision markup.” It reflects a shrinking process window. Once the window collapses, manufacturers add risk premiums to cover tool breakage, metrology time, fixture redesign, and the probability that one failed dimension forces rejection of the entire part.

For TSV’s audience, especially engineering leads and procurement directors, the key concept is functional tolerance allocation. Not every surface needs the same limit. If only 2 out of 12 dimensions affect sealing, optical alignment, or bearing fit, then over-tolerancing the remaining features wastes budget and lengthens qualification time.

The four main cost multipliers

  • Machine time increases as feed, depth of cut, and stepover are reduced to protect dimensional stability on features below 1 mm.
  • Tooling cost rises because micro tools from 0.05 mm to 0.50 mm wear quickly and are more sensitive to runout above 2–3 µm.
  • Inspection cost expands due to CMM, vision metrology, white light measurement, or higher sampling rates that may shift from AQL sampling to 100% critical-feature verification.
  • Yield risk grows because burrs, thermal expansion, and handling distortion become a larger percentage of total feature size.

A practical way to visualize this is to compare tolerance bands with process burden. The table below shows a typical cost pattern seen in precision machining programs. Exact values vary by material, geometry, and lot size, but the trend is consistent across medical, aerospace, and electronics-related parts.

Tolerance Band Typical Process Impact Relative Cost Effect
±10 to ±15 µm Standard precision setup, sampled inspection, stable cycle time Baseline
±5 to ±8 µm Higher fixture control, more offset correction, more frequent tool checks 1.3x to 2.0x
±2 to ±4 µm Climate control, reduced feeds, advanced metrology, higher scrap exposure 2.0x to 5.0x

The key conclusion is simple: the transition from “tight” to “ultra-tight” tolerance limits is often non-linear. Teams that identify the true critical dimensions early can avoid paying that premium across the entire drawing.

How chatter, EDM effects, and surface finish interact with tolerance control

Micro machining tolerance limits cannot be assessed in isolation. Three linked variables often decide whether a quoted tolerance is realistic at scale: cnc milling chatter frequency analysis, edm surface integrity analysis, and 5 axis cnc surface finish ra. These are not secondary quality topics. They directly affect dimension stability, fatigue behavior, assembly fit, and inspection repeatability.

Start with chatter. In micro milling, a small end mill can enter unstable vibration zones quickly because the tool has limited stiffness and the workpiece may have thin walls or interrupted contact. If chatter frequency overlaps with spindle-tool dynamics, surface waviness increases and the effective cut path shifts. A nominal 0.40 mm slot can drift several microns simply from unstable tool behavior, even when machine positioning accuracy appears acceptable on paper.

For EDM-made micro features, dimensional accuracy must be evaluated together with recast layer, microcracking risk, and heat-affected condition. EDM surface integrity analysis matters especially on aerospace alloys, hardened tool steel, and parts with fatigue-sensitive edges. A supplier may hit the dimension, but if white layer thickness, edge brittleness, or residual stress is not controlled, the component may fail functionally despite passing dimensional inspection.

Surface finish adds another layer. In 5-axis micro work, the specified Ra may range from 0.2 to 0.8 µm depending on sealing, optical, or low-friction requirements. However, forcing a lower Ra can drive slower stepovers, secondary finishing passes, and increased cycle time. On micro components, a better surface can also alter feature size if stock allowance is too small, so finish and tolerance must be planned together rather than issued as unrelated drawing notes.

What engineers should verify in process review

  1. Whether the critical feature is produced by milling, EDM, grinding, or a hybrid route, because each route has different capability and surface implications.
  2. Whether the supplier monitors chatter signatures, spindle condition, or tool wear intervals for tools below 1 mm diameter.
  3. Whether EDM parameters are tuned for surface integrity, not only dimensional shape, especially on fatigue-loaded parts.
  4. Whether the requested Ra is function-driven or simply copied from a legacy drawing.

The matrix below helps align process choice with risk. It is useful during supplier screening, DFM review, and tolerance negotiation before RFQ release.

Process Factor Primary Risk Control Priority
CNC milling chatter frequency Dimensional drift, waviness, burr formation Toolholding, spindle condition, parameter stability
EDM surface integrity Recast layer, microcracks, fatigue reduction Discharge tuning, post-process finishing, edge validation
5-axis CNC surface finish Ra Excessive cycle time, geometry shift after finishing Functional finish targeting, stock planning, path optimization

When these three variables are reviewed together, tolerance negotiation becomes more evidence-based. That is exactly the type of specification discipline TSV advocates: parameter-driven, not adjective-driven.

A practical specification strategy for engineers and procurement teams

Many cost overruns begin at the drawing stage. Teams often inherit limits from older programs, mix prototype assumptions with production requirements, or apply blanket notes that force unnecessary inspection across all dimensions. In micro machining, that approach is expensive. A more effective strategy is to split features into functional classes and assign tolerance limits based on real assembly and performance needs.

A 3-tier tolerance model works well for many B2B applications. Tier 1 covers mission-critical features such as optical seats, micro-fluidic sealing lands, bearing interfaces, or alignment datums. Tier 2 covers secondary assembly features where fit matters but can tolerate moderate variation. Tier 3 covers non-critical geometry, cosmetic surfaces, and clearance regions. This structure reduces supplier confusion and prevents RFQ inflation.

For example, on a small aerospace sensor bracket, only the datum stack, interface bore, and fastening face may truly require ±3 to ±5 µm and Ra below 0.4 µm. Peripheral pockets and weight-reduction contours may perform perfectly well at ±15 µm and Ra 0.8–1.6 µm. If all surfaces are specified at the tighter level, the supplier must process the whole part like a critical surface, which multiplies cost without improving mission outcome.

Procurement teams also benefit from asking suppliers for capability-by-feature rather than generic “can you hold ±0.003 mm?” claims. Capability is geometry-dependent. A vendor may hold that value on a short bore in aluminum but not on a 12 mm deep micro slot in titanium or on a 0.15 mm wall adjacent to an EDM corner.

Recommended RFQ checkpoints

  • Identify the 3 to 5 truly critical dimensions and explain their function in assembly, sealing, flow, optics, or fatigue life.
  • Separate dimensional tolerance, geometric tolerance, and surface finish requirements instead of applying one strict note to everything.
  • State the lot size, because process economics differ sharply between 20 prototypes, 500 pilot units, and 10,000 production units.
  • Define inspection expectations, such as first article only, statistical sampling, or 100% verification on critical features.

Typical tolerance planning ranges

As a general planning reference, prototypes often justify wider non-critical limits to accelerate learning, while validated production programs tighten only the features proven to influence function. A 2-step release path can cut iteration time by 20% to 40% compared with over-specified prototypes that consume budget before design freeze.

This approach also supports supplier qualification. Rather than rejecting a capable vendor for not offering ultra-tight limits on every surface, teams can benchmark whether the supplier controls the dimensions that actually define product performance.

Supplier selection, lead time, and hidden risk in micro precision sourcing

When micro machining tolerance limits are aggressive, the lowest quote can become the highest total cost. Hidden risk appears in three areas: unstable yield, long qualification cycles, and unclear metrology discipline. This is especially relevant for buyers sourcing across regions or evaluating suppliers for aerospace, medical-adjacent, robotics, and edge hardware applications.

Lead time is one of the clearest warning signals. A supplier quoting 7–10 days for a complex micro part with ±3 µm critical features may be omitting fixture development, capability validation, or serious inspection planning. A more realistic path for first-run precision parts is often 2–4 weeks, depending on material, documentation depth, and whether multiple operations such as milling, EDM, deburring, and passivation are required.

Another sourcing risk is “drawing compliance without application understanding.” If the supplier does not ask which dimensions are critical, how the part is assembled, or whether the feature is fatigue-sensitive, they may optimize only for pass/fail inspection. That can result in acceptable dimensions but weak surface integrity, burr contamination, or poor process repeatability in lots above 100 pieces.

Decision-makers should therefore evaluate sourcing maturity across engineering dialogue, process transparency, and verification readiness. A micro machining supplier is not just a machine owner; for critical components, the supplier functions as an extension of the product engineering chain.

Supplier screening factors that deserve more weight

The table below highlights practical decision criteria beyond unit price. It is useful for procurement teams comparing RFQs, technical teams issuing supplier scorecards, and executives reviewing sourcing risk for new programs.

Evaluation Factor What to Ask Why It Matters
Feature-specific capability Can you hold this tolerance on this material and geometry, not just in general? Prevents generic claims from masking geometry-related risk
Metrology method How are sub-millimeter features measured and how often? Inspection credibility affects acceptance and repeatability
Process route transparency Which features are milled, EDM cut, finished, or deburred in separate steps? Reveals cost drivers and surface integrity implications
Scale-up readiness What changes from prototype to 500-piece production? Avoids false confidence based on prototype-only success

A strong supplier conversation should become more detailed as tolerances tighten. If it remains generic, the sourcing risk is usually higher than the quote suggests.

FAQ: common decisions when tolerance limits start driving cost

How tight is “too tight” in micro machining?

There is no universal threshold, because material, feature size, aspect ratio, and process route all matter. In many commercial applications, cost starts accelerating sharply when dimensions move below ±5 µm on fragile or hard-to-access features. On simpler geometry in stable materials, that threshold may be lower. The important point is to compare tolerance demand with feature function and demonstrated process capability.

Should buyers ask for 100% inspection on all micro parts?

Not automatically. For critical features tied to sealing, optics, electrical contact, or safety, 100% verification may be justified. For non-critical geometry, sampled inspection is often enough. Full inspection on every dimension can add significant cost and may lengthen delivery by several days per lot without improving field performance.

When is EDM a better choice than milling for micro features?

EDM is often useful for sharp internal corners, hard materials, and delicate features where cutting force must be minimized. However, edm surface integrity analysis is essential if the component will face cyclic loading or critical edge performance. Dimension alone is not enough; the surface condition must support the real service environment.

Does lower Ra always improve functional quality?

No. A lower 5 axis cnc surface finish ra can help on sealing faces, optical mounts, or low-friction interfaces, but it is not universally beneficial. Sometimes it adds cycle time and finishing steps without measurable product benefit. Surface finish should be linked to contact behavior, wear, flow, or reflection requirements rather than specified as a blanket premium feature.

When micro machining tolerance limits raise cost too fast, the answer is rarely to reject precision altogether. The better answer is to define precision where it matters most, validate the process route with evidence, and align dimensional control with chatter behavior, EDM surface integrity, and finish requirements. That is how advanced manufacturing teams reduce trial-and-error cost while protecting product performance.

TechStat Vanguard focuses on this exact decision space: separating engineering truth from vague claims, translating specification risk into sourcing clarity, and helping technical and commercial teams evaluate hard-tech suppliers by measurable parameters rather than marketing language.

If your team is reviewing a micro precision RFQ, refining tolerance allocation, or benchmarking suppliers for aerospace, robotics, sensors, or advanced industrial components, contact TSV to discuss a data-driven evaluation framework, request a custom benchmarking brief, or explore more precision machining decision guides.
