Choosing a Radar Sensor by Application: Range, Resolution, and Field of View

A radar sensor that detects a distant vehicle may still fail to separate two nearby objects or monitor a narrow aisle without blind spots. The right choice is not the device with the longest advertised range. It is the device that reliably detects and distinguishes the required targets throughout the operating area, within the available response time.

Range, resolution, and field of view must therefore be evaluated together. Detection range depends on target radar cross-section and test conditions; resolution determines whether returns can be separated; field of view defines coverage but does not guarantee uniform sensitivity. Application-based radar sensor selection starts by translating the task into measurable acceptance criteria—not by ranking headline specifications.

Define the detection task before comparing sensors

“Detect obstacles within 30 meters” is incomplete. A metal vehicle, a person facing sideways, and a small plastic container present different radar returns. Their detectability also changes with orientation, motion, surrounding clutter, and partial obstruction.

A useful requirement identifies the smallest or weakest relevant target, its expected positions and speeds, and the decision the system must make. Detecting that something is present requires less information than separating two objects, estimating their positions, or maintaining individual tracks.

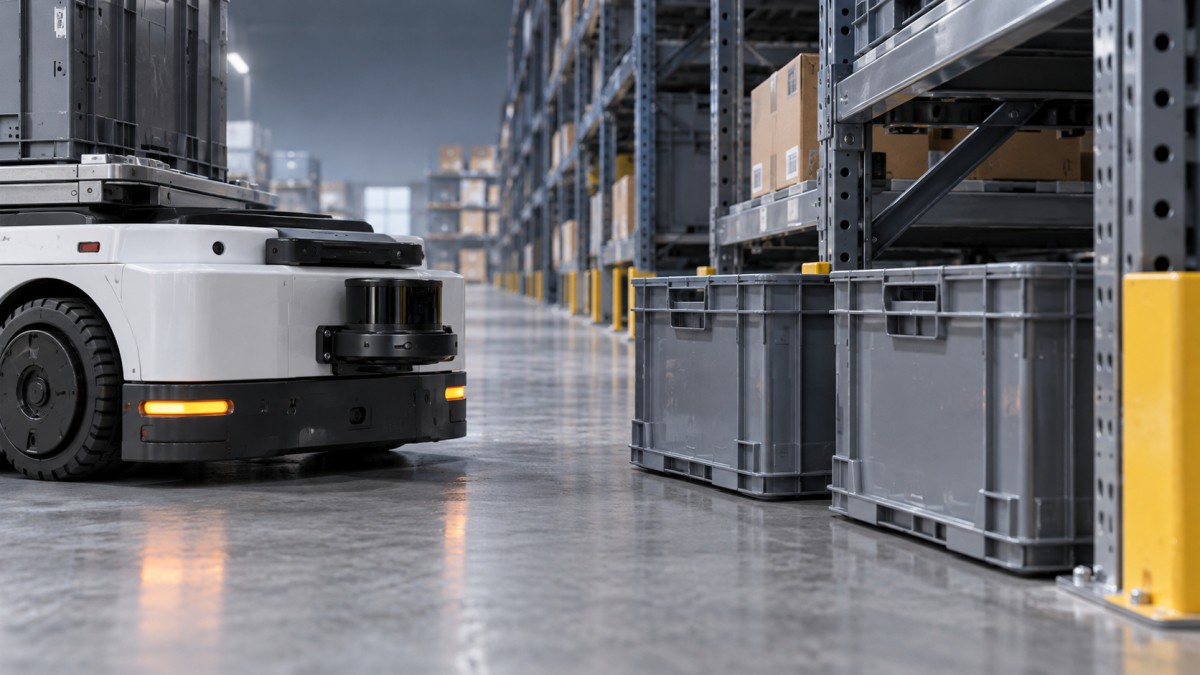

Consider an autonomous mobile platform approaching a junction. It may need to detect a pedestrian near the edge of coverage, distinguish that pedestrian from a metal rack, and deliver a stable track early enough to stop. Maximum range on a large reflector says little about that task.

Define the operating envelope in concrete terms:

• Targets: dimensions, materials, orientations, and representative radar cross-sections where available.
• Geometry: minimum and maximum distance, mounting height, required azimuth and elevation coverage, and occlusions.
• Motion: relative speed, crossing trajectories, stationary targets, and required response time.
• Acceptance: detection probability, permitted false alarms, position error, and allowable track interruptions.

These conditions provide the basis for comparing products. Without them, apparently equivalent specifications may describe entirely different capabilities.

Maximum range is conditional, not a coverage guarantee

For a simplified monostatic radar observing a point target in free space, received power falls approximately with the fourth power of distance. It also depends on transmitted power, antenna gain, wavelength, target radar cross-section, and system losses. Processing and the detection threshold then determine whether the return becomes a reported detection.

This explains why a range claim needs a target definition. A sensor demonstrated at long range against a large corner reflector has not demonstrated the same range against a pedestrian or a low-reflectivity object. Under otherwise unchanged idealized conditions, reducing radar cross-section by a factor of 16 halves the corresponding range—not a field-performance guarantee, but a useful illustration of the sensitivity.

Ask suppliers to state the reference target, its orientation, operating mode, detection probability, and false-alarm criterion associated with the advertised range. Also establish whether that range applies across the claimed field of view or only near the antenna boresight.

Minimum usable range deserves equal attention. Transmitter leakage, receiver recovery, filtering, enclosure reflections, and signal-processing settings can limit close-range performance. A sensor suitable for perimeter monitoring may leave an unacceptable gap immediately in front of a machine.

Separate instrumented range from demonstrated detection range. The former describes the configured measurement interval; it does not establish that every relevant target can be detected throughout it. Likewise, nominal range does not establish reliable performance through rain, contamination, or an installed protective cover.

Resolution is not the same as measurement accuracy

A sensor can estimate the distance to one isolated target precisely while failing to distinguish two nearby targets. That is the difference between accuracy and resolution. Reporting coordinates in millimeters does not establish millimeter-level accuracy, and neither specification establishes two-target separation.

Range resolution: separating targets in depth

For an ideal bandwidth-limited radar, nominal range resolution is approximately:

ΔR = c / (2B)

Here, c is the speed of light and B is the effective processed bandwidth. A 1 GHz bandwidth gives a nominal resolution of about 0.15 meters; 4 GHz gives about 0.0375 meters. These are calculated values, not measured product performance.

Windowing, unequal target strengths, noise, multipath, and detection processing affect practical separation. Two equally strong reflectors are an easier case than a weak object beside a strong metal surface. A requirement should therefore specify both spacing and relative return strength.

For tank-level measurement, separating the material surface from nearby internal structures may matter more than detecting multiple moving objects. For collision avoidance, two objects at nearly the same distance but different bearings demand angular resolution instead.

Angular resolution: separating targets side by side

Angular resolution depends strongly on antenna aperture relative to wavelength, array geometry, calibration, and processing. Antenna-channel count alone is not a reliable comparison: arrays with similar counts can have different effective apertures, sidelobes, and ambiguity behavior.

The spatial consequence becomes more significant with distance. Using the small-angle approximation, two targets separated by 5 degrees are about 1.75 meters apart laterally at 20 meters. A sensor with that effective angular separation capability should not be assumed to distinguish pedestrians standing half a meter apart at that distance.

Azimuth and elevation must be assessed separately. A radar may estimate horizontal bearing well but provide limited height discrimination. That limitation matters when distinguishing an overhead structure from an obstacle in the travel path.

“4D radar” or “imaging radar” is not a substitute for measured angular performance. Request two-target separation results, angular error across the operating region, and behavior when one return is substantially stronger than another.

Field of view describes an envelope, not uniform performance

A wide field of view can support intersection monitoring, occupancy detection, and close-range coverage. However, a quoted angle may represent an antenna beamwidth, a processing limit, or a detection boundary under particular conditions. These definitions are not interchangeable.

Sensitivity and angle-estimation quality can deteriorate away from boresight. A target detected near the center at a particular distance may disappear at the same distance near the coverage boundary. Request a range-versus-angle detection map for representative targets rather than treating coverage as a perfect sector.

For a planar cross-section, the geometric width at distance R is:

W = 2R tan(θ/2)

At 10 meters, a 60-degree horizontal field of view spans approximately 11.5 meters. This calculation establishes geometry only. It does not account for antenna gain, occlusion, target visibility, or processing limits.

Mounting geometry can matter more than the nominal coverage angle. A downward-tilted sensor may see the floor but miss elevated targets farther away. A high-mounted unit may encounter near-ground blind zones. A broad beam in a metal aisle can illuminate racks and walls, producing clutter or multipath detections outside the intended monitoring area.

Wider coverage is therefore not automatically better. If the application requires a narrow corridor, controlled coverage may reduce unwanted returns. A software exclusion zone can suppress reported objects, but it does not prevent those objects from contributing to the received signal.

Match the parameter balance to the application

The priority changes with the decision the sensor must support. The following distinctions are more useful than a universal ranking of range, resolution, and coverage.

Presence sensing illustrates why motion settings belong in the selection decision. Processing that suppresses static clutter can also suppress a motionless person. Conversely, sensitivity to small movements may increase responses to moving machinery or environmental disturbances. A human-presence mode and a moving-object mode should not be treated as equivalent.

For mobile equipment, detection distance must also support the response budget. A simplified stopping-distance calculation includes distance traveled during sensing and control latency, braking distance, and a safety margin. A nominally adequate sensor range can become inadequate if stable tracking requires several frames.

Compare a complete operating mode, not isolated maxima

Radar specifications are coupled. In FMCW systems, chirp slope, sampling rate, sweep timing, chirp repetition, and frame structure affect range coverage, velocity measurement, update rate, and processing load. Maximum bandwidth, maximum range, finest velocity resolution, and fastest output may not be available simultaneously.

Longer observation intervals can improve Doppler resolution but increase measurement time. Time-division MIMO configurations require attention to motion effects between antenna transmissions. These are not automatic disqualifiers; they are reasons to evaluate the exact waveform and processing mode proposed for deployment.

Ask for one configuration that meets the combined requirement. A comparison assembled from the best value in each datasheet row may describe no usable configuration at all.

The output interface also changes what can be verified. A tracked-object list is convenient, but its filtering may hide weak detections, merge targets, or delay object initiation. Point-cloud access offers more visibility without guaranteeing better sensing. Raw data provides deeper diagnostic capability at a substantially greater integration and processing burden.

Make acceptance tests reproduce the difficult decisions

A credible evaluation uses the final mounting position, enclosure or radome, power configuration, and firmware mode. Cover material, thickness, coatings, and nearby metal can alter antenna behavior or introduce reflections. Bare-board results are insufficient when the installed configuration changes the radio-frequency environment.

Test the boundaries where a wrong decision matters: the weakest target at maximum required range, the nearest target at the coverage edge, two closely spaced targets, and a weak return beside a strong one. Include stationary objects if they must remain detectable, and crossing trajectories if track identity matters.

Record more than successful detections. Measure missed detections, false alarms, time to first valid output, track continuity, and position error across repeated trials. Keep waveform settings, thresholds, and firmware versions fixed for comparisons; a detection-rate improvement obtained by accepting more false alarms is not a like-for-like gain.

If detection initiates a safety-related action, sensing performance alone does not establish suitability. Functional-safety claims, diagnostics, failure behavior, and system architecture require separate assessment. Radio compliance likewise does not validate obstacle-detection performance.

The decisive evidence is a demonstrated operating envelope: specified targets detected and separated at the required distances and angles, with acceptable latency and error rates in the installed configuration. A shorter-range radar that meets that envelope is a stronger choice than a longer-range device whose useful coverage remains undefined.
