How tight can micro machining tolerance limits really go?

How tight can micro machining tolerance limits really go when production moves from lab claims to audited manufacturing reality? For engineers, buyers, and decision-makers, the answer depends on material behavior, process stability, and verified data—from cnc milling chatter frequency analysis to 5 axis cnc surface finish ra, edm surface integrity analysis, and titanium grade 5 machinability. This article examines where precision is technically achievable, economically sustainable, and truly measurable.

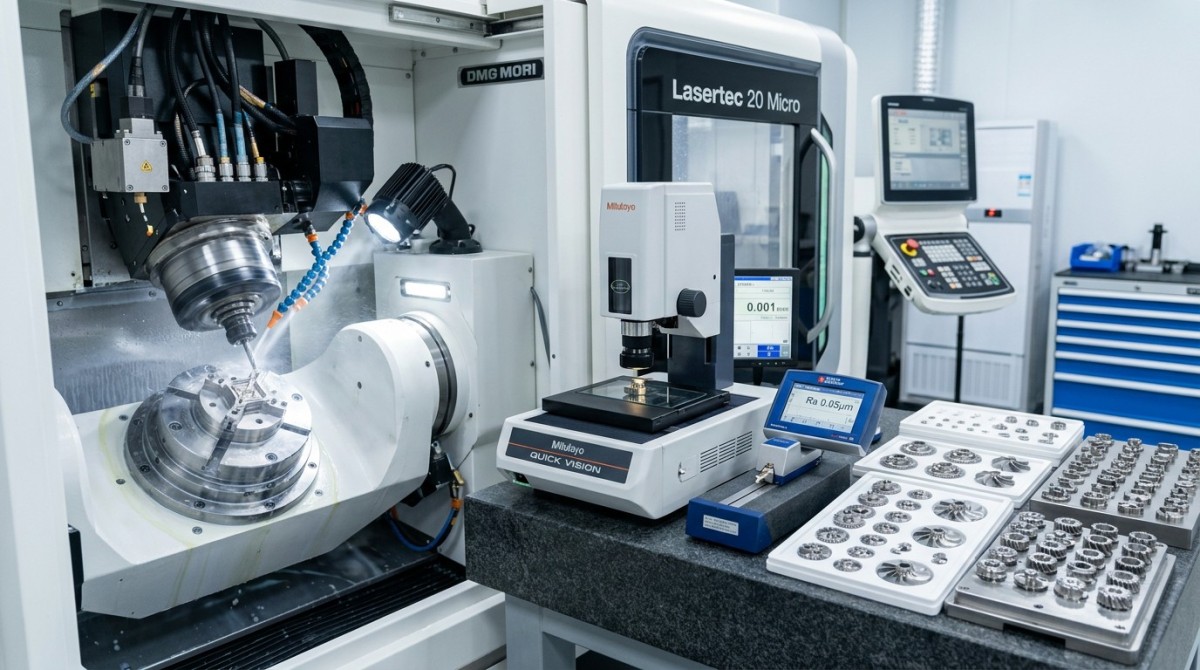

What do micro machining tolerance limits actually mean in production?

In precision machining, tolerance is not a marketing adjective. It is the allowed variation between nominal geometry and produced geometry, usually expressed in microns or thousandths of a millimeter. In micro machining, that variation can move from a relatively common ±10 µm range for small precision features to single-digit microns, and in very controlled cases even tighter, but only for specific feature types, materials, tooling conditions, and inspection methods.

That distinction matters because many published claims blur the line between a one-off laboratory sample and a repeatable production process. A supplier may demonstrate one critical bore at ±2 µm under a stable temperature band of 20°C ±1°C, yet fail to sustain that window over 50 parts, across multiple setups, or after tool wear accumulates. For procurement teams and CTOs, the real question is not the smallest number ever reached. It is the tightest limit that remains measurable, auditable, and economically stable.

Micro machining tolerance limits also depend on what is being toleranced. A flatness callout, a bore diameter, a wall thickness of 0.2–0.5 mm, and a positional tolerance across a 5-axis contour do not behave the same way. Surface finish can further complicate the issue. A component may hold dimension but still fail function if the 5 axis cnc surface finish ra is too rough for sealing, optics, fluid flow, or biomedical contact.

At TechStat Vanguard, the priority is to strip away vague precision language and return evaluation to engineering fundamentals. Parameters do not lie. If a tolerance claim is not paired with material condition, batch stability, measurement method, and process capability, it should not be used as a sourcing decision input.

A practical way to read tight tolerance claims

When reviewing supplier statements, separate theoretical capability from controlled production capability. A realistic reading framework includes at least 4 checks: feature type, material response, batch size, and inspection confidence. If any one of these is missing, the tolerance claim remains incomplete.

• Feature type: external diameters, micro slots, thin walls, and deep micro holes have different process limits and risk profiles.
• Material response: aluminum, stainless steel, ceramics, and titanium grade 5 machinability differ substantially in thermal expansion, cutting force, and burr formation.
• Batch context: tolerances proven on 3 prototypes may not hold across 100–500 production parts.
• Inspection confidence: sub-10 µm features may require CMM, vision metrology, air gauging, or specialized probing strategies.

How tight can tolerances really go across common micro machining processes?

Different processes reach different tolerance floors, and the practical limit is usually determined by the interaction between machine dynamics, tool geometry, workholding, temperature stability, and metrology. This is why direct comparisons between milling, grinding, turning, and EDM should be made carefully. A process that performs well on one micro feature may underperform on another.

For example, cnc milling chatter frequency analysis becomes essential when machining very small features with long-reach tools. Even if the machine spindle has high nominal precision, chatter can enlarge toolpath deviation and degrade both size and finish. Likewise, edm surface integrity analysis matters because a process may hold shape extremely well while introducing recast layer, micro-cracking risk, or altered surface condition that affects fatigue or medical cleanliness requirements.

The table below summarizes common production-level ranges. These are not promises for every part. They are practical reference bands used to frame sourcing discussions, process selection, and feasibility review.

These ranges show why the phrase “ultra-tight tolerance” is incomplete on its own. A supplier may hold ±3 µm on a simple cylindrical feature but only ±12 µm on a thin-wall 5-axis pocket in titanium. A sourcing team should therefore compare tolerances by feature family, not by brochure headline.

Why process dynamics set the real limit

Machine specification is only one layer. The real lower bound is often created by dynamic error. In micro milling, spindle runout, holder balance, and tool stick-out can consume a large fraction of a ±5 µm window. If chatter frequency overlaps with the system’s unstable zone, dimensional repeatability can degrade quickly after only 10–30 minutes of cutting.

In 5-axis work, interpolation accuracy and rotary axis calibration further influence the result. That is why 5 axis cnc surface finish ra should be evaluated together with positional accuracy. A part with acceptable average Ra may still show local witness marks, cusp inconsistency, or blend deviation that affects assembly and functional performance.

For EDM, dimensional control can be excellent, but the decision cannot stop at geometry. edm surface integrity analysis helps determine whether the process leaves a surface condition appropriate for fatigue-loaded aerospace components, precision molds, or medical parts where recast and heat-affected zones must be monitored carefully.

Which factors decide whether a quoted tolerance is sustainable?

A tolerance is sustainable only when the process remains inside that window over time, across operators, and through normal production variation. In practice, 5 factors dominate: material behavior, thermal stability, tool wear, fixturing strategy, and metrology discipline. If one of these is weak, the tolerance can still be hit occasionally, but not reliably.

Material behavior is especially important in micro parts. Aluminum may machine quickly but can deform after unclamping. Stainless steels can generate burrs and work hardening. Titanium grade 5 machinability introduces higher cutting forces, lower thermal conductivity, and greater sensitivity to tool wear, which makes very tight micro machining tolerance limits more difficult to sustain without disciplined process control.

Environmental control also matters more as tolerances tighten. A 2°C to 3°C temperature swing may be acceptable for general machining, yet it can become meaningful when feature size is tiny and tolerances fall into single-digit microns. The same applies to measuring strategy. A claimed ±4 µm tolerance means little if gauge repeatability and reproducibility are not suitable for that level.

For procurement and supplier qualification, the next table offers a practical checklist. It helps distinguish a capable production partner from a supplier that only demonstrates isolated precision under favorable conditions.

This checklist shifts discussion from generic quality language to engineering evidence. It also reflects TSV’s core approach: benchmark on parameters, not adjectives. If a supplier cannot specify the tolerance by material, feature, batch size, and inspection route, the risk remains high no matter how polished the presentation appears.

Common warning signs during technical review

• The quotation lists a blanket tolerance for all features instead of differentiating bores, slots, thin walls, and 3D contours.
• Surface finish is stated without measurement direction, cut-off, or location, making 5 axis cnc surface finish ra hard to interpret.
• EDM is proposed for fatigue-sensitive parts without any discussion of edm surface integrity analysis or post-processing.
• The supplier references titanium experience broadly but provides no part-family evidence related to titanium grade 5 machinability.

A reasonable validation path before volume release

For many B2B projects, a 3-stage validation route is the safest approach. Stage 1 is feasibility review and tolerance stack discussion. Stage 2 is a pilot lot, often 10–30 pieces, with dimensional and finish reporting. Stage 3 is controlled pre-production, where delivery rhythm, scrap behavior, and repeatability are checked before larger commitments.

This staged approach is especially useful when parts involve multi-axis geometry, thin features, aerospace documentation, or medical traceability. It reduces trial-and-error costs and shortens supplier qualification cycles, which is exactly the value data-driven benchmarking should create.

How should buyers compare tolerance, cost, and risk?

The tightest tolerance is not always the best purchasing choice. Once the tolerance window moves from, for example, ±20 µm toward ±5 µm or below, cost and lead-time pressure often rise disproportionately. More stable equipment, slower cutting parameters, more inspection frequency, and higher scrap exposure all affect total acquisition cost. Buyers should therefore distinguish between functional need and specification habit.

A useful procurement question is simple: which dimensions are truly critical to function, and which are inherited from legacy drawings or over-conservative design habits? If only 2 or 3 features directly govern sealing, optics, fit, or motion accuracy, those may justify premium control. Other features might be relaxed to improve manufacturability, shorten lead time by 1–3 weeks, and reduce the chance of supplier churn.

The following decision structure helps purchasers, operators, and engineering leaders align around value rather than headline precision.

A practical 5-point procurement screen

1. Identify 3 classes of dimensions: function-critical, assembly-critical, and general dimensions.
2. Ask whether each tight callout is tied to measurable product performance such as leakage, runout, optical path, or fatigue margin.
3. Compare at least 2 process routes if applicable, such as micro milling versus EDM, rather than assuming one process is universally superior.
4. Request a pilot-lot control plan that specifies inspection frequency, tool replacement logic, and nonconformance response.
5. Review delivery realism. A supplier quoting extreme tolerances with unusually short lead time may be transferring risk into scrap, rework, or shipment instability.

This is where independent technical benchmarking becomes valuable. TechStat Vanguard’s role is not to inflate supplier claims, but to help engineering teams draft better spec sheets, compare process capability rationally, and reduce noise in supplier selection. In markets shaped by automation, aerospace, sensors, and regulated manufacturing, a poor tolerance decision can increase both qualification time and downstream failure cost.

When is it worth paying for tighter tolerance?

Pay the premium when the dimension directly controls mission-critical performance: high-speed rotating balance, microfluidic sealing, sensor alignment, optical focus, or surgical interaction. Do not pay automatically when the tight callout adds little functional value and mainly reflects inherited drafting culture. In many cases, the better investment is stronger inspection clarity, improved surface integrity, or better supplier traceability rather than a narrower number on paper.

For operators and production planners, this distinction matters as well. Overly tight specifications can create unnecessary setup complexity, more frequent offset changes, and unstable throughput. A toleranced feature should be tight because the product needs it, not because the market rewards dramatic micron claims.

FAQ: what do engineers and sourcing teams ask most often?

Can micro machining always achieve single-digit micron tolerance?

No. Single-digit micron control is feasible in selected cases, but not as a blanket promise across all materials, features, and volumes. A simple ground diameter may hold far tighter than a thin-wall 5-axis pocket or a micro feature in titanium. The production question should always be feature-specific and batch-specific.

How important is surface finish when evaluating tolerance capability?

It is highly important. Size without surface control may still fail function. For sealing, optics, sliding contact, and medical interfaces, 5 axis cnc surface finish ra can be as critical as nominal geometry. Buyers should request both dimensional acceptance and finish acceptance, including where and how roughness is measured.

Is EDM better than CNC for tight micro features?

Sometimes, but not universally. EDM can excel for hard materials, delicate shapes, and sharp internal corners because there is no cutting force. However, edm surface integrity analysis is necessary if the part will see fatigue loading or sensitive downstream use. CNC may be preferable when surface condition, material behavior, and productivity align better with the feature.

Does titanium automatically mean looser tolerances?

Not automatically, but titanium grade 5 machinability usually increases process difficulty. Heat concentration, tool wear, and cutting force can make sustained micro tolerance control harder than in aluminum or free-machining alloys. The right answer depends on geometry, toolpath strategy, coolant approach, and how the part is inspected.

Why consult TechStat Vanguard before locking a tolerance strategy?

Hard-tech supply chains are crowded with vague precision claims. TSV was built to serve engineering teams, procurement leaders, and decision-makers who need something stricter: benchmarkable parameters, process-aware interpretation, and sourcing guidance grounded in manufacturing reality. Our focus is to reduce information noise so teams can make decisions based on measurable engineering truth.

If you are comparing micro machining tolerance limits, reviewing cnc milling chatter frequency analysis, checking 5 axis cnc surface finish ra expectations, validating edm surface integrity analysis, or assessing titanium grade 5 machinability for a new program, the right next step is a structured technical review rather than a generic supplier pitch.

You can contact TSV for practical support on 6 decision areas: parameter confirmation, process route comparison, supplier evaluation criteria, tolerance-risk review, certification and documentation expectations, and pilot-lot planning. This is especially useful when you need to align R&D, operations, quality, and procurement within a 2–4 week sourcing window.

Bring your drawing package, target material, expected batch size, and critical functional dimensions. We can help you clarify which tolerances are realistic, which ones are expensive without adding value, what inspection evidence to ask for, and how to structure quotation requests so that suppliers respond with engineering data instead of broad claims.
