How Do You Verify That Precision Machined Parts Meet Tolerances?

To verify that precision machined parts meet tolerances, measure each specified characteristic using a suitable method, reproduce the drawing’s datum requirements, and apply an agreed acceptance rule that accounts for measurement uncertainty. A reading inside the tolerance limits is useful evidence only when the measurement setup can reliably distinguish an acceptable part from an unacceptable one.

Reliable precision machining tolerance verification therefore involves more than choosing between a micrometer and a coordinate measuring machine (CMM). The inspection method must match the feature, the required tolerance, and the condition in which the part will be accepted. A shaft diameter, a hole pattern, and a thin sealing surface can require very different approaches.

Start with the drawing: what must actually pass?

Before selecting equipment, establish the current drawing revision, units, general tolerances, material condition, and applicable geometric dimensioning and tolerancing (GD&T) conventions. Include drawing notes and referenced specifications in the inspection plan. They may define requirements that do not appear beside individual dimensions.

Separate size requirements from geometric requirements. A bore can have an acceptable measured diameter while its axis is incorrectly located. A plate can meet its thickness tolerance while failing flatness. Checking one characteristic does not establish compliance with another.

Datum references determine how many geometric checks must be performed. They establish the reference system used to evaluate the part. If an inspector aligns a hole pattern to whichever surfaces produce the smallest deviation, the resulting report may conceal an error relative to the specified mounting interfaces.

Acceptance must also occur at the correct manufacturing stage. Heat treatment, plating, anodizing, grinding, and other finishing operations can change dimensions or geometry. An inspection performed before a dimension-changing operation does not establish final compliance unless the requirement explicitly applies at that earlier stage.

A useful inspection plan connects every requirement to its measurement method, setup, inspection stage, and record. That connection makes omissions visible before parts reach final inspection.

Compare measurement methods by the feature they must verify

No instrument is the strongest choice for every characteristic. Simple tools can provide excellent results for accessible dimensions, while complex geometry may require coordinated measurement or specialized equipment.

For a turned shaft, a micrometer may be the practical choice for diameter control. Measurements at multiple axial and angular positions can reveal taper or variation, but they do not automatically constitute a complete roundness evaluation.

For a mounting bracket with a controlled hole pattern, a CMM can evaluate the holes relative to the specified datums. The report should show the required geometric result; separate coordinate deviations may not be enough to demonstrate compliance with the complete position requirement.

For repeated production of a mating feature, a correctly designed functional gauge can make acceptance faster. Its value depends on representing the specified functional boundary. Trying the part in an arbitrary mating component provides weaker evidence because that component has its own dimensional variation and wear.

Select the method by what it must detect. An instrument that measures diameter accurately may still be unsuitable for proving hole location, surface texture, or full geometric form.

Why a CMM report can still give the wrong impression

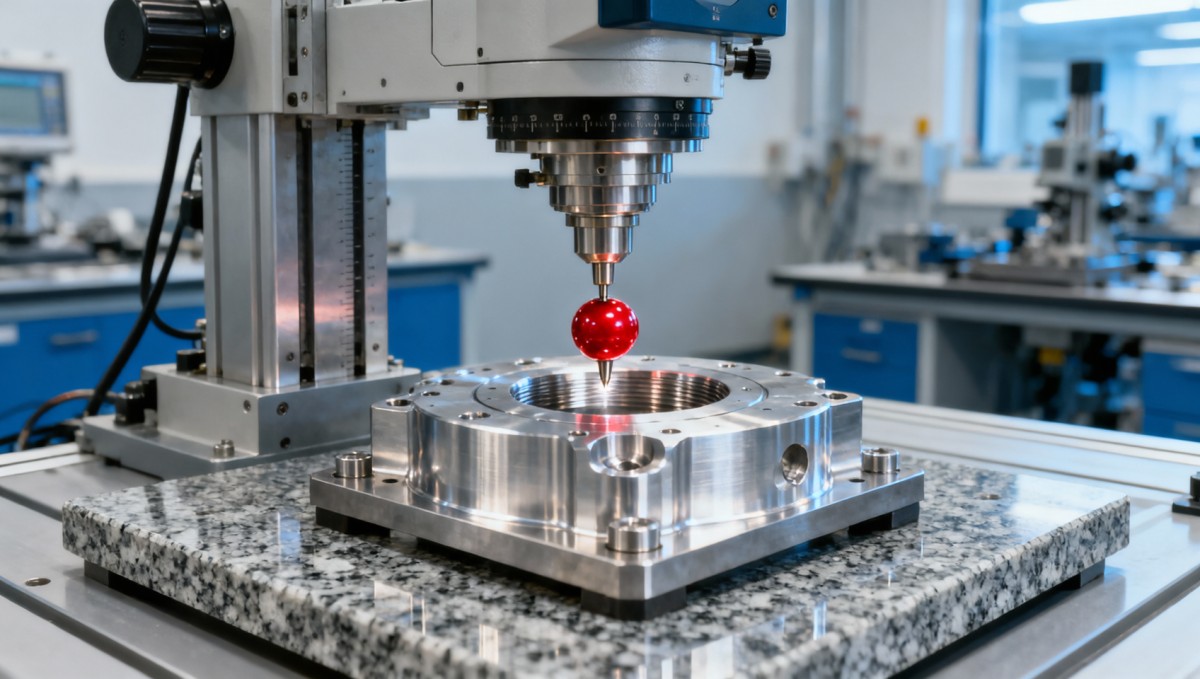

A CMM provides powerful measurement capability, but its output reflects the inspection program. A polished report cannot compensate for an unsuitable alignment or an incomplete sampling strategy.

Consider a housing whose mounting face establishes the primary datum. The inspection setup must establish that reference in a way consistent with the drawing. Replacing the required datum alignment with an unrestricted best fit can redistribute errors and make a nonconforming feature appear closer to nominal.

Point distribution matters as well. A sparse set of touches can miss local surface variation between sampled locations. Scanning collects more information, although it still requires appropriate probe settings, filtering, and evaluation. More data helps only when it represents the characteristic being assessed.

For critical features, the inspection record should identify the datum alignment, measurement locations or scanning approach, and relevant evaluation settings. If suppliers report different results, these details often explain the disagreement more effectively than comparing equipment brands.

Resolution, calibration, and uncertainty answer different questions

Resolution is the smallest increment an instrument displays or resolves. It does not establish how closely the result represents the actual dimension. Additional decimal places can make an uncertain result look more convincing without improving it.

Calibration establishes the relationship between an instrument’s indications and reference values under specified conditions. A current calibration record supports confidence in the instrument, but the actual task also includes the fixture, part, environment, operator, and method.

Measurement uncertainty describes the uncertainty associated with the reported result. For a particular inspection, relevant contributors can include instrument performance, repeatability, temperature, alignment, contact force, and the method used to sample the surface.

When comparing inspection options, ask whether the complete measurement process has sufficiently small uncertainty for the tolerance being assessed. A broad tolerance may be straightforward to verify with shop-floor equipment. A narrow tolerance may require controlled conditions, a different method, or both.

Borderline results need an agreed decision rule. Under a guard-banded acceptance rule, the acceptance limits are set inside the specification limits to reduce the risk of accepting a nonconforming part. Other rules allocate decision risk differently. The rule should be established before inspection, particularly when results are close to a limit.

A result that does not demonstrate conformity under the chosen rule may require further evaluation; it should not automatically be described as proven nonconforming. Keep the measured value, uncertainty, and acceptance decision distinct in the record.

Control the conditions that can change the verdict

Temperature can change both part dimensions and measuring equipment behavior. A component brought directly from machining may still be cooling, and a large part can retain temperature gradients after its surface feels stable. Measurements should relate to the specified reference conditions, using appropriate stabilization or validated compensation.

Material matters because different materials expand by different amounts. Compensation also depends on suitable material data and representative temperature measurements. It cannot reliably correct an unknown temperature gradient throughout a component.

Clamping can create another source of disagreement. A thin wall may distort under fixture force, while a soft component may deform under a probe or micrometer. The inspection setup must reflect any specified restrained or free-state condition. Otherwise, it may measure the effect of the fixture as much as the manufactured geometry.

Cleanliness and surface condition deserve the same attention. Chips under a datum face, residue in a bore, or a burr at an edge can alter readings. Clean the part using an appropriate method, and distinguish removable contamination from an actual manufacturing defect. Inspection preparation should not alter the feature to obtain a passing result.

If two methods disagree, compare their setups before deciding which reading to trust. Check whether they measured the same locations, used the same references, and applied comparable contact forces and environmental conditions.

First article, sampling, or full inspection?

These approaches answer different questions. A first article inspection establishes whether the evaluated manufacturing output meets the documented requirements. It can reveal misunderstood dimensions, missing operations, and inspection gaps before production continues. It does not establish that every later part will conform.

Sampling reduces inspection effort, but its usefulness depends on the sampling plan, lot definition, process behavior, and consequences of an escaped defect. A passing sample supports a lot acceptance decision under the plan; it does not prove that every unmeasured part is acceptable.

Full inspection checks every part for the selected characteristics. It can be appropriate for critical features or unstable processes, but it still depends on a capable measurement system. An unsuitable method can repeatedly miss the same defect, even when every component passes through inspection.

A practical strategy often combines detailed initial verification, production checks that respond to tool wear or process changes, and final acceptance checks on selected characteristics. Inspection intensity should reflect feature risk and evidence of process control.

Process capability data can support this strategy when the process is stable and the measurement system is adequate. A capability index alone does not prove compliance with all drawing requirements, particularly geometric characteristics that were never included in the study.

What a useful inspection report should contain

A supplier’s inspection report should make the acceptance decision reproducible. A document containing only nominal dimensions and a column of “pass” entries provides little basis for assessing a tight tolerance or investigating an assembly problem.

Look for the following information:

• Part identity: part number, drawing revision, and traceable lot or serial identification.
• Requirement mapping: each reported result linked to a drawing characteristic, with its tolerance and units.
• Actual results: measured values where applicable, plus clear identification of limit-gauge or functional-gauge checks.
• Measurement basis: equipment identification, relevant calibration status, datum setup, and inspection method.
• Acceptance context: manufacturing stage, inspection coverage, and the decision rule where uncertainty affects acceptance.
• Disposition: identification of deviations and any documented authorization affecting acceptance.

Detailed method records need not accompany every routine shipment, but they should be available for critical requirements or disputed results. A report should also distinguish measurements from an initial sample from those obtained on the delivered production lot.

Quality management certifications support assessment of a supplier’s systems; they do not specify the tolerances for an individual component or replace dimensional evidence. Compliance still depends on the drawing, the measurement process, and the results associated with the parts being accepted.

Before ordering, agree on the critical characteristics, inspection stage, datum setup, measurement methods, and required records. For a borderline result, resolve uncertainty and the acceptance rule before authorizing shipment. That preparation gives both parties a common basis for deciding whether the parts meet the requirements—and makes inspection evidence useful when the assembly must work.
