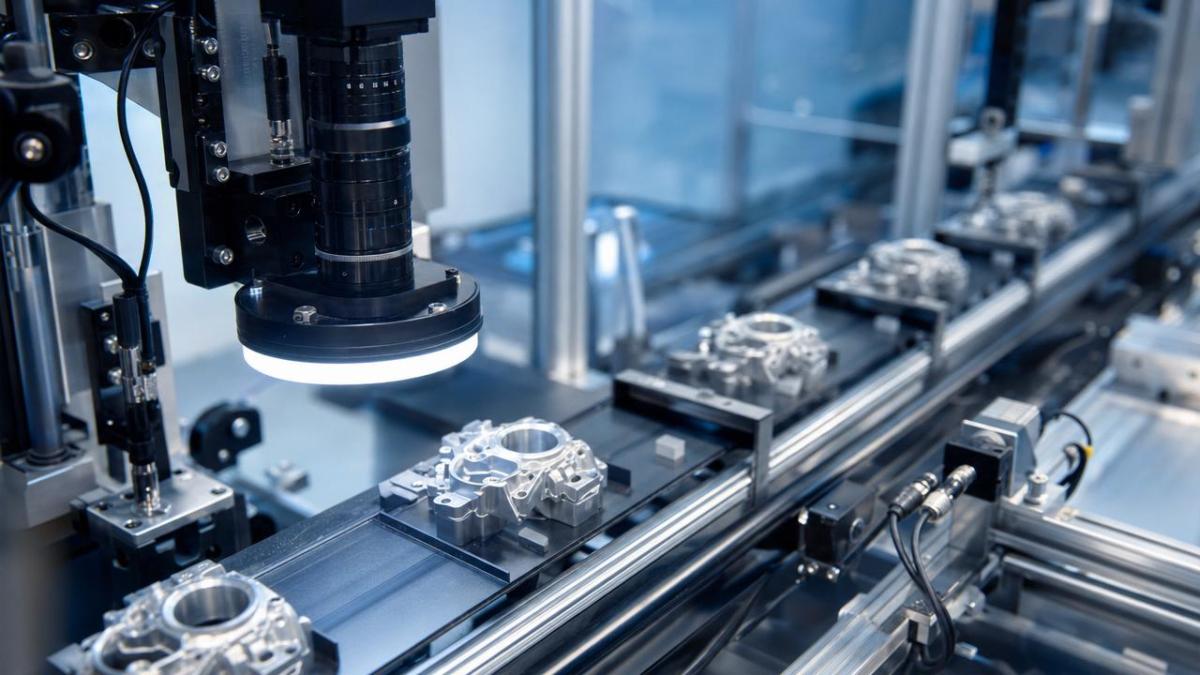

Why vision inspection passes samples but misses defects

Many quality teams trust machine vision for quality inspection because approved samples look consistent in testing—yet real defects still slip through on the line. The gap often lies in lighting drift, sample bias, tolerance settings, and unstable production conditions. Understanding why inspection systems pass samples but miss failures is essential for improving traceability, reducing false confidence, and building a more reliable defect detection process.

Why a checklist approach is the fastest way to diagnose missed defects

For quality control teams and safety managers, the problem is rarely that machine vision for quality inspection is useless. The real issue is that many systems are validated in a narrow, controlled setup and then expected to perform under shifting production reality. A checklist-based review works better than a general discussion because missed defects usually come from a small number of repeatable failure points: image acquisition, part presentation, model assumptions, decision thresholds, and process variation.

If sample parts pass but field defects escape, do not begin by blaming the camera or the software alone. First confirm whether the inspection standard, the sample library, and the line environment still match each other. In practical terms, machine vision for quality inspection fails when the system is asked to judge conditions it was never properly trained, tuned, or maintained to recognize.

Start here: the 8-point inspection checklist quality teams should verify first

1. Lighting stability: Check whether brightness, angle, glare, shadow, and color temperature remain stable across shifts. Even a minor lighting drift can make good parts look defective or hide real flaws.
2. Part positioning repeatability: Confirm whether the product arrives at the camera in the same pose, height, speed, and orientation used during setup.
3. Representative sample coverage: Review whether approved and rejected samples include real process variation, not just ideal examples from engineering trials.
4. Tolerance and threshold settings: Verify whether pass/fail limits reflect actual risk. Thresholds that are too wide miss defects; thresholds that are too tight generate noise and operator override behavior.
5. Optics and focus condition: Inspect lens cleanliness, focus drift, vibration, and depth-of-field limits. A clean algorithm cannot compensate for blurred or unstable images.
6. Trigger and timing accuracy: Make sure the image is captured at the correct moment. Motion blur and poor synchronization often explain why defects appear inconsistently.
7. Change control discipline: Check whether tooling changes, supplier shifts, material lot differences, or line speed increases were introduced without revalidation.
8. Feedback loop quality: Confirm whether escaped defects are traced back into the vision rule set, sample library, and maintenance plan.

This checklist gives teams a practical starting point before deeper software tuning. In many plants, the biggest gains in machine vision for quality inspection come from process discipline and data traceability, not from replacing hardware immediately.

The most common reasons samples pass but production defects are missed

1. Your sample set is too clean and too narrow

Many systems are tuned using golden samples and a small set of obvious rejects. That creates a dangerous gap. Real production includes borderline scratches, mixed finishes, slight color variation, burrs, partial contamination, and dimensional drift that does not appear in the lab. If your approved test set does not represent the worst normal variation, then the system may look excellent during acceptance and still miss defects on the line.

A reliable machine vision for quality inspection program needs a defect library built from live production history: shift changes, supplier lots, worn tooling, seasonal humidity shifts, and actual customer return cases.

2. Lighting drift changes the meaning of the image

Vision tools do not see a defect the way a person does; they interpret contrast, edges, texture, grayscale values, and shape relationships. When lights age, covers get dirty, reflective surfaces vary, or ambient light leaks into the station, those image relationships shift. A scratch that was obvious at commissioning can become invisible months later.

This is why lighting control should be treated as a process parameter, not just installation hardware. Record illumination baselines, replacement intervals, and contamination checks as part of the inspection plan.

3. The pass/fail threshold was chosen for convenience, not risk

Some teams loosen thresholds to reduce false rejects and keep output moving. This creates “sample success” during trial runs because the system appears stable. But the price is hidden: subtle defects slip through, especially when they sit near the decision boundary. For safety-critical or customer-visible products, threshold setting must be tied to defect severity, downstream impact, and escape cost.

A useful rule is simple: if operators often override alarms, your threshold strategy is probably wrong; if customers find defects your station never flags, it is definitely incomplete.

4. Production variation exceeded the original design assumptions

Even strong machine vision for quality inspection systems fail when production changes faster than validation. New raw materials, slightly different surface reflectivity, fixture wear, conveyor vibration, compressed-air fluctuations, and part temperature can all change the visual signature. Vision systems are highly sensitive to these variables because they rely on repeatable image formation before any defect logic begins.

5. Teams validated detection rate but ignored traceability quality

A station may report acceptable detection performance, but if images, timestamps, part IDs, alarm categories, and root-cause outcomes are not linked, continuous improvement becomes guesswork. Quality teams need more than a pass/fail output. They need evidence showing when, where, and under what conditions misses occurred. Without this, recurring escapes cannot be separated from random noise.

Use this practical table to judge where the weakness really sits

Extra checks by production scenario

For high-volume lines

• Prioritize timing accuracy, motion blur control, and reject mechanism confirmation.
• Audit whether line speed increases were introduced after initial validation.
• Review false confidence risk: high throughput can hide low-frequency but high-cost escapes.

For safety-sensitive products

• Define defect classes by severity, not only by visibility.
• Use layered verification, such as periodic manual audits or secondary sensing.
• Set clear escalation rules for borderline results rather than forcing binary decisions on uncertain images.

For multi-supplier or multi-lot manufacturing

• Track visual variation by supplier, finish, coating, and material batch.
• Do not assume the same machine vision for quality inspection recipe works equally well across all incoming part conditions.
• Revalidate whenever appearance changes, even if nominal dimensions remain within spec.

Commonly ignored risks that create false confidence

Several warning signs are often underestimated. First, teams may celebrate high benchmark accuracy without checking whether the benchmark data reflects current production. Second, maintenance may clean optics but not verify recalibration. Third, software updates, recipe edits, or operator workarounds may be introduced without controlled documentation. Fourth, defect definitions themselves may be unclear: engineering, production, and customer quality may each use a different mental threshold for what counts as failure.

These gaps matter because machine vision for quality inspection is not just an imaging tool; it is a decision system inside a manufacturing process. If decision ownership is unclear, escapes will continue even with better cameras.

Execution plan: what quality teams should do in the next 30 days

1. Collect all known escaped defects from the last three to six months and sort them by visual pattern, severity, and production source.
2. Run a lighting and optics audit at different times of day and across shifts.
3. Compare current line conditions against the original acceptance test conditions.
4. Review threshold logic with both quality and process engineering, not in isolation.
5. Create a controlled sample expansion plan including borderline cases and real production variation.
6. Add traceability fields if missing: image archive, lot, machine state, operator, timestamp, and final disposition.
7. Define a formal revalidation trigger for supplier, material, fixture, speed, or lighting changes.

FAQ for teams evaluating machine vision for quality inspection

If samples pass, does that prove the system is capable?

No. It only proves the system works on those samples under those conditions. Capability must be confirmed against realistic variation and long-term process drift.

Should we retrain or retune the model every time production changes?

Not every minor change requires a full rebuild, but any change affecting image formation or appearance should trigger structured review and, if needed, revalidation.

Is false reject reduction always a good sign?

No. Lower false rejects may simply mean the system became less sensitive. Always compare false reject trends with escaped defect trends.

Final guidance before you adjust equipment, suppliers, or inspection strategy

When machine vision for quality inspection passes samples but misses defects, the right response is disciplined diagnosis, not guesswork. Start with the checklist: lighting, positioning, samples, thresholds, optics, timing, change control, and traceability. Then verify whether the inspection logic still matches actual production behavior. For quality and safety teams, this approach reduces false confidence and turns inspection from a static gate into a measurable control process.

If your organization needs to improve inspection reliability, the most useful next discussion points are these: defect categories by risk, current escape evidence, line condition variability, image traceability depth, revalidation triggers, and acceptable trade-offs between false rejects and missed defects. Those inputs make supplier conversations, internal audits, and system upgrades far more precise—and far more likely to produce engineering truth instead of marketing claims.
