Why micro machining for optical components often misses yield

Why does micro machining for optical components so often fall short on yield, even when tolerances look acceptable on paper? The answer usually sits outside nominal dimensions.

In practice, micro machining for optical components is shaped by tool wear, thermal drift, burr behavior, surface integrity, and metrology correlation.

These variables can quietly reduce pass rates long before a drawing shows any obvious problem. Yield loss often begins as a process interaction, not a single defect.

Across precision manufacturing, optics are becoming more demanding. Smaller apertures, tighter form accuracy, and cleaner edge conditions raise the bar for every machining decision.

Micro machining for optical components is facing a sharper yield reality

The market now expects optical parts to perform inside imaging, sensing, aerospace, medical, and industrial automation systems with less room for variation.

That shift changes how micro machining for optical components must be evaluated. A part may meet dimensional tolerance yet still fail optical, assembly, or reliability requirements.

This is why reported capability can appear strong while actual yield remains unstable. Engineering truth lives in the interaction between geometry, surface, edge, and measurement.

Recent trend signals are clear:

• Miniaturized optical components are using thinner walls and smaller feature sizes.
• Optical assemblies require better consistency across batches, not only standout samples.
• Surface and subsurface damage limits are becoming stricter in high-performance systems.
• Metrology expectations now include form, roughness, edge quality, and process traceability.

Why acceptable tolerances still fail in real micro machining for optical components

Yield gaps usually come from hidden process contributors. The drawing shows one story, while the machine, tool, material, and inspection chain tell another.

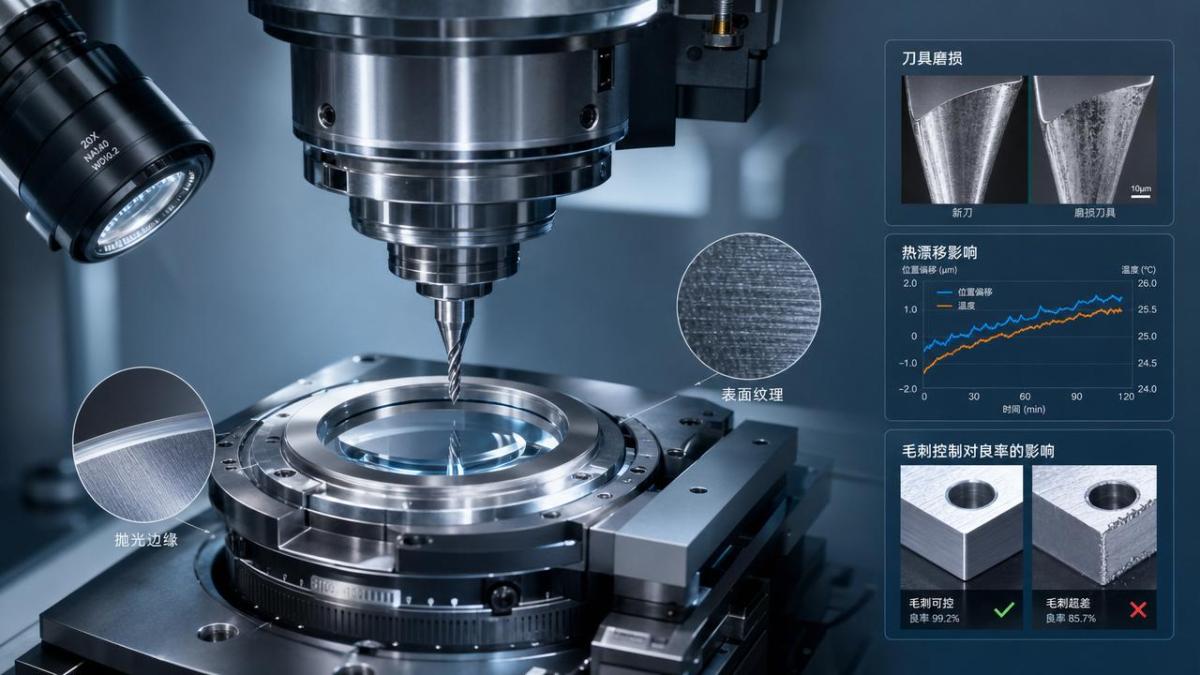

Tool wear changes the cut before dimensions drift visibly

In micro machining for optical components, tool edge radius is not a minor detail. It changes chip formation, plowing behavior, and local heat generation.

A worn tool may still hold size for a short time. Yet it can increase haze, micro burrs, pull-out, or edge fracture that reduces optical performance.

Thermal drift creates geometry errors that inspection may miss early

Micro-scale work is highly sensitive to temperature variation. Spindle growth, fixture expansion, and coolant instability can alter feature location and form.

For optical parts, these small shifts can affect concentricity, focal alignment, and sealing interfaces. Yield suffers even if isolated dimensions remain within limits.

Burr control is a functional issue, not only a cosmetic issue

Burrs at micro scale can scatter light, interfere with assembly, trap contamination, or damage coatings during downstream handling.

Deburring can also introduce secondary risk. Aggressive manual correction may change edge radius, distort thin features, or create inconsistent results between lots.

Surface integrity matters beyond Ra numbers

Many teams monitor roughness but overlook subsurface microcracks, smeared material, residual stress, and recast-like edge effects from unstable cutting conditions.

For micro machining for optical components, these hidden conditions often influence coating adhesion, fatigue behavior, and long-term optical stability.

Metrology mismatch hides the real failure mechanism

A process cannot achieve stable yield if measurement methods do not match the function of the feature being measured.

Contact measurement may deform delicate structures. Optical measurement may struggle with reflectivity, transparency, or steep local geometry. Correlation gaps create false confidence.

The main drivers behind low yield are becoming easier to identify

The following table summarizes why micro machining for optical components often misses yield, even inside a controlled production environment.

The impact of weak yield now reaches beyond scrap and rework

Low yield in micro machining for optical components no longer stays contained at the machining cell. It affects cycle time, qualification speed, delivery reliability, and field confidence.

When optical components serve sensors, imaging modules, or aerospace subsystems, one unstable feature can slow broader integration programs.

Common downstream effects include:

• Longer first article approval cycles because metrology results are inconsistent.
• Assembly variation caused by edge condition or form mismatch.
• More cleaning, coating, or handling defects linked to poor surface integrity.
• Reduced trust in process capability despite acceptable sample reports.

For data-driven engineering environments, this trend raises one clear lesson: yield must be defined functionally, not only dimensionally.

What deserves closer control in micro machining for optical components

Improving yield starts by controlling the variables that most often move before scrap becomes visible.

• Tool life by surface outcome: Replace tools by edge quality trend, not only by part count.
• Thermal baseline: Track spindle warm-up, ambient variation, coolant temperature, and machine stabilization windows.
• Edge condition standards: Define acceptable burr height, edge radius, and post-process limits clearly.
• Surface integrity checks: Include function-related inspection beyond roughness averages when risk is high.
• Metrology correlation: Align CMM, optical, profilometry, and microscope results before production scaling.
• Lot traceability: Connect material batch, tool batch, machine state, and operator actions to yield data.

A practical response framework can raise pass rates faster

Rather than reacting only to final rejects, use a staged response model for micro machining for optical components.

This approach reflects a broader industry direction. Precision machining success increasingly depends on measurable process truth, not promotional capability claims.

That principle aligns with TSV’s view of advanced manufacturing: parameters do not lie, and tolerances alone do not define success.

The next move is to audit where yield is really being lost

If micro machining for optical components is underperforming, begin with a focused audit of three linked layers: machining behavior, edge and surface outcome, and metrology agreement.

Look for the first variable that trends before final rejection. In many cases, that early indicator is more valuable than another tolerance check.

A useful next step is to review recent lots against tool age, temperature history, burr occurrence, and measurement method changes. That comparison often exposes the true yield driver quickly.

As optical systems continue to tighten performance demands, micro machining for optical components will reward teams that treat yield as a data problem, a physics problem, and a measurement problem at the same time.
