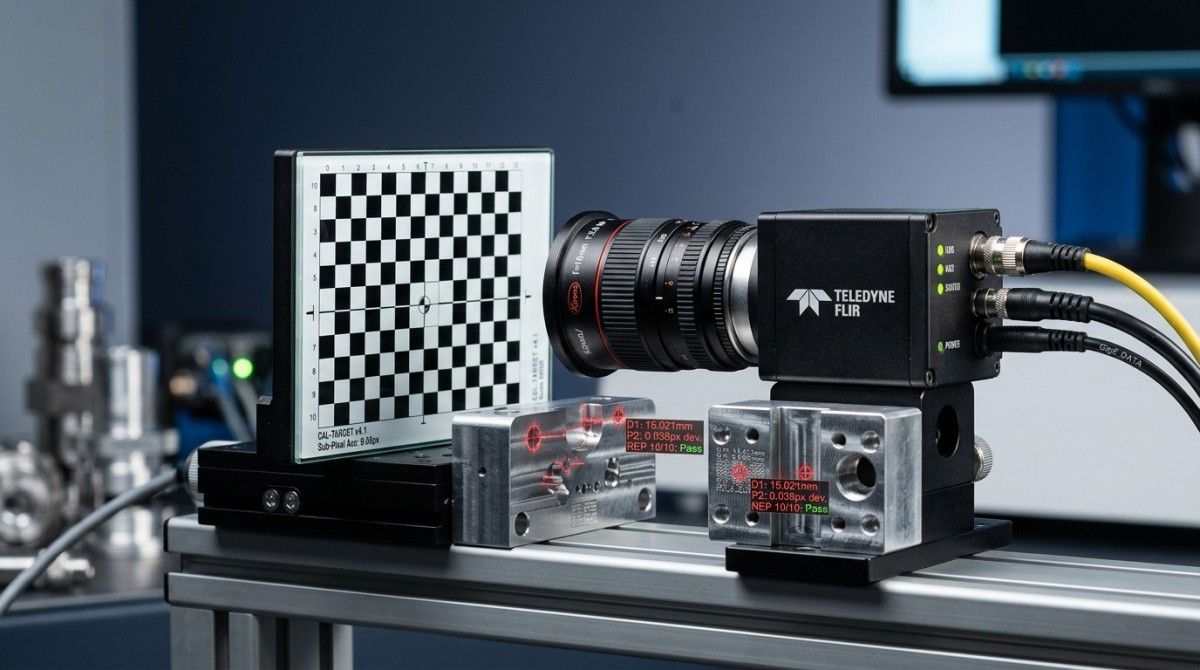

Where machine vision sub-pixel accuracy starts to lose repeatability

Machine vision sub-pixel accuracy often begins to lose repeatability not at the algorithm demo stage, but when real-world error sources accumulate to a level comparable to the sub-pixel shift being measured. In practice, that tipping point is usually reached far earlier than vendor brochures suggest. If lens distortion is not calibrated well, lighting changes between cycles, mechanics introduce vibration, or the target itself varies in contrast, the system may still report impressive sub-pixel numbers while failing to reproduce them consistently on the line. For engineers, operators, buyers, and decision-makers, the key question is not whether sub-pixel measurement is possible, but under what conditions it remains repeatable enough to support production decisions.

This article explains where machine vision sub-pixel accuracy starts to fail, why a machine vision lens distortion test should be treated as a baseline validation step, and how to evaluate precision claims with a more realistic view of repeatability, tolerance, and deployment risk.

What users are really asking: when does sub-pixel accuracy stop being trustworthy?

The core search intent behind this topic is practical, not academic. Most readers are not asking whether sub-pixel algorithms exist. They are asking when those algorithms stop delivering stable, decision-grade results in production.

That distinction matters. In a controlled lab, sub-pixel edge fitting, centroid extraction, or pattern matching can produce measurement outputs far below one pixel. But repeatability depends on whether the entire imaging chain remains stable: optics, sensor, illumination, mechanics, calibration, thermal behavior, and part presentation. Once variation in any of those elements becomes significant relative to the measurement step size, sub-pixel results may still look numerically precise while becoming operationally unreliable.

For target readers, the real concern is usually one of these:

• Can this system hold repeatable measurement performance over long production runs?
• Will the quoted sub-pixel accuracy survive real lighting drift, vibration, and part-to-part variation?
• How should a buyer compare systems that all claim high precision?
• What testing should be required before approving a machine vision supplier or lens stack?

The short answer: sub-pixel accuracy starts to lose repeatability when the error budget from the full system exceeds the useful margin of the measurement task. At that point, the number on paper stops being a reliable production metric.

Why sub-pixel accuracy and repeatability are not the same thing

One of the most common purchasing and specification mistakes is treating sub-pixel resolution as equal to repeatability. They are related, but they are not interchangeable.

Sub-pixel accuracy usually refers to the ability of the software to estimate feature location at a fraction of a pixel using grayscale gradients, interpolation, or model fitting. Repeatability refers to how consistently that estimated location is reproduced across repeated measurements under the same or near-same conditions.

A system can produce a highly refined coordinate estimate and still suffer poor repeatability because the underlying image is unstable. For example:

• A strong edge detector may report 0.05 pixel shifts, but lighting flicker causes the edge profile to move by 0.15 pixel from cycle to cycle.
• A calibrated lens may perform well at startup, but thermal expansion changes focal behavior during a shift.
• A rigid laboratory fixture may show excellent precision, but a factory conveyor introduces enough vibration to move the part image unpredictably.

This is why engineering teams should evaluate measurement systems around gauge capability, process stability, and full-system repeatability rather than relying on algorithm-level claims alone.

Where machine vision sub-pixel accuracy usually starts to break down

In most industrial environments, repeatability losses emerge from stacked error sources rather than one dramatic failure. The most common breakdown points are the following.

1. Lens distortion becomes non-negligible across the field of view

If the application measures at different positions in the image, distortion can create coordinate inconsistency that overwhelms sub-pixel benefits. This is especially important in wide field-of-view setups, lower-cost optics, and systems measuring near image edges. A machine vision lens distortion test is essential because an apparently small distortion percentage can still translate into significant positional error at production tolerances.

2. Lighting variation changes the feature profile

Sub-pixel methods depend on grayscale structure. If the edge slope, contrast, shadow, or highlight pattern changes, the calculated feature center can shift even when the part has not moved. LED aging, ambient light intrusion, reflective materials, and contamination on covers or optics all contribute.

3. Mechanical vibration and motion blur enter the image chain

Even tiny mechanical disturbances matter when the system is asked to resolve fractions of a pixel. Vibration from conveyors, nearby machinery, pneumatic actuators, or gantry motion can blur or displace features enough to degrade repeatability. The tighter the tolerance, the more damaging this becomes.

4. Sensor noise and exposure instability mask true feature position

Shot noise, read noise, insufficient dynamic range, gain changes, and inconsistent exposure timing reduce the stability of grayscale-based estimation. In low-contrast applications, sensor noise can become the floor below which sub-pixel claims have little practical meaning.

5. Calibration does not reflect operating conditions

Many systems are calibrated once, under ideal conditions, and then assumed stable forever. In reality, focus shifts, thermal drift, camera replacement, lens re-mounting, or fixture changes can invalidate calibration quality. If calibration is static but the environment is dynamic, repeatability suffers.

6. The part itself is less consistent than the imaging system

Surface texture, edge burrs, print variation, coating reflectivity, and fixturing inconsistency can all move the apparent feature location. In such cases, the sub-pixel algorithm is not necessarily wrong; it is faithfully measuring a target that is less stable than expected.

Why a machine vision lens distortion test matters more than many teams assume

Among all validation steps, lens distortion testing is often underweighted during procurement. That is a mistake, particularly in dimensional inspection, alignment, metrology, robotic guidance, and any application where measurement points span more than a small central region of the image.

A proper machine vision lens distortion test helps teams answer four critical questions:

• How much geometric deviation exists across the usable image area?
• How much of that deviation can be corrected reliably through calibration?
• How stable is that correction over time, temperature, and reinstallation?
• Does residual distortion leave enough margin for the required tolerance?

For buyers and decision-makers, this test is valuable because it converts vague optical quality claims into engineering evidence. A lens may be marketed as high precision, but the procurement question is whether residual error after calibration remains acceptable for the intended measurement uncertainty and repeatability target.

In other words, lens distortion testing is not just an optical exercise. It is a business-risk filter.

How engineers and buyers should interpret sub-pixel precision claims

When suppliers claim sub-pixel accuracy, the right response is not skepticism alone, but structured qualification. Ask what exactly was measured, under what conditions, over what duration, and against what repeatability criteria.

The most useful interpretation framework includes these checks:

Ask for repeatability, not just minimum resolution

A claim such as “0.1 pixel accuracy” is incomplete without cycle-to-cycle repeatability data. Require repeated measurements over meaningful sample sizes and time windows, not just a best-case snapshot.

Request the full test condition stack

Was the system tested with fixed lighting? With static targets? At room temperature only? At the center of the image only? Without line vibration? Precision claims should always be tied to environmental and mechanical conditions.

Translate pixel claims into engineering units

A fraction of a pixel is only meaningful relative to field of view, working distance, lens magnification, and tolerance window. Procurement teams should insist on conversion into microns or millimeters at the actual operating setup.

Separate calibrated performance from uncalibrated performance

Some vendors present results after extensive calibration and compensation. That can be valid, but buyers need to know how much performance depends on maintenance, recalibration frequency, and installation discipline.

Check field dependence

Sub-pixel results near the optical center may not represent performance near the edges. If the application uses the full field, measurement consistency must be validated across the full measurement envelope.

Demand error budget transparency

Strong suppliers should be able to discuss how lens distortion, illumination stability, mechanical positioning, sensor noise, and calibration residuals contribute to total uncertainty.

Practical signs that your system has crossed the repeatability limit

In production, repeatability loss rarely announces itself with a dramatic failure. More often, it appears as subtle instability that gradually erodes confidence and increases cost. Watch for these warning signs:

• Pass/fail results drifting by shift, operator, or time of day
• Measurements that look stable in static tests but fluctuate during production motion
• Higher false reject rates after lens changes, cleaning, or maintenance
• Different values for the same feature depending on image location
• Correlation gaps between vision measurements and reference metrology tools
• Frequent threshold or parameter tuning to keep the system “working”

When these symptoms appear, the issue is often not the concept of sub-pixel measurement itself. It is that the application has moved beyond the repeatability envelope of the installed imaging chain.

What to specify before scaling a machine vision system across lines or plants

For teams moving from pilot validation to multi-line deployment, the most important step is to specify operational performance, not marketing terminology. A good specification should define what level of repeatability is required, under what conditions, and how it will be verified.

Useful specification items include:

• Required repeatability in engineering units, not only pixels
• Allowed measurement drift over shift, day, and maintenance interval
• Lighting architecture and control tolerances
• Lens distortion acceptance criteria and calibration residual limits
• Environmental operating range including vibration and temperature
• Gauge R&R or correlation protocol against reference metrology
• Recalibration triggers and maintenance procedures
• Field-of-view coverage requirements and edge-performance validation

This approach is especially important for procurement leaders and enterprise decision-makers. It reduces supplier ambiguity, shortens qualification cycles, and lowers the risk of buying a system that performs well in demonstrations but inconsistently at scale.

Bottom line: sub-pixel accuracy is valuable, but only inside a controlled repeatability envelope

Machine vision sub-pixel accuracy starts to lose repeatability when real-world system variation becomes comparable to, or larger than, the fractional pixel shift being measured. In practice, that limit is often reached through the combined effects of lens distortion, lighting drift, vibration, sensor noise, calibration instability, and part variation.

For engineers, the takeaway is clear: evaluate the whole measurement chain, not just the algorithm. For operators, stable imaging conditions matter as much as software settings. For buyers and decision-makers, the most important procurement question is not “Does it support sub-pixel measurement?” but “What repeatability does it hold in my real operating environment, and how was that proven?”

If you treat a machine vision lens distortion test, full-field validation, and repeatability benchmarking as mandatory rather than optional, you will make better technical decisions and avoid costly overconfidence in headline precision claims.
