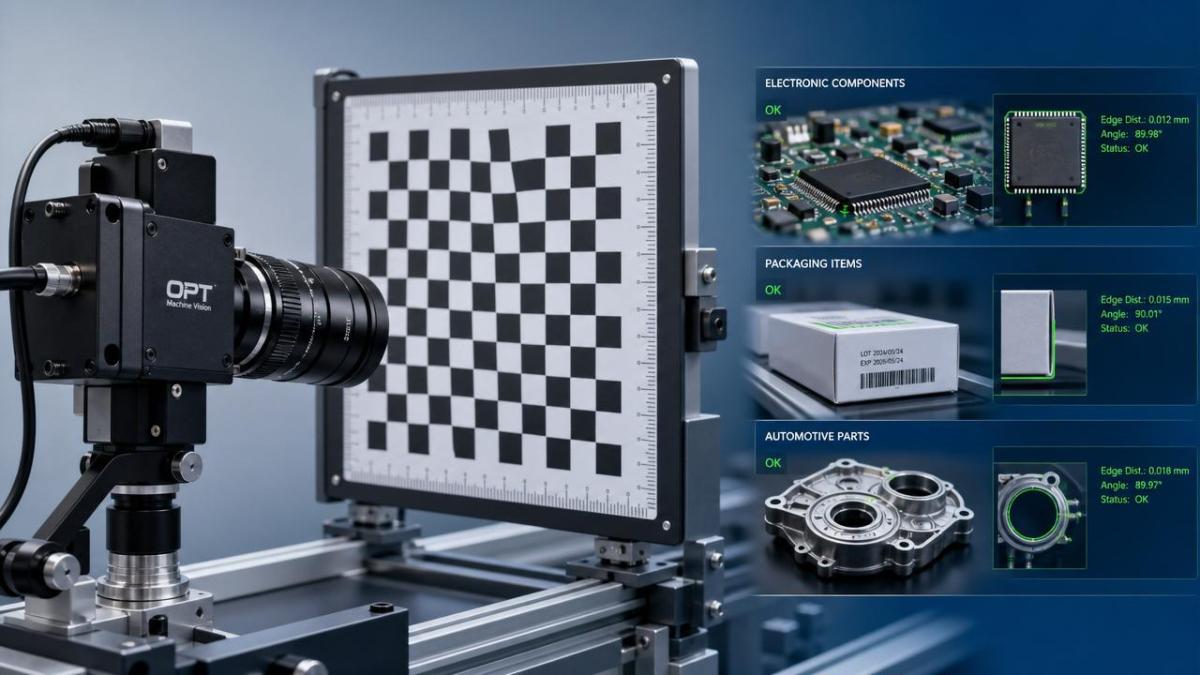

Machine Vision Lens Distortion Test That Catches False Passes

A reliable machine vision lens distortion test is not just a lab checkbox—it is a frontline safeguard against false passes that can slip through quality gates and create downstream safety, compliance, and cost risks. As automated inspection expands across electronics, packaging, automotive assemblies, medical components, and aerospace subparts, even minor optical distortion can quietly alter edge location, feature spacing, and pass/fail thresholds. The result is a dangerous gap between what the camera reports and what the part actually is. In that environment, a robust machine vision lens distortion test becomes a practical control point for engineering truth, not a cosmetic specification.

Why distortion testing is moving from optional verification to a frontline quality signal

Across the broader industrial landscape, inspection systems are being asked to do more than detect obvious defects. They now support micron-level dimensional checks, robot guidance, code reading, fill-level validation, alignment control, and traceability. This shift means image integrity matters at a deeper level. A lens that appears acceptable in a static demo may still create geometric warping near the frame edge, causing software to accept out-of-tolerance parts or reject conforming ones. That is why the machine vision lens distortion test is increasingly treated as a decision-grade metric rather than a secondary optical detail.

The trend is especially visible where inspection zones are wide, part positions vary, or algorithms rely on calibrated metrology. In these use cases, distortion is not merely a visual artifact. It directly influences coordinate mapping, pixel-to-millimeter conversion, and repeatability across the field of view. A weak testing method may therefore produce a false pass during lens qualification, only for the problem to surface later as unstable yields, unexplained escapes, or recurring rework.

The market signals are clear: acceptable imaging is no longer enough

Several trend signals explain why a stronger machine vision lens distortion test has become more urgent. First, inspection architectures are shifting toward higher resolution sensors, which expose optical defects that older systems could hide. Second, production lines are using wider lenses to cover more area with fewer cameras, which often increases distortion sensitivity at the edges. Third, AI-assisted inspection tools are improving defect recognition, but they still depend on geometrically trustworthy image input. Better software cannot fully compensate for poor optics if the calibration model is weak or unstable.

A further signal comes from cross-industry convergence. In pharmaceuticals, food packaging, semiconductor handling, and e-mobility assembly, compliance expectations are rising while cycle times are tightening. These pressures reward systems that reduce hidden uncertainty. A documented machine vision lens distortion test helps establish whether a lens can hold measurement integrity under actual working distance, aperture, lighting, and thermal conditions—not just under ideal bench settings.

Key drivers behind stricter distortion validation

Where false passes originate when a machine vision lens distortion test is too shallow

False passes usually do not come from one dramatic failure. They emerge from layered assumptions. A lens may pass because distortion was checked only at the image center, or because the target pattern did not reflect real measurement zones. In other cases, software correction is applied during setup, but the residual error after calibration is never stress-tested at different temperatures, focus positions, or object heights. A formal machine vision lens distortion test should therefore evaluate both native lens behavior and corrected system behavior.

Another common weakness is relying on percentage distortion alone. A low headline value can sound reassuring, yet still be unsuitable for a measurement task if local geometric error exceeds tolerance where critical features appear. For example, barcode verification may tolerate some warping, while pin spacing inspection or adhesive bead width validation may not. The right question is not “Is distortion low?” but “Is distortion low enough, stable enough, and predictable enough for this specific decision?”

Typical causes of misleading pass results

• Testing only at nominal working distance while production height varies
• Ignoring edge-of-frame performance where defects actually appear
• Using ideal lighting that masks contrast-related localization errors
• Accepting software correction without measuring residual distortion
• Skipping lot-to-lot lens variation and fixture alignment influence
• Reporting a single distortion number instead of a field map

How stronger distortion testing changes outcomes across business and production workflows

The impact of a better machine vision lens distortion test extends beyond the optics bench. In process engineering, it improves confidence that calibrated measurements remain valid across line changes. In quality assurance, it reduces the chance that a biased image creates recurring false acceptance. In maintenance, it creates a baseline that can reveal drift caused by shock, contamination, or lens replacement. In supplier qualification, it supports technical comparison using measurable residual error rather than marketing claims.

The commercial effect can be equally significant. False passes often cost more than false rejects because they travel downstream into assembly, shipment, warranty exposure, or compliance investigation. When a machine vision lens distortion test is tied to actual inspection tolerances, organizations can make better decisions on camera placement, lens selection, recalibration intervals, and acceptance criteria. This reduces avoidable trial-and-error and shortens the path from pilot validation to stable production release.

Operational areas most affected

• Dimensional inspection and gauging systems
• Robot guidance with positional correction
• Multi-camera stitching and wide-area inspection
• Traceability, OCR, and code reading near field edges
• High-mix production cells with recipe changes

What deserves close attention when reviewing a machine vision lens distortion test

Not every report labeled as a machine vision lens distortion test is equally useful. The most valuable evaluations connect optics data to inspection consequences. They show target type, field coverage, working distance, aperture, sensor format, distortion model, residual error after calibration, and repeatability across repeated measurements. They also clarify whether the test reflects telecentric or standard lenses, fixed focus or motorized focus, and whether the setup includes environmental variation.

• Field-wide error mapping: Look for distortion behavior across center, mid-field, and corners.
• Residual error after correction: Calibration effectiveness matters more than raw distortion alone.
• Application alignment: Acceptance limits should match real feature sizes and tolerances.
• Repeatability under change: Verify performance across time, temperature, and refocusing events.
• Measurement traceability: Use calibrated targets and documented methods that can survive audit review.

A practical decision framework for reducing distortion-related risk

This framework reflects a wider industrial shift toward evidence-led qualification. The core insight is simple: passing a lens specification is not the same as protecting a process. A strong machine vision lens distortion test translates optical behavior into operational risk language, making it easier to decide whether a system is truly fit for release.

The next move is to connect optical validation with real inspection consequences

The most effective next step is to review current vision acceptance methods and ask whether distortion testing is tied to real failure modes. If the answer is no, the validation process is leaving blind spots. Build the test around the actual field of view, actual tolerances, actual lighting, and actual decision zones. Document residual distortion, not just nominal values. Compare image-based measurements against traceable reference data. Re-test after lens replacement, fixture adjustment, or process changes.

In a market that increasingly rewards precision over claims, the machine vision lens distortion test is becoming a strategic quality tool. It helps expose hidden geometric bias before that bias becomes scrap, escape, recall, or credibility loss. For organizations committed to data-grounded engineering, the message is clear: do not let a false pass begin with an unchallenged lens.
