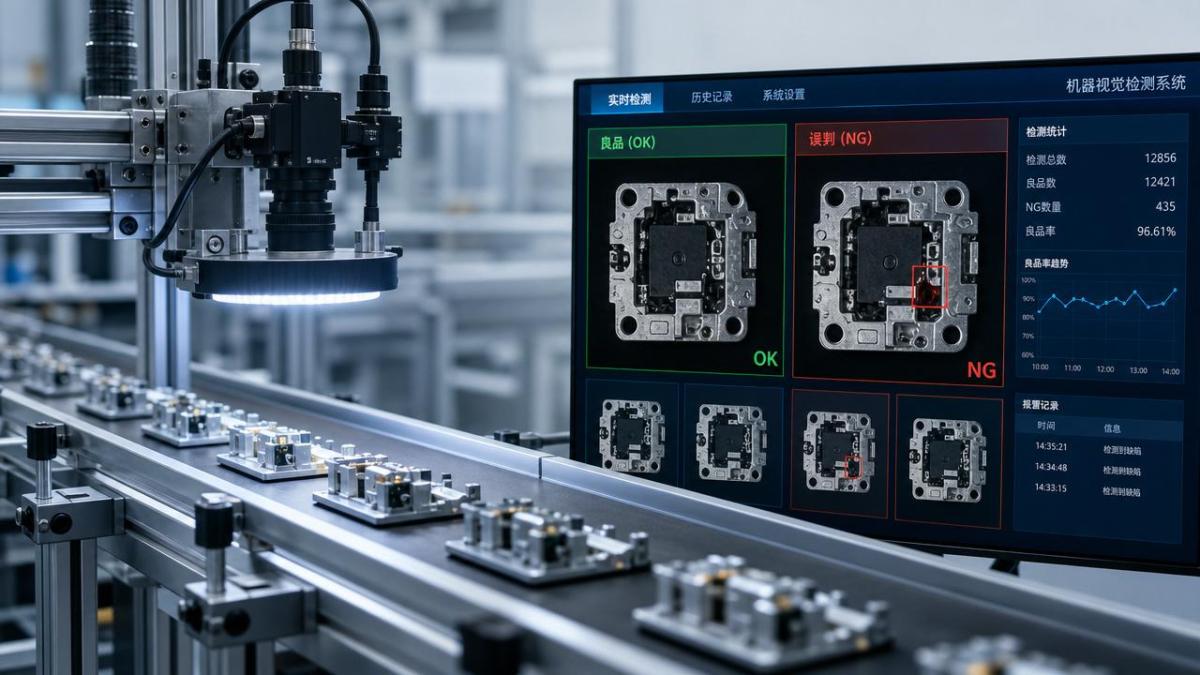

Defect Detection Systems Miss Good Parts Too—Here’s Why

Even advanced machine vision defect detection systems reject conforming parts. That problem is not minor noise. It affects yield, throughput, supplier alignment, and confidence in automated quality data.

False rejects often hide inside otherwise strong inspection programs. A line may appear controlled, while good parts are quietly diverted, reworked, or scrapped without a true defect.

For operations relying on machine vision defect detection systems, the real question is not only detection accuracy. It is whether the inspection logic matches process reality, part variation, and measurable engineering limits.

Why a structured review matters before adjusting inspection thresholds

Many teams respond to false rejects by widening tolerances inside software. That can reduce nuisance alarms, but it may also increase escape risk and weaken traceable quality control.

A structured review helps separate optical noise from true product variation. It also reveals whether machine vision defect detection systems are failing because of setup, data, fixturing, or process drift.

This matters across sectors. Electronics, aerospace, machining, medical devices, packaging, and automotive lines all depend on stable inspection decisions tied to actual specifications.

Core checks for machine vision defect detection systems that reject good parts

Use the following checks in sequence. Each one addresses a common root cause behind false rejects in machine vision defect detection systems.

• Verify the golden sample set includes real acceptable variation, not only ideal parts made under unusually clean or tightly controlled conditions.
• Confirm lighting stability across shifts, because small changes in angle, intensity, glare, or color temperature can alter edge contrast and feature recognition.
• Check lens selection and focus depth against part geometry, especially where curved, reflective, textured, or low-contrast surfaces create inconsistent image data.
• Review fixture repeatability, since part tilt, rotation, vibration, or positional drift can trigger apparent defects that are actually presentation errors.
• Compare software thresholds with print tolerances and functional limits, ensuring pixel-based rules reflect engineering intent rather than arbitrary sensitivity settings.
• Audit annotation quality in training data, because mislabeled borderline samples teach AI-based inspection tools to confuse cosmetic variation with defects.
• Measure image timing relative to conveyor motion or robot handling, since motion blur and inconsistent triggering often mimic scratches, chips, or incomplete features.
• Validate environmental conditions, including dust, temperature, humidity, and vibration, which can gradually reduce optical clarity and system repeatability.
• Check whether upstream process changes altered surface finish, coatings, material lot appearance, or tool marks beyond what the vision model expects.
• Trend false reject patterns by cavity, tool, shift, supplier, and station to isolate whether the issue belongs to the system or the process.

1) Golden samples are often too perfect

Many machine vision defect detection systems are tuned against ideal reference parts. Real production contains normal texture, slight color shifts, and harmless edge variation.

If acceptable diversity is missing from the reference set, the system treats ordinary manufacturing signatures as anomalies. That pushes false rejects upward immediately.

2) Lighting changes create artificial defects

Lighting is not a background detail. It is one of the primary measurement conditions inside machine vision defect detection systems.

Slight lamp aging, contamination on covers, or a changed mounting angle can make a clean surface appear scratched, dented, or dimensionally inconsistent.

3) Pixel accuracy is not specification accuracy

Inspection software may detect extremely small deviations. That does not mean those deviations matter functionally or violate drawing intent.

The best machine vision defect detection systems are calibrated to engineering relevance. They should distinguish measurable variation from unacceptable failure modes.

How false rejects appear in different production environments

Precision machining and metal components

Tool wear, coolant residue, and directional surface finish often confuse machine vision defect detection systems. Reflective metals are especially sensitive to angle and illumination changes.

A useful check is to compare rejected parts against contact metrology or profilometry. That confirms whether the vision result matches a physical out-of-spec condition.

Electronics and PCB inspection

Board color variation, solder reflectivity, and component shadowing commonly produce unstable results. Fine-pitch features increase sensitivity to camera alignment and focus limits.

Here, machine vision defect detection systems should be reviewed alongside placement accuracy, reflow consistency, and board support stability during imaging.

Packaging, labels, and printed materials

Wrinkles, gloss changes, ink density shifts, and curved surfaces can trigger false alarms. Fast web speeds also increase the risk of motion-related image distortion.

For these applications, machine vision defect detection systems need robust trigger timing and acceptance logic that reflects branding and regulatory priorities separately.

Aerospace, medical, and other traceable sectors

False rejects are particularly expensive in high-traceability sectors. Every disputed result can trigger extra documentation, containment actions, and delayed release decisions.

In these environments, machine vision defect detection systems should be tied to validated acceptance criteria, revision control, and evidence-backed benchmarking.

Commonly missed risk factors

Algorithm drift is often overlooked. Software updates, retraining cycles, or parameter edits can change reject behavior without immediate visibility.

Mixed part families are another risk. Machine vision defect detection systems may inherit settings from similar products that differ in texture, tolerance, or geometry.

Teams also miss presentation effects from upstream automation. A robot gripper change or conveyor guide adjustment can alter imaging more than expected.

Finally, disputed rejects are not always fed back into model improvement. Without closed-loop review, the same good parts keep failing for the same reason.

Practical steps to reduce false rejects without increasing escapes

1. Build a controlled sample library containing accepted variation, true defects, borderline cases, and verified metrology references.
2. Run a false reject Pareto by defect code, product type, shift, and station before changing thresholds.
3. Lock optical conditions where possible, including lighting angle, camera position, exposure, and fixture location.
4. Tie inspection rules to drawings, functional criteria, and customer-approved acceptance standards.
5. Use a secondary verification path for disputed parts until machine vision defect detection systems show stable repeatability.
6. Revalidate after process changes, material substitutions, tooling updates, or software revisions.

This approach supports the TSV view that parameters matter more than marketing claims. Inspection credibility depends on traceable conditions, not broad promises of intelligence.

Conclusion and next actions

When machine vision defect detection systems miss good parts, the issue is rarely one setting alone. It is usually a chain of optical, mechanical, data, and specification factors.

A disciplined review can cut false rejects without weakening defect containment. Start with sample quality, lighting control, fixture repeatability, and threshold relevance.

Then compare inspection outcomes against engineering truth. That is how automated quality moves from noisy screening toward dependable, decision-grade manufacturing intelligence.
