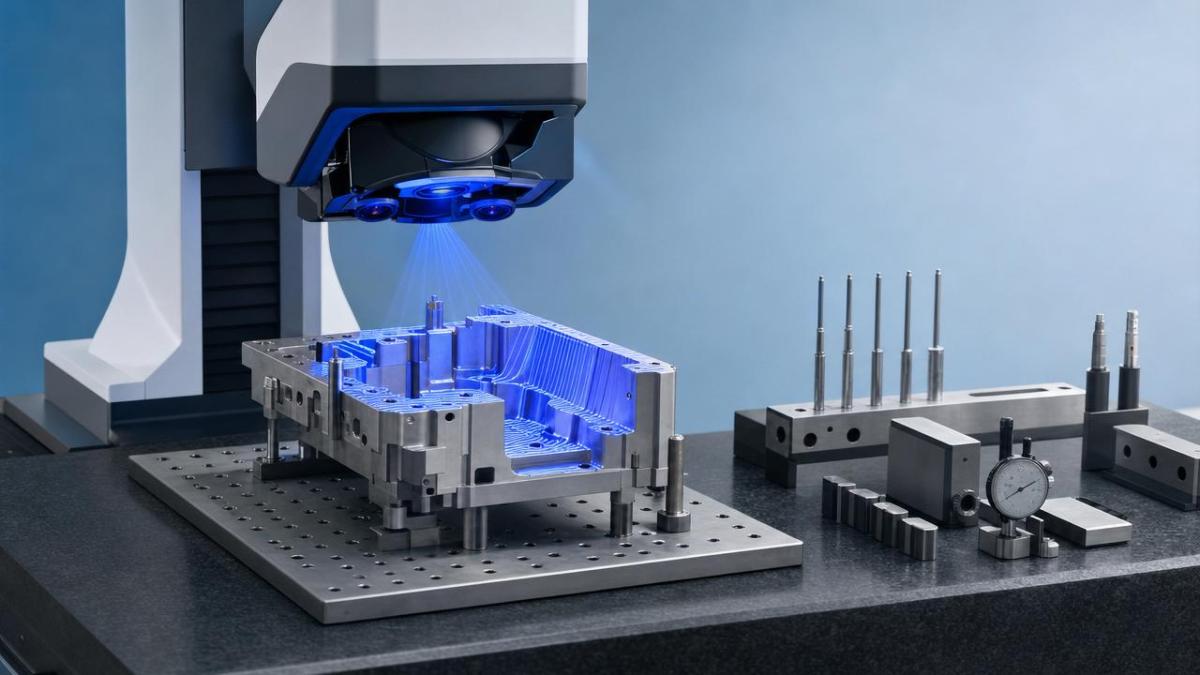

Can 3D Machine Vision Measurement Replace Manual Fixture Checks?

As fixture tolerances tighten and quality risks rise, manual verification faces clear limits.

Checks that once depended on gauges, feeler tools, and operator judgment now require faster cycles and stronger traceability.

This is why machine vision 3D measurement systems are gaining attention across modern production and validation workflows.

The real issue is not whether automation sounds advanced.

The issue is whether machine vision 3D measurement systems can reliably replace manual fixture checks in daily engineering control.

What machine vision 3D measurement systems actually measure

Machine vision 3D measurement systems capture surface geometry using structured light, laser triangulation, stereo vision, or similar optical methods.

Instead of checking one point at a time, they generate dense spatial data over a full fixture area.

That data can verify flatness, hole position, slot width, edge offset, pin height, clamp alignment, and overall fixture deformation.

Manual checks usually focus on sampled points.

By contrast, machine vision 3D measurement systems support full-field inspection and digital comparison against CAD or nominal references.

This matters because fixture failure rarely starts as a single visible defect.

Small shifts in several locations can combine into a larger assembly or welding error.

Core output types

• 3D point clouds for shape reconstruction
• Deviation maps against CAD models
• GD&T-related dimensional results
• Pass/fail rules with stored inspection images
• Time-stamped records for traceability and audits

Why manual fixture checks are under pressure

Manual checks remain useful for simple fixtures, prototypes, and low-volume validation.

However, several industry conditions now expose their weaknesses.

These pressures explain the shift toward machine vision 3D measurement systems in broad industrial settings.

The trend is practical, not fashionable.

Where machine vision 3D measurement systems outperform manual checks

Replacement becomes realistic when the inspection target is repetitive, measurable, and sensitive to cumulative variation.

In these situations, machine vision 3D measurement systems usually provide stronger control.

1. Repeatability across shifts

A calibrated optical system applies the same measurement logic every cycle.

That reduces variation caused by operator fatigue, interpretation differences, and measurement technique.

2. Full-surface visibility

Fixtures may warp, wear, or shift in ways that gauges do not fully reveal.

Machine vision 3D measurement systems detect distributed geometry changes before defects escalate.

3. Faster inspection cycles

A multi-feature scan can replace several manual steps.

This is important when fixture verification must happen between batches or near the line.

4. Better digital evidence

Automated systems store images, point clouds, reports, and historical comparison data.

That supports root-cause analysis, process audits, and engineering change validation.

5. Scalable statistical control

Once deployed, machine vision 3D measurement systems feed repeatable data into SPC and quality dashboards.

Manual methods rarely deliver that level of structured insight.

Where full replacement is not always appropriate

Complete replacement is not universal.

Some fixture checks still benefit from manual confirmation or hybrid workflows.

• Highly reflective, transparent, or dark surfaces may require special imaging control.
• Deep cavities and hidden datum features can be difficult for line-of-sight optics.
• Very low-volume custom fixtures may not justify full automation cost.
• Certain tactile features still need contact-based verification.
• Poor fixturing of the fixture itself can reduce measurement confidence.

The practical conclusion is narrower than a simple yes or no.

Machine vision 3D measurement systems can replace most manual fixture checks when the process is designed around measurable optical access and validated uncertainty.

Typical fixture inspection scenarios by application type

Across the general industrial sector, replacement potential depends on fixture function, tolerance severity, and inspection frequency.

Business value beyond simple labor reduction

The value of machine vision 3D measurement systems is often misunderstood as labor substitution alone.

Their larger contribution is risk reduction through better engineering evidence.

Key benefits usually include:

• Lower scrap caused by unnoticed fixture drift
• Shorter time to isolate root causes
• More reliable first-article and changeover verification
• Improved confidence in supplier and internal quality records
• Better alignment between engineering intent and production reality

For organizations following TSV’s data-first view, this is the essential point.

Parameters, uncertainty, and repeatability matter more than broad automation claims.

Implementation considerations before replacing manual checks

Successful adoption depends on disciplined setup rather than equipment purchase alone.

Define measurement intent clearly

Not every feature needs a 3D scan.

Focus on features that drive fit, alignment, safety, or downstream process stability.

Validate system uncertainty

A decision to replace manual checks should be based on measurement capability studies.

Resolution alone does not prove accuracy.

Control the inspection environment

Lighting, vibration, temperature, and surface condition all influence optical measurement stability.

These factors must be engineered, not assumed.

Plan data integration

Machine vision 3D measurement systems create high-value data only when reports flow into existing quality systems.

Disconnected files reduce long-term return.

Retain targeted manual backup

Hybrid verification is often the best transition model.

Critical hidden features can remain manual while visible geometry moves to automated inspection.

Practical next steps for evaluation

A sound evaluation should begin with fixture families that generate frequent deviations or repeated manual effort.

Then compare current check methods against a defined machine vision 3D measurement systems workflow.

1. List fixture features linked to product quality failures.
2. Rank them by tolerance sensitivity and inspection frequency.
3. Run a pilot with repeatability and cycle-time benchmarks.
4. Compare digital traceability against manual records.
5. Expand only after uncertainty and process fit are proven.

So, can machine vision 3D measurement systems replace manual fixture checks?

In many production environments, yes.

They often deliver better consistency, richer evidence, and broader geometry coverage than manual methods.

But replacement works best when driven by tolerance analysis, validated measurement capability, and disciplined implementation.

For teams seeking engineering truth over marketing claims, that is the benchmark that matters.
