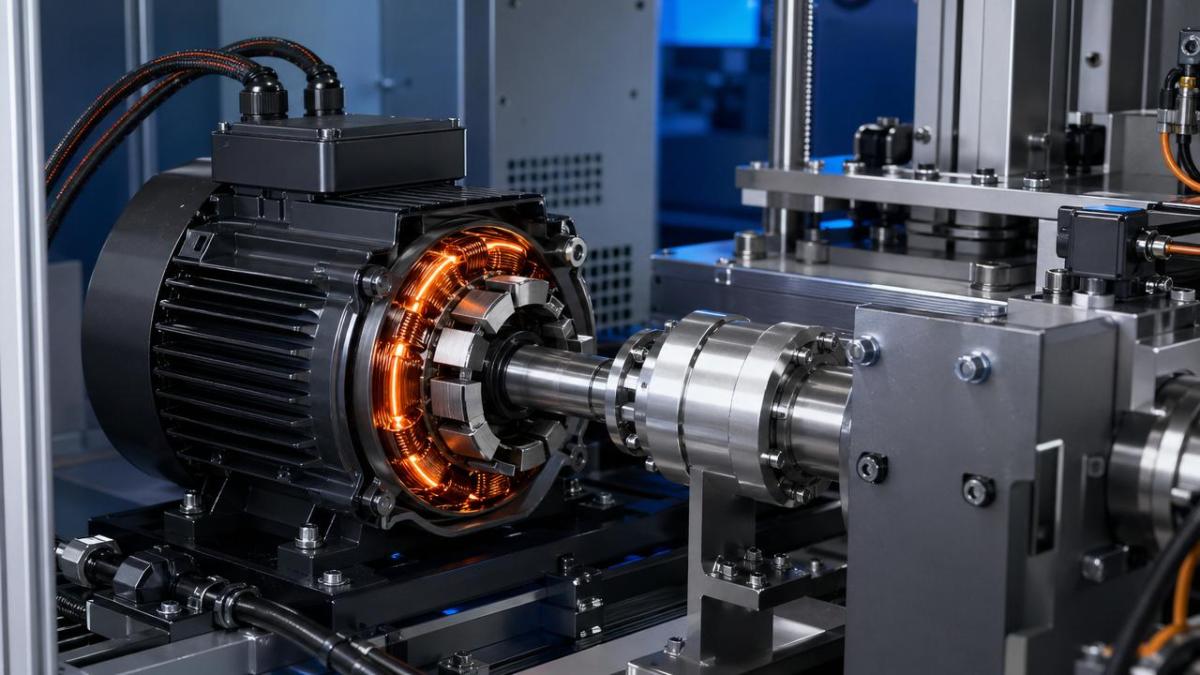

What high torque density means for servo motor heat buildup

In modern motion systems, servo motors high torque density is often treated as a clear performance advantage—but for technical evaluators, the real question is thermal cost. Higher torque in a smaller frame can intensify copper losses, limit cooling margins, and accelerate heat buildup under dynamic loads. Understanding this tradeoff is essential for accurate motor sizing, reliability assessment, and long-cycle equipment performance.

For most technical evaluation teams, the short answer is this: high torque density is not inherently a thermal problem, but it does narrow the design margin. A compact servo delivering more torque per unit volume usually runs closer to electromagnetic, insulation, and cooling limits than a larger motor performing the same duty. That means heat buildup becomes far more dependent on the real duty cycle, peak-to-RMS torque ratio, enclosure conditions, mounting path, and drive tuning.

If those variables are well controlled, a high-density motor can deliver excellent performance. If they are not, thermal rise becomes the mechanism that exposes undersizing, optimistic datasheets, or poor system integration. For evaluators comparing options across suppliers, the key is not to ask only “How much torque fits in this frame?” but also “How much continuous thermal stress does that torque create in the actual machine?”

What technical evaluators are really trying to determine

When engineers search for information about heat buildup in high torque density servo motors, they are usually not looking for a textbook definition. They are trying to answer a practical procurement or design question: whether a smaller, higher-output motor can survive the application without excessive temperature rise, shortened bearing life, encoder instability, or derating during production.

That evaluation usually has four layers. First, can the motor sustain required continuous torque without exceeding winding temperature limits? Second, can it tolerate repeated acceleration peaks without thermal accumulation? Third, will its temperature remain stable inside the actual cabinet, machine body, or sealed axis enclosure? Fourth, what hidden reliability penalties appear when the motor operates near its thermal ceiling for long periods?

These concerns matter because thermal behavior affects more than efficiency. Heat changes winding resistance, reduces torque margin, stresses insulation systems, alters magnet performance, and can transfer into nearby mechanical elements. In precision automation, that also means potential drift in positioning performance, lubrication degradation, and reduced repeatability over long cycles.

For technical evaluators, the value of understanding servo motors high torque density lies in separating genuine engineering advantage from specification compression. Some motors achieve high torque density through better magnetic materials, optimized slot fill, improved cooling paths, and lower-loss laminations. Others achieve it mostly by allowing more aggressive thermal loading for limited duty windows. Those are not equivalent propositions.

Why higher torque density tends to increase heat risk

At a basic level, torque density means more torque from less motor volume or mass. That is attractive in robotics, compact automation cells, mobile platforms, and axes with severe space constraints. However, less physical volume also means less surface area for passive heat rejection and less thermal mass to absorb transient loading. The same heat generated inside the windings has fewer places to go.

The main thermal source in a servo motor under load is copper loss, commonly approximated as I²R. To produce more torque in a given frame, current often increases, and because resistive loss rises with the square of current, heat can escalate quickly. Even if electromagnetic design improves torque constant, thermal limitations often remain the real bottleneck in continuous operation.

Iron losses also matter, especially in high-speed servo applications with rapid commutation and frequent acceleration-deceleration cycles. Core losses rise with frequency and flux behavior, so a motor selected for compact high torque may still experience additional heating if the motion profile pushes speed high enough. In many real systems, heat buildup is a combination of torque-related copper loss and speed-related iron loss, not one or the other alone.

Another issue is concentration of heat. In a larger motor, generated heat is distributed over more mass and can move through a larger housing area. In a compact high-density motor, localized hot spots can become more severe, particularly around end windings, magnets, and bearings. The average case temperature may appear acceptable while internal hot spots move closer to insulation or magnet demagnetization thresholds.

This is why “same torque, smaller frame” should never be interpreted as “same thermal reliability.” It may be true under intermittent duty, active cooling, or favorable mounting conditions. It is less likely to remain true under enclosed installations, low airflow, high ambient temperatures, or continuously varying load profiles.

Which thermal variables matter more than headline torque numbers

Technical evaluation should begin with the motor duty cycle, not the catalog peak torque figure. High torque density motors often look impressive because peak torque ratings are large relative to frame size. But heat buildup is governed much more by RMS torque over time, acceleration frequency, dwell periods, speed range, and whether regenerative intervals are long enough to let the motor cool.

A motor that sees brief, isolated peaks may run safely even if its peak torque is used aggressively. A motor that repeats short, heavy accelerations every few seconds can accumulate heat rapidly, especially if the cycle never returns to a low-load thermal recovery state. In many packaging, pick-and-place, and indexing applications, cumulative heating is what invalidates a seemingly acceptable motor selection.

Ambient temperature is another variable that buyers often underestimate. Datasheet continuous torque ratings are typically tied to defined thermal conditions, which may assume 40°C ambient, specific mounting, and open airflow around the housing. If the servo is mounted inside a sealed machine bay near a gearbox, brake resistor, or inverter, real temperature rise can exceed the laboratory assumption by a wide margin.

Mounting geometry also changes thermal performance. A servo attached to a large metal machine frame may reject heat effectively through conduction. The same motor mounted with thermal isolation, painted interfaces, or poor contact flatness may retain more heat in the stator and housing. For compact, high-output motors, those installation details have an outsized effect because the thermal margin is already tighter.

Drive tuning and current control can further influence heat. An axis with excessive hunting, unstable gain settings, or unnecessary current ripple can generate avoidable thermal load. In evaluation work, it is often worth asking whether the motor is being judged in an optimized motion system or in a test setup that creates artificial heating through poor control behavior.

How to tell whether a high torque density servo is genuinely suitable

The best evaluation method is to move from nameplate comparison to thermal evidence. Start by mapping the application’s true load profile: required peak torque, RMS torque, speed bands, acceleration times, holding periods, cycle duration, and ambient conditions. Without that load map, comparing high-density motors is mostly guesswork.

Next, separate continuous and intermittent requirements. A servo that meets peak demands is not necessarily acceptable for long-cycle production. Ask whether the supplier’s continuous torque rating is based on natural convection, forced cooling, or assumed heat sinking through the flange. If that thermal boundary condition is unclear, the specification has limited value.

Then examine allowable winding temperature, insulation class, and any available thermal model from the manufacturer. Some suppliers provide detailed overload curves, thermal time constants, and derating guidance versus ambient temperature or mounting configuration. Those documents are far more useful than generic performance claims because they show how much heat the motor can absorb and reject over time.

Where possible, request temperature-rise test data under realistic duty conditions rather than constant-load bench data alone. Constant-load testing is useful, but many servo applications are dominated by cyclic transients. A motor that appears stable in a fixed-torque test may behave differently under repetitive acceleration, braking, and settling movements.

It is also important to check the margin between operating temperature and component limits. For example, if a design depends on running continuously near the winding thermal ceiling, the system may technically pass qualification but still offer poor long-term reliability. High torque density should be treated as stronger only when adequate thermal reserve remains after realistic derating.

Common failure modes linked to heat buildup in compact servo designs

Excessive heat in a servo motor rarely appears first as immediate catastrophic failure. More often, it shows up as progressive degradation. The first symptom may be torque fade as winding resistance rises with temperature. That can cause the system to draw even more current to maintain performance, further increasing losses and deepening the thermal problem.

Insulation aging is another major concern. Repeated exposure to elevated temperature shortens insulation life exponentially. Even if the motor avoids visible overheating events, chronic operation near thermal limits can reduce service life substantially. For OEMs and system integrators, that translates directly into higher field failure risk and less predictable maintenance intervals.

Magnets are also vulnerable in some designs. If internal temperatures become too high, partial irreversible demagnetization may occur, especially in motors that trade thermal headroom for compactness. The result is reduced torque constant and a motor that no longer performs as originally specified, even if the issue is not immediately obvious during basic functional checks.

Bearings and encoders should not be ignored either. Elevated housing temperature affects grease life and may contribute to premature bearing wear. Encoders and feedback electronics can also suffer drift or reduced reliability if thermal management is poor. In precision systems, that can show up as subtle repeatability loss before a hard fault appears.

This is why technical evaluators should view heat buildup not only as an efficiency issue, but as a whole-system reliability signal. A high torque density servo that runs hot can transfer risk into mechanics, sensors, control stability, and maintenance planning.

Practical evaluation criteria for supplier comparison

When comparing servo suppliers, a useful framework is to ask not only for torque and speed ratings, but for the evidence behind those ratings. Technical evaluation teams should request continuous torque at stated ambient conditions, thermal time constants, overload duration curves, winding temperature limits, cooling assumptions, and temperature-rise data under representative duty cycles.

If the application is critical, ask whether the motor has been validated in enclosed or low-airflow conditions similar to the target machine. Many failures in compact motion systems come from using optimistic open-air ratings in poorly ventilated installations. A supplier able to discuss flange conduction, housing emissivity, or cabinet thermal interaction is usually giving a more engineering-grounded answer than one offering only catalog numbers.

It is also worth checking how the motor’s torque density was achieved. Did the supplier improve magnetic circuit efficiency, reduce losses, and optimize thermal paths? Or did they mainly compress the frame while relying on higher permissible temperature rise? Both may appear competitive on paper, but they carry different long-term risk profiles.

For procurement teams working with design engineers, one useful internal rule is this: do not approve a high-density servo solely because it meets torque targets in simulation. Approve it only when there is sufficient evidence that thermal behavior remains acceptable under worst-case cycle conditions, worst-case ambient, and realistic installation constraints.

When high torque density is worth the thermal tradeoff

Despite the risks, high torque density is often the right choice. In robotic joints, compact gantries, aerospace subsystems, and mobile platforms, space and mass savings can justify the tighter thermal margin. A smaller motor may reduce moving inertia, improve dynamic response, simplify mechanical packaging, or enable architectures that a larger frame simply cannot support.

The key is disciplined application matching. High torque density works best when duty cycles are intermittent or well characterized, heat can be conducted effectively into the machine structure, ambient conditions are controlled, and the motion profile is not continuously saturating the motor. In these situations, the compact motor’s advantages can outweigh the added thermal sensitivity.

It becomes a weaker choice when the application combines high RMS torque, poor ventilation, elevated ambient temperature, continuous stall-adjacent operation, and limited thermal escape paths. Under those conditions, a slightly larger motor with lower thermal stress may deliver better uptime, longer life, and more stable performance even if it looks less impressive in torque-per-volume terms.

For technical evaluators, the most useful conclusion is simple: servo motors high torque density should be treated as a system-level optimization variable, not a standalone proof of superiority. The right motor is the one that meets dynamic performance targets while preserving thermal margin, reliability, and production stability.

Final assessment: evaluate torque density through thermal margin, not marketing

High torque density in servo motors means more than compact power. It usually means a narrower heat-management window, greater sensitivity to duty-cycle assumptions, and less tolerance for poor installation or control conditions. That does not make high-density designs undesirable. It means they must be evaluated with sharper thermal discipline.

For engineering-led selection, the winning question is not whether a motor can briefly produce high torque in a small frame. It is whether it can do so repeatedly, inside the real machine, across the full production cycle, without running too close to thermal limits. When that answer is supported by test data, derating logic, and realistic duty analysis, high torque density becomes a genuine advantage. When it is supported only by peak numbers, it becomes a hidden reliability risk.

In other words, heat buildup is the truth test. If a compact servo maintains acceptable temperature rise under real operating conditions, its torque density is meaningful. If it cannot, the apparent performance gain is only a compressed thermal compromise.
