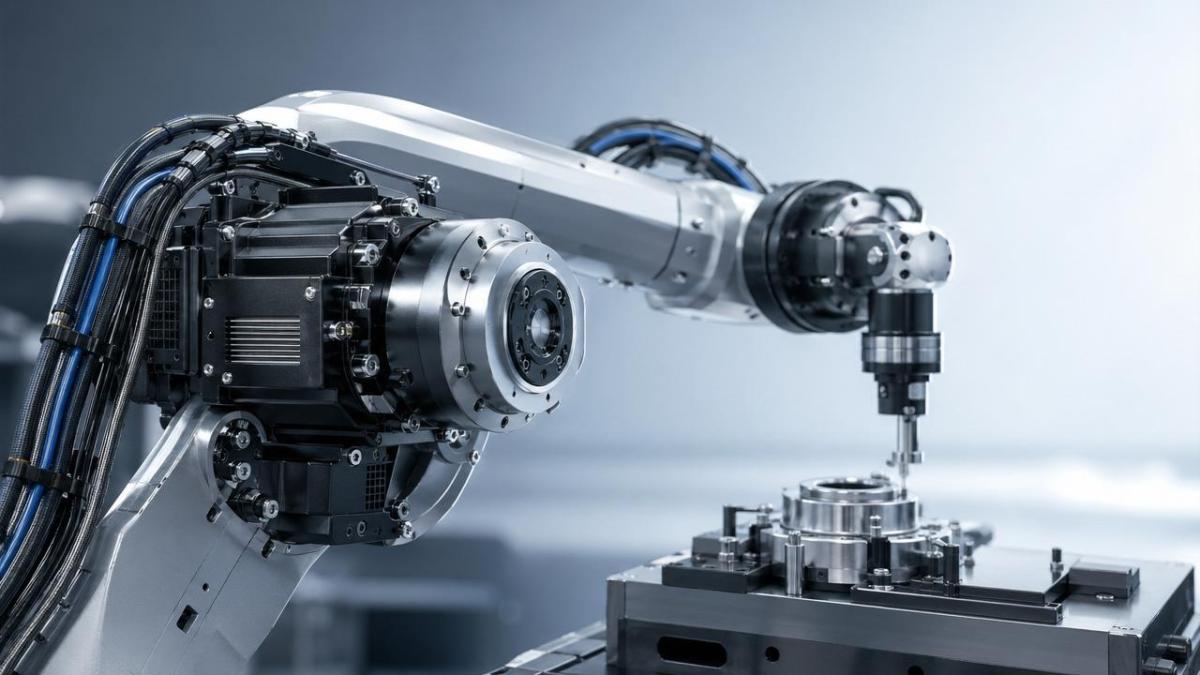

Servo motors for robotics applications: torque is not the whole story

When evaluating servo motors for robotics applications, torque may be the headline number, but it rarely tells the full performance story. For operators and technical teams working with precision automation, factors like response speed, thermal stability, positioning accuracy, and long-cycle reliability often determine whether a robotic system performs consistently or fails under real production demands. This article looks beyond marketing claims to the engineering metrics that truly matter.

In practical robotics environments, a motor that delivers impressive peak torque on paper can still underperform during 8-hour, 16-hour, or 24/7 duty cycles. Pick-and-place cells, collaborative robots, automated guided platforms, and inspection arms all stress servo systems differently. For operators, the real question is not simply how much force a motor can produce, but how repeatably it can produce motion, hold position, reject disturbances, and survive thermal and mechanical loading over thousands of cycles per shift.

That is why servo motors for robotics applications should be evaluated as part of a motion system, not as an isolated power component. Motor constants, encoder resolution, current loop tuning, gearbox matching, inertia ratio, cable routing, cooling conditions, and maintenance access all affect daily uptime. In a data-driven engineering context, the right selection process reduces trial-and-error costs, stabilizes output quality, and shortens the path from commissioning to reliable production.

Why torque alone creates expensive blind spots

Torque matters, but it becomes misleading when buyers or operators treat a single number as a proxy for total motor quality. Most servo motors for robotics applications are specified with at least 3 torque values: rated torque, peak torque, and stall or holding torque. A robot joint may tolerate a 2.5× peak torque for 1 to 3 seconds, yet fail to sustain rated motion accuracy once winding temperature rises by 30°C to 50°C above ambient.

Peak torque is not continuous capability

A common mistake in robotics procurement is comparing only peak torque figures. Peak torque is useful for short acceleration bursts, collision recovery, or overcoming static friction at startup. However, if an articulated arm repeats a fast path 20 to 40 times per minute, the motor spends much more time in continuous thermal loading than in peak events. That means rated torque under the actual duty cycle is usually the safer benchmark.

For example, an axis carrying a 6 kg end effector may require only moderate average torque, but repeated acceleration, deceleration, and dwell transitions can push RMS torque above the motor’s comfortable thermal zone. In that situation, a larger motor with lower current stress may outperform a smaller unit with a higher advertised peak figure.

Robotics motion quality depends on more than force

In robotics, motion quality is often defined by 4 measurable outcomes: settling time, overshoot, repeatability, and thermal drift. A servo motor that reaches target position in 80 ms with less than 2% overshoot may be more valuable than a higher-torque motor that oscillates, hunts, or introduces vibration into vision-guided tasks. This is especially important in dispensing, screwdriving, micro-assembly, and optical inspection cells.

Key blind spots operators should watch

• Rated torque vs peak torque duration, often 1–3 seconds only
• Torque retention at elevated temperatures such as 40°C ambient cabinets
• Encoder feedback quality, especially under vibration and cable noise
• Inertia mismatch between motor rotor and load, ideally controlled within practical tuning limits
• Position settling after stop commands, often critical below 100 ms

The table below shows why torque must be read together with thermal and dynamic performance when comparing servo motors for robotics applications.

The main lesson is simple: torque should be treated as one layer of a broader engineering decision. In high-repetition robotic work, stable thermal output and predictable dynamic response often protect production better than chasing the highest headline number.

The performance metrics that actually determine robot behavior

For most operators and line engineers, servo motors for robotics applications should be assessed through the motion results they create on the machine. A robotic arm that misses position by even ±0.1 mm can become unacceptable in electronics assembly, while a mobile robot drive servo with delayed response can create navigation drift over long shifts. The metrics below translate directly into production outcomes.

Response speed and bandwidth

Response speed defines how quickly the motor-drive system reacts to command changes and load disturbances. In robotic applications, loop bandwidth and tuning stability matter because acceleration profiles are rarely smooth for long. Fast point-to-point moves, abrupt direction changes, and synchronized multi-axis motion all require rapid control response. A sluggish servo can increase cycle time by 5% to 15% even when torque reserves appear sufficient.

Operators should also distinguish between raw speed and usable speed. A motor capable of high RPM is not automatically better if it needs aggressive gearing that introduces backlash, noise, or extra reflected inertia. The best match is usually the one that reaches target motion with stable tuning and minimal vibration under the real payload.

Encoder resolution and positioning accuracy

High-resolution feedback improves low-speed smoothness, fine positioning, and disturbance correction. For small-part handling or vision-assisted alignment, encoder quality can be more important than adding another 10% of torque capacity. In many robotics systems, repeatability is judged over hundreds or thousands of cycles, not over one ideal laboratory move.

It is also important to separate motor feedback resolution from final tool-point accuracy. Gearbox compliance, structural stiffness, coupler alignment, and thermal expansion all influence the result. That is why axis-level testing should include commanded position error, return-to-home deviation, and loaded dwell drift.

Thermal stability under realistic duty cycles

Servo motors for robotics applications often run inside compact enclosures, near power electronics, or on moving joints with limited airflow. A 10°C increase in ambient cabinet temperature can materially affect motor winding temperature, brake performance, and drive derating. If the application includes 3 shifts, high ambient dust, or enclosed machine architecture, thermal design is not optional.

Thermal stability is especially critical in robots performing sealing, welding, metrology, and machine tending. Once temperature rises, torque constant variation and mechanical expansion can subtly affect path quality. Over time, this becomes a scrap-rate or maintenance issue rather than a simple motor issue.

Reliability, brake integrity, and duty life

Vertical axes, collaborative robot joints, and safety-sensitive handling systems often depend on brake performance as much as motor output. A servo brake is not merely a convenience feature. It may be a load-holding safety element during power-off conditions, maintenance pauses, or emergency stops. Brake cycle life, engagement delay, and holding consistency should be reviewed with the same discipline as torque ratings.

Long-cycle reliability also includes bearing life, connector durability, cable flex endurance, and resistance to contamination. In a cable track that cycles 1 million times or more, connector retention and shield integrity can be as important as rotor design. Failures often begin at interfaces, not at the motor core.

Practical metrics worth logging during commissioning

1. Position error at low speed, medium speed, and maximum production speed
2. Motor surface temperature after 30 minutes, 2 hours, and full-shift operation
3. Repeatability over at least 100 cycles under normal payload
4. Settling time after emergency stop recovery or abrupt directional change
5. Current draw trend compared with the baseline commissioning profile

These measurements provide a more realistic operating picture than a catalogue torque figure alone. For robotics teams trying to reduce debugging time, this data-first approach is far more useful than generic performance claims.

How to choose servo motors for robotics applications by scenario

The right motor depends heavily on the robot architecture, load profile, environment, and production rhythm. A compact SCARA arm, a 6-axis palletizing robot, and an AGV steering module may all use servo systems, but their design priorities differ significantly. Matching the servo to the application reduces oversizing, tuning complexity, and lifecycle cost.

Pick-and-place and assembly robots

For pick-and-place applications running 30 to 120 cycles per minute, acceleration and settling time usually rank above maximum torque. Lightweight loads with high repetition reward motors with low rotor inertia, high responsiveness, and stable encoder feedback. If the process includes camera alignment or press-fit insertion, even small oscillations can reduce throughput.

Collaborative robots and human-adjacent systems

Cobots place greater emphasis on smooth motion, low-speed controllability, thermal consistency, and safe recovery behavior. In these cases, torque ripple, brake behavior, and compact packaging may matter more than top-end acceleration. Operators also benefit from servos that maintain predictable behavior during frequent starts, stops, and teaching operations.

Mobile robotics, AGV, and AMR drive modules

Drive and steering servos for mobile robots face different stress patterns from joint servos. They must handle repeated shock, floor irregularity, directional reversals, and long operating windows that can exceed 10 to 16 hours daily. Here, contamination protection, thermal headroom, and control stability under varying traction loads are often more important than chasing top peak torque.

The comparison below helps operators map servo motor priorities to common robotics scenarios.

This scenario-based view shows why no single torque number can represent all robotic needs. The correct servo is the one that protects process stability in the exact operating context, whether that context is high speed, high precision, compact packaging, or continuous duty.

A practical selection and validation workflow for operators and technical teams

A reliable servo decision is usually made in 5 steps, not in one catalogue comparison. This is particularly true when sourcing servo motors for robotics applications across multiple suppliers or integrating them into a new robotic station. A structured workflow helps teams avoid oversizing, undercooling, and tuning surprises during commissioning.

Step 1: Define the true load profile

Record payload mass, center of gravity, move distance, acceleration targets, stop frequency, and cycle count per hour. If available, include vertical holding periods, collision recovery behavior, and emergency deceleration events. In many projects, one missing detail such as an off-center 2 kg tool changer can distort axis sizing more than expected.

Step 2: Calculate RMS torque and thermal margin

The RMS torque profile often reveals whether a motor will survive production better than peak torque analysis alone. As a practical rule, many teams aim for a continuous operating margin rather than running near maximum rated current all shift long. Thermal margin should also account for cabinet heat, summer ambient conditions, and adjacent drive electronics.

Step 3: Check inertia match and gearbox effects

A poor inertia ratio can make tuning slow, noisy, or unstable. Gear reduction can help, but it may also introduce backlash, efficiency loss, and compliance. For robotics, the best design balances responsiveness with mechanical stiffness. Fast motion with poor structural behavior usually produces worse production results than slightly lower speed with cleaner stops.

Step 4: Validate safety and environmental fit

Review ingress risk, cable flex cycles, connector sealing, brake requirement, and maintenance access. If the servo operates near coolant mist, fine dust, or welding spatter, contamination resistance should be part of the decision. A motor that looks acceptable in a controlled lab may degrade quickly on a real shop floor.

Step 5: Run acceptance tests before scaling

Before full deployment, test at least 1 pilot station under representative load and run conditions. A 24-hour to 72-hour evaluation window can expose temperature rise, noise issues, brake inconsistency, or encoder signal problems that may not appear in a short bench trial. This step is often cheaper than correcting a fleet-level integration problem after rollout.

Common mistakes during evaluation

• Selecting by peak torque only and ignoring continuous duty
• Assuming encoder resolution guarantees end-effector accuracy
• Skipping thermal measurements in the actual machine enclosure
• Ignoring cable bend radius and connector movement fatigue
• Testing without the final payload, tooling, or production speed

A careful workflow creates better procurement decisions and more stable startup performance. In robotics, the cost of a wrong servo choice is rarely just the motor price. It can include debug hours, missed takt targets, higher scrap, and repeated maintenance intervention.

What a good supplier conversation should include

When discussing servo motors for robotics applications with suppliers, operators and technical buyers should ask for data that reflects real use, not only brochure highlights. A useful supplier discussion typically covers duty cycle assumptions, temperature rise behavior, encoder and brake options, expected service intervals, and integration support for drive tuning.

Questions that improve decision quality

1. What is the rated torque at the intended ambient temperature and enclosure condition?
2. How long can peak torque be sustained, and how often can it repeat safely?
3. What feedback options are available for low-speed smoothness and precision positioning?
4. What is the recommended maintenance inspection interval: 3 months, 6 months, or 12 months?
5. Has the motor been validated for cable track motion, vertical holding, or contamination exposure similar to this application?

Why data transparency matters

In advanced manufacturing, vague claims such as “high precision” or “industrial grade” are not enough. Operators need thresholds, not slogans. If a supplier can explain temperature limits, encoder behavior, brake conditions, and practical acceptance criteria, that conversation is more valuable than a broad promise of high torque. This aligns with a benchmarking mindset where engineering truth comes from measurable parameters and repeatable results.

Servo selection becomes much more reliable when buyers ask the right questions and validate performance against the real robotic task. The goal is not simply to find a motor that can move the load once, but a motor-drive system that can move it accurately, safely, and consistently for months or years.

For anyone evaluating servo motors for robotics applications, the most dependable path is to look beyond torque and focus on the full motion picture: response speed, thermal stability, encoder feedback, duty-cycle endurance, brake integrity, and real-world commissioning data. That approach supports better uptime, cleaner motion, and fewer integration surprises across robotics and automation systems.
