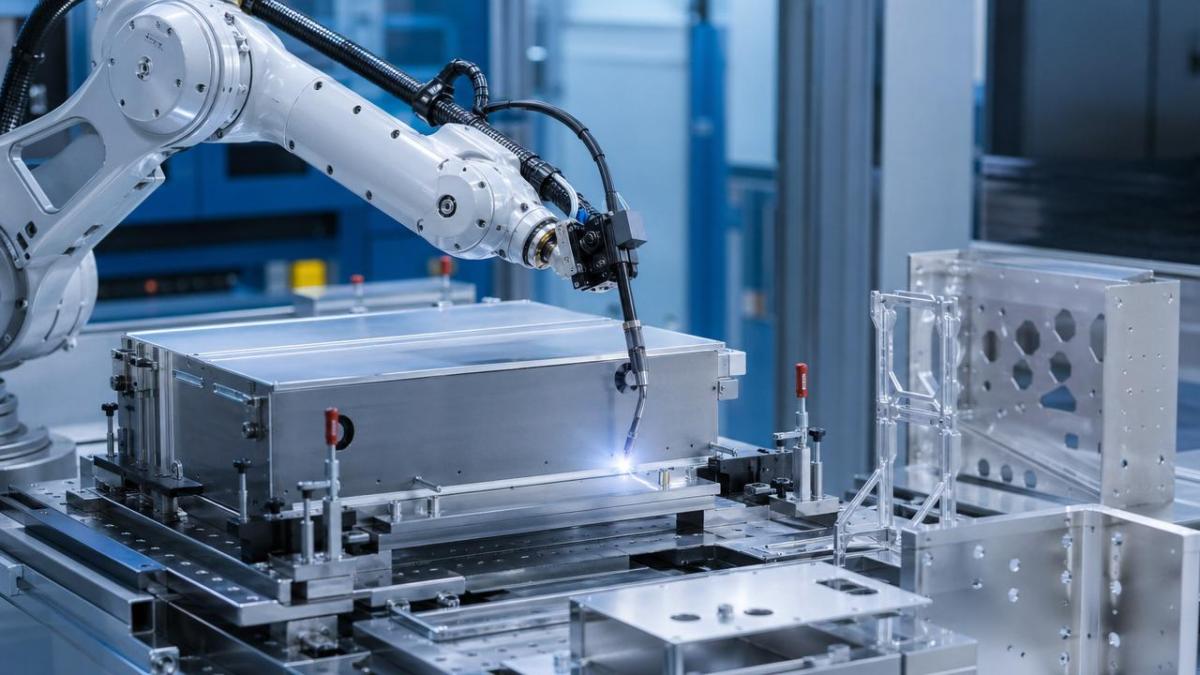

Why some welding robots struggle with thin materials

Thin-gauge parts expose the limits of many industrial robots for welding applications, where even minor heat input, torch instability, or poor seam tracking can cause burn-through, distortion, and costly rework. For operators, understanding why these failures happen is the first step toward better weld quality, smarter parameter control, and more reliable production on delicate materials.

Why thin-material welding deserves a different operating mindset

In heavy-section welding, a robot can often hide small process errors. On thin steel, stainless steel, or aluminum, the same margin disappears. A slight variation in stick-out, travel speed, joint fit-up, or arc length can immediately create burn-through, undercut, excessive spatter, or visible warping. That is why some industrial robots for welding applications perform well on structural parts but struggle when moved to thin cabinets, appliance housings, battery trays, HVAC panels, light automotive brackets, or compact enclosures.

For operators, the key issue is not whether the robot is “good” in general. The real question is whether the complete system fits the specific scenario. Thin materials demand a tighter relationship between robot motion quality, welding power source response, fixture repeatability, seam condition, and thermal management. If one part of that chain is weak, the robot may repeatedly miss quality targets even when the program looks correct.

This scenario-based view matters because the causes of failure differ by application. A robot welding galvanized ventilation ducts faces different risks than one joining cosmetic stainless assemblies or thin aluminum frames. Operators who recognize those differences can make better decisions on torch angles, weave strategy, joint design, tack spacing, and inspection frequency.

Where industrial robots for welding applications most often struggle with thin materials

Thin-material problems usually appear in a few common production scenarios. Each one puts pressure on different parts of the robotic welding cell.

High-volume sheet metal enclosures

Electrical cabinets, server housings, lockers, and control boxes often use thin-gauge steel with long seams and visible surfaces. In this setting, the robot must hold a stable path over repeated cycles, but cosmetic quality matters almost as much as strength. Operators often see heat tint, edge collapse, corner pull, and dimensional drift if parameters are copied from thicker parts.

Automotive subcomponents and brackets

These parts may run at high takt times, with small flange welds or short intermittent welds. The challenge is not only heat input. It is acceleration and deceleration around tight features. Some industrial robots for welding applications overshoot slightly at corners or produce inconsistent starts and stops, which can create crater cracks or local burn-through on thin edges.

Stainless decorative or consumer-facing assemblies

Food equipment panels, kitchen systems, and premium housings demand minimal discoloration and low rework. Here, a robot may technically complete the weld but still fail the business requirement if grinding and polishing erase productivity gains. Thin stainless reveals every inconsistency in arc energy and torch angle.

Aluminum frames, covers, and lightweight transport parts

Aluminum thin sections bring extra sensitivity to fit-up, surface condition, and heat buildup. The robot may follow the taught path accurately, yet the puddle becomes unstable because thermal conductivity changes along the seam. In these cases, programming alone cannot rescue a poor process setup.

Scenario comparison: why the same robot behaves differently across applications

The table below helps operators compare where industrial robots for welding applications usually encounter the biggest thin-material risks and what to check first.

The root causes behind poor thin-gauge robotic welding

1. Heat input rises faster than operators expect

Thin materials have little thermal reserve. A setup that works on 3 mm parts may fail badly on 0.8 mm to 1.5 mm sheet. If voltage, wire feed, pulse behavior, or dwell time at starts and stops is not adjusted, the arc quickly overheats the joint. Many operators blame the robot first, but the actual issue is often process energy that exceeds the material window.

2. Robot path accuracy is not the same as weld process stability

Some industrial robots for welding applications meet repeatability claims in ideal conditions but still show poor real-world results on thin parts. Cable resistance, torch neck deflection, backlash under changing direction, or vibration at high speed can move the arc enough to matter. On thicker sections, this may be invisible. On thin sheet, it can completely change penetration and bead placement.

3. Seam fit-up is too inconsistent for the programmed path

Thin parts often come from stamping, bending, or roll forming processes with springback variation. Gaps open and close along the seam. If the robot follows a fixed path without adaptive seam tracking, arc length varies and the puddle becomes unstable. Operators then see random failures that seem machine-related but actually start upstream in part consistency and fixturing.

4. Fixture design is too weak for thermal control

A robot cannot compensate for a part that moves during welding. Thin-gauge assemblies need fixtures that do more than locate. They must restrain, absorb some heat, and maintain gap control. When clamps are too far apart or contact surfaces are poor, the weld pool behaves differently from one cycle to the next.

5. Short-weld behavior is poorly tuned

Many delicate products use stitch welds, tacks, or very short seam segments. In these cases, ignition, arc stabilization, and crater fill may take up most of the total weld event. If the power source and robot timing are not synchronized, the start becomes too hot, the stop leaves a crater, or the wire stubs unpredictably into the next cycle.

How operators should judge whether a welding robot fits the thin-material scenario

When evaluating industrial robots for welding applications, operators should avoid broad claims and instead ask scenario-specific questions.

• Can the robot maintain smooth motion at low travel speeds without hesitation?
• How stable is torch orientation through corners, small radii, and short weld segments?
• Does the system support seam tracking or touch sensing appropriate for variable gaps?
• Is the welding power source responsive enough for low-heat pulse control?
• Can fixture design and weld sequence limit distortion before parameter tuning begins?
• Are cable routing, torch maintenance, and consumable wear being monitored closely?

These questions matter more than headline robot payload or reach. Thin-gauge success depends on system integration, not just arm capability.

Application-specific operating advice for better results

For long seams on panels and enclosures

Use segmented welding, skip patterns, or alternating sequence plans to spread heat. Reduce unnecessary weave. Verify clamp contact near heat-sensitive edges. If distortion remains high, review joint design before increasing robot complexity.

For short bracket welds in fast production

Focus on approach distance, wire retraction, and crater control. Small time savings from aggressive motion can cost much more in rework. Corner speed reduction and accurate TCP verification often improve quality faster than major reprogramming.

For cosmetic stainless parts

Minimize heat tint through clean surfaces, stable gas coverage, and low-spatter transfer mode. If appearance is critical, compare robotic speed gains with downstream polishing labor. In some visible zones, hybrid workflows may still make sense.

For aluminum thin-wall assemblies

Treat cleaning and fit-up as process controls, not preparation details. Oxide condition, joint gap, and wire consistency affect robotic outcomes immediately. Operators should validate the first few parts after any coil, batch, or supplier change.

Common misjudgments that cause operators to blame the robot too early

A frequent mistake is assuming that poor results come from insufficient robot precision alone. In reality, many thin-gauge failures come from stacked tolerances across the cell: part variation, worn tips, unstable grounding, poor gas flow, drifting TCP, or fixtures that no longer hold shape. Another mistake is transferring a proven thick-material program to a thin-material job with only minor parameter edits.

Operators also underestimate thermal accumulation. A weld that looks fine on the first part may fail after ten cycles because tooling and material temperature rise. Monitoring must reflect production reality, not only cold-start trials. For industrial robots for welding applications, this is especially important in continuous production where takt pressure hides gradual quality drift.

A practical checklist before changing equipment

Before deciding that a robot is unsuitable, review the full scenario in order:

1. Confirm actual material thickness range, coating condition, and gap variation.
2. Measure fixture repeatability and clamp effectiveness under heat.
3. Check TCP accuracy, torch wear, liner condition, and cable drag.
4. Review start-stop logic, pulse settings, and travel speed by weld segment.
5. Test sequencing changes to reduce cumulative distortion.
6. Validate results after several consecutive cycles, not just one sample part.

This checklist gives operators a more reliable basis for judging industrial robots for welding applications in thin-material production.

FAQ: thin materials and robotic welding in real production

Can a standard welding robot handle thin sheet reliably?

Yes, but only if the entire cell is tuned for low-heat, high-consistency welding. The robot arm alone is not enough.

Is seam tracking always necessary?

Not always. If part fit-up and fixturing are extremely consistent, a fixed path may work. But in many thin-gauge scenarios, tracking or sensing reduces scrap risk significantly.

What matters more for thin parts: robot brand or process setup?

Process setup usually has the larger immediate effect. However, dynamic motion quality, integration options, and stable low-speed performance still matter when choosing industrial robots for welding applications.

Final takeaway for operators and production teams

Some welding robots struggle with thin materials not because robotic welding is unsuitable, but because thin-gauge production exposes every weakness in motion control, heat management, fixturing, fit-up, and parameter discipline. The right evaluation method is always scenario-based: identify the part type, the weld length, the appearance requirement, the gap variation, and the production rhythm. Then match the robot, power source, fixture, and sensing strategy to that reality.

For teams comparing industrial robots for welding applications, the smartest next step is to test under real production conditions with actual thin materials, true cycle rates, and full thermal buildup. In line with TSV’s engineering-first view, decisions should come from measurable weld stability, distortion control, and repeatable quality data—not marketing claims. That is how operators turn delicate thin-material welding from a chronic problem into a controlled process.
