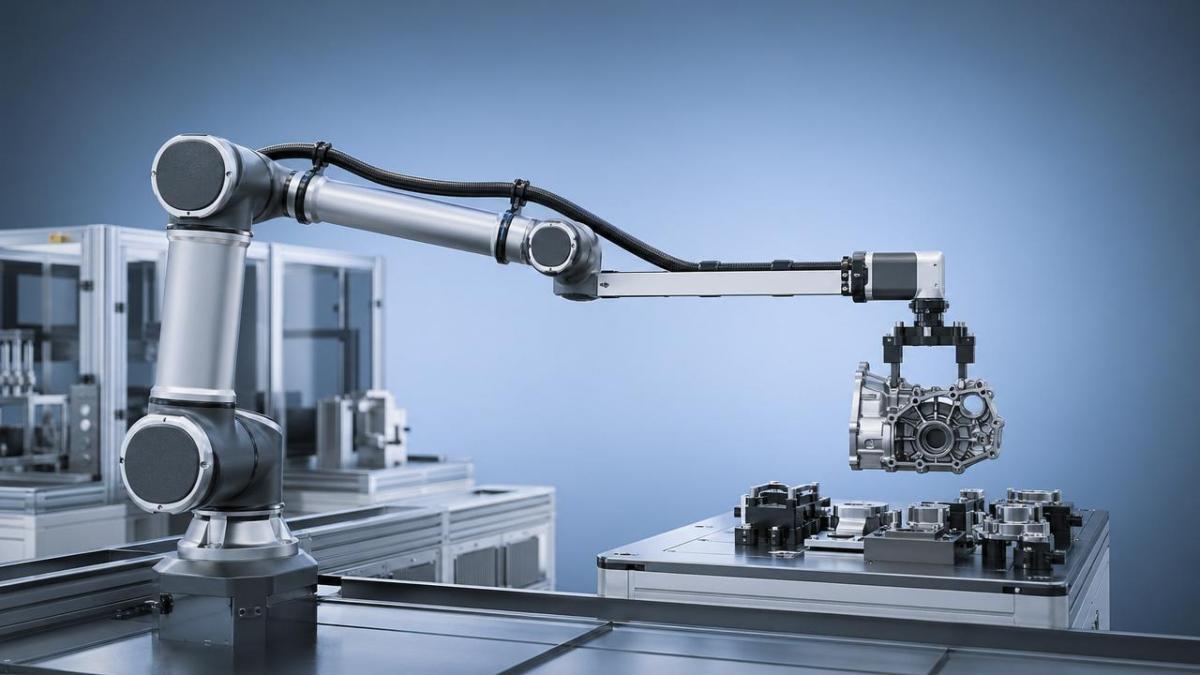

When collaborative robots run out of payload sooner than expected

When a cobot reaches its limit earlier than the spec sheet suggests, project timelines, fixture design, and ROI assumptions can unravel fast. For project leaders evaluating collaborative robots payload capacity, the real issue is rarely the headline number alone—it is the interaction between reach, speed, tooling weight, and duty cycle. This article examines why payload shortfalls happen and how to validate capacity with engineering-level rigor before deployment.

Why does collaborative robots payload capacity fail in real projects?

A listed payload rating often looks simple: 5 kg, 10 kg, 20 kg. In practice, that number is only one boundary condition inside a larger motion envelope. A collaborative robot may lift the nominal mass in a short, centered, low-speed demonstration, yet struggle once the end effector is extended, offset, accelerated, or cycled continuously. That is why collaborative robots payload capacity becomes a project risk when procurement decisions rely on brochure values instead of task-specific validation.

For project managers and engineering leads, the consequences are immediate. Gripper redesign adds delay. Safety retuning slows throughput. Mounting changes affect cell layout. A robot selected near its theoretical maximum can also create hidden operational instability, especially in pick-and-place, machine tending, palletizing, test handling, dispensing, and screwdriving applications where motion profiles vary across the shift.

TechStat Vanguard approaches this problem with a hard-tech filter: parameters first, claims second. The correct question is not “What payload is advertised?” but “Under what reach, center-of-gravity offset, acceleration profile, and duty cycle does the robot sustain repeatable performance?” That distinction separates a workable automation plan from an expensive retrofit.

• Nominal payload may assume a compact load located close to the flange, not a long custom tool.
• Cycle rate may be reduced automatically by the controller to protect joints and maintain safety.
• Mounting angle, cable routing, and vacuum lines can add mass and torque that procurement teams overlook.
• Repeatability can degrade near the edge of the robot’s workspace even when gross lifting remains possible.

What the payload number really means: static mass versus dynamic reality

Collaborative robots payload capacity should be read as part of a coupled system. The robot does not only carry a part. It carries the gripper, adapter plate, sensors, dress pack, and often a safety margin for part variation. Then it moves that total mass through acceleration, deceleration, and directional changes that create additional loads at the joints.

The most overlooked variable is moment load. A 4 kg payload positioned far from the flange can be more demanding than a 6 kg payload placed close to it. This is especially common in applications using dual grippers, long pneumatic fingers, vision-guided tooling, or custom fixtures that shift the center of gravity forward.

The table below shows how engineering teams should interpret collaborative robots payload capacity beyond the advertised headline figure.

This is why a payload review should always include both mass and moment. A cobot that appears sufficient in a purchasing spreadsheet may become marginal once the real end-of-arm tooling and motion path are added. TSV’s benchmarking perspective is straightforward: if the data set does not include reach, duty cycle, and offset load conditions, the payload number is incomplete for sourcing decisions.

Which applications expose payload limits fastest?

Not every task stresses collaborative robots payload capacity in the same way. Some operations are mass-limited. Others are moment-limited or speed-limited. Understanding the dominant failure mode helps project teams avoid overbuying in one area and underestimating another.

Machine tending with long grippers

In CNC or press tending, the part itself may be moderate in mass, but the fingers must reach around guards, vises, or fixtures. That often pushes the center of gravity outward. The result is a wrist torque problem disguised as a payload problem.

Palletizing at extended reach

Palletizing cells are frequently constrained by pallet width, layer height, and infeed position. A cobot that handles cartons near the front row may lose stable dynamic performance when placing to the back corner at maximum extension. The spec sheet payload remains unchanged, but usable payload at reach drops in practical terms.

Dual-pick or multi-tool cells

Teams often add a dual gripper to improve takt time. That can be a sound productivity move, but it also increases tool mass, inertia, and load asymmetry. A robot selected for single-part handling may run out of margin once productivity upgrades are introduced.

Dispensing, inspection, and test handling

These tasks may not look heavy, yet payload issues still appear through accessories such as force sensors, cameras, compliant devices, or cable management. Here, the risk is less about gross lifting and more about repeatability drift and cycle consistency under continuous operation.

How to evaluate collaborative robots payload capacity before purchase

For project leaders, the goal is not simply to compare robot brochures. The goal is to reduce commissioning surprises. A structured pre-purchase review should test whether the candidate cobot still meets takt time, reach, and reliability targets after all real-world masses and moments are included.

1. Build the true payload stack. Include gripper, brackets, sensors, connectors, hoses, dress pack, and the heaviest part variant.
2. Map the farthest task point. Use the worst-case reach, not the easiest point in the cell.
3. Estimate center of gravity from the flange. If the tool is long or asymmetrical, request moment limits, not just payload mass.
4. Validate cycle profile. A robot may carry the load slowly but fail to hit required acceleration and takt time.
5. Review duty cycle and thermal behavior. Short demonstrations can hide performance loss in continuous production.
6. Check safety-mode effects. Collaborative speed and force settings can materially change throughput under load.

The following table can be used as a sourcing checklist when assessing collaborative robots payload capacity for a mixed-industry automation project.

This checklist matters because collaborative robots payload capacity is a system variable, not a single catalog field. Procurement teams that ask for load diagrams, CG assumptions, and full cycle simulations usually detect mismatch before purchase orders are issued.

Common specification traps that distort ROI

The first trap is equating rated payload with usable payload. Usable payload is what remains after tooling and real operating conditions are applied. If a 10 kg cobot uses a 3 kg gripper assembly and handles a part at long reach, the practical margin can shrink quickly.

The second trap is ignoring future process drift. Projects evolve. A part revision, a heavier fixture insert, an added camera, or a dual-grip upgrade can consume the remaining payload reserve. Buying too close to the limit may appear efficient on day one but expensive by quarter three.

The third trap is assuming all slowdowns are software-tunable. If the root cause is joint torque or inertial load, no programming adjustment will restore the lost throughput without changing tool geometry, reducing mass, or moving to a higher-capacity robot.

• If takt time is tight, leave room for acceleration headroom rather than selecting at the theoretical ceiling.
• If the process is multi-shift, consider thermal and maintenance implications of high-load continuous operation.
• If the tool is custom, validate mass properties early instead of waiting for final fabrication.

Standards, safety, and compliance questions project teams should ask

Payload validation is not only a mechanical issue. It also affects safety design, cell risk assessment, and production acceptance. In collaborative applications, reduced speed, force limitation, and workspace constraints can change how much usable performance remains under compliant operation.

Engineering teams should align payload review with general machinery safety and robot integration practice. Depending on the region and application, this may involve reviewing relevant robot safety standards, end-of-arm tooling risk, pinch points, and stopping distance. The key point is practical: collaborative robots payload capacity must be validated in the same operating mode that will be used on the floor, not in an unrestricted lab setup.

Questions worth raising in design reviews

• Will safety settings reduce allowable speed enough to break takt time at the chosen payload?
• Does the EOAT create additional hazards that require guarding, changing the collaborative premise?
• Has the supplier validated the payload with the actual workpiece geometry and gripping method?
• Are maintenance intervals or recommended duty limits affected by near-maximum loading?

FAQ: how project managers interpret payload data without guesswork

Is a higher payload cobot always the safer choice for procurement?

Not automatically. A higher-capacity unit may cost more, occupy more space, and introduce unnecessary complexity if reach, tooling, and cycle demands are modest. However, selecting too close to the limit is risky. The better approach is to define the true load case and preserve sensible engineering margin for part variation and later process change.

What margin should teams leave when reviewing collaborative robots payload capacity?

There is no universal number because tasks differ in reach, acceleration, and duty cycle. In general, the heavier and faster the application, the more margin you should preserve. Long tools, off-center loads, and multi-shift operation justify a more conservative selection than slow, compact, intermittent handling.

Why does a cobot pass a demo but underperform after installation?

Demos often use simplified paths, shorter reaches, lighter tools, and short run durations. Production adds real fixtures, cable strain, continuous duty, safety settings, and full takt requirements. That gap is where collaborative robots payload capacity problems usually surface.

Should project teams focus more on reach or payload?

Neither should be isolated. Reach and payload interact through leverage and inertia. A robot with adequate payload but marginal reach may force unfavorable mounting or tooling geometry. A robot with sufficient reach but limited load moment may still fail the task. Evaluate the combined envelope.
