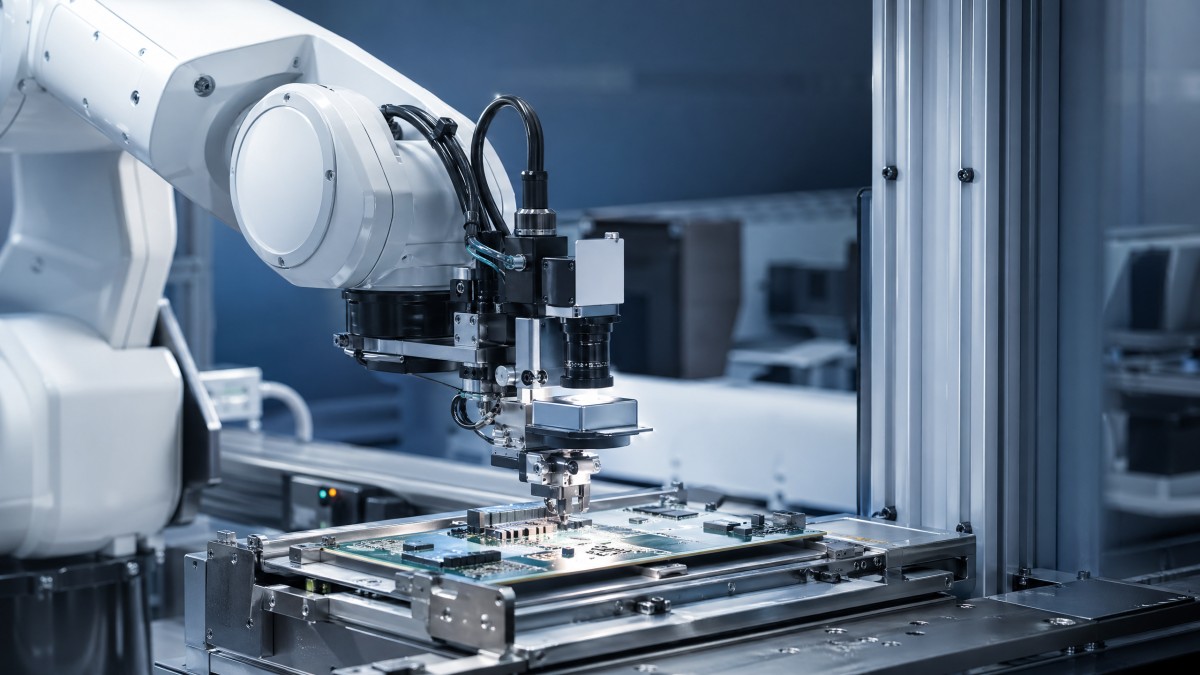

How precise should a robotic arm be for electronics assembly

For robotic arm for electronics assembly, precision is not a marketing claim but a measurable engineering threshold that directly affects yield, solder joint integrity, and micro-component placement. This article examines how repeatability, vision calibration, payload stability, and process tolerance define real-world performance for engineers, operators, procurement teams, and decision-makers seeking data-driven benchmarks.

What precision actually means in electronics assembly

When buyers ask how precise a robotic arm should be for electronics assembly, they often receive broad claims such as “high accuracy” or “micron-level capability.” Those phrases are not enough. In production, precision must be broken into at least 4 measurable layers: repeatability, absolute positioning, vision-guided correction, and end-of-arm process stability. Each layer influences different tasks, from PCB loading to connector insertion and fine adhesive dispensing.

For most electronics assembly environments, repeatability matters more than raw advertised accuracy. A robot may have acceptable absolute positioning after calibration, but if its repeatability drifts under changing payloads, acceleration, or ambient temperature, placement quality will degrade. In common industrial practice, robotic arm repeatability for electronics assembly is often evaluated in ranges such as ±0.02 mm, ±0.03 mm, ±0.05 mm, or ±0.1 mm, depending on the process and fixture design.

A critical distinction is that the robot is only one part of the tolerance chain. Electronics assembly precision also depends on feeder consistency, PCB fixturing, end-effector compliance, camera resolution, calibration interval, and conveyor stop accuracy. A robotic arm with ±0.02 mm repeatability cannot guarantee ±0.02 mm part placement if the vision system, tooling, and mechanical stack-up add another ±0.05 mm of variation.

This is where TechStat Vanguard’s engineering-first view becomes useful. Instead of treating robotic arm precision as an isolated specification, TSV frames it as a system benchmark. That approach helps information researchers compare like with like, helps operators identify process drift, helps procurement teams write sharper RFQs, and helps executives avoid paying for precision levels that the rest of the production cell cannot actually use.

Why repeatability usually matters more than brochure accuracy

In electronics assembly, the robot normally performs repeated motions inside a defined work envelope. That means the ability to return to the same point over 10,000 cycles or over a 2-shift production day is often more valuable than its one-time ability to reach a theoretical coordinate in an empty test setup. Repeatability directly affects pad alignment, insertion force consistency, and cycle-to-cycle quality stability.

Absolute accuracy becomes more important when the robotic arm must interact with multiple stations, changing fixtures, or mobile platforms. However, in a fixed electronics cell with regular recalibration, repeatability plus good vision compensation can outperform a more expensive robot chosen only for a stronger headline specification. This is one of the most common sourcing mistakes in high-mix and mid-volume lines.

Operators also care about how precision behaves over time. A system that holds alignment for 8 to 12 hours before recalibration may be acceptable in some factories, while high-yield micro-assembly lines may require verification every 2 to 4 hours. Those intervals should be defined during FAT and SAT, not discovered after installation.

Key terms teams should separate during evaluation

• Repeatability: the robot’s ability to return to the same programmed point under the same conditions, usually the most relevant metric for repetitive electronics assembly.
• Absolute accuracy: how close the arm reaches a true coordinate in space, often improved with calibration and external vision correction.
• Resolution and control granularity: the smallest commandable motion increment, which does not automatically equal real process precision.
• System placement accuracy: the total result after robot, end-effector, fixture, camera, and part presentation errors are combined.

How precise should the robotic arm be for different electronics tasks?

The right precision threshold depends on the task, not on marketing pressure. A robotic arm for tray handling, PCB transfer, and screwdriving does not need the same repeatability as a system placing miniature connectors, shielding cans, or fragile optical components. In practice, electronics assembly buyers should classify applications into 3 groups: general handling, precision assembly, and micro-assembly or vision-critical operations.

General handling tasks such as loading carriers, moving PCBs between stations, or presenting parts to testers often tolerate robotic arm repeatability around ±0.05 mm to ±0.1 mm when the fixtures are forgiving. Precision assembly tasks such as connector mating, label placement, or controlled dispensing usually benefit from ±0.02 mm to ±0.05 mm. Micro-assembly tasks, especially those involving miniature components or narrow alignment windows, may demand sub-±0.02 mm system-level control with rigid tooling and high-quality vision integration.

The table below summarizes typical evaluation logic. These are not universal guarantees, because part geometry, process force, and fixture tolerance can shift the practical requirement. Still, this framework helps engineers and procurement teams translate a vague question into a usable specification sheet.

The key takeaway is simple: a robotic arm should be precise enough to stay inside the full process tolerance window, not just to satisfy a standalone catalog value. If the product tolerance stack leaves only a narrow margin of 0.04 mm to 0.08 mm, then selecting an arm with loose repeatability creates immediate yield risk. If the process window is wider, overspending on ultra-fine precision may not improve results.

This task-based view also supports better budget allocation. Instead of buying the highest precision arm for the entire line, many factories use a mixed architecture: one high-precision station for critical assembly and one or two standard arms for loading, unloading, and non-critical movement. That can reduce capital inefficiency while preserving process performance where it matters.

When process tolerance is tighter than robot tolerance

If the required placement window is tighter than the robotic arm’s proven repeatability, the process is already under stress before production starts. Teams may try to compensate with slower speeds, softer grippers, or frequent recalibration, but those are often temporary fixes. The more sustainable approach is to redesign the tolerance chain: improve fixturing, upgrade vision, shorten cantilever length, or choose a more suitable arm.

A useful engineering rule is to maintain enough margin so that robotic motion error consumes only a portion of the total allowable process variation. The exact ratio depends on the application, but the principle is consistent: do not let the robot use up nearly the entire tolerance budget on its own.

Which technical parameters matter beyond the precision spec?

A robotic arm for electronics assembly should never be selected on repeatability alone. In many lines, unstable vision calibration, unsuitable payload sizing, or vibration under acceleration causes more defects than the nominal precision value. For this reason, TSV-style benchmarking looks at a parameter set, not a single line item. At minimum, teams should review 5 technical dimensions before comparing quotations.

First is payload utilization. A robotic arm carrying an end-effector that consumes 60% to 80% of its payload rating may still operate, but dynamic stiffness can change during fast motion. Second is reach and posture. The same arm can behave differently near the center of its work envelope versus near the edge. Third is cycle-time acceleration. Higher speed is useful only if it does not introduce oscillation at the tool center point.

Fourth is vision integration quality, including calibration method, camera placement, and recalibration interval. Fifth is environmental stability. Electronics factories are cleaner than heavy machining shops, but temperature shifts, ESD controls, and fine cable routing still affect motion consistency. In delicate assembly, even a small variation over a 6-hour run can change insertion force or placement offset.

The following table provides a practical review framework for engineers, operators, and sourcing teams evaluating a robotic arm for electronics assembly. It is especially useful when two suppliers appear similar on headline precision but differ in real system behavior.

For operators, these factors explain why a robot can pass initial setup yet drift later in production. For procurement teams, they show why a quotation with identical reach and payload may still create very different process outcomes. For executives, they support a more disciplined capital decision: buy the precision level the process can exploit, and verify the surrounding subsystems with the same rigor.

A practical 5-point validation checklist

• Test repeatability with the actual gripper, cable routing, and part load, not with an empty flange.
• Measure placement quality after 1 hour, 4 hours, and 8 hours to detect thermal or mechanical drift.
• Verify precision at the real working posture, especially if the task is near the edge of the reach envelope.
• Check how quickly the system can be recalibrated during a shift without disrupting throughput.
• Confirm whether the quoted precision refers to the arm alone or to the complete integrated workstation.

How should procurement teams compare robotic arm options?

Procurement rarely fails because teams ignore price. It fails because teams compare incomplete technical definitions. In electronics assembly, two robotic arm proposals may look similar on reach, payload, and repeatability, yet differ significantly in controller response, vision compatibility, support for clean routing, or ease of preventive maintenance. A good sourcing process converts technical risk into a structured comparison before PO release.

A useful method is to divide evaluation into 3 decision layers: process fit, integration fit, and lifecycle fit. Process fit answers whether the robotic arm can achieve the required precision for the specific electronics assembly task. Integration fit checks communication, space, vision, ESD, and tooling compatibility. Lifecycle fit examines spare parts access, calibration support, operator training, and expected maintenance intervals over 12 to 36 months.

This approach is especially important for companies that operate across multiple geographies or contract manufacturing sites. A robotic arm that performs well in one demonstration cell may be difficult to standardize if software support, documentation depth, or local service response does not match the plant network. Data-driven procurement reduces these hidden adoption costs.

Questions procurement should put into the RFQ

To avoid ambiguous offers, procurement documents should ask suppliers to state whether precision values are measured under no-load, nominal-load, or full working-load conditions. The RFQ should also request recommended recalibration intervals, acceptable ambient temperature range, expected maintenance checkpoints, and the integration method for machine vision and force control if used in connector insertion or delicate assembly.

Another important step is to define acceptance criteria in advance. For example, teams may require a robotic arm for electronics assembly to maintain placement performance over a fixed sample run, such as 500 cycles, 2,000 cycles, or a full shift simulation, depending on process criticality. The exact threshold depends on the product, but predefining the test avoids subjective handover decisions later.

A 4-step sourcing workflow

1. Define the task tolerance chain, including part tolerance, fixture tolerance, vision contribution, and robotic arm precision allowance.
2. Shortlist 2 to 4 robotic arm candidates that match reach, payload, speed, and environmental requirements.
3. Run a proof-of-process test using real parts, real tooling, and realistic cycle profiles rather than a simplified demo.
4. Score lifecycle factors such as support responsiveness, spare parts availability, training, and calibration workflow before final selection.

For decision-makers, the best procurement outcome is not simply the lowest purchase price or the highest published precision. It is the lowest total process risk at the required throughput and quality target. In many cases, a slightly more expensive robotic arm with stronger integration discipline and support transparency delivers a lower cost per acceptable unit over time.

Common mistakes, compliance considerations, and practical FAQ

Many electronics manufacturers underestimate how quickly a precision discussion becomes a compliance and validation discussion. If the production line serves regulated sectors such as medical electronics, aerospace electronics, or automotive electronics, teams may need stronger traceability, documented calibration, and clearer acceptance protocols. While the exact standard depends on the application, the principle remains the same: the robotic arm must fit into a controlled manufacturing system, not just a fast one.

A second mistake is assuming that cobot safety and ease of deployment automatically equal suitability for high-precision electronics assembly. Collaborative robots can be a good fit for certain loading, inspection, or light assembly tasks. However, if the process demands very tight placement, high speed, or rigid insertion control, a traditional industrial robotic arm or a specialized precision platform may be more appropriate.

A third mistake is focusing on initial acceptance and ignoring long-run stability. Electronics assembly lines may run single shifts, double shifts, or 24/7 schedules. Precision that looks acceptable over 50 cycles may not hold over 5,000 cycles without robust calibration and maintenance planning. That is why benchmarking over time is more valuable than snapshot testing.

FAQ: How precise should a robotic arm be for electronics assembly?

Is ±0.1 mm precise enough for electronics assembly?

It can be enough for basic handling, tray movement, or loading operations with generous fixture tolerance. It is often not enough for tighter connector insertion, fine dispensing, or miniature component alignment. The answer depends on the full process window, not on the robotic arm alone.

Should I prioritize a vision system or a higher precision robotic arm?

If the incoming part position varies, vision may create more value than buying a much tighter robotic arm. If the task already has stable presentation but a very narrow tolerance window, higher robot repeatability and mechanical stiffness may matter more. In many advanced cells, the best answer is balanced investment in both.

How often should calibration be checked?

There is no universal interval. Some lines verify once per shift, some every 2 to 4 hours, and some only after tooling changes. The right interval depends on thermal stability, task criticality, cycle speed, and defect sensitivity. During pilot runs, teams should establish a realistic verification schedule based on measured drift rather than guesswork.

Can a collaborative robot handle precision electronics assembly?

Sometimes yes, especially for light assembly, loading, or vision-assisted handling. But not every cobot is ideal for tightly constrained insertion or micro-placement. Buyers should compare stiffness, settle time, and real working repeatability, not just safety features and ease of programming.

Why data-led evaluation matters now

In a market filled with broad performance claims, the most effective way to select a robotic arm for electronics assembly is to benchmark process reality: repeatability under load, vision drift, tool rigidity, acceptance cycles, and maintenance intervals. That is exactly the gap TSV addresses. By filtering out inflated language and focusing on measurable engineering thresholds, TSV helps teams shorten supplier qualification cycles and reduce expensive trial-and-error in automation investments.
