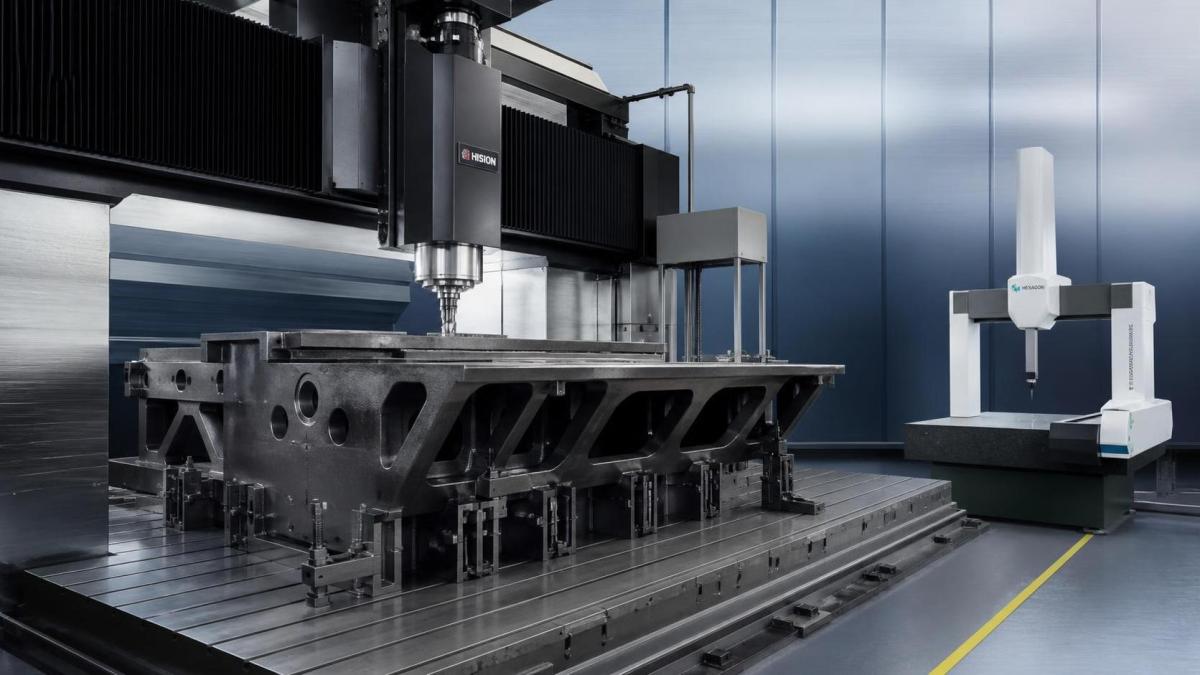

How to Evaluate a Heavy CNC Machining Supplier for Large, Tight-Tolerance Parts

Selecting a heavy CNC machining supplier for large, tight-tolerance parts requires more than comparing machine capacity or quoted pricing. The real qualification question is whether the supplier can repeatedly achieve the required geometry across an oversized workpiece after clamping, roughing, heat movement, finish machining, inspection, and shipment. Machine travel alone does not answer that question.

For fabricated and machined structures used in aerospace ground equipment, energy systems, industrial automation, marine hardware, semiconductor equipment, and large robotic assemblies, a failed sourcing decision can create expensive consequences: rework that cannot recover datum relationships, delayed assembly builds, disputed inspection results, or an apparently acceptable part that distorts after installation. A capable heavy CNC machining supplier should therefore be evaluated as a controlled manufacturing system, not as a collection of large machines.

Start with the part’s functional risk, not the supplier’s equipment list

“Large” and “tight tolerance” are relative terms. A 3 m aluminum plate with several precision bores creates a different manufacturing problem from a 7 m welded steel base, a large Inconel ring, or a ductile-iron machine frame. Even when two components have similar envelope dimensions, their sourcing risks may be entirely different.

Before issuing an RFQ, separate the drawing requirements into the features that actually determine assembly performance:

• Primary datum surfaces and the order in which they must be established;
• Critical bore centers, diameters, perpendicularity, and positional tolerances;
• Flatness and straightness requirements over the full functional length;
• Parallel rail-mounting surfaces and interface planes;
• Threaded features that must align with mating components;
• Surface finish requirements connected to sealing, bearing, sliding, or optical interfaces;
• Material condition, stress-relief requirements, weld condition, plating allowance, and coating masks.

This exercise is important because not every drawing dimension requires the same process capability. Suppliers often respond with a general claim such as “±0.01 mm capability.” That statement has little value unless it identifies the material, part size, feature type, measurement method, thermal condition, and production quantity behind the claim.

A tolerance that is routine on a small prismatic aluminum component may be difficult on a several-tonne steel structure, particularly when flatness, bore position, and parallelism must be held in the same setup sequence. The correct question is: What has the supplier demonstrated on comparable geometry, mass, material, and tolerance stack-up?

Machine envelope is only the first capacity check

A heavy machining center with a large X-axis travel may still be unsuitable for a given job. The full work envelope includes usable table area, rotary-axis restrictions, spindle-to-table clearance, tool reach, fixture space, and access to every required face. It also includes the machine’s ability to retain accuracy when the workpiece is near the upper end of its load limit.

Request a machine-capability matrix that identifies, for each proposed machine:

• Axis travels and practical maximum part envelope, rather than brochure travel alone;
• Maximum table load, distributed load limits, and permissible overhang;
• Machine configuration: gantry, bridge, horizontal boring mill, floor-type mill, vertical turning center, or 5-axis platform;
• Spindle power, torque curve, maximum tool length, and available right-angle or extension heads;
• Rotary table capacity and whether its use changes the available load or working envelope;
• Number of setups expected and which datums will be retained between them;
• Recent calibration and geometric-accuracy records for the proposed machine.

For large precision parts, the supplier’s preferred machine architecture matters. A horizontal boring mill may be well suited to deep bores and heavy castings. A gantry machine may offer broad top-face access to large plates and frames. A large 5-axis system can reduce datum transfers and improve access to compound features, but only if the rotary axes, probing strategy, and fixturing are appropriate for the component’s mass and center of gravity.

Do not assume that a 5-axis label automatically means better accuracy. On a large part, an unstable fixture, an excessively long tool, thermal growth, or a poor datum strategy can overwhelm the theoretical benefit of multi-axis access.

Evaluate tolerance capability as a process, not a promise

The most common qualification error is accepting a blanket tolerance statement without examining process stability. Large workpieces amplify several sources of variation: material stress release, machine thermal growth, fixture deflection, cutter load, environmental temperature change, handling damage, and inconsistencies between machining and inspection datums.

A credible supplier should be able to explain how it controls these variables for the proposed part. The discussion should cover more than a final CMM report. Ask how the part is located during roughing and finishing, whether rough and finish operations are separated in time, how the component is supported, when probes are used, and how the shop compensates for temperature-related movement.

For demanding applications, useful evidence may include first-article inspection records from comparable work, in-process probe reports, machine verification records, and documented corrective actions for prior nonconformities. Statistical process control can be valuable for recurring features in serial production, but a Cp or Cpk value is not meaningful unless the feature, sample population, measurement system, and production conditions are clearly defined. One successful prototype is not evidence of stable series capability.

Where a supplier quotes capability against geometric tolerances, verify the reference standard used on the drawing. Geometric dimensioning and tolerancing practices may be based on ASME Y14.5 or ISO GPS standards such as ISO 1101. The drawing convention, datum interpretation, and inspection method must be agreed before machining begins. Large parts frequently fail not because the machine could not cut the feature, but because the manufacturer and customer interpreted datum simulation differently.

Material behavior can determine the real cost and lead time

Heavy machining becomes more complex when the material contains residual stress or is difficult to cut. Thick aluminum plate, quenched-and-tempered steel, stainless steel weldments, cast iron, titanium, nickel alloys, and large fabricated structures all present different risks.

With large aluminum components, material removal can release internal stress and change flatness after roughing. With welded structures, distortion may continue after welding unless the fabrication, stress relief, and machining plan are coordinated. On nickel alloys and titanium, tool wear, heat concentration, and low material removal rates can turn an apparently competitive quote into a schedule risk. Castings introduce another issue: machining may uncover porosity, inclusions, or inconsistent stock allowance.

The supplier should identify material source requirements, incoming material verification, and the proposed sequence for stress relief or stabilization. If a part requires heat treatment, clarify whether it will be rough-machined before heat treatment and finish-machined afterward, and what stock allowance is reserved. If welding is involved, determine who owns weld procedure control, non-destructive testing where specified, post-weld treatment, and dimensional responsibility after machining.

A low quote often excludes this process thinking. It may assume nominal stock, no unexpected material movement, minimal setup changes, and no need for recovery machining. Those assumptions can be acceptable for a noncritical frame; they are dangerous for a large assembly interface with tight flatness or bore-position requirements.

Inspection capacity must match part size and datum scheme

Inspection is not a final administrative step. For large tight-tolerance components, it is part of the manufacturing method. A supplier may own a CMM but lack the measuring volume, fixture capability, temperature control, programming experience, or reporting discipline required for the part.

Review whether the supplier can inspect the component in a condition that represents its functional state. A large part measured on temporary blocks, on a shop floor, or after multiple relocations may produce results that are difficult to reconcile with assembly performance.

Key questions include:

• What is the maximum CMM measuring volume, payload, and practical part access?
• Will inspection occur in a controlled environment, and how are temperature effects addressed?
• Can the supplier measure all critical features in one datum setup, or will results be stitched from multiple positions?
• Are laser trackers, portable arms, photogrammetry, precision levels, or on-machine probing used—and for which characteristics?
• What is the measurement uncertainty relative to the specified tolerance?
• Can reports show actual values, datum references, measuring equipment identification, and revision-controlled program status?

Portable metrology can be highly effective for oversized parts, but it should not be treated as interchangeable with a CMM. Its suitability depends on the required uncertainty, line of sight, surface condition, feature accessibility, and environmental control. For critical dimensions, request the planned measurement method before placing the order.

Where formal quality-system certification is required, verify the scope and current validity of the certificate rather than relying on a logo in a quotation. ISO 9001 may support general quality-management controls; AS9100 is relevant where aerospace quality-system requirements apply. Neither certificate independently proves that a facility can machine a particular 6 m structure to a demanding geometric tolerance. Process evidence remains essential.

Fixturing, lifting, and part protection are engineering controls

Large components can be damaged before the spindle starts. Inadequate lifting plans, unsupported transport, distorted fixtures, and poor clamping can all create nonconformance. This is particularly important for thin-wall structures, large plates, precision weldments, and parts with finished rail surfaces or sealing faces.

Ask for the supplier’s proposed workholding concept. It should show support locations, clamping approach, datum pads, lifting points, and how the part will be turned or transferred between machines. A sound plan minimizes deformation and allows inspection datums to correspond with machining datums. For thin or flexible parts, vacuum fixturing, distributed supports, sacrificial features, or controlled clamping sequences may be necessary.

Packaging deserves the same attention. A part that meets inspection requirements can lose flatness, suffer corrosion, or sustain edge damage during international shipment. Confirm preservation requirements, protective covers for precision bores, corrosion prevention compatible with the material and subsequent assembly, crate design, lifting instructions, and whether final inspection occurs before or after any disassembly from the machining fixture.

Assess delivery reliability through the actual routing

Lead time for heavy machining is rarely determined by cycle time alone. Material availability, heat treatment slots, welding subcontractors, large-machine scheduling, inspection bottlenecks, and transport arrangements can all become the critical path.

A supplier should provide an operation-level route for a serious RFQ: material receipt, fabrication or rough machining, stress relief where applicable, finish machining, inspection, surface treatment, final documentation, and shipment. This makes hidden dependencies visible.

Pay attention to outsourced processes. External heat treatment, NDT, coating, balancing, or specialized inspection can be entirely appropriate, but responsibility must remain clear. The machining supplier should control approved subcontractors, define acceptance criteria, review certificates, and manage the schedule. A fragmented supply chain without a single accountable party is a common cause of late deliveries and documentation gaps.

For initial orders, consider a gated approval structure rather than releasing the entire production quantity at once. A review after material receipt, after rough machining, and after first-article inspection can prevent a problem from being repeated across multiple expensive workpieces. This is especially useful where the part has limited material availability or long recovery lead times.

Use the RFQ to expose capability gaps early

A well-structured RFQ should make it difficult for suppliers to respond with generic assurances. In addition to drawings and annual volume, include the critical-to-function characteristics, applicable revision level, material specification, required certificates, cosmetic restrictions, packaging requirements, and destination. Identify which tolerances are mandatory at delivery and which are functional targets that may be reviewed through engineering discussion.

Require the quotation to state assumptions and exceptions. If a supplier proposes an alternative datum sequence, relaxed inspection method, substituted material form, or divided setup strategy, that information is more useful before award than after production begins. Silence is not agreement.

The strongest heavy CNC machining supplier is not necessarily the one with the largest machine or the lowest unit price. It is the one that can demonstrate a controlled route from incoming material to verified shipment, explain the limits of that route, and provide evidence from comparable work. For large, tight-tolerance parts, that level of transparency is usually the most reliable indicator of cost, quality, and delivery performance over the life of the program.
