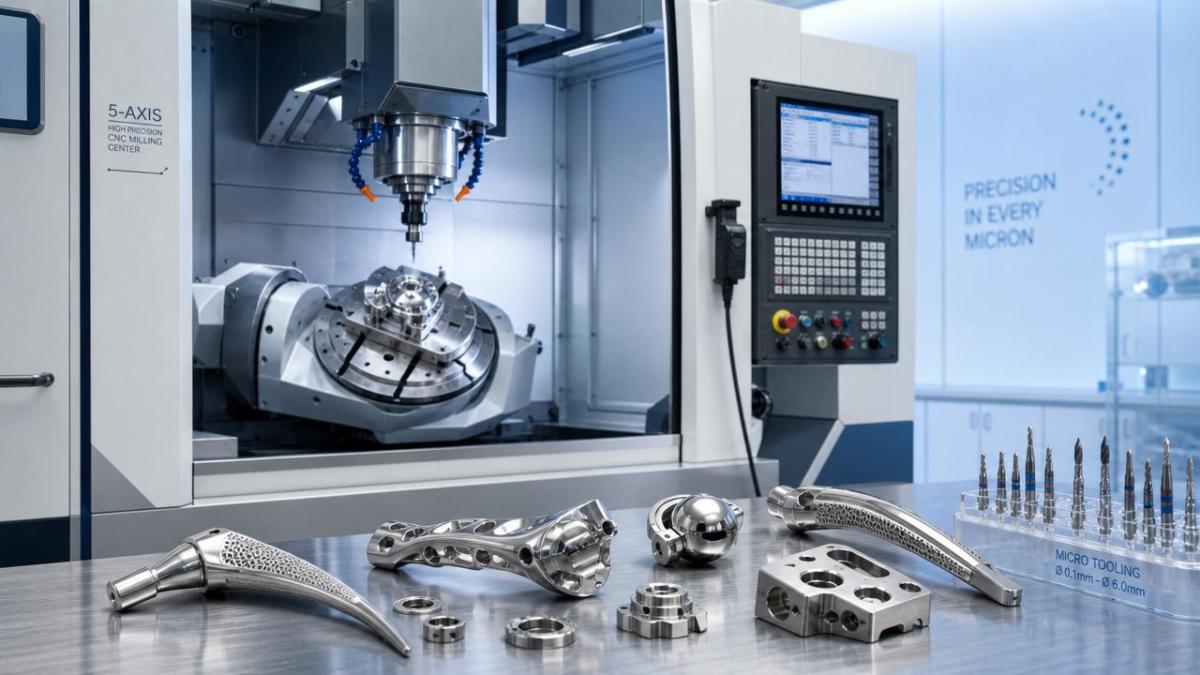

5-Axis CNC Machining for Medical Devices: Where Tolerance Fails

In 5-axis CNC machining for medical devices, failure rarely begins with a visible defect—it starts where microns drift, surfaces deviate, and validation data no longer supports patient safety. For quality and safety leaders, understanding where tolerance fails is essential to controlling compliance risk, supplier performance, and functional reliability in ISO 13485-driven production.

For most quality teams, the core question is not whether 5-axis machining is advanced enough. It is whether the process remains stable enough, documented enough, and predictable enough to support a regulated device across inspection, assembly, sterilization, and clinical use. In practice, tolerance failure is usually a systems problem, not a single-machine problem.

That is why evaluating 5-axis CNC machining for medical devices requires more than reading a supplier’s capability statement. You need to know where geometric accuracy starts to erode, which process variables create hidden compliance exposure, and how to distinguish a supplier with real process control from one that only machines good-looking first articles.

Where tolerance actually fails in 5-axis CNC machining for medical devices

In regulated medical manufacturing, tolerance failure rarely means a dimension is dramatically out of spec. More often, it means the machining process can no longer hold critical features consistently enough to preserve function, traceability, and validation confidence. A part may still “pass” isolated inspection points while already drifting toward unacceptable clinical or assembly risk.

This matters especially in 5-axis CNC machining for medical devices because the process combines complex tool motion, multi-surface geometry, difficult materials, and tight feature relationships. The more complex the part, the more tolerance risk shifts from simple linear dimensions to positional accuracy, surface integrity, and cumulative geometric error.

For quality control and safety managers, the most important insight is this: tolerance does not fail at the print alone. It fails at the interaction between machine kinematics, fixturing strategy, thermal stability, tool wear, measurement method, operator discipline, and document control. If one of those elements weakens, your conformance data may stop reflecting real manufacturing capability.

Typical failure zones include micro features on orthopedic and spinal components, contoured surfaces on implantable parts, intersecting holes with angular requirements, thin-wall sections prone to vibration, and sealing or mating features that depend on both dimensional accuracy and low surface variation. These are the areas where “nominally in tolerance” can still become functionally unsafe.

Why quality and safety teams should worry before visible defects appear

By the time burrs, chatter, misalignment, or obvious nonconformities are visible, the process may have been unstable for multiple production lots. In medical device supply chains, that delay can create expensive consequences: quarantine events, CAPA escalation, complaint investigations, delayed release, or supplier requalification.

For patient-facing products, the risk is even more serious. A dimensional drift in a surgical guide may affect fit. A surface deviation in an implantable component may influence wear, fixation, or cleanability. A positional error in an instrument assembly may reduce functional precision. These are not cosmetic issues; they can alter product performance, sterilization effectiveness, or biocompatibility assumptions.

From an ISO 13485 perspective, the concern is not only whether a part failed. It is whether the manufacturer can demonstrate controlled processes, validated inspection logic, and effective risk management before failure reaches the field. If tolerance capability is inconsistent, product realization controls become weaker, and the burden on incoming inspection becomes unrealistically high.

This is why experienced quality leaders do not rely on a single CMM report or an attractive capability chart. They ask whether the process remains stable across shifts, machine platforms, tool life stages, material heat lots, and repeated setups. That is where real confidence is built—or lost.

The most common root causes behind tolerance drift in medical device machining

One major root cause is machine kinematic error. In 5-axis environments, rotary axis alignment, volumetric accuracy, backlash, and compensation integrity directly affect true feature position. A machine may appear capable in simple test cuts but lose reliability when simultaneous motion, compound angles, and deep-feature access are required.

Thermal variation is another frequent source of drift. Medical device parts are often produced in small, high-mix batches where setup changes are frequent. If warm-up routines, environmental controls, or compensation strategies are weak, the same program can produce measurable variation across the day. For micron-level features, that variation is enough to compromise critical dimensions.

Tool wear also becomes more dangerous in complex medical parts than in general industrial components. A worn tool does not just create rougher surfaces; it can shift edge definition, taper, hole quality, and localized geometry. In titanium, cobalt-chrome, stainless steels, and high-performance polymers, the wear pattern can be non-linear, making inspection-based reaction too late if preventive limits are not established.

Fixturing is another underestimated factor. In 5-axis CNC machining for medical devices, parts are often small, delicate, contoured, or thin-walled. Inadequate support can induce distortion during machining, while overclamping can deform the part before measurement even begins. The resulting issue may not be visible until downstream assembly or final inspection.

Programming strategy can also create hidden tolerance loss. Poor toolpath planning, suboptimal step-over, excessive tool reach, or unnecessary axis transitions can increase vibration and reduce geometric fidelity. When CAM strategy is not linked to critical-to-quality features, the machine may produce technically complete parts that are statistically unstable.

Finally, metrology mismatch is a major source of false confidence. If inspection methods are not aligned with the functional geometry of the part, quality teams may approve dimensions that do not represent real use conditions. A simple point measurement may miss a profile deviation, and an under-defined sampling plan may fail to detect lot-level variation.

What to verify when assessing a machining supplier’s real medical capability

If you are qualifying or monitoring a supplier, start with process capability on critical features, not generic machine specifications. A supplier claiming high precision should be able to show repeatable data on actual medical-relevant geometries: true position, profile, concentricity, bore quality, thread integrity, and surface finish on the materials you require.

Ask how the supplier controls first-off to last-off variation. A capable medical machining partner should have defined limits for tool life, in-process inspection triggers, setup verification, offset adjustment rules, and part segregation when drift is detected. If these controls depend mainly on operator experience rather than documented methods, the risk is higher than the quoted tolerance suggests.

Also review how they connect machining control to the quality system. In a medical context, strong machining performance without robust traceability is not enough. You should expect revision control for programs and fixtures, calibration discipline, nonconformance escalation logic, MSA awareness, and evidence that inspection plans reflect product risk.

For quality and safety personnel, one of the most revealing questions is how the supplier handles features that are difficult to measure directly. Do they use functional gauging, CMM strategy validation, profile analysis, or correlation studies between inline and final inspection? A weak answer here often signals that process understanding is shallower than the sales presentation implies.

It is also useful to ask for examples of previous process failures and what corrective actions were implemented. Mature suppliers can explain where tolerance failed, how root cause was isolated, and how recurrence was prevented. That kind of transparency is often a better indicator of reliability than polished marketing claims.

How to detect hidden risk in inspection and validation data

Many medical machining risks are hidden not in the part, but in the way data is interpreted. A supplier may present favorable inspection results from a limited sample, a fresh tool, or a single setup while the wider process remains unstable. Quality teams should therefore examine context, not just outcome.

Look for data across time, not isolated snapshots. Trend charts, lot-to-lot comparisons, setup repeatability records, and tool life stage analysis will tell you far more than one perfect first article package. A part that repeatedly approaches control limits in production is more concerning than a single outlier that was rapidly contained.

Pay attention to how critical features are selected. If the reported metrics focus on easy-to-measure dimensions while downplaying profile, angularity, or mating relationships, the inspection package may not reflect the true risk. In medical device components, function often depends on the interaction of features rather than one dimension alone.

Measurement system quality is equally important. If the tolerance band is tight but gage variation consumes too much of that band, then acceptance decisions become unreliable. For that reason, metrology capability, fixture repeatability, CMM program validation, and operator consistency should all be reviewed when assessing supplier data.

Another warning sign is excessive dependence on final inspection to “catch” problems. In stable 5-axis CNC machining for medical devices, final inspection confirms control; it does not create control. If a supplier cannot explain robust in-process control methods, then passing final reports may simply mean defects have not yet escaped detection.

How tolerance failure affects compliance, safety, and business performance

When tolerance control weakens in medical manufacturing, the impact moves quickly beyond scrap. Quality teams may face incoming inspection intensification, delayed batch release, repeated deviations, and pressure to justify acceptance of marginal parts. Safety teams may have to reassess hazard analyses if part variation affects functional performance or cleaning validation assumptions.

There is also a direct regulatory burden. Inability to demonstrate stable machining and measurement controls can complicate audits, supplier evaluations, and design transfer reviews. If device history records, process validation logic, or supplier controls do not align with actual machining variability, compliance confidence erodes even if no field event has occurred.

Commercially, the damage is significant. Poor tolerance performance increases supplier qualification cycles, engineering review load, and containment costs. It can also undermine launch timelines for new products, especially when design teams must repeatedly adjust tolerances or inspection criteria to compensate for manufacturing inconsistency instead of addressing root cause.

For organizations operating globally, tolerance failure can also disrupt site-to-site transfer and dual sourcing. If one supplier’s capability depends on tribal knowledge rather than controlled process architecture, replication becomes difficult. That creates concentration risk and weakens long-term supply resilience.

A practical control framework for quality and safety leaders

To reduce risk, quality and safety managers should treat 5-axis machining capability as a layered control problem. The first layer is feature criticality: identify which dimensions, profiles, and surfaces directly affect function, assembly, sterility, or patient risk. Those features should drive both supplier qualification and ongoing surveillance.

The second layer is process evidence. Review whether the supplier can maintain repeatability under normal production conditions, not just under ideal trial conditions. That includes machine calibration discipline, thermal control, documented setup routines, tool management, and reaction plans for drift. Capability should be demonstrated on the actual production pathway.

The third layer is metrology alignment. Ensure inspection methods are appropriate for the geometry and risk of the part. Where features are complex, confirm that measurement uncertainty is understood and that the inspection strategy correlates with real functional acceptance. Good measurement should reduce ambiguity, not merely generate reports.

The fourth layer is quality system integration. For medical devices, process control and documentation control must reinforce each other. Program revisions, fixture changes, nonconformance handling, and training records should all be linked clearly enough that an auditor—or your own internal team—can reconstruct how conformity was maintained.

Finally, create leading indicators rather than waiting for rejection events. Monitor trend movement on critical features, setup repeatability, rework frequency, tool life excursions, and inspection escapes. These indicators often show where tolerance is beginning to fail before a formal nonconformance appears.

Conclusion: in medical machining, tolerance failure is a signal of process truth

In 5-axis CNC machining for medical devices, tolerance failure is rarely a random event. It is usually the earliest measurable sign that process discipline, machine behavior, metrology strategy, or supplier control is no longer fully aligned with product risk. For quality control and safety leaders, the goal is not simply to reject bad parts. It is to identify where confidence in the process starts to weaken.

The most effective organizations understand that machining precision in a regulated environment is not proven by claims of “tight tolerances.” It is proven by repeatable evidence, risk-based inspection, stable process control, and documentation that remains credible under audit and under load. That is the difference between parts that look compliant and processes that are genuinely safe.

When evaluating suppliers or internal production lines, focus on where drift begins, how it is detected, and whether the response is engineered into the system. In the medical sector, that is where quality performance, regulatory readiness, and patient safety ultimately converge.
