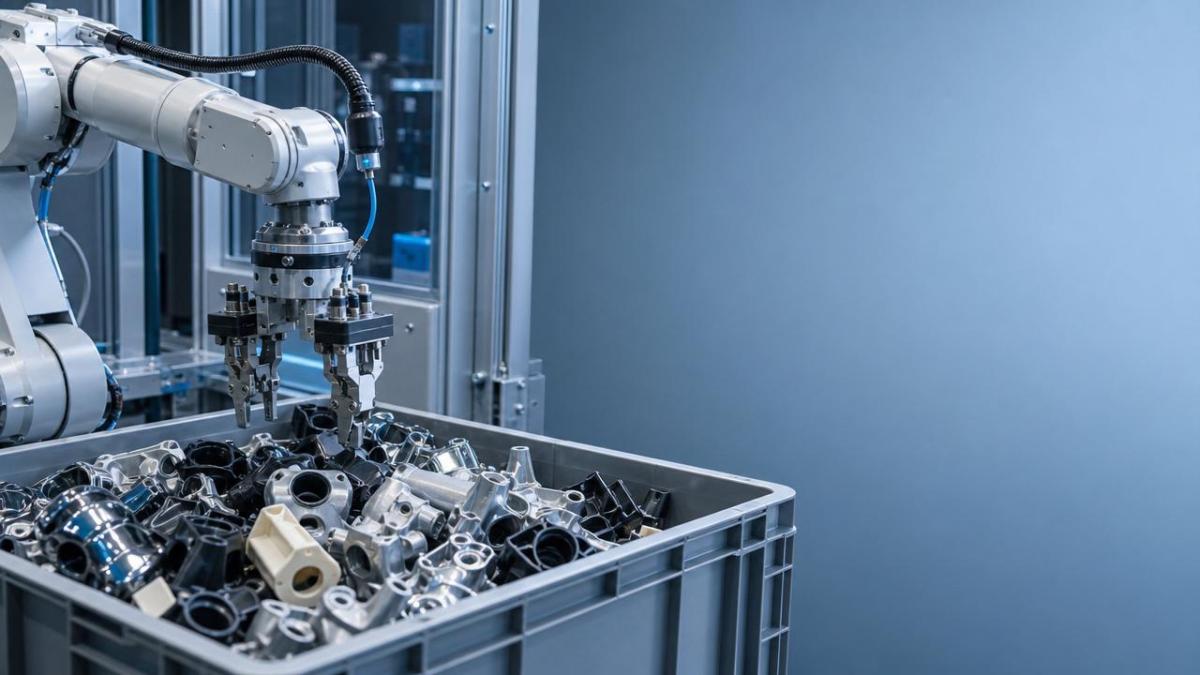

Why robotic bin picking 3d vision still fails on mixed parts

Despite rapid progress in perception stacks, robotic bin picking 3d vision still struggles when real bins contain mixed geometries, reflective finishes, deep overlap, and unstable part presentation. Lab demos often show isolated wins. Production cells expose a harder reality: repeatable grasp success under cycle pressure, lighting drift, contamination, and random part interaction. For engineering evaluation, the useful question is not whether a system can identify parts once, but whether robotic bin picking 3d vision can sustain accuracy, pick rate, and recovery behavior across noisy shifts.

Why a checklist-based evaluation matters

Mixed-part bin picking failures usually come from stacked tolerances, not one dramatic flaw. Sensor limitations, grasp planning, feeder dynamics, robot reach, and software assumptions all interact.

That is why robotic bin picking 3d vision should be judged through a structured checklist. A checklist forces measurement of failure modes that marketing videos hide, including occlusion depth, false pose confidence, and post-pick collision risk.

In a broad industrial context, this matters beyond robotics alone. It affects upstream part design, downstream takt time, line balancing, tooling strategy, and the economics of automation deployment.

Core checklist for robotic bin picking 3d vision on mixed parts

Use the following checks before accepting any performance claim for robotic bin picking 3d vision in mixed-part applications.

• Measure part-family variability across size, edge sharpness, cavity depth, and surface reflectivity instead of testing one favorable SKU with stable geometry.
• Verify point-cloud quality at the bottom of the bin, where shadowing, grazing angles, and mutual occlusion reduce usable depth information.
• Test pose estimation confidence against real overlap conditions, because mixed parts often present only partial features and ambiguous silhouettes.
• Check grasp feasibility after recognition, since a correct label does not guarantee tool clearance, suction sealing, or finger insertion.
• Record success rate over long runs, not short demos, to capture lens contamination, thermal drift, vibration effects, and scene variation.
• Stress recovery logic with failed picks, dropped parts, and shifted piles, because robust automation depends on graceful re-planning after disturbance.
• Compare cycle time distribution, not average only, because long-tail exceptions often destroy throughput in mixed-part robotic bin picking 3d vision cells.
• Audit training data scope and annotation quality, especially for rare poses, shiny surfaces, dark materials, and partially buried components.
• Inspect calibration stability between camera, robot, and end effector, since small alignment errors grow into large pick offsets at oblique reaches.
• Validate collision checking with real gripper geometry, cable routing, and bin wall tolerances instead of simplified digital models.

What usually breaks first

The first failure is rarely object detection itself. More often, robotic bin picking 3d vision fails because the chosen grasp is physically unreachable, unstable, or unsafe near neighboring parts.

The second failure is confidence inflation. Systems may output a clean pose estimate even when the underlying point cloud is sparse, noisy, or distorted by reflective surfaces.

Why mixed parts are fundamentally harder than single-SKU bins

Single-part bins let perception models exploit repetition. Mixed bins remove that advantage. Every scan may contain different contours, contact patterns, and occlusion chains.

Surface finish also matters. Matte castings, polished machined parts, black polymers, and perforated stampings all distort depth sensing in different ways. One sensor setting rarely fits all.

Part interaction is another hidden barrier. Mixed components wedge together, create false edges, or expose misleading cavities. Robotic bin picking 3d vision must interpret not only the part, but the pile physics.

Scenario: metal machining and fabricated components

Machined parts often combine reflective faces, oil film, burrs, and tolerance-driven geometry changes. A pose model trained on ideal CAD can drift when real production variation appears.

Fabricated parts add another issue: thin edges and flexible tabs may move during contact. In these cases, robotic bin picking 3d vision needs grasp planning tied to compliance behavior.

Scenario: plastics, castings, and consumer-grade assemblies

Plastic parts may be dark, glossy, or translucent. Castings may have irregular texture and inconsistent flash. Assemblies may include labels, wires, or asymmetrical mass distribution.

Here, the challenge is not only recognition. It is maintaining stable gripping across material differences while preserving cycle time and avoiding damage.

Commonly ignored risks in robotic bin picking 3d vision projects

Ignoring bin depletion behavior

Performance often degrades at low fill levels. Parts settle into corners, expose fewer graspable faces, and force deeper robot approaches with tighter clearance margins.

Assuming AI will compensate for weak mechanics

No perception model can fully fix poor gripper design, unstable robot mounting, or a bin layout that blocks safe extraction. Mechanical design still sets the ceiling.

Using average success rate as the headline metric

An 88% average may look acceptable, yet frequent retries can break throughput. Evaluate first-pick success, recovery time, and 95th percentile cycle time together.

Overlooking maintenance sensitivity

Dust, coolant mist, scratched windows, and loose fixturing gradually reduce scan quality. Robotic bin picking 3d vision should be tested under expected contamination, not pristine conditions.

Trusting CAD-only validation

CAD models rarely capture wear, deformation, casting spread, or packaging artifacts. Real sampled parts from multiple lots are essential for meaningful acceptance testing.

Practical execution steps that improve outcomes

1. Define a part matrix covering geometry class, reflectivity, material, mass, and expected overlap severity before any proof-of-concept begins.
2. Run tests at high, medium, and low bin fill states to expose different occlusion and extraction conditions.
3. Capture at least one full-shift dataset with real disturbances, including dropped parts, lighting changes, and replenishment events.
4. Separate perception accuracy from grasp execution accuracy so root causes can be measured instead of guessed.
5. Set acceptance metrics around sustained picks per hour, first-pass success, and recovery performance rather than demo aesthetics.
6. Require transparent reporting on false positives, no-pick decisions, and operator interventions across the full test window.

For complex deployments, robotic bin picking 3d vision should also be evaluated as a system-of-systems problem. Sensor choice, illumination, end effector, robot trajectory, and bin geometry must be tuned together.

This is where data discipline matters. Consistent engineering benchmarks reveal whether failure comes from vision, mechanics, software integration, or unrealistic cycle assumptions.

Conclusion and next-step guidance

Robotic bin picking 3d vision still fails on mixed parts because real industrial piles are not clean perception problems. They are coupled sensing, grasping, and motion-planning problems under variable physics.

The most reliable path is simple: replace headline claims with a checklist, test across realistic part families, and score long-run behavior instead of isolated wins.

If a system cannot show stable first-pick success, controlled recovery, and predictable cycle distribution on mixed parts, it is not yet production-ready. In robotic bin picking 3d vision, engineering truth starts with measurable failure modes.
