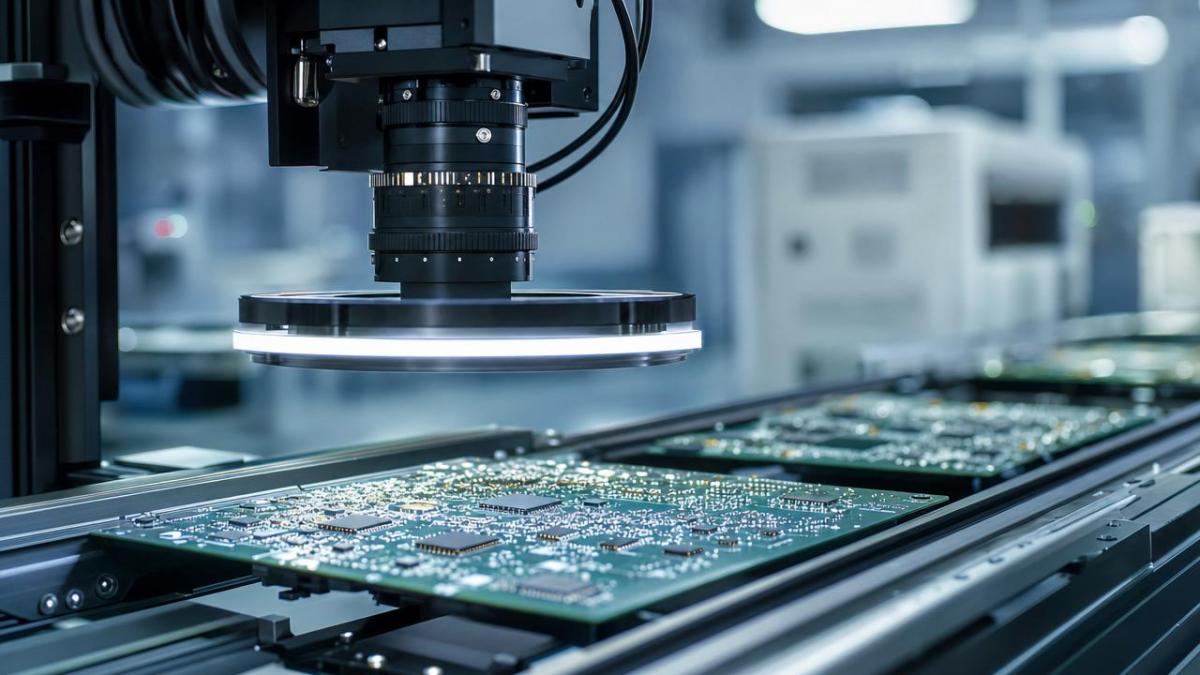

Which vision camera for PCB inspection reduces false rejects

Selecting the right vision camera for PCB inspection can significantly reduce false rejects, shorten verification cycles, and improve yield stability across high-mix production lines. The key issue is not headline resolution alone. Reliable inspection depends on how the camera, lens, lighting, software, and motion system perform together under real production conditions.

In electronics manufacturing and broader industrial quality control, false rejects create hidden cost. They consume engineering time, interrupt throughput, trigger unnecessary rework, and distort process capability data. A data-driven evaluation method helps identify which vision camera for PCB inspection delivers repeatable defect detection without overreacting to normal variation.

Core definition and performance baseline

A vision camera for PCB inspection captures board images for automated optical inspection, component verification, solder assessment, code reading, and traceability tasks. In practice, the camera is only one part of an imaging chain. Inspection stability depends on sensor quality, optics, illumination, triggering, calibration, and algorithm design.

False rejects happen when acceptable boards are flagged as defective. This usually results from unstable contrast, insufficient dynamic range, poor depth coverage, vibration sensitivity, inconsistent focus, or weak model tuning. Therefore, the best vision camera for PCB inspection is the one that preserves defect visibility while tolerating normal process variation.

A useful baseline includes five measurable dimensions:

• Spatial resolution at the target field of view
• Signal-to-noise performance under production lighting
• Dynamic range for reflective pads and dark substrates
• Acquisition stability at line speed
• Integration reliability with inspection software and PLC control

When these factors are balanced, defect classification improves and nuisance alarms decline. This is why evaluating a vision camera for PCB inspection requires production data, not brochure claims.

Current industry signals shaping camera selection

PCB inspection has become more demanding as assemblies shrink, board variants increase, and traceability expectations rise. Standard 2D imaging still works for many tasks, but tolerance windows are narrower and cosmetic variation can confuse poorly tuned systems.

Several signals now influence camera choice across electronics and mixed industrial assembly environments:

These shifts explain why the search for a vision camera for PCB inspection increasingly focuses on false reject reduction rather than simple megapixel counts. Better images support better models, and better models support more stable yield decisions.

What actually reduces false rejects

The strongest false reject improvements usually come from system matching, not one isolated specification. A camera can be technically advanced yet still perform poorly if paired with the wrong lens or lighting geometry.

1. Resolution matched to defect size

Use the smallest critical defect as the starting point. Pads, bridges, missing components, polarity marks, and hairline scratches require different pixel coverage. Oversizing resolution increases data load and may amplify noise without improving classification.

2. High dynamic range and low noise

A capable vision camera for PCB inspection should separate bright solder reflections from darker substrate details. Good dynamic range reduces blown highlights and crushed shadows. Low sensor noise also helps algorithms distinguish real defects from texture variation.

3. Stable color and grayscale response

Many false rejects come from inconsistent contrast. If conformal coating, solder mask color, or ambient light changes affect image response, thresholds drift. Stable grayscale or calibrated color response supports more repeatable defect classification.

4. Global shutter for moving targets

At conveyor speed, motion blur can distort lead edges and component outlines. A global shutter vision camera for PCB inspection is often better than a rolling shutter where motion must be frozen precisely.

5. Lighting tolerance and optical repeatability

Camera selection should always be tested with dome, coaxial, bar, and low-angle lighting options where relevant. The best imaging result often comes from reducing glare before software tuning begins.

Business value across production and quality workflows

A well-chosen vision camera for PCB inspection does more than improve image quality. It changes how quickly a line reaches stable operation and how confidently quality data can be used across engineering, maintenance, and traceability systems.

• Lower false reject rates reduce manual review workload
• Fewer unnecessary stops improve cycle consistency
• Clearer defect images strengthen root cause analysis
• Better recipe stability shortens new product introduction validation
• Consistent image archives improve audit and traceability confidence

This value extends beyond electronics. Similar imaging principles are now used in medical devices, automotive modules, aerospace electronics, and industrial controls, where acceptable variation must be separated from critical defect conditions.

Typical camera categories and fit by inspection task

No single vision camera for PCB inspection fits every board and every defect mode. Selection should reflect field of view, takt time, board topology, and defect risk.

For many lines, a hybrid approach works best. A 2D vision camera for PCB inspection handles most checks efficiently, while 3D stations focus on height-critical risks that commonly trigger ambiguous 2D results.

Practical evaluation method before final selection

A disciplined trial prevents expensive mistakes. Instead of comparing generic camera datasheets, evaluate candidate systems against actual boards, actual defects, and actual throughput limits.

1. Define the top defect classes causing escapes or false rejects.
2. Measure required pixel density for the smallest critical feature.
3. Test multiple lighting geometries with the same camera.
4. Run golden boards and borderline boards through repeated cycles.
5. Track false reject rate, miss rate, and review burden separately.
6. Verify trigger timing, data transfer, and software compatibility.
7. Check long-shift thermal stability and focus retention.

This method reveals whether a vision camera for PCB inspection performs consistently in real production, not just in controlled demonstrations. It also exposes hidden integration risks early.

Implementation cautions and next-step direction

Common selection mistakes include buying excessive resolution, ignoring lens quality, skipping calibration routines, and evaluating cameras without representative defect samples. Another frequent error is tuning thresholds around ideal boards only, which inflates false rejects once process variation returns.

The strongest path forward is to build a comparative scorecard. Include measurable image contrast, defect capture consistency, false reject rate, cycle impact, maintenance effort, and software interoperability. That scorecard should guide the final vision camera for PCB inspection decision.

For teams seeking engineering truth rather than marketing language, the question is simple: which system produces the most stable inspection decision under realistic variation? Start with defect physics, verify with line trials, and choose the vision camera for PCB inspection that reduces noise in both images and decisions.
