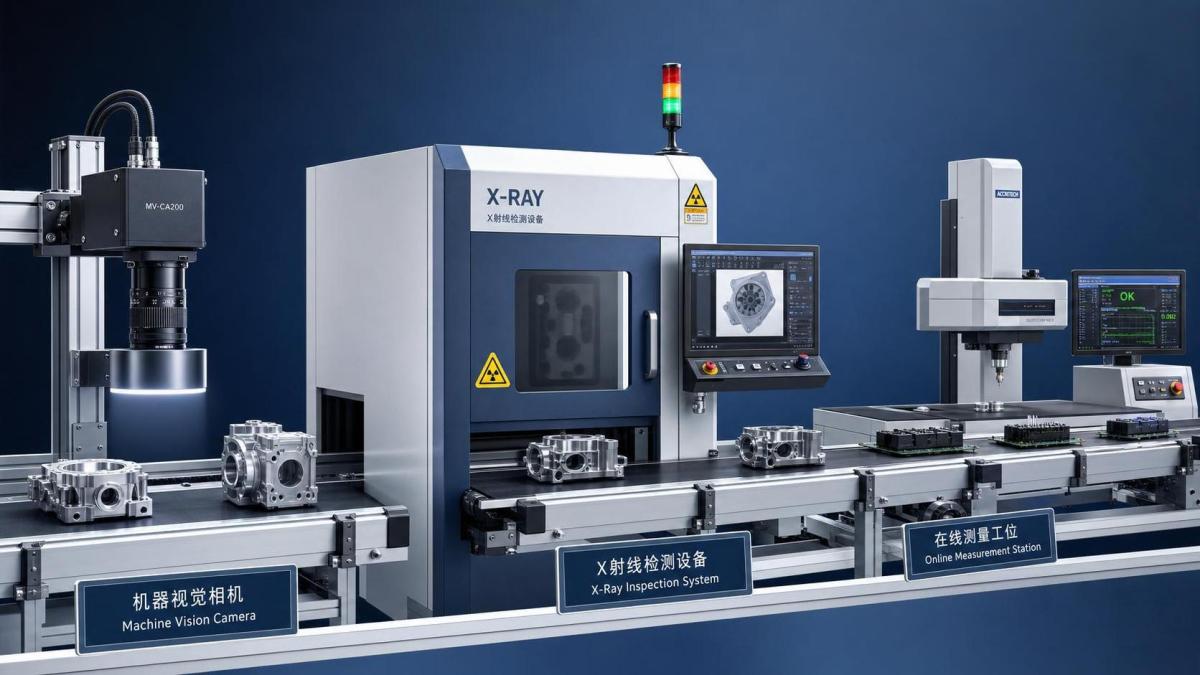

Quality Inspection Systems for Manufacturing: How to Choose Vision, X-Ray, or Inline Gauging

Choosing among quality inspection systems is rarely a simple equipment decision. It shapes compliance stability, scrap rates, release confidence, and plant safety. In many factories, the real issue is not whether inspection matters, but whether vision, X-ray, or inline gauging is being matched to the actual defect mode, tolerance band, line speed, and risk exposure.

That distinction matters more now because manufacturing is moving deeper into automation, tighter traceability, and higher consequence supply chains. Across sectors tracked by TechStat Vanguard, the useful conversation starts with parameters, not slogans. Quality inspection systems only create value when they are selected against measurable realities: part geometry, material behavior, detection limits, false reject rates, and the cost of a missed defect.

Why inspection strategy has become a frontline decision

Inspection used to sit near the end of the line as a checkpoint. In many operations, it now functions as a control layer inside the process itself. That shift is being driven by compressed margins, stricter documentation, and the rise of components that are small, fast-moving, and difficult to evaluate by eye.

A packaging line may need seal integrity checks at high throughput. A machined aerospace bracket may require dimensional confirmation within narrow tolerances. An electronics assembly may need internal void detection that no camera can see. These are different problems, and they demand different quality inspection systems.

The broader hard-tech market has also become noisy. Marketing often compresses unlike technologies into the same promise of “better quality.” TSV’s data-first view is more useful: define the defect, define the threshold, define the consequence of escape, and then choose the inspection method.

Three inspection paths, three different forms of evidence

Vision, X-ray, and inline gauging each answer a different question. The mistake is treating them as interchangeable upgrades.

Vision systems

Vision-based quality inspection systems evaluate visible features. They are typically used for presence or absence checks, surface defects, label verification, orientation, color variation, assembly confirmation, and some dimensional tasks.

They work well when defects are external, repeatable in appearance, and compatible with stable lighting and contrast. They become less reliable when reflective surfaces, variable part presentation, transparent materials, or hidden internal flaws dominate the failure pattern.

X-ray systems

X-ray quality inspection systems reveal internal structure. They are often chosen for castings, batteries, electronics, sealed packaging, and safety-critical assemblies where voids, cracks, contamination, missing internal features, or density differences matter.

Their value is highest when the critical defect is invisible from the outside. Their tradeoff is complexity: shielding, image interpretation, throughput constraints, regulatory requirements, and higher capital cost all need to be justified by defect risk.

Inline gauging

Inline gauging focuses on measurement. These quality inspection systems are used to confirm dimensions, profile, concentricity, thickness, flatness, gap, or position while production continues. Typical tools include laser gauges, LVDTs, air gauges, contact probes, and multi-sensor stations.

This approach is strongest when tolerance compliance is the primary concern. It is especially relevant in precision machining, formed components, extrusion, medical parts, and assemblies where dimensional drift predicts later failure.

The right choice starts with the defect, not the device

A practical comparison helps separate fit from hype.

In practice, mixed architectures are common. A line may use vision for assembly verification, inline gauging for critical dimensions, and sampling X-ray for internal confirmation. The best quality inspection systems are often layered, not singular.

What deserves closer scrutiny during evaluation

Selection usually improves when teams compare systems against operational evidence instead of brochure language. Several factors matter more than headline features.

Detection threshold

Ask what minimum defect size can be detected consistently, not under ideal lab conditions but on the real line. Sensitivity without repeatability creates unstable decisions and unnecessary rejects.

False reject and false accept balance

Every quality inspection system sits between two expensive failures. One is passing bad product. The other is rejecting good product. The right balance depends on recall exposure, rework cost, and downstream process vulnerability.

Throughput under real operating conditions

A system that performs well at low speed may become unstable when cycle time tightens. Image blur, part vibration, inconsistent spacing, and thermal drift often reveal themselves only in full production conditions.

Data usefulness

Inspection data should support root cause analysis, not just pass or fail sorting. This is where TSV’s engineering mindset matters. Rich data enables better supplier qualification, process correction, and traceable quality evidence across sectors from automation to aerospace.

Where each option tends to make sense

The strongest fit often appears when inspection is tied to the production scenario rather than the technology label.

• Use vision when the line needs fast, repeatable confirmation of visible attributes such as print, cap presence, connector seating, weld appearance, or surface contamination.
• Use X-ray when internal structure determines safety or function, such as battery cells, die castings, solder joints, sealed food packs, or dense multi-layer assemblies.
• Use inline gauging when dimensional variation predicts defects, such as shaft diameter, wall thickness, flatness, bore position, or progressive tool wear.

Some sectors put special pressure on this decision. In aerospace and medical work, tolerance and traceability expectations can justify more advanced quality inspection systems because the cost of escape is high. In consumer packaging, throughput and contamination control may carry more weight than ultra-fine dimensional reporting.

How to build a selection framework that survives procurement

A durable decision framework should be simple enough to use and strict enough to resist vague claims.

• Map the top defect categories by frequency, severity, and detectability.
• Define the narrowest acceptable tolerance or defect threshold.
• Measure actual line speed, spacing, orientation variation, and environmental instability.
• Require evidence from representative samples, not ideal demonstration parts.
• Review integration burden with MES, SPC, reject handling, and maintenance routines.
• Estimate total cost using scrap reduction, escape prevention, downtime, calibration, and validation effort.

This process helps quality inspection systems become operational tools rather than isolated capital purchases. It also makes vendor comparison cleaner because each option is tested against the same engineering facts.

A data-first next step

The most reliable choice is usually the one that matches the dominant risk with the simplest defensible evidence. If defects are visible, start with vision. If failure hides inside the part, evaluate X-ray. If tolerance drift drives scrap or safety concerns, prioritize inline gauging.

From there, compare quality inspection systems using a short list of production samples, measurable acceptance criteria, and real throughput conditions. That approach reduces trial-and-error, shortens qualification cycles, and aligns with TSV’s central principle: parameters do not lie, and tolerances decide whether inspection is useful or merely expensive.

A sensible next move is to document the top three defect risks on the line, assign a detection method to each, and test whether one system can cover them without forcing compromises in speed, compliance, or traceability.
