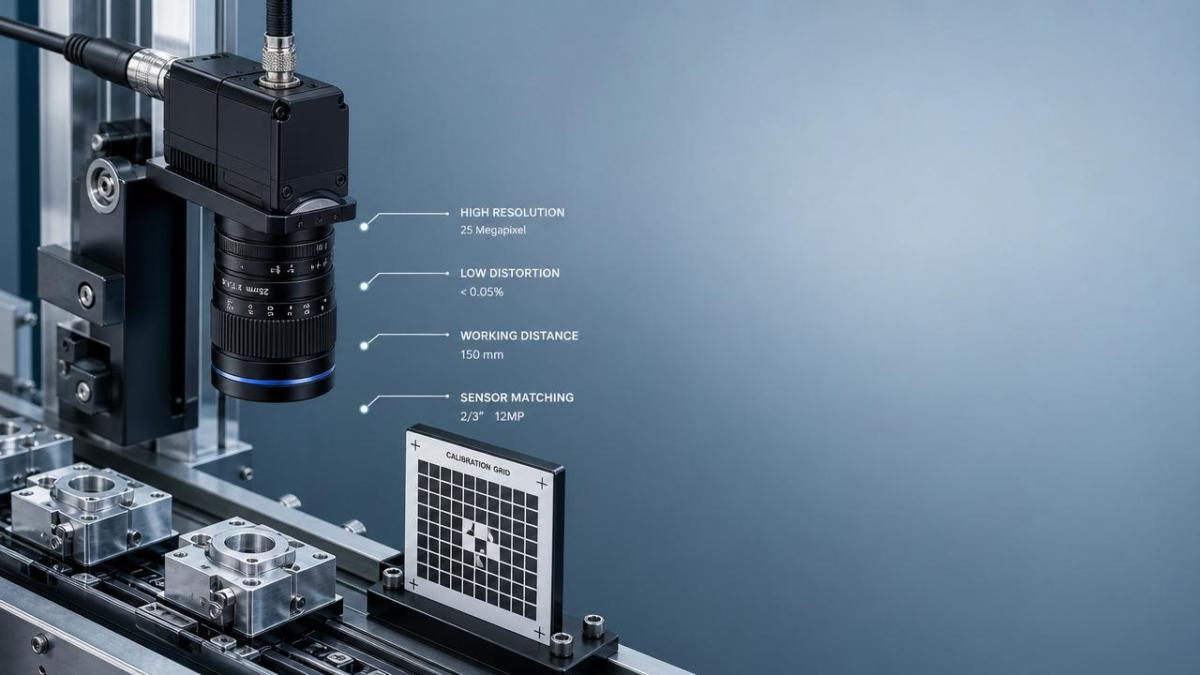

Machine vision lens specifications that change inspection results

Machine vision lens specifications are not minor details—they directly shape measurement accuracy, defect detection, and overall inspection reliability. For technical evaluators comparing imaging systems, understanding how resolution, distortion, working distance, and sensor matching interact is essential to reducing false rejects, missed defects, and costly validation cycles. This article breaks down the lens parameters that truly change inspection results.

Why a checklist approach works better than a feature list

When teams review machine vision lens specifications, they often receive brochures full of focal length labels, megapixel claims, and marketing language that does not translate into pass/fail inspection performance. A checklist approach is more useful because it forces evaluators to connect every parameter to a production outcome: measurement uncertainty, defect contrast, depth tolerance, cycle time, and maintenance burden.

For TechStat Vanguard’s engineering-first audience, the lens should never be evaluated in isolation. It is one part of an imaging chain that includes sensor size, pixel pitch, illumination geometry, object motion, environmental vibration, and software tolerances. The right machine vision lens specifications reduce validation risk because they make the imaging chain predictable, repeatable, and measurable.

Start here: the first six checks before comparing models

• Define the smallest feature that must be detected or measured. A scratch, edge burr, printed code, or solder void sets the true optical requirement.
• Confirm the sensor format and pixel size. Many machine vision lens specifications look acceptable until sensor matching reveals corner blur or reduced effective resolution.
• Calculate required field of view and working distance together. Evaluating focal length without the real mechanical envelope creates integration problems later.
• Separate detection from metrology tasks. A lens that is fine for presence/absence inspection may fail dimensional measurement because distortion is too high.
• Check lighting and aperture constraints early. Resolution on paper can collapse if the lens must be stopped down to manage depth of field, forcing longer exposure.
• Review environmental factors such as temperature drift, vibration, dust, and washdown exposure. Stable specifications matter more than peak specifications.

Core machine vision lens specifications that most strongly change inspection results

1. Resolution and MTF: the difference between visible detail and reliable detail

Resolution is usually the first item people check, but technical evaluators should look beyond a simple megapixel label. A lens may claim support for a high-resolution sensor while still delivering weak contrast at the spatial frequencies that matter for your feature size. This is where MTF, or modulation transfer function, becomes critical. MTF indicates how well the lens preserves contrast at fine detail levels.

Inspection result impact: poor MTF causes fuzzy edge transitions, unstable sub-pixel fitting, and reduced confidence in OCR, code reading, and defect segmentation. In practice, this means more false rejects on borderline parts and more missed defects on low-contrast surfaces.

Judgment standard: ask for MTF data across center and edge image zones, not only nominal sensor compatibility. If the application depends on dimensional measurement at the edge of the frame, edge MTF matters as much as center sharpness.

2. Distortion: the hidden variable in measurement accuracy

Among all machine vision lens specifications, distortion is one of the most underestimated. Barrel or pincushion distortion may be acceptable in basic detection, but it becomes a direct source of measurement error when coordinates must map accurately across the field. Even if software calibration compensates for some distortion, heavy correction can increase complexity and sensitivity to setup drift.

Inspection result impact: distorted geometry changes measured distances, especially away from the optical center. This matters in gauging holes, lead pitch, connector position, seal bead width, and flatness references. For precision applications, low-distortion or telecentric optics are often worth the higher initial cost because they reduce downstream compensation work.

3. Working distance and field of view: fit the mechanics before the optics fail the project

A common evaluation mistake is selecting by focal length alone. The actual machine vision lens specifications must support the required field of view at the real working distance allowed by guards, conveyors, robot tooling, and safety covers. A lens that performs well in the lab may become unusable when there is no physical room for the camera head or lighting stack.

Inspection result impact: if the field of view is too tight, the part does not fit; if too wide, pixel density drops and small defects disappear. If the working distance is forced too short, perspective effects, lighting shadows, and contamination risk usually increase.

4. Sensor matching: image circle, pixel size, and corner performance

Machine vision lens specifications must always be read against the sensor. The lens image circle must fully cover the sensor, but coverage alone is not enough. Pixel size determines how demanding the lens is. Smaller pixels reveal optical weaknesses faster, especially in the corners. A lens that is “compatible” with the sensor format may still leave effective resolution unused.

Judgment standard: confirm sensor format, pixel pitch, and target magnification together. Request sample images of calibrated grids or actual parts, captured at the intended aperture and working distance, not idealized bench settings.

5. Aperture and depth of field: balance sharpness, light, and speed

Aperture affects depth of field, diffraction, and light throughput. Stopping down increases usable depth, which helps when parts vary in height or tilt. However, too small an aperture can introduce diffraction softening, reducing fine detail. It also demands stronger illumination or longer exposure, which can create motion blur in high-speed lines.

Inspection result impact: the wrong aperture strategy turns a theoretically good lens into a practical failure. For moving parts, exposure time often becomes the limiting factor, so the best lens choice is the one that keeps enough sharpness without forcing impractical lighting power.

6. Telecentricity: essential for metrology, optional for many detection tasks

Not every application needs a telecentric lens, but when object height variation changes apparent size, conventional optics can undermine measurement credibility. Telecentric machine vision lens specifications matter in semiconductor packaging, precision machining, medical components, battery tabs, and other tasks where dimensional repeatability is more important than low cost.

Inspection result impact: telecentric optics suppress perspective error and stabilize magnification over depth changes. If parts shift vertically but the measurement must remain constant, this is a key screening criterion.

7. Chromatic correction and flare resistance: often ignored until contrast collapses

Multi-material assemblies, reflective metals, glossy labels, and mixed-spectrum lighting expose another weakness in machine vision lens specifications: chromatic aberration and flare control. Color fringing reduces edge precision, and flare lowers local contrast. In defect inspection, contrast loss can be more damaging than slight blur because segmentation thresholds become unstable.

Quick evaluation table for technical reviewers

How priorities change by inspection scenario

Technical evaluators should not rank all machine vision lens specifications equally. Priority changes with the task.

• Dimensional metrology: prioritize low distortion, telecentricity, stable magnification, and calibration repeatability.
• Surface defect inspection: prioritize MTF, flare resistance, contrast preservation, and compatibility with structured or dark-field lighting.
• High-speed presence/absence checks: prioritize aperture efficiency, exposure margin, vibration tolerance, and practical integration cost.
• Code reading and OCR: prioritize center-to-edge sharpness, low field curvature, and stable focus across part height variation.
• Robotic guidance: prioritize working distance flexibility, distortion control, and robustness to changing object position.

Commonly missed risk items that distort evaluation results

Several risks repeatedly appear in supplier comparisons. First, test images are often captured under ideal illumination with static targets, while production lines introduce motion, contamination, and variable reflectivity. Second, teams compare machine vision lens specifications without defining acceptance thresholds for the full system. Third, software calibration is treated as a cure-all, even though unstable mechanics and temperature drift can erode calibration validity. Fourth, evaluators may overlook mount precision and locking mechanisms, which affects focus stability over time.

Another common issue is buying for “future resolution.” Selecting a lens only because it may support a larger future sensor can be wasteful if current lighting, compute throughput, and process tolerances do not justify it. Better inspection results come from balanced engineering, not isolated optical overdesign.

Execution checklist before final approval

1. Document the smallest defect size, measurement tolerance, line speed, and allowable false reject rate.
2. Lock sensor model, pixel size, and illumination method before final lens ranking.
3. Request production-like sample images at actual working distance, aperture, and exposure time.
4. Verify edge performance, not only image center performance.
5. Run repeatability tests across temperature and shift-to-shift startup conditions.
6. Check whether calibration residuals remain acceptable after maintenance or lens replacement.
7. Compare total validation effort, not just unit price, because weak optics often increase engineering hours.

FAQ for teams reviewing machine vision lens specifications

Is a higher megapixel lens always better?

No. If MTF, lighting, and motion control are not matched, higher pixel counts may add cost without improving detection reliability.

Can software calibration fix distortion completely?

Calibration helps, but it does not eliminate all practical issues. Heavy correction increases dependence on setup stability and may not fully protect metrology accuracy under drift.

When is a telecentric lens justified?

When dimensional repeatability is critical and object height variation would otherwise change apparent size, telecentric optics are often justified despite higher cost.

Practical next step for specification review

The most effective way to evaluate machine vision lens specifications is to convert them into a decision sheet tied to inspection outcomes. Before moving forward with a supplier or system integrator, prepare five items: target defect size, tolerance requirements, sensor format and pixel size, mechanical working distance limits, and real production lighting conditions. Then ask for evidence under those exact conditions, including edge sharpness, distortion data, repeatability results, and calibration behavior.

If your team needs to confirm parameter suitability, integration risk, validation timeline, budget trade-offs, or supplier credibility, start the conversation with measurable thresholds rather than general performance claims. That approach aligns with TSV’s core principle: parameters do not lie, and the right machine vision lens specifications will show their value in inspection results long before they appear in marketing language.
