Solid-state LiDAR for autonomous vehicles: where reliability still fails

Publication Date

May 07, 2026

author

TSV Data Lab

Solid-state LiDAR for autonomous vehicles promises compact packaging, lower maintenance, and scalable production, yet reliability gaps still surface in harsh vibration, thermal cycling, optical contamination, and long-duration field deployment. For technical evaluators, the real question is not whether the technology works in demos, but where performance drifts, failure modes emerge, and engineering data still falls short of procurement-grade confidence.

For procurement teams, validation engineers, and platform architects, the reliability debate around solid-state LiDAR for autonomous vehicles is no longer theoretical. It affects sensor fusion confidence, safety case documentation, spare parts strategy, and supplier qualification timelines that often run 8 to 24 weeks before any production nomination. In TSV’s hard-tech evaluation framework, the central issue is simple: marketing claims may describe peak performance, but sourcing decisions require degradation data, environmental limits, and clearly bounded failure behavior.

Compared with legacy mechanical spinning systems, solid-state architectures reduce moving parts and can improve packaging flexibility. However, “solid-state” does not mean failure-proof. MEMS mirrors, flash illumination modules, optical windows, ASICs, thermal interfaces, adhesives, and sealing materials all introduce different stress points. In autonomous driving stacks operating across -40°C to 85°C, under continuous vibration and high road contamination, even a 10% to 20% drop in effective detection consistency can materially change system-level risk.

Why reliability still breaks after the demo stage

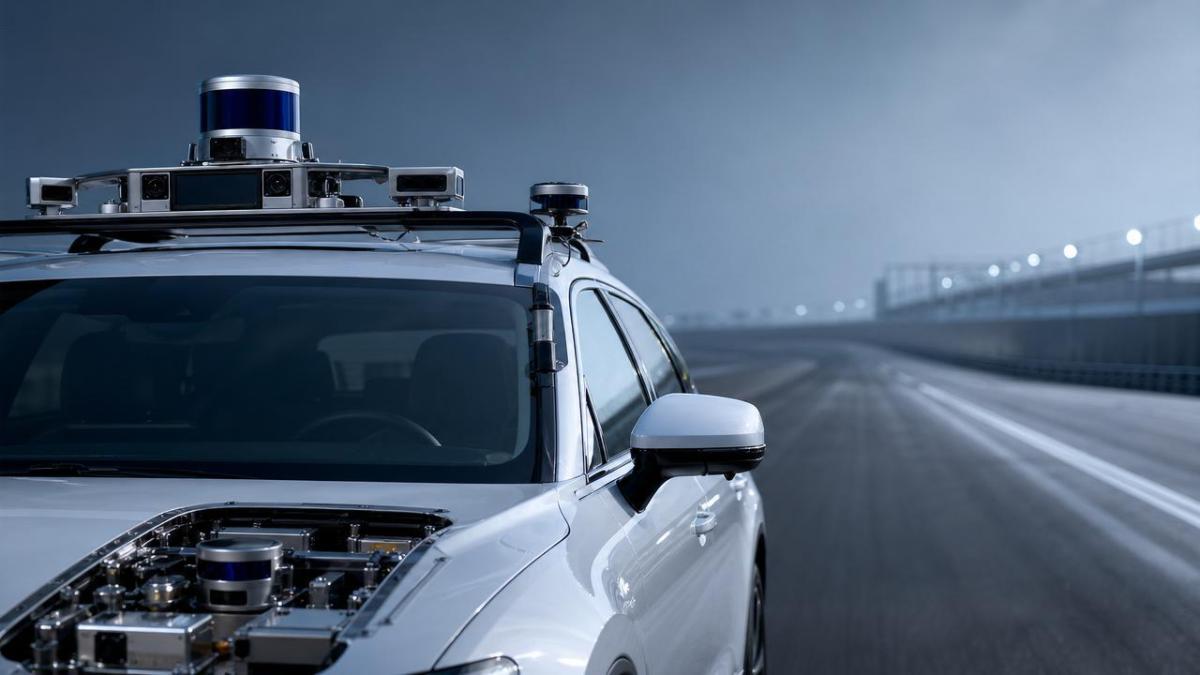

Solid-state LiDAR for autonomous vehicles: where reliability still fails

The gap between laboratory success and fleet reliability is where solid-state LiDAR for autonomous vehicles is most often misjudged. Bench demonstrations typically emphasize clean targets, stable power, fixed ambient temperature, and short-duration runs of a few hours. Real vehicle deployment introduces thousands of kilometers of vibration exposure, repeated thermal shock, airborne particulates, car wash chemistry, and software update cycles that can alter signal processing behavior.

Four recurring engineering failure zones

Technical evaluators generally see reliability problems emerge in four zones: opto-mechanical stability, thermal drift, contamination management, and long-duration calibration retention. These issues do not always create immediate hard failures. More often, they generate soft failure patterns such as range reduction at low reflectivity, higher false returns in rain spray, angular bias drift, or intermittent frame dropout under power fluctuations.

  • Vibration and shock can alter optical alignment, solder integrity, or MEMS scan stability after 50 to 200 hours of road-profile testing.
  • Thermal cycling from cold soak to peak enclosure temperature can shift timing calibration, beam uniformity, and receiver sensitivity.
  • Dust, mud film, salt residue, and washer fluid can reduce optical transmission and raise noise floors within days in harsh road use.
  • Long-duration operation may reveal drift that is invisible in 1-day demos but measurable over 500 to 1,000 operating hours.

Failure is often gradual, not binary

One major sourcing mistake is to evaluate only pass/fail status. In practice, solid-state LiDAR for autonomous vehicles often degrades along a curve. A sensor may remain “functional” while its effective point cloud quality declines at 120 meters, its edge-object recall weakens at 10% reflectivity, or its frame-to-frame consistency worsens under 15 Hz to 200 Hz vibration input. These shifts matter because perception software is tuned to statistical confidence, not only sensor uptime.

The table below summarizes where reliability claims most often diverge from procurement-grade evaluation criteria.

Evaluation Area Demo-Friendly Indicator Procurement-Grade Reliability Question
Range performance Peak range on clean 10% or 80% targets How much range is lost after contamination, temperature drift, and 500-hour use?
Point cloud quality High density in controlled scenes What is the consistency of angular resolution and noise under road vibration and sunlight?
Environmental robustness Short ingress or splash test How does the enclosure behave after thermal cycling, salt fog, chemical exposure, and seal aging?
Operational continuity Hours of uninterrupted operation in lab What is the drift profile over 1,000 hours and under repeated start-stop cycles?

The key takeaway is that autonomous vehicle buyers should treat nominal performance and reliability as separate qualification tracks. A sensor that performs well on day 1 may still fail system requirements by day 90 if contamination sensitivity, internal thermal stress, or calibration drift are not quantified.

Architecture matters, but test design matters more

Different solid-state approaches carry different reliability profiles. MEMS-based LiDAR may face scan element fatigue or resonance sensitivity. Flash LiDAR may avoid beam steering components but can face thermal loading and detector saturation constraints. Optical phased array concepts promise fewer mechanical concerns, yet manufacturability and field robustness still depend on packaging precision and thermal control. For technical evaluators, the architecture label alone is insufficient unless supported by mission-profile testing.

The failure modes technical evaluators should measure first

In practical sourcing programs, the first 6 to 8 tests should not chase every possible metric. They should target the most financially consequential failure modes. For solid-state LiDAR for autonomous vehicles, those are the modes that distort perception confidence without immediately triggering a diagnostic fault. This is where engineering teams lose time: the sensor appears alive, but system-level trust erodes.

Vibration-induced optical and electronic instability

Vehicle mounting introduces random vibration, resonance peaks, and road shock that can shift optical alignment or degrade connector integrity. Even when the enclosure survives, internal changes may alter beam placement and timing. Evaluators should request test evidence across at least 3 axes, with sweep ranges such as 10 Hz to 2,000 Hz and dwell conditions aligned with actual vehicle mounting positions. A single-axis lab plot is rarely enough.

Thermal cycling and temperature-driven calibration drift

Autonomous vehicle sensors must survive cold mornings, midday solar loading, and repeated startup cycles. Reliability gaps often appear not at absolute temperature extremes, but during transitions. For example, repeated cycling between -30°C and 70°C over 100 to 300 cycles can reveal adhesive creep, lens stress, timing offset variation, or ASIC throttling behavior. The question is not only whether the LiDAR powers on, but whether its ranging and angular accuracy remain within usable limits.

Optical contamination and signal integrity loss

Road grime is one of the least glamorous and most decisive reliability variables. Thin dust layers, dried water spots, insect residue, and salt film can cut transmission enough to reduce low-reflectivity object detection. For a vehicle running in mixed urban and highway conditions, the contamination burden over 7 to 14 days may be more informative than a single IP-rated enclosure test. A reliable evaluation plan should measure point cloud degradation at multiple contamination levels, not just post-clean performance.

A practical screening matrix

The matrix below helps technical evaluators prioritize early-stage validation for solid-state LiDAR procurement.

Failure Mode What to Measure Why It Matters for Procurement
Vibration drift Range repeatability, frame stability, angular deviation before and after 3-axis vibration Indicates whether mounting environment will alter perception behavior over time
Thermal drift Accuracy shift across -40°C to 85°C and during 100+ thermal cycles Affects detection confidence, especially at low reflectivity and long distance
Contamination sensitivity Signal loss after dust, water film, salt residue, and cleaning cycles Determines maintenance interval and sensor cleaning strategy
Long-duration stability Drift after 500 to 1,000 operating hours and repeated ignition cycles Reveals whether nominal specs remain valid in extended service

This matrix supports a more disciplined qualification workflow. Instead of accepting broad language such as “automotive grade,” buyers can request measurable drift windows, test durations, and pre/post-test deltas that make supplier comparison possible.

How to qualify solid-state LiDAR for autonomous vehicle procurement

A reliable sourcing process should combine specification review, controlled validation, and field correlation. Many teams overinvest in feature comparison before verifying whether the test plan reflects actual duty cycles. A stronger approach is to move through 4 stages: requirements mapping, stress testing, software behavior analysis, and supply-chain readiness review.

Stage 1: Define operational limits in engineering terms

Before supplier shortlisting, evaluators should define at least 6 core limits: required detection range, reflectivity targets, environmental temperature range, acceptable false return rate, cleaning interval target, and diagnostic response behavior. If a platform requires dependable detection of dark objects at 100 meters in winter spray, that condition must appear in the specification, not remain an informal expectation.

Stage 2: Demand degradation data, not only nominal specs

For solid-state LiDAR for autonomous vehicles, procurement teams should ask for pre-stress and post-stress performance deltas. Useful requests include range reduction percentage after contamination, point cloud uniformity after vibration, and accuracy drift after thermal cycling. A supplier that can provide 3 to 5 controlled degradation plots is usually more transparent than one offering only a polished spec sheet.

Stage 3: Link sensor behavior to perception stack impact

A 5% shift in range may be manageable in one software stack and unacceptable in another. That is why sensor evaluation should include replay tests or controlled scenario comparisons at the perception layer. Technical teams should examine how point loss, timing jitter, or angular inconsistency influence obstacle classification, tracking persistence, and emergency fallback logic over 20 to 50 representative scenarios.

Stage 4: Audit supply continuity and serviceability

Reliability is not only a device property. It also depends on service response, firmware traceability, replacement logistics, and process control. Buyers should assess lead times for engineering samples and replacement units, software release documentation, change-notification practices, and field return analysis capability. A sensor with excellent performance but poor revision control can still become a program risk within 12 months.

Common procurement mistakes

  1. Using peak range as the primary selection metric while underweighting drift after contamination.
  2. Accepting short demo runs instead of requesting 500-hour or cycle-based durability evidence.
  3. Reviewing enclosure robustness without evaluating optical window cleaning and residue recovery.
  4. Ignoring how firmware updates may alter filtering behavior and effective point cloud output.
  5. Comparing sensors without normalizing test conditions, reflectivity, and ambient light load.

What stronger engineering evidence should look like

For decision-makers operating under TSV-style engineering scrutiny, better evidence is specific, bounded, and reproducible. The most useful supplier materials are not adjective-heavy brochures but controlled test protocols, environmental condition definitions, degradation charts, and change-management records. Reliable qualification depends on seeing how performance moves under stress, not merely how impressive it looks in ideal conditions.

Data packages worth requesting

  • Environmental test matrix with temperatures, cycle counts, dwell times, and pass criteria.
  • Pre/post-contamination comparison using at least 3 contamination types and recovery cleaning steps.
  • Frame stability and range repeatability under representative vehicle vibration profiles.
  • Long-duration drift records over 500 to 1,000 hours with periodic calibration checkpoints.
  • Firmware revision history tied to point cloud output changes and diagnostic behavior.

A realistic view of adoption

Solid-state LiDAR for autonomous vehicles remains strategically important because it supports compact integration, lower mechanical complexity, and volume manufacturing potential. Yet technical evaluators should resist the false choice between optimism and rejection. The correct position is conditional adoption: proceed where the sensor’s failure envelope is well characterized, maintenance assumptions are realistic, and system-level mitigation is validated. Reliability maturity is not a slogan; it is a measured envelope of acceptable drift.

For engineering teams, CTO offices, and procurement leaders, the path forward is to benchmark sensors against application-specific stress profiles rather than generic claims. If you are comparing solid-state LiDAR platforms, refining a qualification matrix, or drafting sourcing specifications with tighter reliability thresholds, now is the time to turn broad promises into measurable acceptance criteria. Contact TSV to discuss a custom evaluation framework, review procurement-grade test checkpoints, or explore deeper hard-tech benchmarking support for your autonomous sensing program.
