Why Fanless PC Thermal Dissipation Tests Fail in Real Cabinets

Publication Date

May 14, 2026

author

TSV Data Lab

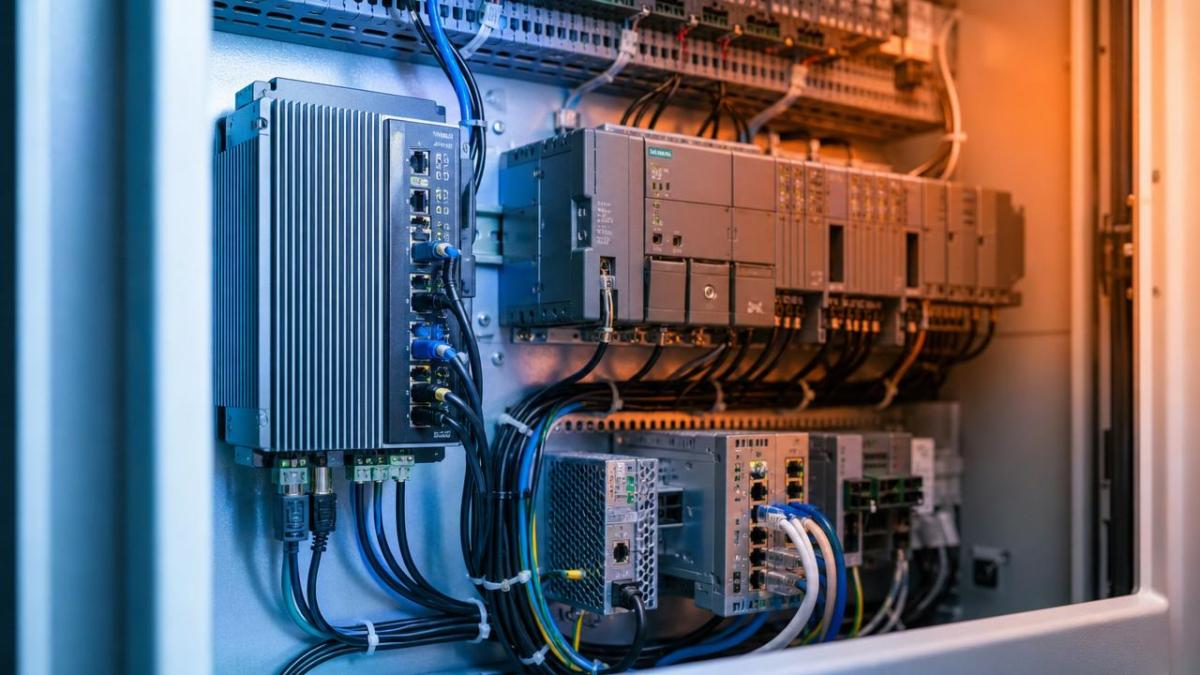

A fanless pc thermal dissipation test often looks acceptable on an open bench, yet fails once the unit is installed inside a real cabinet with restricted airflow, cable congestion, and rising ambient heat.

That gap is no longer a minor lab error.

In industrial control, edge AI, machine vision, and automation cabinets, thermal assumptions now shape uptime, compliance, and lifecycle cost.

A reliable fanless pc thermal dissipation test must reflect cabinet reality, not ideal air exposure.

When validation ignores enclosure heat stacking, measured safety margins can disappear during continuous operation, summer peaks, or dense system integration.

Cabinet reality is reshaping how fanless thermal performance should be judged

Why Fanless PC Thermal Dissipation Tests Fail in Real Cabinets

The old benchmark was simple: place the unit on a bench, apply load, log temperature, and pass if limits stay below spec.

That method still appears in many reports, but cabinet deployments have changed faster than test habits.

Control cabinets are now denser, hotter, and more electrically complex.

Power supplies, PLCs, PoE switches, drives, and gateways often share one enclosure.

Each device adds thermal load and alters convection paths.

As a result, a fanless pc thermal dissipation test performed in free air rarely predicts cabinet equilibrium temperature with enough accuracy.

This matters across the broader industrial landscape.

Factories, logistics hubs, inspection stations, transport systems, and energy assets are pushing more computing to the edge.

Edge hardware must be compact, quiet, and dust resistant.

Fanless design fits those needs, but only if thermal validation matches the installation environment.

Why the fanless pc thermal dissipation test keeps failing after installation

The failure pattern is consistent.

The unit passes bench testing, then shows throttling, random resets, storage warnings, or shortened service life in the cabinet.

Several drivers explain this trend.

Driver What changes in the cabinet Why the test result shifts
Restricted airflow Natural convection becomes weak and uneven Heat sink performance drops without moving room air
Heat accumulation Nearby devices raise local ambient temperature The fanless pc thermal dissipation test starts from an unrealistically cool baseline
Cable blockage Power and data harnesses obstruct side vents and fins Thermal paths assumed in the lab no longer exist
Mounting orientation Vertical or horizontal installation changes convection direction Hot spots move to CPU, VRM, SSD, or DC input regions
Duty cycle mismatch Real workloads are bursty, sustained, or mixed I/O heavy Short synthetic tests miss long soak thermal saturation

Open-bench testing also benefits from invisible advantages.

Room circulation, technician movement, and low surrounding heat create extra cooling not present in sealed or semi-sealed cabinets.

That is why a fanless pc thermal dissipation test can look conservative on paper, while remaining optimistic in practice.

The cabinet changes both ambient temperature and heat escape routes

Many teams treat ambient temperature as a room value.

But the hardware actually experiences micro-ambient temperature inside the enclosure.

This local air can be 10°C to 20°C higher than the workshop.

Even worse, thermal gradients inside one cabinet are rarely uniform.

Top-mounted equipment usually runs hotter than lower devices.

A fanless pc thermal dissipation test that ignores vertical heat stacking misses one of the most common field conditions.

The impact goes beyond temperature and reaches reliability, safety, and compliance

Thermal failure is not always dramatic.

Often it begins as subtle degradation.

Clock throttling increases latency.

SSD endurance falls under sustained heat.

Voltage regulation ages faster.

Adhesives, seals, and interface materials lose performance sooner than expected.

In industrial systems, these changes spread across several business links.

  • System uptime becomes less predictable during summer or continuous production cycles.
  • Maintenance intervals shorten because elevated heat accelerates wear on storage and power stages.
  • Safety assessments can become weak if cabinet hot spots exceed the validated operating envelope.
  • Compliance evidence may be challenged when test conditions do not reflect actual installation geometry.

This is where engineering discipline matters.

TechStat Vanguard consistently emphasizes data-based verification over broad marketing claims.

A pass result without installation traceability has limited value.

The useful question is not whether a fanless pc thermal dissipation test passed.

The useful question is whether it passed under cabinet conditions that mirror reality.

What deserves closer attention in a modern fanless pc thermal dissipation test

Thermal validation standards are shifting from component-centered checks to deployment-centered evidence.

Several points now deserve priority.

  • Use cabinet-level ambient measurement, not only room ambient.
  • Test the real mounting orientation and clearance distances.
  • Include neighboring heat sources with realistic power draw.
  • Simulate cable density around fins, ports, and side walls.
  • Run long soak periods to capture thermal saturation after several hours.
  • Track hot spots on CPU, SSD, VRM, chipset, and DC input sections.
  • Record throttling behavior, not only maximum surface temperature.

Short tests miss delayed failures

Many failures appear after the enclosure reaches thermal equilibrium.

That may take far longer than the CPU burn-in period used in a simple lab run.

A stronger fanless pc thermal dissipation test should include steady-state operation, I/O traffic, and mixed workload transitions.

Real applications rarely run one benchmark forever.

A more dependable validation path starts with scenario-based thermal thinking

The goal is not to overcomplicate every test.

The goal is to align effort with deployment risk.

A practical approach can be structured in stages.

Stage Focus Expected output
Baseline Open-air thermal mapping Reference hot spots and cooling efficiency
Enclosure simulation Real cabinet geometry and spacing Temperature rise under restricted airflow
System interaction Co-located devices and cable congestion Cross-heating and blocked convection impact
Operational soak Long runtime with mixed workload Stable risk profile for field conditions

This staged logic improves confidence without relying on vague safety margins.

It also creates documentation that is easier to review, compare, and update during redesigns.

The next step is to replace pass-or-fail thinking with evidence that matches the cabinet

A fanless pc thermal dissipation test should no longer be treated as a generic checkbox.

It should be treated as installation evidence.

When thermal validation mirrors cabinet airflow, spacing, orientation, and neighboring loads, hidden failure modes become visible earlier.

That visibility supports safer deployment, longer component life, and more defensible engineering decisions.

Start by reviewing one existing fanless pc thermal dissipation test report against the real cabinet layout.

Compare ambient assumptions, load duration, mounting orientation, and nearby heat sources.

If those factors are missing, the test likely explains the lab, not the field.

In a data-driven environment, that difference is exactly where thermal risk begins.
