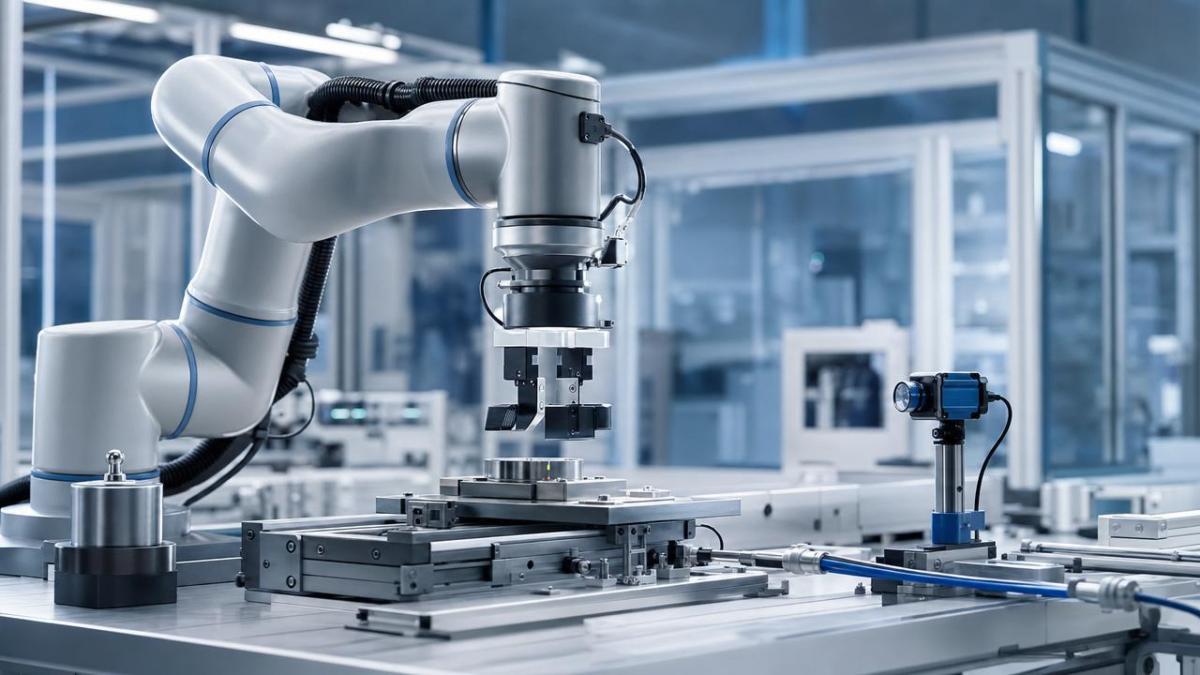

How safe is a cobot collision detection threshold in real use?

In real production environments, a cobot collision detection threshold is not just a safety setting. It shapes operator protection, nuisance stops, tool behavior, and line stability. A threshold that looks conservative in a brochure may behave very differently under real speed, payload, posture, and contact conditions. The only reliable question is whether the configured value matches measured risk in actual use.

That matters across the broader industrial landscape, from electronics assembly and CNC tending to packaging and mixed manual-automation cells. In each case, threshold safety depends on force, pressure, stopping distance, robot inertia, contact location, and validation method. A data-based review is therefore more useful than any generic vendor default.

Why a checklist is necessary for a cobot collision detection threshold

A cobot collision detection threshold is often treated as a single number. In practice, it is a system-level safety behavior. It interacts with robot mass properties, end-effector design, acceleration limits, safety-rated monitored speed, and the expected human contact scenario.

Checklist-based evaluation prevents two common failures. The first is overestimating safety because the threshold sounds low. The second is over-restricting productivity because nuisance trips were never separated from true impact risk. A structured review helps balance protection and uptime.

Core checklist to judge whether the threshold is safe in real use

Use the following checklist before accepting any cobot collision detection threshold as safe for production.

1. Define the real contact case, including body region, operator posture, approach angle, and whether contact is transient, clamping, or sustained during the task cycle.
2. Measure tool-center speed and joint speed at the exact point of potential contact, not only the programmed average speed shown in the HMI.
3. Calculate the effective moving mass with payload, gripper, adapter plate, cables, and part geometry included, because inertia changes actual collision severity.
4. Check stopping time and stopping distance under loaded conditions, since the same cobot collision detection threshold can behave differently with changed deceleration profiles.
5. Validate force and pressure using instrumented tests or calibrated measurement devices, then compare results against the applicable biomechanical guidance and machine risk assessment.
6. Review robot posture and singularity effects, because reflected joint torque and Cartesian compliance may vary sharply across reach envelope positions.
7. Inspect the end-effector shape, edge radius, and local contact area, as pressure risk may remain high even when total collision force appears acceptable.
8. Separate nuisance stops from true hazardous contacts by logging trigger events, impact location, speed state, and false positives across a representative production sample.
9. Confirm that software settings, firmware version, safety PLC logic, and fieldbus timing have been frozen and documented before final threshold validation.
10. Re-test after any payload, gripper, fixture, recipe, or speed change, because a previously accepted cobot collision detection threshold may no longer remain safe.

What engineering data should be collected

A credible evaluation needs more than event logs. Record peak force, contact duration, pressure distribution, trigger delay, stopping distance, and robot state at impact. Also capture payload variation, acceleration settings, part dimensions, and environmental factors such as floor vibration or fixture compliance.

If direct force measurement is not available, estimate risk conservatively using speed, effective mass, and worst-case stopping behavior. However, inferred values should never replace instrumented verification when a human-robot shared space is part of normal operation.

How the threshold behaves in different real-world scenarios

Assembly and bench-top collaboration

In light assembly, the cobot collision detection threshold is often tuned lower because operators work close to the arm and contact is more frequent. Yet low thresholds alone are not enough. Wrist orientation, screwdriver reaction torque, and part presentation angles can create sharp local pressure at the hand or forearm.

This scenario benefits from slower approach speeds, rounded tooling, and task zoning. The best result usually comes from combining threshold tuning with reduced speed in high-contact zones instead of relying on one global setting.

Machine tending and part transfer

For machine tending, payload and inertia are usually higher. A cobot collision detection threshold that worked during dry runs can become unsafe once metal parts, chuck adapters, or long grippers are added. Contact may also occur near hard fixtures, increasing pinching and trapping hazards.

Here, threshold review must include loaded stopping tests, part-drop implications, and fixture clearance mapping. Safe behavior may require lower acceleration and separate recipes for empty-gripper and loaded-gripper states.

Packaging, palletizing, and end-of-line handling

Packaging cells often prioritize cycle time, so speed changes happen often. That makes the cobot collision detection threshold more sensitive to recipe drift. Flexible cartons may hide impact severity during informal checks, while rigid product trays can transmit higher localized force.

In these environments, validate by product family and stack height. Include the worst-case reach, since horizontal extension often increases effective impact energy and changes stopping behavior near the edge of the workspace.

Commonly missed risks when setting a cobot collision detection threshold

Assuming the vendor default is conservative

Default values are rarely application-specific. They may be acceptable for demonstration payloads and open workspaces, but not for your gripper geometry, part mass, or constrained fixture layout. Always validate in the installed configuration.

Ignoring pressure while focusing only on force

A broad padded surface and a sharp bracket can produce the same total force with very different injury outcomes. If the contact area is small, pressure can exceed acceptable levels even when the collision event appears mild.

Testing at one speed only

Many nuisance and safety issues appear during transitions, not steady motion. Check low-speed approach, nominal cycle speed, recovery motion, and any maintenance mode that still allows powered movement.

Forgetting software and maintenance drift

A validated cobot collision detection threshold can be invalidated by firmware updates, brake wear, re-greasing, new end-effectors, or modified path smoothing. Revalidation should be tied to change control, not left to memory.

Practical execution steps

• Map all human-accessible contact points and rank them by speed, mass, and likelihood of trapping against fixed equipment.
• Run threshold tests with actual payloads, actual tooling, and actual recipes rather than simulation-only or unloaded setup conditions.
• Log every collision trigger for several shifts, then classify each event as true contact, process disturbance, or false positive.
• Tune speed, acceleration, and path shape before raising the threshold, because process optimization often reduces impacts without reducing protection.
• Document the accepted cobot collision detection threshold together with version control, test method, and retest triggers.

Conclusion and next action

So, how safe is a cobot collision detection threshold in real use? It is only as safe as the evidence behind it. Real safety comes from measured speed, verified stopping behavior, realistic payload conditions, and documented contact testing across the actual task envelope.

The next practical step is simple: audit the current threshold against one real application, collect force and stop data, and compare nuisance-stop records with true contact risk. That single review usually reveals whether the setting is genuinely protective, overly sensitive, or dangerously optimistic.
