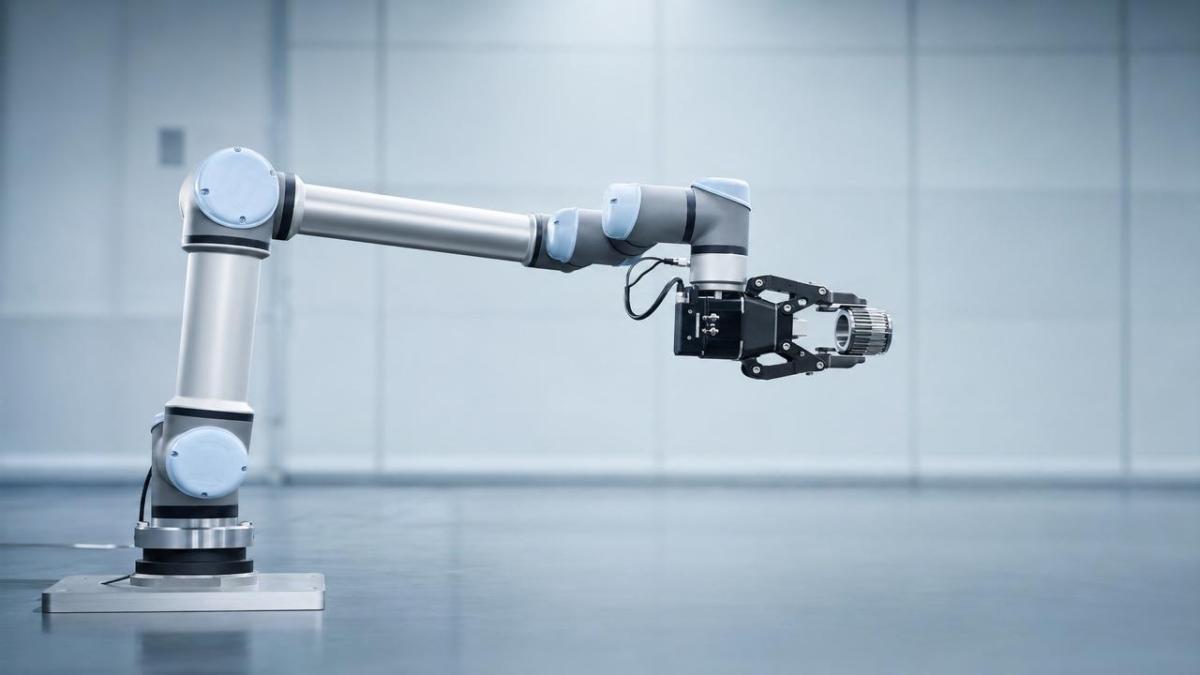

Collaborative robot payload limits often fail at full reach

Many users discover too late that collaborative robots payload capacity figures can be misleading once the arm extends to full reach. A cobot rated for a certain load may lose real-world stability, speed, or repeatability under demanding conditions. This article cuts through brochure claims to explain why payload limits often fail at maximum extension and what operators should verify before deployment.

Why a checklist works better than a brochure when judging payload at full reach

For operators, the problem is rarely the published payload number alone. The real issue is how that number changes when reach, wrist angle, cycle speed, tool mass, and acceleration all interact at the same time. In practical use, collaborative robots payload capacity is not a single static value. It is a moving limit shaped by moment load, center of gravity, mounting position, duty cycle, and safety settings.

That is why a checklist approach is more useful than a theory-heavy explanation. Operators need fast judgment points: what to confirm first, what to test on site, what often gets ignored, and what data should be requested before approval. A clear checklist reduces commissioning surprises, protects repeatability, and helps teams avoid buying a robot that only meets the target on paper.

First checks: the five items to confirm before trusting a payload rating

1. Rated payload at what reach? Some datasheets highlight the maximum payload but do not show how performance changes close to maximum arm extension. Always ask whether the robot can carry that load at full reach, not only in a compact pose.
2. What is the tool weight and center of gravity? End-of-arm tooling, grippers, vacuum cups, adapters, and brackets can consume a large share of the payload budget. A light part with a long tool may create a worse moment load than a heavier part held close to the wrist.
3. What acceleration is required? A robot may hold a load statically but fail dynamically when you demand fast pick-and-place motion. Collaborative robots payload capacity often drops in practice when acceleration and deceleration rise.
4. What repeatability must be maintained? If the process requires tight placement accuracy, sealing paths, screwdriving alignment, or machine tending near a fixture edge, even small deflection at full reach can become unacceptable.
5. Which safety mode is active? Speed and force limiting, reduced mode, workspace restrictions, or risk-assessed speed caps can lower throughput enough that the nominal payload rating becomes irrelevant to the real production target.

Core checklist: what operators should inspect in collaborative robots payload capacity

Use the following points as an operator-level decision guide before installation, line expansion, or task change. These checks are especially important when the robot works near its maximum reach envelope.

• Payload includes everything at the wrist. Count the gripper, sensors, adapters, cable protection, quick changer, fasteners, and the part itself. Teams often remember the product but forget the tooling stack.
• Center of gravity must match the robot allowance. A payload located far from the flange creates extra torque. This is a common reason collaborative robots payload capacity seems acceptable on paper but fails during extension.
• Check wrist orientation at the farthest point. Some applications become unstable only when the wrist rotates to a certain angle. Test the exact end posture, not a simplified motion path.
• Review mounting direction. Floor, wall, ceiling, or angled mounting can affect allowable loads and motion behavior. Verify that the published rating applies to your mounting condition.
• Measure deflection, not just cycle completion. If the arm sags or oscillates, the task may still run but miss process quality targets. Use actual placement or path error as the acceptance standard.
• Check cable drag and hose resistance. Pneumatic tubes and dress packs can add hidden force, especially at long reach. This can reduce smooth motion and affect repeatability.
• Confirm thermal behavior over time. A cobot that performs well in a short demo may degrade after hours of continuous motion if motors or joints approach thermal limits.

A practical judgment table for full-reach applications

Where payload limits fail most often in real operations

Operators usually see trouble in four situations. First, palletizing and depalletizing near the edge of the work envelope create long lever arms, so the robot may slow down, shake, or miss position. Second, machine tending with a heavy gripper plus part often pushes the wrist moment higher than expected, even if the part weight alone looks safe. Third, dispensing, polishing, and screwdriving can fail because process force adds to the load during extension. Fourth, multi-shift production exposes thermal and wear effects that a short factory acceptance test may not reveal.

These cases matter because collaborative robots payload capacity must be judged under process conditions, not under ideal empty-hand motion. A robot that survives a demonstration path may still fail when the line adds true production speed, tool force, or repeated long-reach picks.

Different tasks require different payload judgment standards

Pick and place

Focus on dynamic load, acceleration, and end-point stability. Ask for real cycle data at the target reach. If the supplier only shows low-speed motion, the result is incomplete.

Machine tending

Check door reach, insertion angle, and fixture clearance. Many failures happen because the robot must extend farther when entering the machine than when carrying the part in open space.

Palletizing

Measure the worst-case box position on the pallet pattern, especially top corners and far rows. This is where collaborative robots payload capacity is most likely to be overstated by a simple catalog number.

Process applications

For gluing, sanding, polishing, or screwdriving, include contact force in the evaluation. Payload is not only about carrying mass. It is also about resisting force without losing path quality.

Commonly ignored factors that distort the payload decision

• Tooling growth over time: Teams often add sensors, larger fingers, or a quick changer later, silently eroding the payload margin.
• Part variability: Real products may vary in weight, moisture content, or fill level, which can push peak loads above the planned value.
• Floor vibration or weak mounting frames: Structural flex can appear like robot weakness, but it still damages process accuracy.
• Controller tuning assumptions: Motion settings used in a safe demo may differ from production requirements, changing the effective behavior at full reach.
• Confusing static and usable payload: A robot may technically hold a mass yet be unable to deliver the required takt time or quality window.

Execution advice: how to validate collaborative robots payload capacity before launch

A strong validation plan should be simple and measurable. First, define the worst-case condition: heaviest part, longest reach, fastest acceptable cycle, and most demanding wrist orientation. Second, run repeated tests long enough to expose drift, heat, and vibration, not just a few successful cycles. Third, record actual placement accuracy, cycle time, motor alarms, and recovery behavior after emergency stops or pauses. Fourth, repeat the test with the exact production tooling and dress package. Substituting a lighter demo gripper makes the conclusion unreliable.

A useful operator rule is to leave margin rather than selecting a cobot at the exact theoretical limit. If the application regularly uses near-maximum extension, the safer choice is often a higher-capacity model, a shorter reach with layout changes, or a redesigned gripper that moves the center of gravity closer to the flange.

Fast approval checklist for buyers, technicians, and operators

1. Request the payload chart or application note showing limits at different reaches and center-of-gravity offsets.
2. Ask for proof of performance using your part weight, your tool weight, and your target cycle time.
3. Confirm whether collaborative mode, guarding strategy, or risk assessment will reduce speed in normal operation.
4. Verify repeatability at the farthest point in the actual work cell, not only in an open demo area.
5. Check maintenance implications if the application runs close to the upper limit every shift.
6. Document acceptance criteria before purchase so payload discussions stay tied to measurable production outcomes.

FAQ: quick answers operators often need

Does a higher payload rating always mean better full-reach performance?

No. Reach, joint design, stiffness, and allowable center of gravity all matter. A higher rating helps, but it does not replace application-specific validation.

Why does the robot work in manual testing but fail in production?

Manual tests are often slower, lighter, and shorter. Production adds acceleration, repetition, and exact end poses that reveal the true collaborative robots payload capacity limit.

Should operators care about center of gravity if the part is light?

Yes. A light part on a long gripper can create significant torque. In many cells, center of gravity is more important than part mass alone.

Final takeaway and next action

The safest way to judge collaborative robots payload capacity is to treat the catalog number as a starting point, not a final answer. Full reach changes everything: torque, deflection, speed, repeatability, and safety-limited throughput. Operators should therefore verify payload stack, center of gravity, farthest working pose, cycle dynamics, and actual process quality before sign-off.

If your team plans to compare models or approve a deployment, prepare five inputs first: actual part weight range, full tooling mass, center-of-gravity estimate, required cycle time, and worst-case reach posture. With those details, suppliers and engineering teams can discuss fit, safety, expected performance margin, service life, integration risk, and budget with far greater accuracy.
