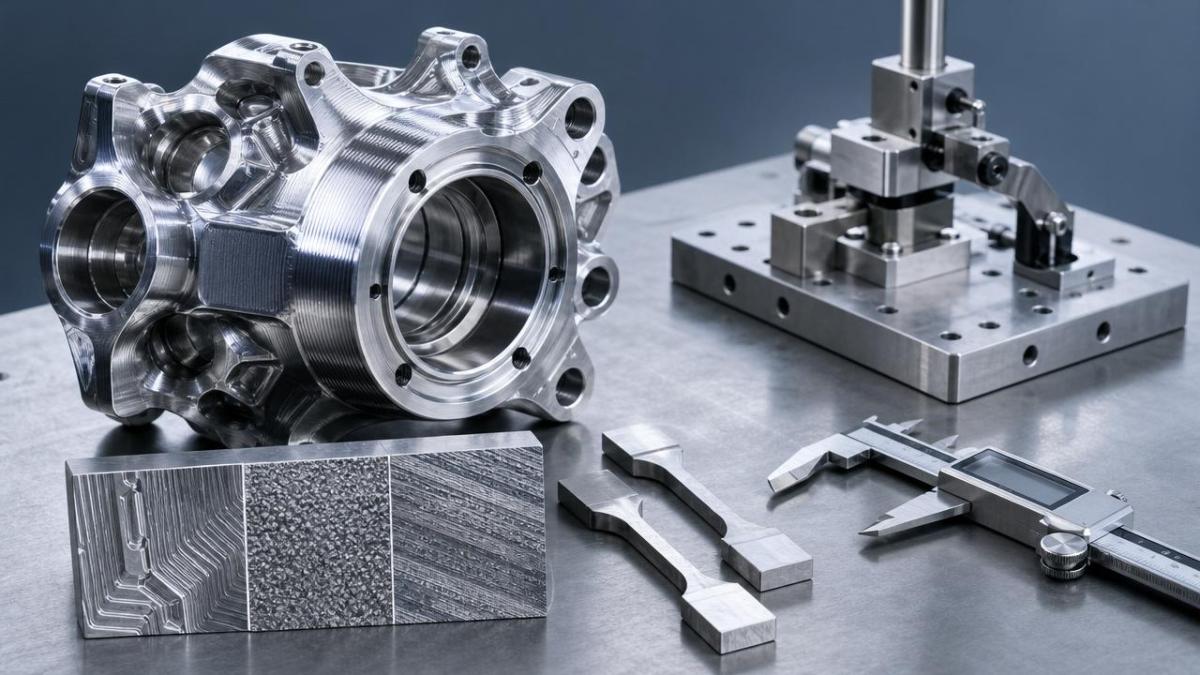

What Fatigue Test Reports Really Reveal About 5-Axis CNC Parts

For technical evaluators, 5-axis CNC machining fatigue test reports do far more than confirm pass-or-fail compliance. They expose how material behavior, toolpath strategy, surface integrity, and tolerance control affect real-world durability under cyclic loads. This article explains what these reports truly reveal about 5-axis CNC parts—and how to use the data to assess supplier capability, reduce qualification risk, and make better engineering decisions.

Why a checklist approach works better than a simple pass/fail review

When evaluating 5-axis CNC machining fatigue test reports, the biggest mistake is treating them like a certificate instead of a technical evidence package. A fatigue result can look impressive on the surface while hiding weak assumptions: unrealistic load spectra, oversimplified specimen geometry, low sample counts, or polishing conditions that do not match production parts. For technical evaluators, the fastest way to reduce supplier qualification risk is to review the report through a structured checklist.

This matters especially in precision machining benchmarks, aerospace-adjacent applications, robotics structures, and sensor housings where cyclic loading, vibration, thermal swing, and tight tolerance interaction define service life. Good 5-axis CNC machining fatigue test reports reveal more than endurance. They show whether a supplier understands process capability, repeatability, and the relationship between machining decisions and structural reliability.

First-pass review: the key items to confirm before trusting the numbers

Before diving into graphs or conclusions, confirm whether the fatigue report provides enough context to be technically meaningful. If these basics are weak, the rest of the document is usually weak as well.

• Check whether the part material is fully identified, including alloy grade, heat treatment, lot traceability, and any post-machining stress relief.
• Confirm that test coupons or production-representative parts were machined using the same 5-axis CNC process window intended for serial production.
• Verify whether the report defines load mode clearly: axial, bending, torsion, multiaxial, vibration-induced, or combined loading.
• Review the stress ratio, frequency, runout criteria, environment, and temperature, because these can drastically change fatigue life.
• Look for sample size, scatter range, and failure distribution rather than a single average cycle value.
• Confirm whether the tested surface condition matches the actual delivered component, including tool marks, edge breaks, coatings, deburring, and cleaning steps.

A concise but rigorous report often says more than a glossy, overdesigned one. In line with TSV’s data-first philosophy, exact tolerances, surface values, and process notes are more valuable than marketing adjectives.

Core checklist: what fatigue test reports really reveal about 5-axis CNC parts

1. Material behavior under cyclic stress

The first signal in 5-axis CNC machining fatigue test reports is whether the material behaves consistently across the sample set. If one specimen fails early while others survive much longer, the issue may not be the alloy alone. It may indicate hidden variation in machining-induced residual stress, localized overheating, grain deformation near the surface, or inconsistent stock orientation.

Technical evaluators should compare the reported fatigue life against expected values for the alloy in the relevant temper or heat-treated state. If a supplier reports excellent static strength but weak fatigue endurance, that gap often points to process damage rather than intrinsic material limitation.

2. Surface integrity, not just surface roughness

A strong report does not stop at Ra or Rz values. It explains surface integrity: recast layers if any secondary process exists, micro-tearing, smeared metal, burr roots, chatter marks, tool exit scars, and residual stress state. In fatigue-sensitive 5-axis CNC parts, failure often starts at the surface or just below it. A visually acceptable part can still have crack initiation sites that dramatically shorten life.

If the fatigue test report includes microscopy, crack origin images, or fractography notes, that is a strong sign of engineering maturity. When the crack starts at a machined corner, toolpath transition zone, or blend radius, the report is revealing a process control story, not just a material story.

3. Toolpath strategy and machine dynamics

One of the most underestimated insights in 5-axis CNC machining fatigue test reports is the influence of tool orientation, cutter engagement, and interpolation quality. Five-axis machining offers geometric freedom, but it also introduces more variables that can affect surface consistency. Sudden tool vector changes, poor smoothing, vibration at thin-wall sections, and unstable fixturing can leave subtle stress raisers even when dimensional inspection passes.

If a report links fatigue performance to specific machining parameters or compares different finishing strategies, it becomes highly valuable for supplier capability assessment. This shows the manufacturer can connect CAM decisions to part life, which is exactly what serious qualification teams need.

4. Tolerance control at fatigue-critical features

Not every tolerance matters equally for fatigue. The report should help you identify which features dominate stress concentration: fillet radii, hole positions, wall thickness transitions, slot ends, and threaded interfaces. A supplier may hold global dimensional tolerance well while missing local geometry control that governs durability.

Look for evidence that the tested parts were measured at fatigue-critical locations, not only at standard inspection points. Radius deviation, waviness, and local profile error can produce major fatigue penalties even when the CMM summary looks acceptable.

5. Process repeatability instead of one-time success

A useful fatigue report reveals whether performance is repeatable across operators, batches, setups, and machine conditions. One excellent sample proves little. Multiple consistent runs prove process discipline. For technical evaluators, this is one of the clearest indicators of whether a vendor can scale from prototype to production without hidden reliability loss.

Ask whether the tested parts came from one setup or multiple setups, one tool condition or different tool life stages, one machine or several equivalent platforms. The best 5-axis CNC machining fatigue test reports show traceability at this level.

How to judge report quality: a practical decision table

Use the following table as a quick screening tool when comparing suppliers or internal test packages.

Scenario-based checks: what to emphasize for different applications

For aerospace and UAV structures

Prioritize crack initiation behavior, notch sensitivity, lightweight geometry stability, and performance after environmental exposure. In these cases, 5-axis CNC machining fatigue test reports should align closely with flight load assumptions, not just generic lab conditions.

For robotics and automation components

Focus on vibration-related fatigue, repeated motion cycles, bolted interface durability, and localized wear-to-fatigue interaction. Dynamic stiffness and fixture-induced distortion during machining may matter as much as material strength.

For sensor housings and edge-device enclosures

Look beyond simple enclosure strength. Check thin-wall consistency, corner quality, threaded feature endurance, thermal cycling interaction, and whether machining introduces stress at sealing or mounting zones.

Commonly overlooked issues that can invalidate a good-looking report

• The coupon passed, but the real part has sharper transitions and different clamp distortion behavior.
• The supplier changed tooling, coolant strategy, or machine platform after testing.
• Deburring, blasting, anodizing, or coating altered fatigue performance but was not represented in the report.
• The report ignores subsurface damage, residual stress, or microcracks from aggressive finishing.
• Load frequency was too high, causing thermal effects or non-representative failure behavior.
• Statistical confidence is weak because the sample count is too small for the decision being made.

These gaps are exactly why technical evaluators should read 5-axis CNC machining fatigue test reports as supply chain evidence, not just test lab paperwork.

Execution guide: what to ask suppliers before approving a part

1. Request the exact machining route used for tested samples, including machine type, tooling family, finishing passes, and post-process steps.
2. Ask for raw fatigue data, not just summary conclusions, including failed and survived samples.
3. Match fatigue-critical features to inspection plans, especially local radii, hole edges, wall transitions, and threaded areas.
4. Confirm whether serial production will use the same material source, heat-treatment route, and process controls as the tested lot.
5. Request evidence of repeatability across more than one setup or batch if the part is business-critical.
6. Where risk is high, require fractography or surface integrity analysis to identify crack origin and machining influence.

What strong fatigue reports say about supplier capability

High-quality 5-axis CNC machining fatigue test reports usually indicate a supplier that understands engineering accountability. They can trace material, connect machining variables to durability, define critical geometry, and defend performance with data. That does not guarantee perfect production, but it significantly reduces uncertainty during supplier qualification.

Weak reports suggest the opposite: testing was done to support sales claims rather than engineering decisions. For organizations managing costly qualification cycles, that difference has direct impact on timeline, validation cost, and field reliability risk.

Final evaluation checklist and next-step action

The best way to use 5-axis CNC machining fatigue test reports is to ask a simple question: does this document explain why the part survives, or does it only state that it survived once? Technical evaluators should prioritize material traceability, production-representative machining, surface integrity evidence, fatigue-critical tolerance control, and repeatable data across samples. Those are the signals that reveal real manufacturing capability.

If you need to move a supplier or program to the next stage, the most useful discussion points are clear: required fatigue life, load case assumptions, critical geometric features, acceptable surface condition, process lock requirements, inspection depth, qualification sample count, and any post-machining treatment that may change durability. Starting with these questions will make your review of 5-axis CNC machining fatigue test reports faster, more consistent, and far more defensible.
