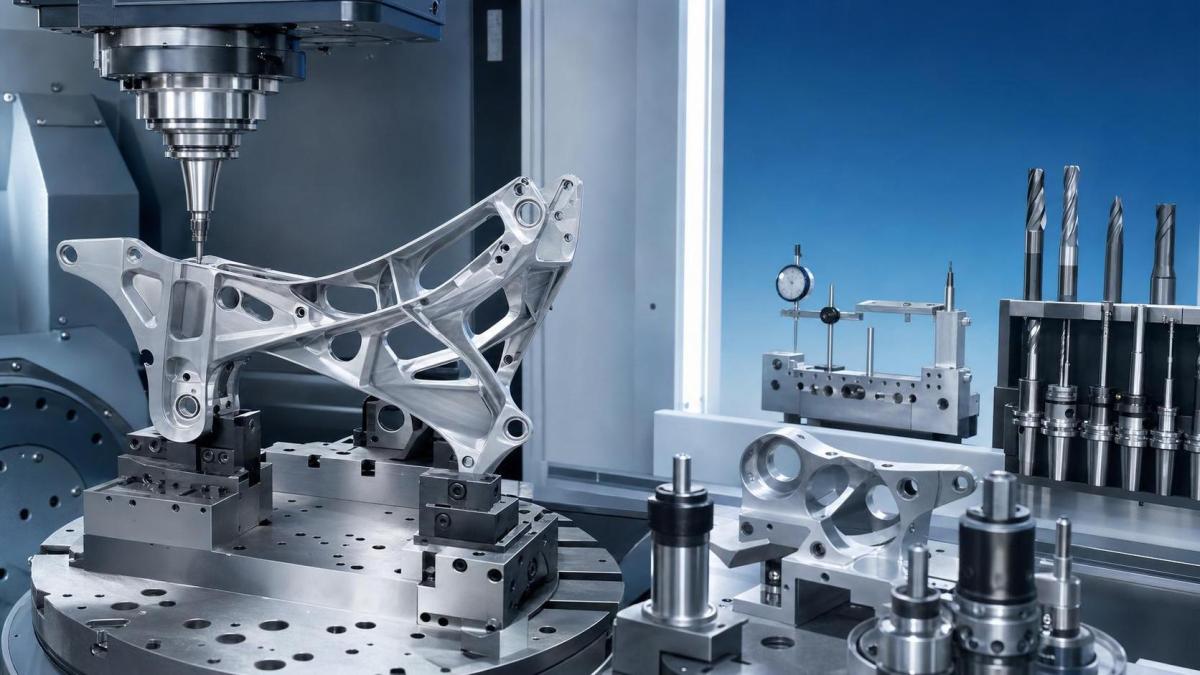

Aerospace Bracket Machining: Tolerance, Material, and 5-Axis Setup Basics

Aerospace bracket machining sits at an awkward intersection of structural responsibility, geometric complexity, and cost pressure. A bracket may look simple on a drawing, yet its tolerances, material response, and 5-axis strategy often determine whether a program moves smoothly or drifts into rework, schedule slip, and certification friction.

That is why the discussion around aerospace bracket machining has become more practical. Across aerospace, UAV platforms, and advanced industrial supply chains, the real question is no longer who claims capability, but who can hold the required numbers, repeat them, and document them with discipline.

Why brackets receive more scrutiny than their size suggests

In most aircraft assemblies, brackets connect systems, route loads, and stabilize interfaces. They may support avionics trays, hydraulic lines, sensor housings, ducting, interiors, or secondary structural members.

Even when a bracket is classified as non-primary structure, failure is rarely trivial. Misalignment can affect assembly stack-up. Burrs can trigger inspection rejection. Distortion can shift hole position and create downstream fit issues.

From a supply chain perspective, brackets also appear in high variety and medium volume. That makes them a recurring decision point in precision machining benchmarks, especially where AS9100 control, traceability, and repeatable setup performance matter.

This is where TechStat Vanguard's data-first approach is useful. In hard-tech sourcing, bracket work is not judged by broad quality claims. It is judged by tolerance capability, material consistency, and process stability under real production conditions.

The core of aerospace bracket machining

At its simplest, aerospace bracket machining is the controlled removal of material to produce a load-bearing or positioning component that meets strict dimensional, surface, and documentation requirements.

In practice, three variables dominate early decisions:

• which dimensions are truly critical to function;
• how the chosen alloy behaves during cutting and clamping;
• whether the 5-axis setup reduces risk or simply adds complexity.

Many bracket problems begin when these three are treated separately. A tight profile tolerance may look reasonable in CAD, but it becomes expensive if the material is thin-walled, stress-prone, and poorly supported during machining.

Likewise, a part may be fully machinable in theory, yet inefficient if it requires multiple manual reorientations to reach angled faces, compound holes, and internal reliefs.

Tolerance is not just a number on the print

Tolerance in aerospace bracket machining should be read as a system, not a list. Flatness, true position, perpendicularity, edge condition, and surface finish often interact with each other during production and inspection.

The most common mistake is over-tolerancing nonfunctional features. That raises cycle time, fixture complexity, and inspection burden without improving bracket performance in service.

More useful questions include:

• Which datums control final assembly alignment?
• Which holes carry load, locate mating parts, or require bushing accuracy?
• Which walls are vulnerable to spring-back after unclamping?
• Which surfaces matter for sealing, contact, or coating build-up?

A balanced tolerance scheme usually separates functional geometry from cosmetic or low-risk geometry. That distinction helps avoid machining every feature to the most expensive standard.

Typical tolerance focus areas

Material choice changes the machining plan

Material selection in aerospace bracket machining is usually a trade among weight, strength, corrosion resistance, temperature exposure, and cost. The machining route changes with each trade.

Aluminum alloys remain common for many brackets because they machine efficiently and support aggressive weight reduction. Titanium enters the picture when corrosion resistance, strength-to-weight ratio, or thermal requirements move higher.

Stainless steels and nickel-based alloys appear in more demanding environments, but they raise cutting force, heat, tool wear, and process time. Composite-adjacent interfaces may also require tighter edge quality and burr control.

The practical issue is not only alloy identity. It is stock condition, grain direction, stress history, and how much material must be removed from the billet. A light bracket cut from thick stock can move significantly once internal stress is released.

Material-driven planning signals

• High removal rates call for staged roughing and rest periods when distortion risk is high.
• Thin titanium sections benefit from conservative clamping and stable tool engagement.
• Harder alloys often justify fewer setups, even if programming time increases.
• Surface treatment requirements should be considered before final finish values are locked.

This is one reason data-backed supplier comparison matters. Two shops may quote the same bracket, but their control over stress relief, tool life, and inspection loops can be very different.

Where 5-axis machining earns its place

Not every bracket requires 5-axis machining, but many modern aerospace parts benefit from it. Angled features, compound contours, undercut access, and datum-sensitive hole patterns often become more stable when handled in fewer setups.

The value of 5-axis work is less about technical prestige and more about error reduction. Every time a part is removed and re-fixtured, positional uncertainty increases.

For aerospace bracket machining, a good 5-axis setup usually aims to preserve datum logic from the drawing, maintain tool access, and protect thin features until late in the process.

What a stable setup usually includes

• Clear primary locating surfaces that match inspection intent.
• Sufficient stock support during roughing.
• Toolpaths that avoid long, unstable reach where possible.
• A process order that leaves delicate walls for later operations.
• Verification for collision, rotary limits, and post-processed tool orientation.

In real programs, the best setup is often the one that simplifies inspection as much as machining. When probing, CMM strategy, and fixture references align, deviations are easier to detect early.

The issues that affect cost and schedule most

The visible price of a bracket is only part of the story. In aerospace bracket machining, cost escalation often comes from hidden iteration: fixture revisions, nonconformance reviews, scrap from distortion, and queue time caused by repeated inspections.

Several risk factors deserve early attention:

• drawings with broad geometric controls but unclear functional priorities;
• material removed asymmetrically from one side of the blank;
• deep pockets combined with tight flatness limits;
• manual deburring on fatigue-sensitive edges;
• late discovery that coating thickness shifts final fit.

These are precisely the cases where engineering fundamentals matter more than polished sales language. Reliable bracket production depends on measurable capability, not generic assurances.

How to evaluate aerospace bracket machining before release

A practical review should connect design intent, manufacturing method, and verification plan before the first chip is cut. That avoids treating machining, quality, and sourcing as separate conversations.

A concise evaluation framework looks like this:

A better next step than comparing quotes alone

The strongest aerospace bracket machining decisions usually start with a tighter specification package, not a broader vendor list. When tolerance intent, material condition, and setup logic are clarified early, cost and lead time become easier to compare fairly.

That is also consistent with TSV's wider view of advanced manufacturing. Parameters do not lie, and bracket programs respond best to measurable criteria: tolerance capability, process repeatability, traceable inspection, and evidence that the machining plan fits the part rather than forcing the part to fit the machine.

Before moving forward, it helps to review the drawing with three questions in mind: which features truly drive function, how the selected material will move during machining, and whether a 5-axis strategy will reduce setup risk. Those answers usually reveal the right path faster than any marketing claim.
