How MES and OEE work together to identify production losses

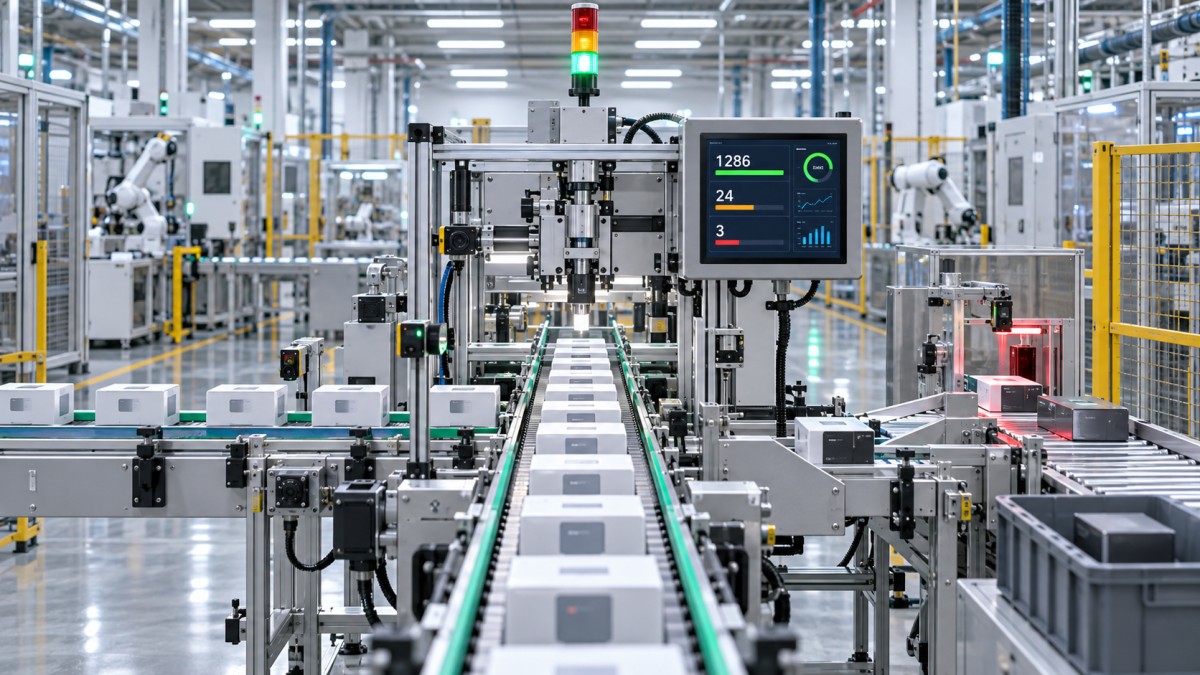

A line can appear busy for an entire shift and still miss its output target. A conveyor is moving, operators are attending stations, and the machine status light is mostly green. Yet the end-of-shift report shows fewer good parts than planned. The loss may be hidden in brief stops that never reached a downtime threshold, cycles running a few seconds slow, rejected parts recorded away from the machine, or a changeover that started before anyone officially logged it.

MES and OEE work together by connecting those shop-floor events to a common production context. OEE indicates whether availability, performance, or quality reduced effective output. MES explains what was being produced, which order, material, operator action, machine state, quality disposition, and process condition were involved when the loss occurred. OEE without MES can show that a loss exists; MES without OEE can hold detailed records without clearly showing which losses matter most. Used together, they turn production losses into issues that operators and supervisors can locate, verify, and act on.

Start with the difference between a loss signal and a loss explanation

Overall Equipment Effectiveness is usually calculated from three factors:

OEE = Availability × Performance × Quality

• Availability falls when planned production time is lost to breakdowns, setups, waiting, changeovers, or other recorded stops.
• Performance falls when the equipment produces below its defined ideal cycle rate, including reduced speed and short interruptions.
• Quality falls when parts are rejected, scrapped, reworked, or otherwise fail to count as good production.

These categories make losses visible, but they do not automatically establish cause. A low availability figure may result from an actual machine fault, a missing component, an upstream starvation condition, a safety reset, or an operator waiting for inspection release. Each event may look like “downtime” in a basic dashboard, while the practical response differs completely.

An MES adds the production record around the number. It can associate an event with a work order, product variant, operation, routing step, batch or lot, material issue, tooling state, labor assignment, inspection result, and reason code. The combination is what makes mes and oee useful for loss identification rather than simple reporting.

What the systems should exchange on the shop floor

The connection does not require every possible data point on day one. It does require consistent definitions and a reliable path from machine activity to production context. OEE commonly receives machine counters, run/idle/fault states, cycle times, and good-versus-reject counts. MES contributes the meaning of that activity: the active operation, scheduled quantity, product specification, current production order, and recorded exceptions.

The most important design decision is not the dashboard layout. It is agreeing on what each state means. For example, a machine may show “idle” while it waits for material, waits for an operator, or waits for a downstream buffer to clear. Treating all idle time as a machine problem sends improvement work in the wrong direction. MES reason codes and workflow events help separate these conditions, provided the options are clear enough to be used consistently.

A realistic loss investigation: output is low, but the machine rarely faults

Consider a packaging or assembly station that reports high runtime but produces fewer acceptable units than the schedule requires. A supervisor first checks OEE and sees that availability is acceptable. The main loss appears under performance. This narrows the investigation: the equipment was not stopped for long periods, so the team should not begin by treating the issue as a major downtime problem.

The MES record may then show that the slower rate occurs only on one product configuration, after a particular operation begins, or during orders using a specific component lot. It may also show frequent operator-entered microstop reasons such as alignment adjustment, label verification, or sensor cleaning. None may be long enough individually to dominate the downtime report, but their accumulated duration and effect on cycle rate can explain the missed quantity.

The next question is whether the recorded ideal cycle time is valid. A performance loss can be real, but it can also be created by an outdated target. A product with an added inspection step, different pack format, or approved process change should not be compared against the cycle time of an earlier version. MES routing and revision information provides the reference needed to test this. Only after confirming the order, routing, and target rate should the team treat the gap as a true speed loss.

This is a useful operating principle: do not ask only “why is OEE low?” Ask “under which production conditions did this OEE loss occur?” The first question identifies the category; the second prevents broad assumptions.

Finding availability losses without hiding them in broad downtime codes

Availability losses are easiest to see because a stopped machine usually generates a visible state change. They are also easy to misclassify. A broad code such as “equipment issue” can cover a mechanical jam, an interlock trip, a missing utility, a control fault, or a sensor obstruction. The report may be technically complete but operationally weak.

A better approach uses a short hierarchy. An operator can first select the loss family—equipment, material, quality hold, staffing, upstream, downstream, planned setup, or unknown. Where possible, MES can then present a second list relevant to that family. This keeps data entry practical while preserving enough detail for later analysis.

Machine-generated signals should be retained alongside operator input. A fault code may identify a drive alarm, while the operator record may indicate that the alarm followed repeated package misfeeds. Neither record should replace the other. The machine signal describes the immediate state; the MES event can capture the operating condition and action taken.

When reviewing availability, separate three questions:

1. Was the time inside planned production time for this order?
2. Was the machine genuinely unavailable, or was it ready but waiting on another process?
3. Did the same reason recur under the same product, shift, material, or operating condition?

The third question is where MES history becomes valuable. A repeated short stop during one product family may point to setup parameters or fixture fit. The same stop spread across all products may suggest a general equipment condition. A repeated waiting state linked to one supplier lot may indicate a material variation issue rather than a mechanical fault.

Performance losses need more than a running-state signal

Performance losses are often underestimated because the line is still producing. A machine can be in “run” state while operators perform extra handling, the feeder needs repeated adjustment, or a process waits for a sensor confirmation that arrives later than expected. A simple runtime counter cannot distinguish productive running from slow productive running.

OEE identifies this through actual count versus the count expected from ideal cycle time. MES helps validate the comparison and expose the pattern. Useful context includes product revision, active recipe, tool or fixture identifier, operator-entered adjustments, material lot, maintenance status, and the sequence of operations before the slow station.

Cycle-time analysis should use a sensible level of detail. Looking only at a full-shift average can conceal occasional extended cycles. Looking at every individual cycle can overwhelm the team with normal variation. In practice, it is often more useful to review cycle-time distribution by order or operation, then investigate clusters beyond the expected operating range. A cluster immediately after a replenishment event suggests a different problem from a gradual slowdown over the life of a tool.

Do not automatically classify every gap between cycles as reduced speed. Define a threshold that distinguishes a normal cycle variation from a short stop, and apply it consistently. The threshold should reflect the actual process, not an arbitrary reporting preference. MES can preserve the event sequence so that threshold changes can be reviewed later rather than silently altering historical interpretation.

Quality losses become actionable when the disposition stays connected

Quality loss is not just a reject count. A part may be scrapped at the station, placed in quarantine for review, routed to rework, or accepted under an approved disposition. These outcomes have different effects on production reporting and capacity planning. If all are immediately labeled as scrap, the OEE quality figure may exaggerate permanent loss. If questionable parts are excluded until the end of the shift, the figure may temporarily hide risk.

MES provides the workflow needed to keep that status visible. It can record the defect category, inspection outcome, serial or lot traceability where applicable, and whether the unit returns through a rework route. OEE can then distinguish good output from units that did not pass the operation on the first attempt, according to the site’s defined calculation rules.

The link is particularly important when defects follow a pattern. A quality loss appearing after a specific setup may indicate an adjustment issue. A defect tied to a material lot may require incoming-material review. A defect that rises after cycle-time acceleration may show that a performance improvement is damaging process capability. Without shared MES context, these relationships are easy to miss because downtime, speed, and quality are reviewed in separate reports.

Build the connection around operator use, not perfect data theory

Operators are often asked to supply the information that automated signals cannot capture. That does not mean they should be given long forms or dozens of vague reason codes. When the input process is slow, people postpone entries, select the first available option, or reconstruct events later from memory. The resulting data may look complete while being unreliable.

A practical setup uses automatic capture for timestamps, counts, machine states, and available alarms. It asks for operator input only when human context changes the interpretation: why a stop occurred, whether a machine was starved or blocked, whether an adjustment was made, or whether a quality concern requires a hold. The MES interface should also show the active order and operation clearly, so events are not attached to the wrong production context after a changeover.

Reason codes need periodic review. A growing use of “other” may mean the code list is incomplete, but it may also mean the existing choices are difficult to understand. Conversely, a long list can create inconsistent selection between shifts. Review the most frequent codes, the longest losses, and the codes with unclear corrective ownership. Simplify or refine only after examining real records.

Use a loss review that moves from signal to evidence

At the end of a shift or production run, begin with the OEE component that has the largest effect on good output. Then open the MES details for the relevant order, operation, and time window. This sequence avoids trying to investigate every recorded event equally.

• For availability, inspect stop duration, machine alarms, reason-code family, and whether upstream or downstream conditions were involved.
• For performance, verify the approved ideal cycle time before reviewing product-specific cycle patterns, microstops, adjustments, and process settings.
• For quality, examine defect type, inspection point, material and process traceability, and whether rejected units were reworked or permanently lost.

Next, look for recurrence rather than relying on the largest single event. One long stop may deserve immediate maintenance action, but repeated two-minute delays can consume more production capacity over time. MES history can show whether the same event follows a predictable trigger, such as a replenishment interval, a product transition, a tool age condition, or a handoff between operations.

Finally, confirm the corrective action in the same production context. If a setup instruction changes, compare the relevant product and operation before and after the change rather than comparing unrelated shifts. If a sensor is adjusted, verify whether the related microstop reason declines without creating a new quality issue. OEE provides the measurable outcome; MES makes the comparison traceable enough to judge whether the action addressed the intended loss.

Where teams should be cautious

Integration does not make OEE automatically trustworthy. Incorrect machine-state mapping, duplicate counts, late order closure, missing reject signals, and inconsistent planned-time rules can all distort the result. A high OEE score built on incomplete production context is less useful than a lower score with clear, auditable loss classification.

Before using MES and OEE data for performance decisions, confirm that the line’s ideal cycle time, planned downtime policy, good-count definition, and rework treatment are understood by production, quality, and maintenance personnel. These are operational definitions, not merely software settings. Once they are stable, the combined record gives operators a disciplined way to move from “we lost output” to a specific, observable condition that can be corrected and checked.
