What to Check in 5-Axis CNC Fatigue Test Reports

Publication Date

May 06, 2026

author

Victor Lin (Chief Software Architect)

For technical evaluators, 5-axis CNC machining fatigue test reports are more than compliance documents—they reveal whether a supplier can deliver stable performance under real-world stress. Before accepting headline claims, it is essential to examine test standards, load cycles, material traceability, tolerance retention, and failure modes. This guide outlines what truly matters when interpreting fatigue data for precision-machined components.

Why scenario differences matter when reading 5-axis CNC machining fatigue test reports

Not every fatigue report answers the same business question. A report that is acceptable for an industrial fixture may be completely inadequate for an aerospace bracket, a medical instrument housing, or a UAV structural link. This is why technical evaluators should never review 5-axis CNC machining fatigue test reports in isolation. The right interpretation depends on the intended use case, expected service load, environmental exposure, safety factor, certification pathway, and replacement strategy.

In practical supplier assessment, scenario-based reading prevents expensive mistakes. One supplier may show excellent cycle counts under polished laboratory conditions, while another demonstrates lower headline numbers but provides better material traceability, fixture realism, and tolerance retention after cyclic loading. For engineering teams, the second report may carry far more value because it better reflects actual field performance.

At TechStat Vanguard, the most useful fatigue data is not the most dramatic claim; it is the most decision-ready evidence. Technical evaluators should therefore map each report to a real deployment scenario before deciding whether the part, process, and supplier are fit for use.

Typical application scenarios and what changes in report review priorities

The same 5-axis machined component category can appear in very different operating contexts. That changes what must be checked first in fatigue documentation.

Application scenario Primary fatigue concern What to check first in the report
Aerospace and UAV structural parts Crack initiation under high-cycle vibration and variable loads Load spectrum realism, material lot traceability, fracture location, residual stress notes
Medical and life-science hardware Surface integrity, corrosion-assisted fatigue, dimensional stability Surface finish method, post-machining treatment, sterilization or chemical exposure conditions
Automation, robotics, and servo-linked mechanisms Repeated directional changes, fastening fatigue, local stress concentration Joint loading method, mounting simulation, tolerance drift after cycling
Energy, industrial machinery, and tooling components Low-cycle fatigue under heavier loads and thermal variation Stress ratio, temperature condition, sample quantity, failure distribution

This comparison matters because many 5-axis CNC machining fatigue test reports are written to impress, not to clarify. A high cycle count without a meaningful application context is only a partial signal. Evaluators should ask: does this report model my operating reality closely enough to reduce qualification risk?

Scenario 1: Aerospace, UAV, and safety-critical lightweight structures

In aerospace and UAV programs, lightweight design pushes geometry toward thin walls, fillets, pockets, and organic load paths that are ideal for 5-axis machining but also vulnerable to local stress concentration. Here, fatigue reports must show more than ultimate strength. They must explain how the specimen or production part behaves under vibration, alternating loads, and long service intervals.

For this scenario, technical evaluators should prioritize five points. First, verify that the fatigue standard and setup reflect the intended duty cycle rather than a generic rotating beam method with limited transfer value. Second, confirm whether the tested sample was cut from the same alloy form, heat treatment state, and lot as production intent. Third, look for machining orientation, toolpath influence, and surface condition because 5-axis tool engagement can affect residual stress and micro-notches. Fourth, review crack initiation and fracture surface notes to understand whether failure originated at geometry transitions, clamp points, or subsurface defects. Fifth, check if dimensional or positional tolerances were re-measured after cycling, especially for interfaces such as bearing seats, mounting faces, or alignment holes.

A red flag in this scenario is a report that presents impressive S-N data but says little about fixture design, edge condition, deburring quality, or post-machining finishing. In flight hardware, those omissions may matter more than the headline cycle count.

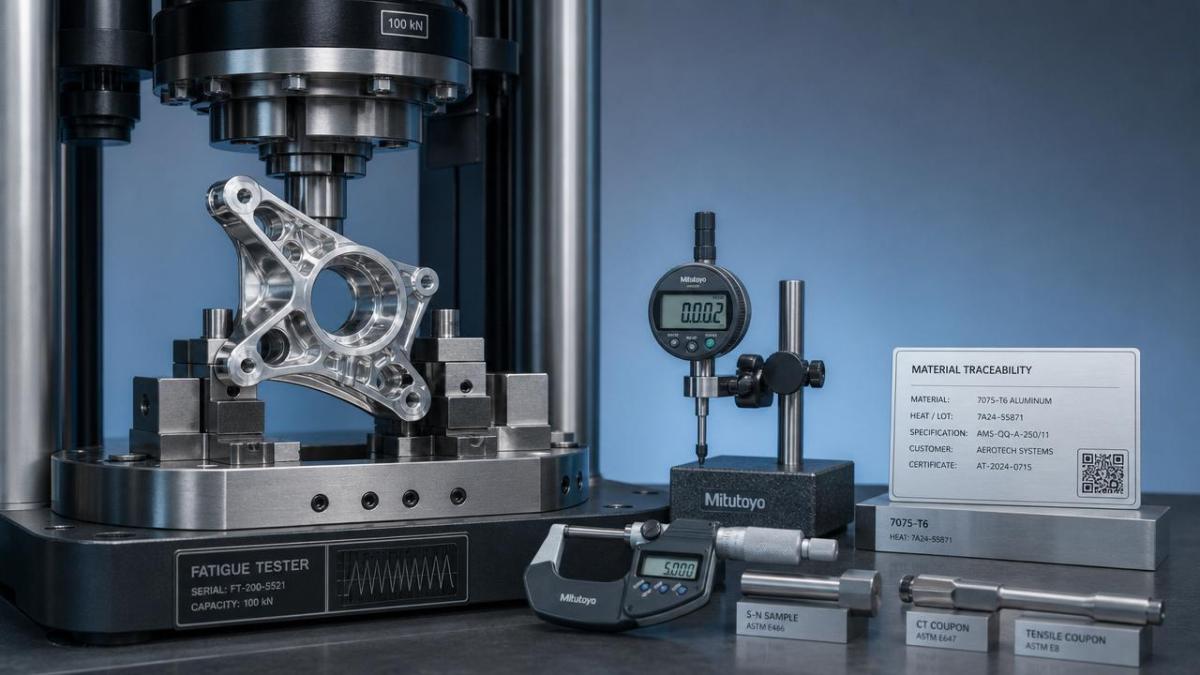

What to Check in 5-Axis CNC Fatigue Test Reports

Scenario 2: Medical, optical, and high-cleanliness precision assemblies

In medical and optical assemblies, the fatigue question is often linked to surface integrity, micro-defect control, and long-term dimensional consistency rather than brute load alone. Many components are exposed to cleaning agents, sterilization cycles, humidity, or repeated assembly and disassembly. Under these conditions, a fatigue report must connect machining quality to operational reliability.

When reading 5-axis CNC machining fatigue test reports for this scenario, ask whether the sample finish matches the shipped part. A polished laboratory coupon does not represent a production part if actual units receive bead blasting, passivation, electropolishing, anodizing, or laser marking. Also check whether the report mentions corrosion-fatigue interactions, especially for stainless steels, titanium alloys, or aluminum parts used near fluids or disinfectants.

Another scenario-specific issue is tolerance retention after repeated use. Some reports only confirm survival to a target cycle count, but technical evaluators should ask whether critical flatness, coaxiality, or hole position changed during testing. For assemblies that depend on optical alignment, sealing compression, or repeatable fit, “did not fracture” is not enough. “Still functions within tolerance” is the stronger qualification statement.

Scenario 3: Robotics, automation, and high-duty motion systems

Robotics and automation create a different fatigue profile. Components may see millions of medium-load cycles, rapid acceleration changes, backlash-sensitive interfaces, and repeated fastening stress near joints or actuator linkages. In this environment, a fatigue report should be read as a motion-system reliability document, not just a materials document.

Technical evaluators should examine whether the test setup reproduced realistic mounting conditions. A beautifully machined bracket tested as a simplified coupon may hide the true fatigue driver, which could be bolt preload variation, bearing insertion stress, or cable-induced side loading. Reports that include assembly-level fatigue conditions are usually more valuable than reports that isolate the component too aggressively.

For this scenario, tolerance shift matters almost as much as fracture. A robotic arm link that survives cyclic loading but develops position drift or interface wear may still fail the application. Therefore, the best 5-axis CNC machining fatigue test reports for automation programs include pre-test and post-test metrology, joint region inspection, and notes on any looseness, fretting, or local plastic deformation.

Scenario 4: Heavy industrial, energy, and tooling applications

In heavy-duty industrial settings, lower cycle counts can still be critical if each cycle carries high load, thermal fluctuation, or shock input. Here, a fatigue report must help evaluators understand margin under harsher service rather than advertise long life under light laboratory conditions.

This is where stress ratio, overload events, test temperature, and notch sensitivity become essential. If a report does not specify whether the loading was fully reversed, tension-tension, or included dwell periods, comparability becomes weak. Tooling and energy-system parts also deserve scrutiny around machining-induced edge transitions, corner radii, and local heat generation from aggressive cutting on specialty alloys.

For procurement teams comparing multiple suppliers, reports in this scenario should be evaluated on data transparency. Sample quantity, scatter band, failed sample count, and outlier explanation are often more informative than one “best result.” In real sourcing decisions, consistency beats isolated excellence.

The technical checkpoints that apply across most scenarios

Although priorities shift by application, several checks should appear in almost every review of 5-axis CNC machining fatigue test reports:

  • Test standard and method: ASTM, ISO, internal protocol, and any deviation from standard geometry or loading.
  • Load definition: stress ratio, frequency, waveform, load path, and whether service conditions were simulated.
  • Sample representation: full part, subscale part, coupon, or witness specimen, plus quantity tested.
  • Material traceability: certificate linkage, heat lot, heat treatment state, and any grain-direction relevance.
  • Machining process notes: toolpath strategy, cutter condition, coolant use, surface roughness, and burr control.
  • Post-process condition: anodizing, polishing, passivation, coating, shot peening, or stress relief.
  • Failure analysis: crack origin, fracture mode, microscopic evidence, and correlation to geometry.
  • Metrology retention: before-and-after measurements for critical dimensions and positional accuracy.

Common misreads and overlooked gaps in supplier fatigue documentation

A frequent misread is treating fatigue life as a single pass-fail metric. In reality, the same result may be strong or weak depending on test realism and field requirements. Another common gap is ignoring sample preparation. If the tested piece was hand-finished more carefully than normal production parts, the report may overstate repeatable supplier capability.

Technical evaluators should also be cautious when reports omit statistical context. If only a few samples were tested, or if the report highlights one successful sample without showing failures, the confidence level is limited. Likewise, a fatigue report that does not link back to process control data—such as tool wear limits, inspection records, or batch variation—may be useful for engineering discussion but weak for supplier qualification.

Another overlooked point is mismatch between part geometry and test geometry. Some 5-axis CNC machining fatigue test reports are based on standard coupons, yet the production component contains deep pockets, thin ribs, or compound-angle features that dominate actual fatigue behavior. Evaluators should not assume transferability without clear reasoning.

How to adapt your review process to your own business scenario

The best evaluation method is to build a scenario-specific review checklist. If your project is safety-critical, give extra weight to traceability, fracture analysis, and testing realism. If your program is cost-sensitive but high-volume, focus on fatigue consistency across batches and process controls that protect repeatability. If your assembly depends on motion accuracy, require evidence of metrology retention after cyclic loading rather than survival alone.

This approach helps technical teams separate marketing from engineering truth. It also shortens supplier screening cycles because the discussion becomes concrete: Which load case was used? Which surface state was tested? Was the same finishing process applied? Did hole position or flatness change after one million cycles? These are the questions that make 5-axis CNC machining fatigue test reports actionable.

FAQ for technical evaluators reviewing fatigue data

Is a higher cycle count always better?

No. A lower cycle count under more realistic loading, actual geometry, and production-level surface condition may be more relevant than a higher number from an idealized test.

Can standard coupon data qualify a complex 5-axis machined part?

Only partially. Coupon data helps compare material behavior, but it rarely captures geometry-driven stress concentration, fixturing influence, or local machining effects found in complex parts.

What is the most underrated section in 5-axis CNC machining fatigue test reports?

Failure analysis and post-test metrology. These sections often reveal whether the part merely survived a test or remained dimensionally and functionally stable for real service use.

Final decision guidance

The strongest 5-axis CNC machining fatigue test reports are the ones that match your application scenario, expose test assumptions clearly, and connect fatigue performance to manufacturing reality. For technical evaluators, the key is not to ask whether a report looks impressive, but whether it reduces uncertainty for your exact operating context. Review standards, load cases, traceability, surface condition, dimensional retention, and failure origin with equal discipline. When those elements align, fatigue data becomes a reliable tool for supplier qualification, risk reduction, and long-term product confidence.
