What concentricity tolerance really means in Swiss turning

In Swiss machining, misunderstanding swiss turning concentricity tolerance can create scrap, unstable rotation, and failed inspection reports. In real production, this control affects runout behavior, datum strategy, and part function. Clear interpretation matters because parameters, not slogans, decide whether a precision part performs as intended.

When swiss turning concentricity tolerance becomes a functional risk

Swiss turning often handles long, slender, and high-precision components. These parts appear simple on drawings, yet their geometric controls can be complex. Among them, swiss turning concentricity tolerance is often misunderstood, especially when users treat it as ordinary diameter control.

The main risk appears when multiple diameters must share a common axis under real operating conditions. A part may pass size inspection but still wobble, bind, leak, or wear early. That gap between dimensional compliance and functional behavior is where concentricity questions arise.

In practical terms, swiss turning concentricity tolerance is relevant when the median points of a feature must align with a datum axis. It is not simply roundness. It is not straightness. It is not basic visual centering. It is a geometric control tied to datum structure and inspection method.

In shaft, pin, and micro-component scenarios, the drawing intent changes

Different industries use similar-looking turned parts for very different reasons. That is why swiss turning concentricity tolerance should always be interpreted through application context, not by symbol alone.

Scenario 1: Rotating shafts and bearing journals

For rotating components, the core concern is usually dynamic stability. If one journal is offset from the datum axis, runout increases during rotation. Noise, heat, and uneven bearing load often follow.

In this case, swiss turning concentricity tolerance may protect the intended center relationship between journals, sealing lands, and threaded ends. However, many drawings could be better served by circular runout or total runout.

Scenario 2: Medical or fluid-control pins

Small pins in valves, pumps, or medical devices often need smooth engagement inside mating bores. Here, the concern is not speed but repeatable alignment and contact distribution.

A misunderstood swiss turning concentricity tolerance can result in stick-slip movement or local wear. The part may gauge correctly at rest but fail under assembled motion.

Scenario 3: Aerospace bushings and stepped diameters

Aerospace and defense components often use stepped diameters for location, support, and sealing. Functional stack-up is critical. A slight center shift between features can amplify assembly error across the system.

In these parts, swiss turning concentricity tolerance may be specified to protect axis integrity between controlled surfaces. Yet verification usually requires robust metrology, not only shop-floor indicators.

What swiss turning concentricity tolerance really means on a drawing

Concentricity is a GD&T control. It evaluates whether the derived median points of a feature of revolution fall within a tolerance zone centered on a datum axis.

That definition matters because the controlled element is not simply the visible surface. It is the median points extracted from opposite surface elements. This makes measurement more demanding than many expect.

In Swiss turning, this means a part can look centered and still fail. Surface variation, lobing, or local form error may shift the derived center behavior.

This is why swiss turning concentricity tolerance is often confused with runout. Runout checks the rotating surface relative to a datum during rotation. Concentricity checks median point alignment. They are related, but they are not interchangeable.

• Size control limits diameter, not axis relationship.
• Roundness limits circular form, not datum alignment.
• Runout reflects functional rotation more directly in many cases.
• Concentricity focuses on median-point location to the datum axis.

How inspection changes across real machining and quality scenarios

The meaning of swiss turning concentricity tolerance cannot be separated from inspection capability. Many production problems begin when the drawing asks for one control, but the shop verifies another.

Shop-floor check scenario

A dial indicator on V-blocks is fast and useful. It reveals visible runout trends. But it does not fully evaluate true concentricity as defined by GD&T.

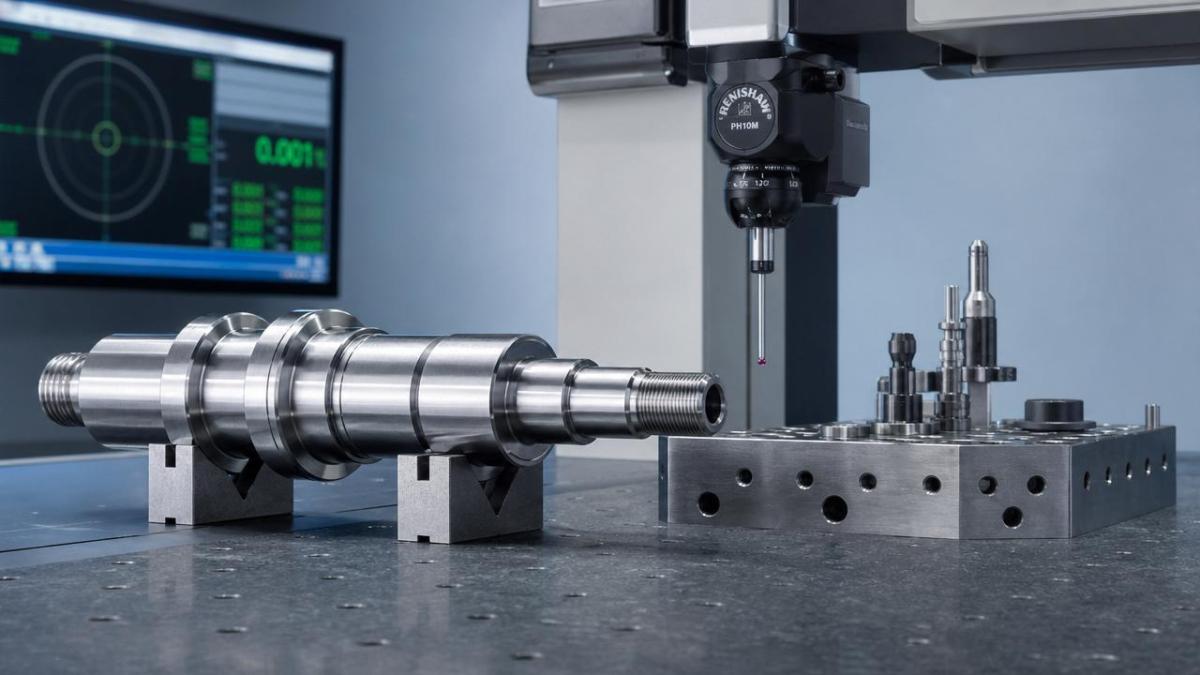

CMM verification scenario

A coordinate measuring machine can calculate derived median points and compare them to the datum axis. This is closer to the specification intent. It also explains why acceptance can differ from manual checks.

High-volume validation scenario

In larger batches, measurement time becomes a cost driver. If swiss turning concentricity tolerance is tighter than needed, inspection burden rises quickly. Process capability may look poor even when function is acceptable.

Where different application needs create different tolerance decisions

Not every part needs swiss turning concentricity tolerance. The best choice depends on function, inspection path, and process stability. A narrow interpretation can overcomplicate both machining and quality control.

• If the part rotates in service, ask whether runout better matches failure mode.
• If the part locates another component, ask whether axis alignment is the true requirement.
• If measurement is difficult, confirm the tolerance can be verified repeatably.
• If the part is micro-scale, review whether the symbol adds value beyond process capability.

This decision logic fits a data-first engineering mindset. The correct tolerance is the one that best predicts function, not the one that sounds most precise.

Practical setup advice for Swiss turning operations

When swiss turning concentricity tolerance appears on a print, setup discipline becomes critical. Tooling, guide bushing behavior, material straightness, and sub-spindle transfer can all influence axis consistency.

Process-side recommendations

• Stabilize incoming bar straightness before fine process tuning.
• Control guide bushing wear and verify support condition regularly.
• Minimize tool pressure imbalance on slender features.
• Review spindle handoff effects on secondary features.
• Correlate machine data with metrology results, not assumptions.

Drawing review recommendations

• Confirm the datum axis matches the part’s functional reference.
• Check whether runout would communicate intent more clearly.
• Avoid using swiss turning concentricity tolerance by habit alone.
• Define the inspection method before release, not after production starts.

Common misjudgments that distort swiss turning concentricity tolerance

One frequent mistake is believing a tight diameter automatically ensures concentricity. It does not. Size and axis location are separate controls.

Another mistake is using indicator runout as complete proof of concentricity. It can support process control, but it may not satisfy drawing intent.

A third issue is over-specification. Some prints apply swiss turning concentricity tolerance where total runout or position would be easier to inspect and more relevant to function.

The last common error is ignoring measurement uncertainty. On micro parts, the inspection system may consume much of the tolerance itself. That makes data interpretation essential.

A better next step for engineering decisions

When a print includes swiss turning concentricity tolerance, start with function, then verify datum logic, then confirm inspection capability. That sequence reduces argument, scrap, and false confidence.

For complex Swiss parts, build a simple review checklist covering feature function, likely failure mode, preferred GD&T control, and practical metrology route. This creates traceable engineering reasoning.

TechStat Vanguard advocates this parameter-first approach because engineering truth comes from measurable relationships. In Swiss machining, the real value of swiss turning concentricity tolerance lies in using the right control for the right scenario, then proving it with reliable data.
