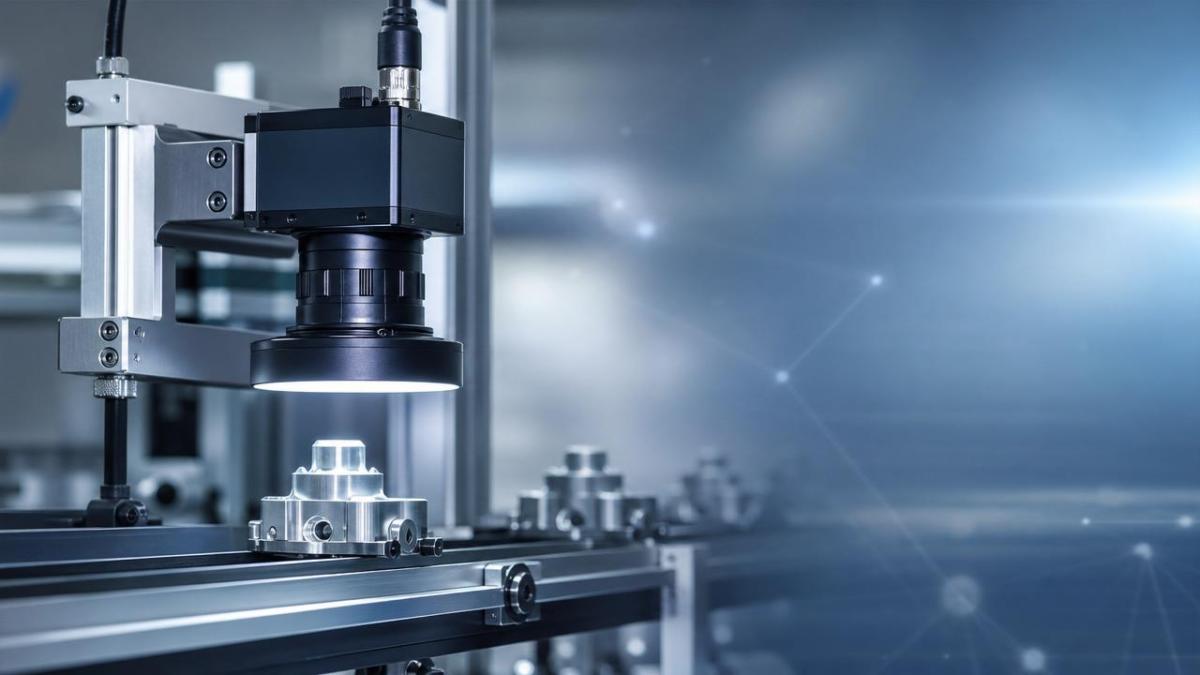

How to balance vision sensor framerate vs resolution

In machine vision system design, the tradeoff in vision sensor framerate vs resolution directly affects detection accuracy, motion capture reliability, and overall processing efficiency.

For technical evaluators comparing sensors for automation, inspection, or edge AI deployment, understanding how to balance these two parameters is essential to defining realistic performance targets.

It also helps avoid overspecification, contain system cost, and select hardware that matches actual operating conditions rather than brochure-level peak specifications.

What technical evaluators are really deciding when balancing vision sensor framerate vs resolution

The core search intent behind vision sensor framerate vs resolution is not academic curiosity. Evaluators want a practical way to decide which parameter should dominate in a real system specification.

In most projects, the right answer is simple in principle: choose the minimum resolution that still preserves the required feature detail, then choose the minimum framerate that still captures motion reliably.

Problems begin when teams define both numbers independently. A high-resolution sensor may look safer on paper, while a high framerate seems necessary for fast lines.

But image sensors, optics, interface bandwidth, processing hardware, and lighting all operate within a fixed physical and computational budget. Pushing one parameter usually constrains the other.

For technical assessment teams, the real task is to map inspection risk, motion conditions, and data pipeline limits into a balanced performance envelope.

This means asking three questions early: what smallest defect or feature must be resolved, how fast does the target move, and how much image data can the full system sustain.

Why resolution alone does not guarantee better inspection results

Higher resolution increases pixel count, but it does not automatically improve usable measurement accuracy. In practice, image quality depends on optics, contrast, lighting stability, and mechanical alignment.

If the lens cannot support the sensor’s pixel density, the extra pixels may capture blur rather than detail. In that case, advertised resolution exceeds effective system resolution.

Technical evaluators should therefore begin with feature size and field of view. The relevant question is how many pixels are required across the smallest meaningful feature.

For presence detection, a feature might only need a few pixels. For dimensional gauging, edge location, or sub-pixel metrology, more sampling density is required.

A common mistake is choosing a large sensor because the product family may expand later. That can create unnecessary downstream costs in processing, storage, and network throughput.

Another mistake is ignoring working distance and lens limitations. A sensor with more megapixels may force tighter optics tolerances, narrower depth of field, or higher illumination demand.

From an evaluation perspective, useful resolution is the combination of sensor pixels, lens modulation performance, signal-to-noise behavior, and contrast at the target feature scale.

Why framerate becomes the controlling factor in dynamic applications

Framerate determines how often the system samples the scene. In moving applications, insufficient framerate can cause missed events, unstable detection timing, and inconsistent localization.

For conveyors, robotic pick-and-place, UAV vision, or high-speed packaging, the target may move significantly between frames. The result is temporal undersampling.

Even if the image is very sharp, too few frames can make tracking unreliable. A system cannot correct what it never captured.

Technical evaluators should tie framerate to motion speed and allowable displacement per frame. This is usually more useful than relying on generic labels like high-speed vision.

For example, if a part moves 100 millimeters during the exposure cycle between captured frames, the system may struggle to trigger, classify, or measure at the correct moment.

Framerate also interacts with exposure time. A fast frame rate often requires shorter exposure, which may reduce signal strength unless lighting power is increased.

That is why high-framerate selection is never only a sensor decision. It is also a lighting, interface, and compute decision.

How to calculate the right balance from feature size, motion speed, and field of view

A practical evaluation workflow starts from application physics rather than datasheet maxima. First define the field of view needed to see the entire target or inspection region.

Next define the smallest feature that must be detected, classified, or measured. Then estimate the pixel density required for that task.

As a rule of thumb, simple detection may require fewer pixels across a feature than precise edge measurement or OCR. The exact number varies by algorithm and contrast quality.

Once pixel density is known, the minimum sensor resolution can be estimated. This avoids paying for pixels that provide no measurable inspection benefit.

Then calculate motion displacement. Determine target speed and decide the maximum acceptable movement between frames or during exposure.

If the object moves too far between frames, tracking and timing degrade. If it moves too far during exposure, motion blur reduces usable sharpness even when nominal resolution is high.

At that stage, a balanced sensor target becomes visible: enough pixels for the feature, enough frames for the motion, and enough light for the exposure budget.

This engineering-first method is more reliable than selecting the highest available specification within budget and hoping the software compensates later.

What bottlenecks usually appear before the sensor reaches its rated performance

Many evaluation teams compare cameras by sensor specifications alone, yet full-system bottlenecks often appear long before the sensor’s headline framerate or resolution is achieved.

The first bottleneck is interface bandwidth. Higher resolution at higher framerate multiplies data output quickly, stressing GigE, USB3, MIPI, CoaXPress, or embedded bus limits.

The second bottleneck is image processing throughput. Edge AI devices and industrial controllers may not sustain real-time inference on large frames at full capture rates.

The third bottleneck is storage and retention policy. Continuous high-rate capture generates large data volumes, which affects buffering, logging, traceability, and network backhaul.

The fourth bottleneck is lighting. Shorter exposure for fast framerate often demands stronger illumination, better strobing control, or improved thermal management.

The fifth bottleneck is rolling shutter behavior. In fast motion, even a high-framerate sensor may distort geometry if readout timing is not appropriate for the scene.

Because of these constraints, technical evaluators should always ask for tested system-level throughput under actual operating mode, not just isolated sensor capability.

When to prioritize resolution over framerate

Resolution should dominate when the inspection task depends on fine detail, low-speed motion, or broad field coverage with small critical features.

Typical cases include surface defect inspection, code reading at large field of view, dimensional metrology, PCB analysis, and static or slow-moving assembly verification.

In these situations, a higher framerate may add little value if the target changes slowly or the process cycle allows stable capture windows.

However, even here, evaluators should not jump directly to maximum megapixels. They should verify lens performance, illumination uniformity, and compute scaling first.

A moderate framerate with clean images often outperforms a faster stream of noisy or optically limited frames. Effective resolution matters more than nominal sensor count.

If the application includes traceability or AI classification, image consistency may be more valuable than absolute frame speed, especially when edge models rely on stable features.

When to prioritize framerate over resolution

Framerate should dominate when the application involves fast motion, transient events, closed-loop control, or event timing that cannot be recovered from sparse image sampling.

Examples include robotic guidance, object tracking, high-speed sorting, autonomous navigation, drone stabilization, and safety-related trigger verification.

In these systems, missing the right moment can be more damaging than losing some spatial detail. A lower-resolution stream with reliable temporal coverage may produce better decisions.

Evaluators should still confirm that the reduced resolution preserves enough task-relevant information. Framerate is not useful if the object cannot be distinguished or measured.

A common optimization is using region of interest readout or pixel binning. This can increase effective framerate while retaining the detail needed in the critical area.

Another practical approach is multi-stage vision: use a fast lower-resolution sensor for detection and timing, then trigger high-resolution capture only when needed.

How edge AI changes the vision sensor framerate vs resolution decision

In edge AI deployments, the tradeoff becomes even more important because image size directly affects memory use, inference latency, thermal load, and power consumption.

Large frames can improve model input detail, but they also increase preprocessing cost and may reduce inference throughput below acceptable real-time limits.

For technical evaluators, this means camera choice should be validated together with model architecture, accelerator capability, and pipeline latency budget.

A sensor that looks ideal for classical inspection may be inefficient for edge inference if the model ultimately resizes images to a smaller tensor.

Likewise, a very high framerate may produce redundant frames that add compute burden without improving decision quality. Temporal filtering or event-driven capture may be better.

The best balance often comes from testing model performance across several image sizes and frame rates, then selecting the lowest data rate that preserves accuracy targets.

This aligns with TSV’s engineering-first logic: benchmark actual operating thresholds instead of relying on uncontextualized specifications.

A practical evaluation checklist for sensor selection teams

Technical evaluators can simplify decision-making by using a structured checklist during supplier comparison and proof-of-concept testing.

First, define the smallest critical feature and required confidence level. Second, define target speed, acceleration, and event timing tolerance.

Third, confirm field of view, working distance, depth of field, and lens constraints. Fourth, calculate data rate at candidate resolutions and frame rates.

Fifth, verify exposure needs, lighting intensity, and motion blur margin. Sixth, measure end-to-end latency including transport, processing, and actuation.

Seventh, test under worst-case production conditions such as vibration, surface reflectivity changes, contamination, or temperature shifts.

Eighth, compare not only pass-fail accuracy but also system stability, bandwidth headroom, and maintainability. Procurement success depends on lifecycle performance, not demo performance.

Ninth, ask vendors for sustained throughput figures at full operating configuration. Tenth, document where resolution can be reduced or framerate can be capped without hurting outcome quality.

Conclusion: optimize for task success, not for the largest numbers

The best answer to vision sensor framerate vs resolution is rarely to maximize both. In most systems, that approach increases cost and complexity faster than it improves results.

Technical evaluators should begin with the task: feature size, field of view, motion speed, exposure budget, and full pipeline throughput.

Choose enough resolution to preserve the information your algorithm or operator truly needs. Choose enough framerate to sample motion and timing events reliably.

Then validate the decision at system level, including optics, lighting, interfaces, compute, and environmental conditions. That is where real performance is determined.

When balanced correctly, framerate and resolution stop being competing marketing numbers and become engineered parameters aligned with measurable production outcomes.
