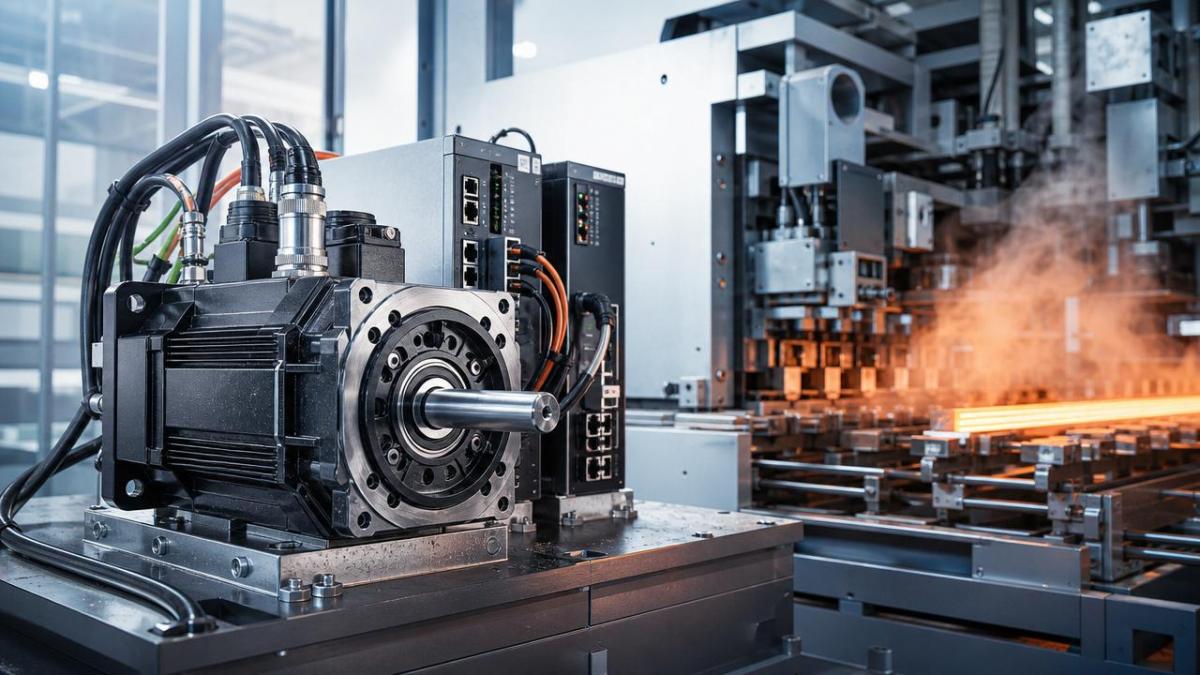

When servo motors MTBF drops in extreme conditions

When uptime targets collide with heat, vibration, dust, or voltage instability, servo motors MTBF under extreme conditions becomes a frontline concern for after-sales maintenance teams. This article cuts past vague claims to examine the failure drivers, measurable warning signs, and service strategies that matter most—helping you diagnose risk faster, reduce unplanned downtime, and make maintenance decisions grounded in real engineering data.

What does servo motors MTBF under extreme conditions really mean for maintenance teams?

In normal operating environments, MTBF—Mean Time Between Failures—is often treated as a planning number for spare parts, labor scheduling, and service intervals. But servo motors MTBF under extreme conditions is not just a smaller version of the catalog MTBF. It is a different reliability reality shaped by thermal stress, contamination, cyclic overload, unstable power quality, shock, and installation error. For after-sales maintenance personnel, this distinction matters because the motor that performs well in a climate-controlled factory may fail much sooner in a steel mill, outdoor automation cell, mobile robotic platform, or high-vibration packaging line.

A published MTBF value is usually based on assumed duty cycles, ambient temperature ranges, proper cable routing, acceptable enclosure protection, and stable input conditions. Once those assumptions are broken, failure acceleration begins in bearings, encoders, winding insulation, connectors, seals, and brake assemblies. The practical question is not whether the nameplate specification is wrong, but whether the field environment matches the test assumptions behind it.

That is why TechStat Vanguard’s data-first view is useful: maintenance decisions should be driven by measurable thresholds, not broad marketing claims. When discussing servo motors MTBF under extreme conditions, teams should ask for ambient limits, derating curves, thermal class, vibration tolerance, contamination resistance, and electrical protection details rather than relying on generic “industrial grade” language.

Why does MTBF drop so sharply in heat, dust, vibration, and unstable voltage?

The short answer is that servo motor reliability is system-dependent. A servo motor does not fail in isolation. It lives inside a thermal, mechanical, and electrical ecosystem. Extreme environments multiply stress across that ecosystem, often in combined ways that are far more damaging than any single factor alone.

Heat is usually the fastest MTBF killer. Elevated ambient temperature reduces insulation life, changes lubricant behavior, raises winding resistance, and pushes feedback electronics closer to error thresholds. A motor that runs near its rated load in a hot enclosure may experience chronic overtemperature even if overcurrent alarms never appear. Maintenance teams often see this first as intermittent encoder faults, brake release inconsistency, or repeated drive derating.

Dust and fine particulate contamination attack servo motors more quietly. Dust can block cooling paths, contaminate bearings, affect seals, and migrate into connectors or feedback assemblies. Conductive dust is especially dangerous because it can trigger leakage paths, noise problems, and premature electronic degradation. In washdown or high-humidity settings, contamination can combine with condensation to produce corrosion that looks minor externally but causes long-term signal instability.

Vibration shortens life through mechanical fatigue. Constant vibration can damage bearing raceways, loosen couplings, degrade cable terminations, and create feedback signal disturbances. On machines with frequent direction changes, poor alignment and resonance can be as damaging as ambient vibration itself. For this reason, servo motors MTBF under extreme conditions must always be evaluated together with gearbox condition, mounting rigidity, shaft alignment, and machine balance.

Voltage instability is another hidden factor. Undervoltage, transient spikes, harmonic distortion, and grounding issues stress both the motor and the drive. Repeated electrical disturbances can cause excess heat, nuisance trips, insulation wear, and encoder communication faults. In field service, these issues are often misdiagnosed as random motor failure when the root cause is actually plant power quality or poor shielding practice.

Which parts usually fail first when servo motors MTBF under extreme conditions starts declining?

After-sales teams need failure sequencing, not just failure categories. In harsh duty, the first weak point depends on the environment and application profile, but several components fail earlier than others with predictable patterns.

Bearings are commonly first because they are exposed to heat, contamination, vibration, and lubrication breakdown at the same time. Early bearing degradation may appear as rising noise, increased current draw, housing temperature drift, or higher vibration at specific frequencies. If ignored, bearing wear can cascade into rotor imbalance, feedback instability, and shaft damage.

Encoders and feedback devices are another high-risk point. Extreme heat, moisture ingress, cable flexing, or EMI can create intermittent position errors long before total failure occurs. Maintenance teams should treat sporadic feedback alarms as early reliability warnings rather than isolated faults, especially where servo motors MTBF under extreme conditions is already known to be lower than standard estimates.

Power and signal connectors also deserve more attention than they typically receive. Repeated thermal cycling loosens terminations; vibration promotes micro-motion wear; contamination raises contact resistance. A motor may look healthy from a mechanical standpoint but still produce unstable operation because of connector degradation or cable shielding failure.

Winding insulation and brakes usually fail later, but when they do, downtime is more severe. Insulation damage often develops from chronic overheating rather than one dramatic event. Brake failures are common in vertical axes, dusty lines, and high-cycle stop-and-hold applications where temperature and wear interact over time.

What warning signs should maintenance staff monitor before a servo motor fails?

The best response to falling MTBF is not faster replacement alone; it is earlier detection. For servo motors MTBF under extreme conditions, warning signs usually appear in trend data before they become hard faults. Even teams without advanced condition monitoring can track useful indicators during routine service.

Start with temperature trend behavior, not just alarm thresholds. If a motor housing or nearby bearing zone runs 8–12°C hotter than its historical baseline under similar load, that is a meaningful reliability signal. Rising temperature may indicate airflow blockage, overload, lubrication decline, or electrical imbalance.

Watch current signature changes. A gradual increase in RMS current under the same recipe can suggest friction growth, alignment drift, bearing wear, or torque demand changes elsewhere in the machine. Likewise, more frequent drive correction behavior or unstable position following error can point to mechanical resistance or feedback issues before the line stops.

Listen for changes in sound profile during acceleration and deceleration. Grinding, roughness, or periodic tonal vibration often appears before catastrophic bearing failure. For mobile or outdoor platforms, inspect seals, conduit entries, and cable jackets because ingress problems may precede electronic failure by weeks or months.

The table below provides a practical field reference for after-sales maintenance teams.

How should you diagnose whether the problem is the motor, the drive, or the environment?

This is where many teams lose time. Because servo motors MTBF under extreme conditions is influenced by the whole axis, replacing the motor without isolating the cause can create repeated failures and wasted inventory. A disciplined triage method works better than assumptions.

First, compare the failed axis to a healthy axis under the same machine cycle. Differences in surface temperature, vibration, current draw, and alarm history often reveal whether the issue is localized or systemic. If multiple axes show similar symptoms, suspect environment, power quality, or machine-level mechanical loading before blaming one motor model.

Second, review event timing. Did faults start after enclosure modifications, seasonal temperature changes, cable replacement, a tooling update, or a line speed increase? MTBF reductions often track a process change more closely than an age-based failure curve. In harsh environments, even small changes in duty cycle can push the motor beyond its thermal margin.

Third, separate electrical from mechanical evidence. Electrical root causes often produce irregular trips, communication errors, and thermal issues without obvious mechanical noise at first. Mechanical root causes more often show consistent vibration changes, current increase, and repeatable stress during certain motion segments. Environmental causes tend to create recurring degradation across multiple components such as seals, connectors, fans, and sensors.

Finally, document the exact operating envelope: ambient temperature range, contamination type, washdown exposure, voltage fluctuation range, acceleration profile, duty cycle, and mount orientation. Without that record, any conversation about servo motors MTBF under extreme conditions remains incomplete.

What maintenance strategies actually improve servo motors MTBF under extreme conditions?

The most effective strategy is to shift from time-only maintenance to condition-informed maintenance. In harsh service, fixed intervals alone are often either too late or unnecessarily expensive. After-sales teams should build service routines around failure acceleration factors.

Begin with thermal control. Improve cabinet ventilation, separate heat sources, verify fan and filter performance, and review whether the motor is oversized enough for the real peak load rather than the nominal average load. A modest reduction in steady operating temperature can deliver a meaningful gain in insulation and bearing life.

Next, harden the installation against contamination and vibration. Upgrade sealing where possible, improve cable strain relief, inspect conduit entries, and verify that motor mounting surfaces remain flat and rigid. If the application includes heavy shock or repetitive reversing, check coupling condition and axis alignment more frequently than general maintenance plans usually require.

Power quality control is also essential. Surge protection, grounding verification, shielding best practices, and periodic checks for voltage imbalance can prevent many “mystery” failures. For environments with unstable utility supply or large inductive loads nearby, drive logs should be reviewed as part of preventive maintenance, not only after a breakdown.

Spare parts planning should also reflect field reality. If your site repeatedly operates in heat, dust, or high vibration, use local failure history to redefine expected life for bearings, encoders, cables, and brake-equipped axes. Catalog values are reference points; plant-specific data is the real maintenance standard.

What are the most common mistakes when teams evaluate servo motor reliability in harsh environments?

One common mistake is using MTBF as a purchasing slogan instead of an engineering metric. If teams compare suppliers only by a single published number, they may ignore duty cycle assumptions, ingress protection details, test methods, and allowable derating. For servo motors MTBF under extreme conditions, context is everything.

Another mistake is replacing failed motors without solving the stress source. If the enclosure remains too hot, the machine remains misaligned, or the incoming power remains unstable, the new unit simply enters the same failure path. This creates the false impression of poor product quality when the real issue is unmanaged operating conditions.

A third mistake is underestimating early weak signals. Small encoder alarms, slight temperature drift, or occasional vibration spikes are often dismissed because production continues. Yet these are precisely the signals that matter most when trying to improve servo motors MTBF under extreme conditions and prevent secondary damage.

Finally, many teams separate mechanical maintenance from electrical maintenance too strictly. In servo systems, reliability lives in the interaction between both. Better results come when drive diagnostics, thermal observations, alignment checks, and contamination inspections are reviewed together.

What should you confirm before requesting support, replacement, or a reliability upgrade?

If you need vendor support or internal approval for corrective action, collect evidence that makes the decision engineering-based. Start with fault logs, temperature records, current trends, vibration notes, and photos of the installation environment. Record ambient highs and lows, enclosure conditions, contamination sources, washdown frequency, motion profile, and the exact timing of recent failures.

Then clarify the business question. Do you need to extend service intervals, reduce emergency downtime, validate a different motor specification, improve cable protection, or justify environmental redesign? Different goals require different data. A replacement decision should never be made without checking whether the selected motor and feedback system are appropriate for the real environment.

For organizations aligned with TSV’s engineering-first approach, the priority is simple: strip away vague language and ask for threshold data. What temperature derating applies? What vibration level is tolerated? What ingress exposure was assumed? What is the encoder’s environmental limit? What field evidence supports the claimed reliability? Those questions turn servo motors MTBF under extreme conditions from a marketing phrase into a maintenance decision framework.

If you need to confirm a practical next step, start by discussing five items: the real operating environment, the measured warning signals, the application duty cycle, the probable weakest component, and the cost of downtime versus preventive intervention. With those answers in hand, maintenance teams can choose whether to tune, protect, monitor, redesign, or replace—based on data rather than guesswork.
