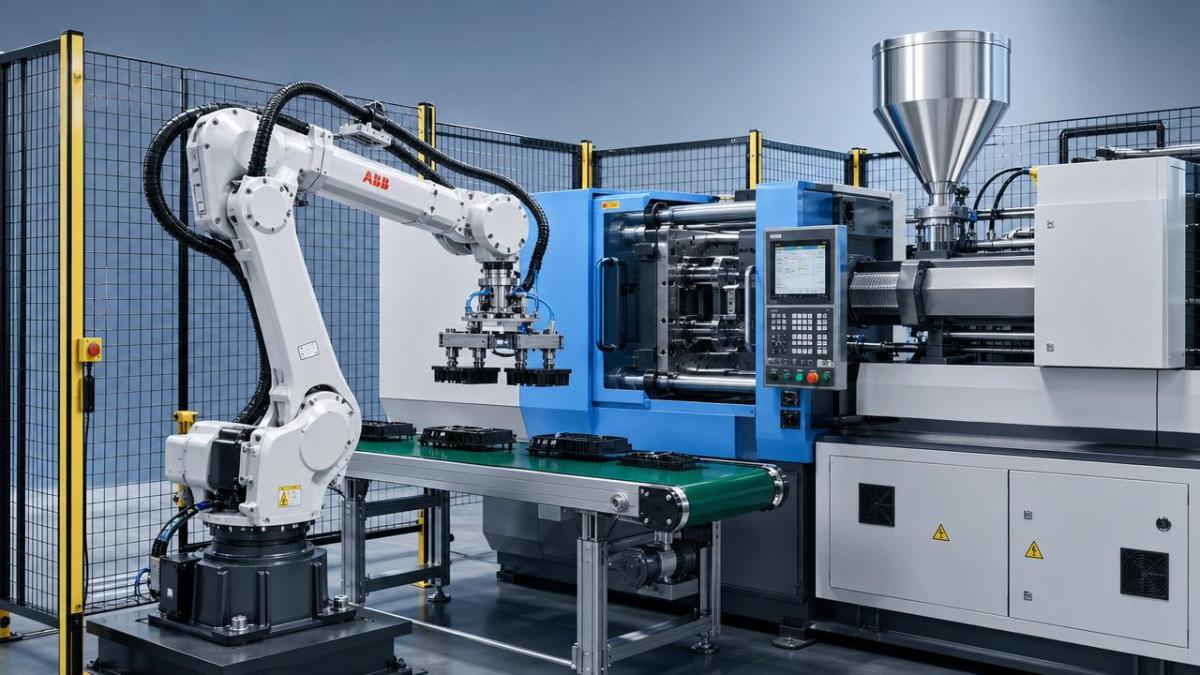

Robotic Arm for Injection Molding: Key Fit Checks Before Line Integration

Before integrating a robotic arm for injection molding into a production line, project leaders must verify far more than reach and cycle time. Tooling compatibility, machine interface protocols, payload stability, safety zoning, and maintenance access all determine whether deployment delivers measurable gains or hidden downtime. This guide outlines the key fit checks that matter most for reliable line integration and long-term manufacturing efficiency.

Why fit checks vary by production scenario

A robotic arm for injection molding is rarely a plug-and-play purchase. For project managers and engineering leads, the real question is not whether the robot can move parts, but whether it fits the exact production context without creating new bottlenecks. A medical molding cell, a high-volume packaging line, and an automotive technical parts line may all use similar robot architectures, yet their integration risks are very different.

This is why scenario-based evaluation matters. In some lines, dry cycle speed is the primary driver. In others, clean handling, traceability, insert placement accuracy, or downstream transfer reliability matter more than headline throughput. A mismatch between application demands and robot configuration can lead to unstable part release, mold interference, operator safety conflicts, or frequent maintenance stops.

At TSV, the engineering-first approach is simple: define the production scene, map the real constraints, and verify mechanical, electrical, software, and maintenance compatibility before installation. For a robotic arm for injection molding, that discipline reduces commissioning risk and shortens the qualification cycle.

Core reason project teams miss the right fit

Many teams compare suppliers by payload, reach, and quoted cycle time only. Those values matter, but they do not explain how the robot behaves with a specific mold opening stroke, end-of-arm tool mass, hot runner layout, part geometry, or machine controller protocol. Integration failures often come from unverified details rather than from obviously wrong machine size.

• Different molding scenarios impose different part removal speeds and orientation limits.
• Downstream equipment may require stricter handoff position repeatability than the molding machine itself.
• Safety zoning and operator access can reduce the usable robot envelope.
• Service clearance and preventive maintenance paths can affect actual uptime more than nominal speed.

Three common application scenarios and what changes in each

To judge whether a robotic arm for injection molding is suitable, project leaders should first classify the line by operating pattern. The following three scenarios cover most real-world integration decisions and reveal why a single specification sheet is not enough.

Each scenario has a different risk profile. High-volume consumer products emphasize pace and repeatability. Technical molding often involves insert handling or part orientation control. Clean or traceable production environments require strict handling discipline and process stability. Selection criteria should follow those realities.

The table below highlights the fit-check differences that matter before line integration begins.

Scenario 1: high-volume molding cells

In fast-cycle production, the robotic arm for injection molding must remove parts quickly without inducing vibration, suction failure, or poor downstream placement. Here, theoretical speed is less useful than stable cycle synchronization with mold opening, cooling rhythm, and conveyor index timing.

Project teams should verify whether the robot’s acceleration profile remains stable under the actual EOAT mass, not under an empty arm test. Even small differences in part adhesion, static charge, or gate vestige can change release behavior at high speed. If handoff consistency is weak, the resulting micro-stoppages can erase expected productivity gains.

Scenario 2: technical parts and insert applications

For engineering components, the robotic arm for injection molding often does more than extraction. It may place inserts, rotate parts, present them to inspection, or transfer them to machining or assembly fixtures. In this setting, payload reserve, wrist rigidity, and motion path accuracy become more important than raw pick speed.

A common mistake is to size the robot only for part weight. The correct method is to include EOAT weight, cabling, vacuum hardware, inserts, dynamic load during acceleration, and the off-center moment created by part geometry. Without that margin, repeatability degrades under production motion.

Scenario 3: clean, validated, or traceable manufacturing

In regulated or cleanliness-sensitive lines, a robotic arm for injection molding must support consistent handling and controlled intervention. The robot may need smoother surfaces, restricted manual touchpoints, easier cleaning access, and a controller that supports event logging or recipe control.

These environments also demand careful service planning. If technicians must enter a restricted zone for routine adjustment, the integration design is already weak. Fit checks should include maintenance routes, sensor replacement access, and how the robot behaves during alarm recovery.

The five engineering checks that decide whether the robot truly fits

Once the production scenario is clear, project teams should move to the decisive technical checks. These are the areas where a robotic arm for injection molding either integrates smoothly or becomes a long-term source of downtime and engineering rework.

The most effective reviews cover mechanical fit, control compatibility, process timing, safety architecture, and maintainability. If one of these is weak, the project may still pass FAT but fail under continuous production stress.

The following subsections translate those checks into practical evaluation points for line integration.

Mechanical envelope and mold interaction

The first check is not just reach, but usable reach inside the real mold area. Tie bar spacing, mold height, platen access, nozzle-side obstruction, and top-entry or side-entry limitations all affect whether the robotic arm for injection molding can move safely through the required path.

Teams should confirm mold open stroke, take-out depth, extraction angle, and safe clearance under the largest planned tool. A robot that fits one mold may conflict with future mold programs if vertical stroke or arm geometry is too tightly matched to a single setup.

Questions to ask

• Can the arm enter and exit without nearing mold steel at maximum production speed?
• Is there enough reserve for future EOAT changes or larger part families?
• Does the mounting method affect machine access or structural vibration?

EOAT compatibility and payload stability

The end-of-arm tool often determines actual success more than the base robot. Vacuum cups, grippers, sprue cutters, insert nests, part sensors, and quick-change plates all influence the dynamic behavior of a robotic arm for injection molding. A payload that looks acceptable on paper may become unstable when the center of gravity shifts during rotation or acceleration.

EOAT review should include flex, air routing, cable protection, confirmation sensors, and release reliability. In technical lines, rigid and repeatable tooling is essential to prevent flash damage, insert misplacement, or misoriented transfer to secondary stations.

Machine interface and control logic

A robotic arm for injection molding must communicate correctly with the molding machine and with downstream devices. Basic start and stop signals are not enough for complex lines. Teams should verify protocol support, alarm handling, handshake depth, recipe switching logic, and whether event data can be integrated into MES or SCADA layers if needed.

Poor interface planning often creates hidden delays. For example, if the robot waits for redundant confirmations, or if downstream occupancy signals are not prioritized correctly, cycle time suffers even though individual devices are fast. Control reviews should map every state transition, including abnormal recovery.

Safety zoning and operator workflow

Safety is not just compliance paperwork. For a robotic arm for injection molding, real safety design includes guarding layout, interlock logic, manual access points, and how operators perform changeovers, sampling, and clearing. A safe cell that is difficult to access often leads to workarounds, which then create both safety and uptime risk.

Project managers should verify whether doors, fences, light curtains, or area scanners support the actual workflow. The best design protects operators while minimizing unnecessary stops during routine production tasks.

Maintenance access and lifecycle support

A robotic arm for injection molding may look efficient at startup yet become costly if lubrication points, valve islands, vacuum generators, or wear components are difficult to reach. Integration reviews should include preventive maintenance intervals, spare parts availability, troubleshooting access, and expected mean time to repair.

For project owners managing multiple cells, standardized components and clear service routes usually deliver more value than marginal speed gains. Engineering truth shows up in uptime, not in brochure claims.

How requirements differ by business size and project objective

The right robotic arm for injection molding also depends on organizational context. A greenfield facility, a retrofit line, and a multi-plant standardization program do not evaluate fit in the same way. Project leaders should align the technical review with business goals from the start.

Smaller manufacturers often prioritize flexibility and low integration complexity. Larger groups may accept higher upfront engineering effort if the result is scalable architecture, common spare strategy, and unified control standards across regions. Neither approach is wrong, but each leads to different decision criteria.

This is especially important when comparing retrofit automation against new-line deployment.

Retrofit projects

In retrofit scenarios, the robotic arm for injection molding must work around legacy machine layouts, existing guarding, inconsistent signal standards, and limited floor clearance. The practical focus should be integration risk, not idealized performance. Verification should include machine age, controller openness, available I/O, and structural mounting constraints.

Best retrofit priorities

1. Confirm machine interface feasibility before final robot selection.
2. Measure actual space and service access rather than using only layout drawings.
3. Reserve time for debug of alarm logic and recovery sequences.

New line or standardized platform projects

For new lines, a robotic arm for injection molding can be evaluated more strategically. Teams can standardize communication protocols, EOAT interfaces, safety philosophy, and maintenance routines across multiple cells. This often improves long-term efficiency more than selecting the fastest single unit.

In these cases, project leaders should ask whether the chosen robot family supports future mold programs, data capture expectations, and workforce training consistency across sites.

Common misjudgments before line integration

Several errors appear repeatedly when companies buy a robotic arm for injection molding. Most are not caused by bad equipment, but by weak requirement definition. Recognizing these mistakes early helps teams avoid expensive redesign during commissioning.

The first mistake is assuming the quoted cycle time represents real production performance. The second is underestimating EOAT complexity. The third is treating safety and maintenance as afterthoughts rather than integration constraints.

A short pre-integration review can eliminate many of these risks.

• Do not approve the robot based only on nominal payload and arm reach.
• Do not ignore mold family variation and future program expansion.
• Do not separate robot selection from downstream transfer design.
• Do not leave alarm recovery and manual intervention logic undefined.
• Do not skip service access validation during layout review.

Practical action plan for project leaders

If you are evaluating a robotic arm for injection molding, the best next step is to build a fit-check matrix around your actual production scenario. List the current mold range, part family, EOAT concept, machine interface standard, cycle target, safety method, and maintenance expectations. Then test every candidate against those conditions rather than against generic sales claims.

For cross-functional projects, include molding, automation, maintenance, EHS, quality, and downstream process owners in the same review. Integration succeeds faster when all line constraints are visible early. This is especially true in retrofit cells and in applications involving inserts, traceability, or validated handling.

The right robotic arm for injection molding is the one that fits your scenario with measurable stability, safe access, clean handshakes, and maintainable uptime. When project teams evaluate the equipment through that lens, they reduce hidden risk and improve the probability of long-term manufacturing efficiency.
