6 axis robot calibration methods differ most after relocation

After a 6-axis robot is relocated, even small shifts in base position, leveling, or joint alignment can change accuracy dramatically. This guide explains why 6 axis robot calibration methods differ most after relocation, how they affect repeatability and payload performance, and what engineers, operators, buyers, and decision-makers should verify to reduce downtime, avoid hidden errors, and protect long-term automation ROI.

In real production environments, relocation is rarely a simple “move and restart” event. A robot may be transferred between cells, reinstalled after line expansion, or shipped to another facility with different floor flatness, anchoring conditions, and thermal behavior. Each change can alter the robot base frame, TCP accuracy, and path fidelity, even when the controller, program, and end effector remain unchanged.

For research teams, operators, procurement managers, and executives, the practical question is not whether recalibration is needed, but which calibration method is appropriate after relocation, how much verification is enough, and what level of residual error is acceptable for the intended process. In hard-tech automation, parameters matter more than labels, and relocation is one of the fastest ways to expose the gap between nominal specs and actual performance.

Why relocation changes robot accuracy more than many teams expect

A 6-axis robot is calibrated at the factory under controlled conditions, but those baseline values assume a defined mechanical state. Once the robot is removed, transported, and mounted again, three variables often shift at the same time: base level, structural rigidity, and reference frame alignment. Even a base tilt of 0.2° to 0.5° can create measurable endpoint deviation over a long reach, especially on arms with 1,500 mm to 3,000 mm working envelopes.

This is why 6 axis robot calibration methods differ most after relocation compared with routine maintenance checks. During normal service, the objective is usually to confirm repeatability or inspect backlash. After relocation, the task is broader: re-establishing geometric truth between the robot, the floor, fixtures, tooling, vision systems, and any external axis. A robot can still repeat the same wrong position within ±0.03 mm to ±0.08 mm while being absolutely off by 0.5 mm to 2.0 mm in the new cell.

In welding, palletizing, machine tending, dispensing, and aerospace drilling, that distinction is critical. Repeatability alone does not guarantee accuracy after relocation. If the base coordinate system has shifted, path-taught points may no longer match fixture locations, spindle approach angles, or safety clearances. This is one reason why restart problems often appear within the first 24 to 72 hours after recommissioning.

Another often-missed factor is payload effect. When calibration is not corrected after relocation, heavier end-of-arm tooling can amplify gravity-related deflection. A robot handling 20 kg to 80 kg may seem acceptable at low speed during dry testing, yet show path drift when cycle speed rises to 70% to 100% of process conditions. The issue is not always a damaged robot; it is frequently a recalibration gap between kinematic assumptions and the new installation reality.

Common relocation scenarios that trigger recalibration needs

• Cell relocation within the same plant, where floor flatness and anchor bolt layout differ by a few millimeters.
• Cross-border equipment transfer, where shipping vibration, humidity exposure, and reassembly sequence can alter joint preload or cable routing.
• Line reconfiguration with new fixtures, conveyors, or vision references that require fresh frame mastering.
• Robot reuse in a different process, such as moving from palletizing to machine tending, where the tolerance window narrows from several millimeters to below ±0.2 mm.

What teams should measure before blaming the robot

Before assuming encoder drift or mechanical wear, teams should verify base flatness, pedestal rigidity, anchor torque, fixture datum, and TCP condition. In many cases, 4 to 6 simple checks reveal the root cause faster than a full service teardown. This disciplined approach aligns with TSV’s core principle: parameters do not lie, and tolerances dictate success.

How 6 axis robot calibration methods differ after relocation

Not every relocation requires the same calibration depth. The correct method depends on the process tolerance, robot reach, payload, tooling complexity, and whether the cell includes vision, conveyors, positioners, or external axes. In practice, the biggest difference after relocation is that teams move from simple verification toward geometric re-referencing and full system correlation.

The table below compares the most common calibration approaches used after robot relocation. It is intended as a decision aid for operators, engineering managers, and buyers evaluating service scope rather than a one-size-fits-all prescription.

The key conclusion is that relocation changes the calibration objective. Instead of asking only whether the robot powers up and repeats a taught point, teams must ask whether the robot’s mathematical model still matches its physical installation. For general handling, a TCP and frame refresh may be sufficient. For drilling, trimming, inspection, or dispensing, metrology-backed verification is often the safer choice.

H3: From mastering to full geometric correction

A mastering check typically validates encoder reference positions. It is fast, often completed in under 2 hours, and useful after controlled moves. However, it does not correct pedestal distortion, tool offset changes, or fixture-to-robot misalignment. That is why teams relying only on mastering may still face part quality issues after restart.

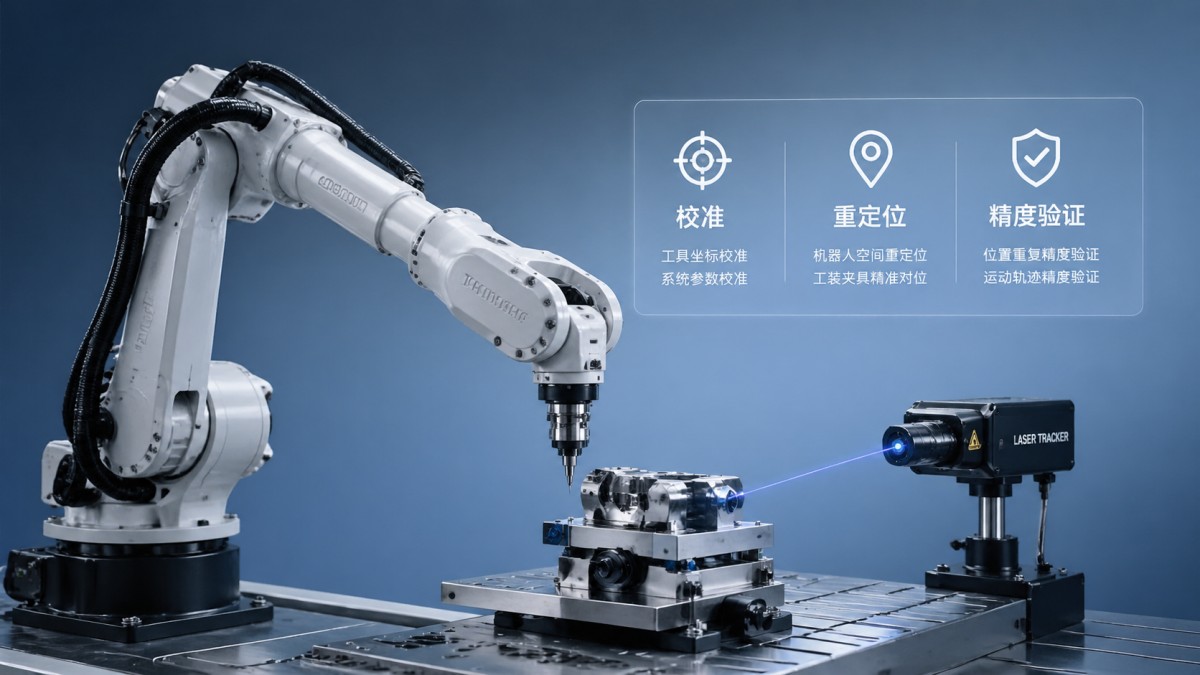

By contrast, a metrology-based method measures actual robot positions across multiple poses, sometimes 20 to 60 target points, to identify geometric deviation. This is more time-intensive, but it provides actionable data for compensation, acceptance, and supplier accountability.

H4: Why process type determines calibration depth

If the process tolerance is wider than ±2.0 mm, such as some palletizing or rough handling tasks, teams can often prioritize base leveling and frame validation. If the process tolerance is tighter than ±0.5 mm, especially with camera guidance or precision fixtures, a higher-order method is usually justified. The calibration budget should follow the tolerance stack, not the installer’s convenience.

What to verify after relocation: engineering, operations, and procurement checklist

A strong post-relocation calibration plan is not just a maintenance activity. It is a cross-functional acceptance process involving engineering, operations, quality, and sourcing. The goal is to reduce hidden error before production resumes, because once scrap, collision, or unstable cycle times appear, the total cost rises quickly across labor, parts, and schedule impact.

The following checklist helps teams determine whether a 6-axis robot has been recalibrated at the right depth after relocation. It also helps buyers compare relocation support packages from integrators, OEM service teams, and third-party specialists.

This checklist shows why relocation acceptance should include both static and dynamic validation. A robot that passes jog tests at low speed can still fail under process load, especially with long arms, offset tooling, or multi-shift duty cycles. Procurement teams should therefore request a documented recommissioning scope rather than a vague “installation complete” statement.

A practical 5-step post-relocation process

1. Inspect transport impact, cable routing, connector seating, and visible joint or wrist anomalies.
2. Level and secure the base, then verify pedestal or floor rigidity under static load.
3. Recheck mastering, TCP, user frame, and fixture reference points.
4. Run dry path tests first, then production-speed tests with real payload and real parts.
5. Record acceptance data, residual deviations, and recalibration method for future service traceability.

Typical documentation buyers should request

For capital equipment and cross-site transfers, decision-makers should ask for pre-move condition records, post-installation level data, TCP/frame validation results, and final acceptance criteria. Even a compact 3-page report is better than verbal confirmation. Good documentation shortens future troubleshooting and makes supplier comparison more objective.

Common mistakes, cost risks, and how to choose the right service level

One of the most expensive mistakes after relocation is under-scoping calibration because the robot appears mechanically healthy. A functioning controller, smooth axis motion, and nominal repeatability do not prove process readiness. In many plants, this leads to a false restart, followed by 2 to 7 days of intermittent debugging across robot programming, fixture checks, quality inspection, and production scheduling.

Another mistake is assuming the lowest relocation quote is the lowest total cost. A basic move package may exclude TCP recalibration, speed validation, metrology checks, or acceptance reporting. The price difference between a minimal package and a complete recommissioning package may look significant at purchase stage, but it can be small compared with the cost of scrap, overtime, delayed launch, or customer quality claims.

For buyers and executives, the right service level should reflect process criticality. A packaging line with ±3 mm tolerance has different needs than robotic dispensing, machine loading with tight datums, or aerospace component handling. The calibration method should also account for whether the robot interfaces with vision systems, force sensors, external tracks, or turntables, because each added subsystem increases coordinate complexity.

As a practical rule, if the robot has been relocated more than once, if the application depends on absolute positioning, or if the line operates in low-volume high-value production, the case for a more rigorous calibration method becomes stronger. This is particularly relevant in hard-tech environments where every hour of downtime carries outsized engineering and procurement consequences.

Selection criteria for relocation calibration support

• Does the provider define the calibration level clearly: mastering only, TCP/frame, metrology verification, or full compensation?
• Can they support acceptance against your actual process tolerance, such as ±0.2 mm, ±0.5 mm, or ±1.5 mm?
• Do they test at real payload and production speed rather than only in safe low-speed mode?
• Will they issue documented results with residual deviation and recommended maintenance interval?

H4: Service timing and planning window

In many industrial environments, a basic relocation and restart can be scheduled in 1 to 3 days, while advanced calibration with metrology may require 2 to 5 days depending on robot count, tooling complexity, and fixture accessibility. Planning this correctly before shutdown is usually cheaper than emergency correction after startup.

FAQ: practical questions teams ask after moving a 6-axis robot

Because 6 axis robot calibration methods differ most after relocation, many teams ask similar operational and sourcing questions. The answers below focus on real-world decision points rather than generic theory.

How soon should calibration be performed after relocation?

Ideally, calibration should be part of recommissioning before production release. Waiting even 1 to 2 weeks can create confusing quality data because process issues may be attributed to tooling, parts, or programming instead of installation shift. For high-value production, calibration and acceptance should happen in the same shutdown window.

Is repeatability enough to confirm the robot is ready?

No. Repeatability measures whether the robot returns to the same point consistently. After relocation, the bigger concern is absolute accuracy relative to fixtures, tools, and workpiece datums. A robot can repeat within ±0.05 mm and still be off by over 1.0 mm from the required process location.

When is laser or metrology-based calibration worth the cost?

It is usually justified when the process tolerance is below ±0.3 mm, the robot has a long reach, the payload is high, or the value of each part is significant. It is also appropriate when the cell includes external axes or where failed startup would interrupt a tightly scheduled line transfer.

What should procurement include in an RFQ for robot relocation?

An RFQ should specify move scope, installation conditions, calibration level, acceptance criteria, production-speed test requirements, reporting format, and response time for post-startup support. Asking for these 6 items in advance makes quotations far easier to compare and reduces hidden exclusions.

Relocating a 6-axis robot changes more than floor position. It can alter the coordinate truth that the entire automation cell depends on. That is why 6 axis robot calibration methods differ most after relocation: the task shifts from simple confirmation to restoring geometric, process, and operational alignment across the full system.

For engineers and operators, the priority is accurate restart with documented tolerances. For procurement teams, the priority is buying the right calibration scope instead of the cheapest headline service. For decision-makers, the priority is protecting uptime, part quality, and long-term automation ROI with measurable acceptance standards.
