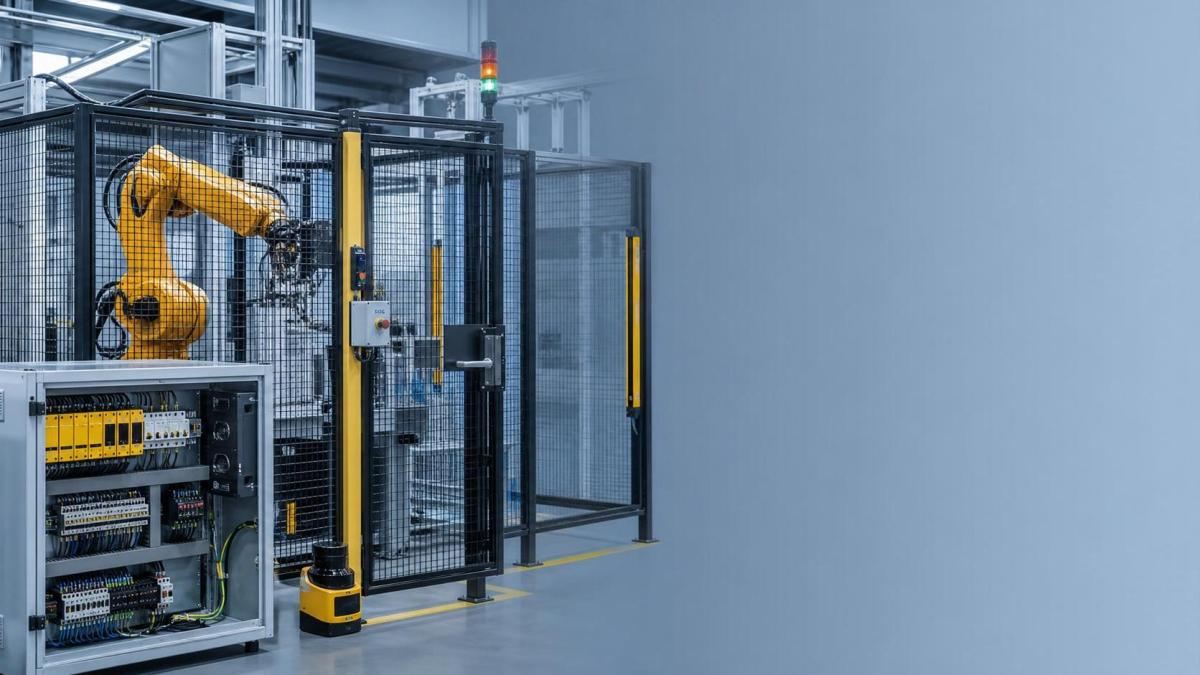

Robot Safety Systems for Robot Cells: How to Choose Guards, Sensors, and PLC Safety Logic

Choosing robot safety systems for robot cells is less about passing an audit and more about proving that risk has been reduced by design. In automated production, the real question is not whether guards, sensors, and safety PLC logic are present, but whether they match the robot’s speed, reach, payload, stopping distance, and human interaction pattern.

That is why robot safety systems for robot cells deserve closer attention across general industry. As lines become denser, faster, and more connected, weak safety architecture can create hidden downtime, unsafe bypass behavior, and expensive redesigns after commissioning.

From a TechStat Vanguard perspective, engineering truth starts with measurable parameters. Safety performance should be judged through verifiable distances, diagnostic coverage, fault response, and reset logic rather than broad vendor claims.

What a robot cell safety system really includes

A robot cell safety system is a layered control structure. It usually combines physical separation, presence detection, safe motion control, operator access management, and logic that forces the machine into a defined safe state.

In practical terms, robot safety systems for robot cells often include fixed fencing, interlocked doors, area scanners, light curtains, safety mats, emergency stops, enabling devices, and a safety-rated PLC or relay architecture.

The point of layering is simple. One component should not carry the entire risk burden. If a sensor is misaligned or an access point is opened, another layer should still limit exposure.

This matters even more in mixed-process cells. Welding, machine tending, palletizing, adhesive dispensing, inspection, and collaborative handling all create different hazard profiles, even when the same robot model is used.

Why selection has become harder

Robot cells are no longer isolated cages with one clear entry point. Modern layouts often include conveyors, AGV interfaces, vision systems, manual load zones, maintenance access, and remote diagnostics.

As a result, choosing robot safety systems for robot cells now requires more than checking a catalog. Safety devices must be evaluated against process variability, software states, restart conditions, and foreseeable operator behavior.

Another challenge is market noise. Many products are presented as complete solutions, while the critical details remain unclear: response time, muting logic limits, contamination sensitivity, fault exclusion assumptions, or integration constraints with the robot controller.

In TSV’s data-first view, vague claims should never replace system-level analysis. A high-spec sensor does not guarantee a safe cell if stopping time, mounting height, and access geometry were poorly defined.

Start with the hazard, not the device list

A good selection process begins with the robot’s actual risk envelope. That means mapping motion range, tool hazards, pinch points, end-effector failure modes, and areas where people may enter during normal production or service.

The most useful questions are operational. How often is access required? Is intervention planned or exceptional? Does the robot stop safely under load? Can stored energy remain after the servo stop?

Standards such as ISO 10218, ISO 13849, IEC 62061, and ISO 13855 provide the framework, but the application detail drives the final architecture. Two cells can share the same standard and still need different protections.

How to choose guards and physical barriers

Physical guarding remains the most stable layer in many robot cells. Fixed fencing is still the right answer where access is infrequent and robot speed or payload makes presence sensing alone insufficient.

The key is geometry, not just material strength. Fence height, ground clearance, opening size, and setback distance must prevent reach-over, reach-under, and reach-through access to the hazard zone.

Interlocked gates should be selected according to the stopping behavior of the cell. If the hazard persists after the guard is opened, guard locking may be required rather than a simple interlock.

In high-throughput environments, poor gate placement can create repeat interference with production flow. That often leads to improvised shortcuts, which is a strong indicator that the original safety concept ignored real operations.

Where fixed guards work best

• Cells with predictable motion and limited manual interaction
• Applications with hot, sharp, or ejecting process hazards
• Installations where contamination could impair optical sensors
• Layouts requiring strong separation during maintenance or recovery

When sensors add value, and when they do not

Presence sensing can improve access efficiency, but only when the sensing field matches the hazard and the machine can achieve a safe stop in time. This is where many robot safety systems for robot cells are either well engineered or fundamentally weak.

Light curtains are effective at controlled openings with clear ingress paths. Safety laser scanners are useful for irregular zones, corner protection, and warning-to-stop strategies in dynamic areas.

Safety mats can help at defined standing positions, though they are less flexible in harsh environments and layout changes. Interlock switches remain essential where the act of opening a door must trigger the safety function.

What matters most is response chain timing. Sensor reaction time, PLC logic time, network latency where relevant, actuator delay, and robot stopping time all affect the required safety distance.

Useful sensor selection checks

• Confirm the protective field cannot be stepped around or reached over
• Verify resistance to dust, smoke, glare, coolant, and vibration
• Check restart interlock logic after field interruption
• Review muting or blanking only where justified and documented
• Measure actual stop time during commissioning, not just design time

Why PLC safety logic deserves equal scrutiny

Hardware selection gets attention because it is visible. Safety logic is less visible, yet it determines whether devices interact in a controlled and diagnosable way. Weak logic can undermine otherwise capable components.

A safety PLC should clearly define input status, safe outputs, reset conditions, fault handling, and mode selection. Automatic restart after interruption is often a major concern unless the risk assessment explicitly supports it.

For robot safety systems for robot cells, the logic often needs to coordinate safe torque off, safe speed monitoring, safe limited position, gate monitoring, muting conditions, and emergency stop zones.

The better approach is transparent cause-and-effect mapping. Every triggered device should produce a predictable state change, a clear fault indication, and a controlled recovery path.

Logic issues worth catching early

• Reset permitted while a person remains inside the protected zone
• Shared signals that hide which device actually caused the stop
• Mode changes without adequate key control or supervision
• Maintenance overrides lacking timeout, indication, or authorization
• No proof test strategy for critical safety channels

Typical cell types need different safety architectures

A palletizing cell often favors fenced separation with interlocked access because movements are repetitive and payloads are large. A machine-tending cell may need guarded loading zones with light curtains or scanner-based access control.

Welding cells usually require strong attention to spatter, fumes, arc flash isolation, and sensor contamination. Assembly cells with human intervention may rely more on safe speed, enabling devices, and carefully managed teach modes.

This is why copying a previous design can be risky. Even minor process changes can alter the best combination of guards, sensors, and PLC safety logic.

A practical decision path

For most facilities, the strongest next step is to build a parameter-based review instead of a product-first shortlist. Start with measured stop time, real access points, intervention frequency, and environmental stressors.

Then compare whether fixed guards, sensor-based access, or mixed protection gives the most credible reduction in risk without encouraging bypass behavior. After that, verify the safety PLC sequence against actual operating modes, not a simplified diagram.

In the TSV framework, robot safety systems for robot cells should be judged the same way as any critical hard-tech decision: by traceable assumptions, measured performance, and documented limits. That creates a more reliable basis for specification, supplier comparison, and long-term change control.

A well-chosen safety architecture does more than protect people. It reduces false trips, shortens validation debates, and makes future modifications easier to assess with confidence. The next review should focus on where exposure really occurs, which parameters are proven, and which claims still need engineering evidence.
