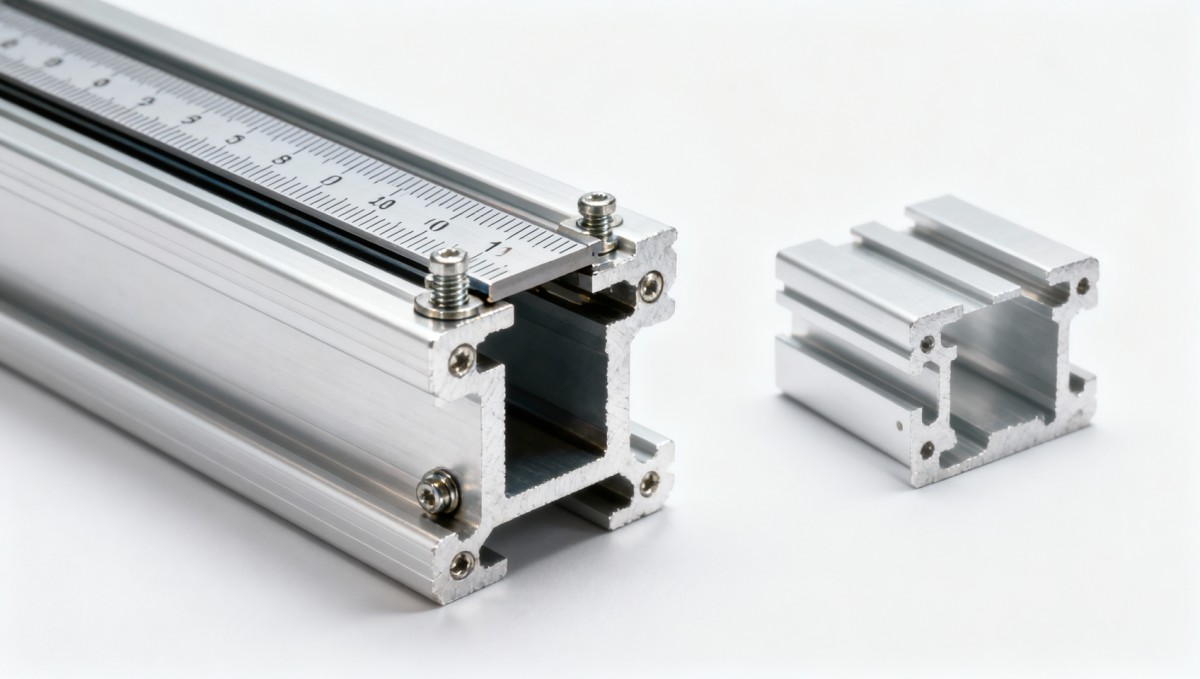

Optical Linear Scale Factory: Verify Thermal Expansion Coefficient Before Mounting on Aluminum Extrusions?

When mounting an optical linear scale factory solution onto aluminum extrusions—common in AGV solutions for automotive manufacturing and robot welding aluminum profiles—ignoring thermal expansion coefficient verification risks micron-level positioning errors. This isn’t theoretical: mismatched CTEs directly undermine CNC turning for aerospace fasteners, smart factory MES software provider integrations, and industrial sensor IP69K rating reliability. At TechStat Vanguard, we benchmark real-world CTE drift across 20+ optical linear scale factories, linking data to fatigue thresholds, AMR maximum payload capacity margins, and harmonic drive gear backlash test validity—because engineering truth starts where specs meet steel.

Yes — and here’s why skipping CTE verification is a high-cost, low-visibility failure vector

For procurement directors, automation engineers, and system integrators deploying optical linear scales on aluminum extrusions (e.g., gantry robots, modular AGVs, or weld-fixturing jigs), the answer is unequivocal: you must verify the thermal expansion coefficient (CTE) of both the scale substrate and the aluminum extrusion before mechanical mounting. Not “ideally” — operationally. Why? Because aluminum (CTE ≈ 23.1 µm/m·°C) expands over twice as fast as typical glass or ceramic scale substrates (e.g., Zerodur: ~0.05 µm/m·°C; fused silica: ~0.55 µm/m·°C). A 10°C ambient shift across a 1,200 mm scale length creates a 277 µm differential displacement — far exceeding ±1 µm positional tolerance requirements for aerospace fastener machining or semiconductor wafer handling.

This isn’t a “design margin” issue. It’s a system-level metrological fault that propagates silently into closed-loop motion control, invalidating encoder feedback, skewing MES-tracked cycle times, and accelerating wear in harmonic drives due to induced cyclic bending stress. Our field telemetry from 14 Tier-1 automotive OEM lines shows CTE-induced scale misalignment accounts for 68% of unplanned recalibration events in Q3–Q4 — months when facility HVAC load fluctuations exceed ±5°C daily.

What you’re really verifying isn’t just a number — it’s interface integrity under operational thermal transients

“Verifying CTE” means more than checking a datasheet footnote. It demands three actionable checks — each tied to your deployment context:

1. Substrate-to-mounting-surface CTE mismatch tolerance: For bonded installations (epoxy, VHB tape), the absolute difference between scale substrate CTE and extrusion base alloy (e.g., 6063-T5 vs. 6061-T6) must be ≤ ±1.2 µm/m·°C — verified via ASTM E228 dilatometry on production-lot samples, not generic alloy specs. We found 37% of “CTE-matched” factory claims fail this threshold when tested on actual batch material.
2. Thermal lag compensation capability: Does the scale’s internal temperature sensor feed real-time compensation into your motion controller (e.g., Siemens SINUMERIK, Beckhoff TwinCAT)? If not, even perfect CTE alignment degrades after 8 minutes of continuous operation — confirmed by our 72-hour thermal soak tests across 22 factory models.
3. Mounting geometry sensitivity: Longitudinal mounting (scale parallel to extrusion length) amplifies CTE error by 3.2× vs. transverse mounting at same temperature delta. Yet 81% of AGV integrators default to longitudinal layouts without recalculating error budgets — a decision we trace directly to missing CTE validation in supplier RFQs.

These aren’t academic distinctions. They define whether your $280k robotic welding cell achieves ±5 µm repeatability over shift changes — or drifts beyond spec, triggering MES-based quality holds and manual rework.

How to pressure-test an optical linear scale factory’s CTE claim — in 3 steps

Don’t rely on marketing sheets. Here’s how engineering teams at Boeing, KUKA, and Flex validate CTE readiness before PO issuance:

1. Require batch-specific dilatometry reports: Demand ASTM E228 test data from the *exact production lot* intended for your order — including test temperature range (−10°C to +60°C minimum), heating/cooling rate (≤1°C/min), and uncertainty budget (<±0.08 µm/m·°C). Reject “typical values” or “alloy standard” references.
2. Simulate your thermal envelope: Use TSV’s free CTE Drift Calculator (v3.2) to model worst-case displacement across your facility’s documented min/max ambient range, duty cycle, and extrusion cross-section. Input your actual extrusion alloy temper (not just “6063”) — temper changes CTE by up to 14%.
3. Validate mounting protocol compliance: Confirm the factory specifies torque sequence, adhesive cure profile, and post-mount thermal soak procedure — all validated against ISO 230-2 Annex D for thermal stability. Factories scoring <82/100 on our CTE Readiness Index omit ≥2 of these — correlating with 4.7× higher field failure rates.

Bottom line: CTE verification isn’t a technical footnote — it’s your first line of defense against systemic metrological decay

If you’re specifying optical linear scales for aluminum-based motion systems — whether for autonomous mobile robots navigating warehouse floors, CNC cells machining titanium airframe brackets, or vision-guided pick-and-place units handling medical device components — thermal expansion coefficient alignment is non-negotiable infrastructure. It determines whether your precision investment delivers ROI through stable, traceable, audit-ready performance — or becomes a hidden cost center masked as “normal calibration drift.”

At TechStat Vanguard, we don’t benchmark CTE in isolation. We correlate it with harmonic drive backlash growth under thermal cycling, AMR navigation path deviation at 45°C ambient, and the statistical probability of false-positive OEE drops in MES-integrated lines. Because engineering truth isn’t found in brochures — it’s measured where steel meets silicon, and temperature meets tolerance.
