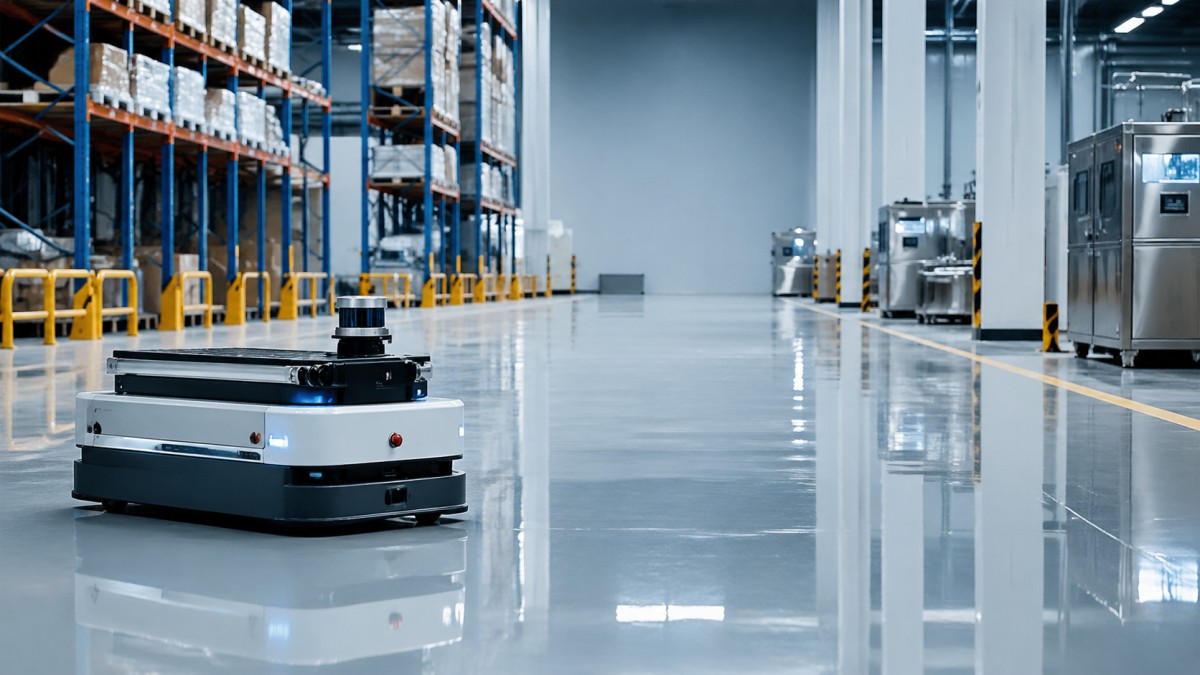

How accurate is AGV LiDAR navigation on reflective floors?

Reflective floors can significantly affect agv lidar navigation accuracy, but the real outcome depends on LiDAR wavelength, sensor fusion, floor finish, and control algorithms. For engineers, buyers, and operators comparing agv navigation systems factory options or reviewing agv magnetic tape vs slam comparison data, this article explains where errors occur, how severe they can become, and what performance benchmarks truly matter.

Why do reflective floors disrupt AGV LiDAR navigation?

AGV LiDAR navigation works by emitting laser pulses and calculating distance from returned signals. On matte concrete, epoxy with low gloss, or textured warehouse surfaces, the return profile is usually stable enough for SLAM, contour matching, or natural feature localization. On reflective floors, however, the laser may scatter, over-return, under-return, or generate multi-path reflections. The result is not always total navigation failure, but a measurable drop in localization confidence and path repeatability.

The impact is most obvious in facilities with polished epoxy, sealed concrete, metallic dust, wet patches, or high-gloss coatings. In these environments, AGV navigation accuracy may fluctuate from one aisle to another, especially when floor reflectivity changes within a 5 m–20 m route segment. Operators often describe this as “random drift,” but the root cause is usually repeatable: unstable point cloud quality at low-angle incidence and poor map consistency over time.

For procurement teams, the first mistake is assuming that all LiDAR-equipped vehicles perform equally because they all claim laser navigation. They do not. The navigation stack includes sensor hardware, mounting angle, scan frequency, filtering logic, floor treatment tolerance, wheel odometry quality, and safety speed strategy. A system that holds ±10 mm to ±20 mm in one plant may degrade significantly in another if the floor produces noisy returns or inconsistent reflectance.

This is exactly where TSV’s engineering-first approach matters. Instead of accepting generic claims such as “high-precision SLAM,” decision-makers should ask how the AGV behaves under glare, mixed reflectivity, fork tine reflections, and partially wet floors during 8–16 hour operating windows. Parameters do not lie; navigation tolerance under interference matters far more than brochure language.

What actually changes in the LiDAR signal?

Three things usually change first: return intensity, usable point density, and feature stability. If the floor behaves like a mirror at certain scan angles, the emitted beam may not return directly to the sensor. In other cases, it may produce intense but distorted reflections that confuse filtering. If the navigation engine depends heavily on floor-adjacent geometry rather than walls, racks, or columns, the probability of map mismatch rises.

The issue becomes more serious when reflective floors combine with other plant conditions. Typical examples include stainless steel machine housings, glass partitions, shrink wrap, bright sunlight near loading doors, and fast forklift traffic. None of these factors alone guarantees poor AGV LiDAR navigation accuracy, but together they can reduce localization robustness enough to trigger speed derating, recovery stops, or frequent remapping.

Common floor-related error mechanisms

• Specular reflection: the beam reflects away from the sensor rather than back to it, creating weak or missing distance data.
• Multi-path return: the beam bounces off multiple surfaces, producing false range estimates or ghost features.
• Dynamic reflectivity shifts: wet spots, oil films, or fresh coating patches change the point cloud from shift to shift.
• Low-angle scan distortion: floor reflections become more problematic when sensor mounting and environment geometry force shallow beam incidence.

How accurate is AGV LiDAR navigation on reflective floors in real factory conditions?

There is no single universal number because AGV LiDAR navigation accuracy depends on the full system and site conditions. In stable indoor environments with well-managed reflectivity, laser-guided AGVs often target repeatability in the low-millimeter to low-centimeter range. But reflective floors can increase uncertainty, especially during docking, pallet handoff, and narrow-path travel. For practical evaluation, buyers should separate nominal positioning accuracy from degraded-condition accuracy.

A more useful question is this: what error band remains acceptable when the floor is glossy, partially contaminated, or recently cleaned? In many procurement reviews, the relevant threshold is not peak accuracy but whether the AGV can keep safe and productive operation within the plant’s required docking tolerance, often around ±10 mm, ±20 mm, or ±30 mm depending on conveyor transfer, rack interface, and payload geometry.

The table below summarizes a practical engineering view of how reflective floors influence AGV navigation systems factory performance. These are not universal test results. They are procurement-oriented evaluation ranges and risk patterns commonly used to structure site validation.

The key takeaway is simple: reflective floors do not automatically rule out LiDAR navigation, but they narrow the safety margin. If your operation depends on repeatable pallet pickup, transfer positioning, or dense traffic in aisles under 2.5 m–3.5 m wide, degraded-condition tests are more important than ideal-condition demonstrations.

This is also why buyers comparing agv magnetic tape vs slam comparison documents should avoid abstract debates. The correct choice depends on how much localization uncertainty the workflow can tolerate, how often the route changes, and whether the floor finish is stable across seasons, cleaning cycles, and production expansions.

Which metrics matter most?

For engineers and plant managers, four metrics are usually more useful than generic accuracy claims. First is docking repeatability over 20–50 consecutive cycles. Second is localization recovery time after a disturbed scan, often measured in seconds. Third is route completion rate without manual intervention over an 8-hour or 12-hour shift. Fourth is speed derating frequency in known reflective zones.

If a vendor cannot show these operating metrics, then the stated AGV LiDAR navigation accuracy is incomplete. In industrial automation, a vehicle that is accurate only in a clean demo path is less valuable than one that maintains acceptable tolerance under actual floor reflectivity, load vibration, and route congestion.

AGV magnetic tape vs SLAM comparison: which is safer on reflective floors?

The agv magnetic tape vs slam comparison becomes especially relevant when reflective floors create uncertainty for laser navigation. Magnetic tape guidance is less sensitive to optical reflectivity because it follows a physical path reference. That can improve predictability in difficult surface conditions. However, tape systems trade away route flexibility, expansion speed, and change management. In plants with frequent line changes, that limitation can become expensive within 6–12 months.

SLAM-based AGV navigation systems factory deployments offer better adaptability for changing routes, mixed traffic, and phased automation. Yet SLAM requires a stable environment model. If the floor, surrounding surfaces, and route features are highly reflective or frequently altered, the engineering burden shifts to sensor fusion, map quality, and commissioning discipline. That is why reflective-floor factories should compare lifecycle suitability, not just installation convenience.

The following table helps frame the choice in procurement language rather than marketing language.

In many projects, the practical answer is not tape or SLAM in isolation, but a layered strategy. For example, a facility may use SLAM for open transport loops and introduce auxiliary markers, reflectors, or controlled docking aids at critical transfer points. This approach reduces the penalty of reflective floors without locking the whole plant into a rigid route architecture.

Decision checklist for buyers

• If route changes are expected every quarter or every 6 months, pure magnetic tape may create cumulative modification costs.
• If transfer tolerance is very tight and floor reflectivity is severe, validate docking aids and sensor fusion before approving SLAM.
• If the plant has mixed floor finishes, request route-by-route acceptance criteria rather than one average navigation figure.
• If fleet scale may grow from 3–5 vehicles to 20 or more, flexibility and map maintainability should weigh heavily in selection.

TSV consistently advises procurement teams to compare failure modes, not only feature lists. On reflective floors, the costliest problem is often not headline accuracy but intermittent uncertainty that interrupts production planning and inflates support hours.

How should engineers and procurement teams evaluate AGV navigation systems factory readiness?

A credible evaluation should begin with a site survey, not a brochure review. Reflective floor projects need at least 3 layers of assessment: floor material and gloss profile, surrounding reflective objects, and operational demands such as payload, speed, and docking precision. A plant that runs 0.8 m/s under light loads has a different risk profile from one running 1.5 m/s with heavy carts in narrow lanes.

Next comes test design. Buyers should ask for a validation plan covering dry floor, recently cleaned floor, and partially disturbed floor conditions. If possible, the acceptance test should include 20–50 route repetitions, at least 2 docking points, and both loaded and unloaded operation. This exposes whether the AGV LiDAR navigation accuracy remains stable when the floor condition shifts, not just when the path is ideal.

Procurement also needs a technical document package that distinguishes sensor specification from system performance. LiDAR range, angular resolution, and scan rate matter, but they are not enough. The AGV supplier should explain fusion with IMU and wheel odometry, localization fallback behavior, and what happens when confidence drops below a threshold. That response tells you more about operational maturity than isolated hardware figures.

The table below can be used as a practical supplier evaluation tool during RFQ, pilot testing, or technical clarification.

A strong procurement decision usually combines 5 key checks: route flexibility, degraded-condition accuracy, integration burden, maintenance workload, and expansion path. If one of these is missing, the total cost of ownership can rise later through remapping, manual interventions, or production loss during unstable navigation windows.

Suggested 4-step validation process

1. Survey the site and classify floor zones into low, medium, and high reflectivity risk.
2. Run pilot tests in at least 2–3 critical routes, including docking and turning areas.
3. Measure repeatability, recovery time, and intervention rate across one full operating shift.
4. Define acceptance criteria in the purchase contract, including revalidation after layout or floor treatment changes.

Common misconceptions, risk controls, and what to do next

One common misconception is that stronger LiDAR automatically solves reflective-floor navigation. In reality, more power or longer range does not guarantee better close-range localization if the return pattern is distorted. Another misconception is that a successful demo in a showroom proves factory readiness. Real plants introduce dust, vibration, variable lighting, and floor contamination over weeks and months, not just during a 30-minute presentation.

Another mistake is to treat navigation and safety as separate purchasing topics. On reflective floors, localization instability often affects speed policy, obstacle interpretation, and stopping behavior. That makes ISO 3691-4 awareness, route risk assessment, and acceptance testing part of the same conversation. For enterprise decision-makers, this is not only a technical detail; it affects throughput, labor planning, and liability exposure.

Risk control usually starts with environment management: reducing unnecessary glare, standardizing floor coatings, controlling wet zones, and preserving stable route features. It then moves to system design: selecting sensor fusion, validating difficult paths, and defining fallback logic. In many cases, a moderate floor improvement plus better commissioning delivers more value than replacing the entire navigation concept.

For teams comparing AGV LiDAR navigation accuracy across suppliers, the best next step is a data-based technical review. That review should cover your floor type, route length, docking tolerance, vehicle speed, payload class, and change frequency over the next 12–24 months. Without those variables, quotations are difficult to compare fairly.

FAQ

Can AGV LiDAR navigation still work well on reflective floors?

Yes, often it can, but performance depends on system design and site conditions. A well-tuned AGV with LiDAR, IMU, and reliable odometry may operate acceptably on polished floors if the route has stable features and commissioning is rigorous. The key is not whether the floor is reflective in general, but how reflective it is in critical scan geometry and whether the workflow can tolerate occasional uncertainty.

What should buyers ask vendors first?

Ask for degraded-condition docking repeatability, recovery behavior after localization loss, and recommended test duration. Also ask how the vendor handles mixed floor finishes, wet patches, and route updates. These questions reveal more than generic statements about smart navigation or factory intelligence.

When is magnetic tape a better option?

Magnetic tape is often attractive when routes are fixed, transfer points are few, and floor reflectivity is severe enough to create repeated optical instability. It can also suit budget-constrained projects that do not expect frequent layout changes. However, if the plant may add routes, rebalance lines, or scale fleet size, the long-term rigidity of tape should be evaluated carefully.

Why choose us for technical evaluation and supplier comparison?

TechStat Vanguard supports engineering teams, procurement managers, and business decision-makers who need parameter-based judgment instead of vague claims. We focus on hard-tech benchmarking, AGV/AMR navigation fault tolerance, sensor interference behavior, and supplier-side technical comparability. That means your review can move beyond “works in theory” toward route-specific, tolerance-specific decision criteria.

If you are evaluating AGV navigation systems factory options for reflective floors, you can contact TSV for support on parameter confirmation, navigation architecture comparison, pilot test planning, supplier shortlist screening, delivery-cycle discussion, and customized benchmarking logic. We can also help structure the right questions for agv magnetic tape vs slam comparison, acceptance criteria, and deployment risk review before budget approval.

Bring your floor type, route drawings, target tolerance, payload range, and expected project timeline. With those inputs, the discussion becomes concrete: which navigation method fits, what validation is necessary, which risks can be mitigated, and where the real procurement leverage sits.
