How Do You Measure a Machine Vision System's False Reject Rate?

How Do You Measure a Machine Vision System's False Reject Rate?

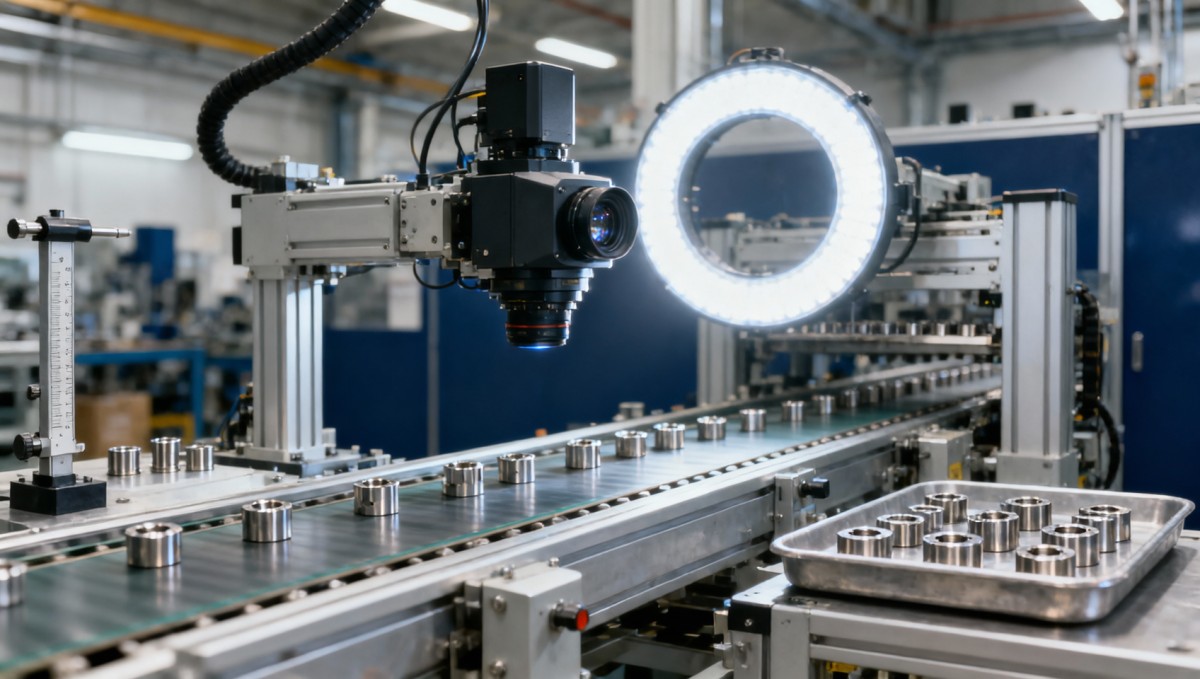

Every good part incorrectly rejected by an automated inspection system creates avoidable scrap, rework, or review costs—but measuring that loss requires more than counting rejects. The machine vision false reject rate is the percentage of independently verified acceptable parts that the system incorrectly rejects under defined test conditions. For engineers and procurement teams, a defensible benchmark starts with reliable ground truth, representative production samples, and clear acceptance criteria.

The calculation is straightforward. The difficult work is establishing which parts are genuinely acceptable, whether the test represents production, and how much confidence the result deserves. A low number from a curated demonstration is not necessarily a low number on a running line.

Start with the right denominator

False reject rate (%) = acceptable parts incorrectly rejected ÷ all independently verified acceptable parts tested × 100.

The denominator includes both acceptable parts that passed and acceptable parts that failed inspection. It does not include defective parts. Nor is it limited to the contents of the reject bin.

For a hypothetical calculation, suppose a validation run contains 10,000 independently verified acceptable parts, and the system rejects 40 of them. The false reject rate is 0.4%. This is an arithmetic example, not a claimed industry benchmark or supplier result.

Total rejection rate answers a different question: what fraction of all inspected parts was rejected? It combines correct and incorrect rejections. Reviewing only rejected parts can establish what share of that bin is actually good, but that percentage is not the false reject rate. You still need the total number of acceptable parts in the evaluated population.

Terminology also varies. Some software treats “defective” as the positive class, making a false rejection a false positive. Other systems use the opposite convention. In test reports, plain-language labels are safer than unexplained FP or FN abbreviations.

Ground truth must be independent of the vision system

A vision system cannot validate itself. Its classifications need comparison against an independent reference appropriate to the inspected characteristic: calibrated dimensional measurement, microscopy, functional testing, or a documented visual standard with qualified reviewers.

Define acceptable before collecting results. For a machined component, this may mean a drawing tolerance and an agreed measurement method. For packaging, it may involve print legibility, label position, or seal appearance. Cosmetic inspection needs especially careful boundary definitions; “looks wrong” is not a reproducible acceptance criterion.

Where human judgment supplies the reference, reviewers should ideally be blinded to the machine decision. Otherwise, a reject label can influence their assessment. Disagreements should follow a predefined adjudication process rather than being resolved in whichever way improves the system's reported score.

Near a specification limit, reference measurement uncertainty matters. Establish a decision rule for borderline parts and record unresolved classifications. Do not silently remove difficult samples. If they cannot be classified confidently, report their number and explain how their exclusion limits the benchmark.

Build a test that resembles the line—not the demonstration

A tray of clean, centrally positioned parts can establish basic capability. It cannot establish production performance. A useful validation set includes acceptable variation that the process actually permits: surface finish differences, material lots, cavity variation, part orientation, and legitimate dimensional values near acceptance limits.

Use two complementary sample groups. A production-representative sample estimates routine performance. A challenge set deliberately includes difficult but acceptable parts and relevant defects. Keep their results distinguishable: an enriched challenge set is useful for exposing weaknesses, but its pooled rate may not represent the normal production mix.

A practical validation sequence is:

1. Assign traceable part identifiers and establish independent reference labels.
2. Separate setup and tuning samples from the final evaluation set.
3. Freeze the inspection recipe, model version, optics, lighting, and decision thresholds.
4. Run at specified production speeds and record decisions against part identifiers.
5. Reconcile machine results with reference labels, including missing images and no-decisions.
6. Report aggregate results and results by relevant operating condition.

Testing the same part repeatedly helps assess repeatability, but those passes are not equivalent to independent parts. A thousand images of a few easy components provide weak evidence about variation across a thousand different components. Report unique-part counts separately from inspection-cycle counts.

Avoid tuning on the final evaluation set. Once its failures influence threshold changes or model retraining, it has become development data. Confirm the revised configuration on a fresh held-out set.

Report uncertainty, especially when no false rejects appear

An observed rate is an estimate, not a guarantee. Always report the false rejection count, acceptable-part denominator, and confidence interval. “Zero false rejects” without a sample size tells a buyer very little.

For zero observed events in independent trials with a consistent underlying probability, the statistical “rule of three” gives an approximate one-sided 95% upper bound of 3/n. Zero false rejects among 300 acceptable parts therefore suggests an upper bound near 1%, not proof that the true rate is zero. Demonstrating an upper bound near 0.1% requires roughly 3,000 acceptable parts with zero events under those assumptions.

When false rejects occur, use an appropriate binomial interval, such as a Wilson or exact interval. If results cluster by batch, shift, or repeated part, a simple independent-trial model may understate uncertainty. The sampling design and statistical treatment should account for that dependence.

Set the acceptance rule before testing. A requirement based on an upper confidence bound is more demanding than one based only on the observed percentage. Neither is universally correct; the choice depends on production economics, defect consequences, and the evidence required for qualification.

Separate classification errors from handling failures

A good part in the reject bin does not automatically mean the image classifier made a mistake. The camera may have accepted it while an incorrectly timed ejector removed it. Conversely, the software may reject a part that the handling system fails to divert.

Measure the image-decision false reject rate and the end-to-end good-part diversion rate separately. Both affect operations, but they point to different corrective actions. Traceability between trigger, image, decision, encoder position, and physical disposition is what makes this distinction possible.

No-read, timeout, and missing-image events also need explicit treatment. If the line automatically diverts these parts, count verified good parts among them in the operational loss metric while reporting the event category separately. Excluding them from classifier statistics may be reasonable, provided the exclusion is visible and does not conceal production losses.

Useful diagnostic records include exposure settings, illumination configuration, inspection scores, failure reasons, recipe versions, and line speed. Segment results by product variant and operating condition. An acceptable average can hide a persistent problem with one finish, one cavity, or one shift.

A lower false reject rate can hide a worse inspection system

Relaxing a decision threshold may recover acceptable parts while allowing defects through. Compare the machine vision false reject rate alongside the false acceptance rate: defective parts accepted divided by all independently verified defective parts tested.

Defective samples should cover relevant failure modes and severity levels, not just obvious defects. Results from grossly damaged parts do not establish sensitivity to a subtle crack, marginal print defect, or small assembly error. Where consequences differ, report detection performance by defect type rather than relying on a single average.

Before changing thresholds, inspect the imaging chain. Glare can obscure surface features; motion blur can reduce edge contrast; fixture variation can shift the inspection region. Better lighting geometry, exposure control, or positioning may reduce false rejects without sacrificing defect detection. Threshold relaxation cannot recover information that the image never captured.

Turn the benchmark into a qualification requirement

There is no universal acceptable false reject rate across manufacturing. A recoverable diversion to manual review has different economics from scrapping a finished precision assembly. Estimate the burden using expected acceptable-part volume, the measured rate, and the actual disposition cost—including review labor, handling, reinspection, and unrecoverable material loss.

For supplier comparisons, require the same part populations, reference criteria, throughput, and statistical acceptance rules. Request the underlying counts and configuration records, not just a percentage. Laboratory image replay is useful for algorithm comparisons, but installed-line qualification must also exercise acquisition, triggering, and rejection hardware.

This is consistent with TechStat Vanguard's approach to engineering benchmarking: replace broad performance claims with traceable parameters and reproducible evidence. “Engineering Truth Through Data” means asking what was measured, under which conditions, and with what uncertainty—not treating a polished demonstration as qualification.

Before signing off, document the allowed false reject rate, missed-defect limits, sample requirements, and change-control rules. Revalidation should be considered when material, optics, lighting, models, or production speed change. The number worth trusting is the one tied to a defined configuration and a test that represents the parts your line will actually inspect.
