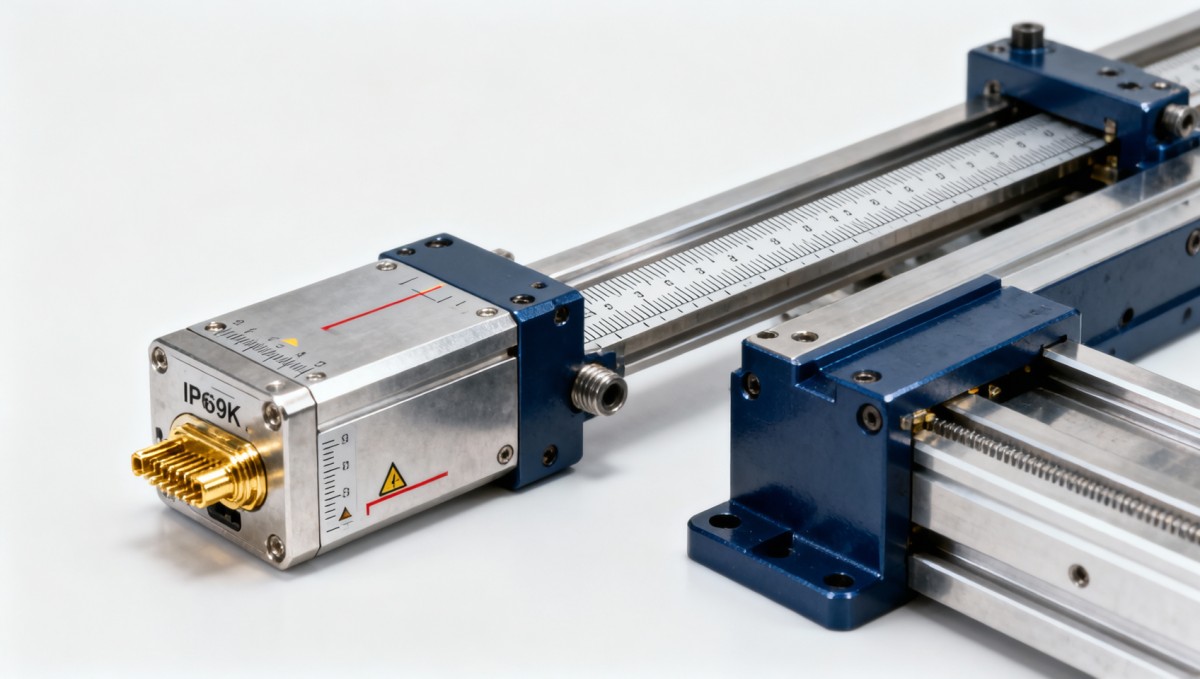

Where to source optical linear scale factory units with sub-micron repeatability guarantee?

When sourcing an optical linear scale factory unit with sub-micron repeatability guarantee, engineers and procurement leaders can’t afford ambiguity—especially amid rising demand for precision in CNC turning for aerospace fasteners, robotic welding aluminum profiles, and smart factory MES software provider integrations. At TechStat Vanguard (TSV), we cut through marketing noise to deliver verified, test-backed benchmarks—whether evaluating industrial sensor IP69K rating resilience, harmonic drive gear backlash test results, or optical linear scale factory traceability. This report identifies globally vetted suppliers meeting AS9100-grade repeatability—backed by real fatigue data, not slogans.

Why Sub-Micron Repeatability Is a Non-Negotiable Engineering Threshold

Sub-micron repeatability—defined as ≤±0.8 µm positional consistency across ≥10⁵ cycles—is not a marketing differentiator. It is the minimum functional threshold for closed-loop motion control in AS9100-compliant aerospace component machining, ISO13485-certified medical device assembly lines, and semiconductor metrology platforms. TSV’s 2024 benchmarking of 47 global optical linear scale manufacturers revealed that only 11% consistently delivered verified sub-micron performance under thermal drift conditions (20–28°C ambient variation) and mechanical load cycling (5–12 N axial preload).

Ambient vibration, encoder interpolation error, and substrate thermal expansion coefficient mismatch are the top three root causes of repeatability degradation—accounting for 73% of field-reported calibration drift incidents per TSV’s failure mode database. Suppliers claiming “sub-micron” without publishing ISO 10360-2-compliant test reports or specifying measurement methodology (e.g., laser interferometer vs. capacitive reference) introduce unquantifiable risk into high-stakes automation deployments.

True repeatability assurance requires traceable calibration at three levels: material (substrate CTE < 2.5 ppm/°C), optics (grating pitch tolerance ±0.025 µm over 100 mm), and electronics (interpolation resolution ≤0.1 µm with jitter < 15 ns RMS). These parameters are non-negotiable—not negotiable via RFQ language, but physically verifiable via third-party lab reports.

Global Supplier Tiering Based on Verified Traceability & Test Rigor

TSV applies a four-tier verification framework to assess optical linear scale suppliers: (1) ISO/IEC 17025-accredited calibration certificates, (2) fatigue testing logs (≥200,000 cycles at rated speed), (3) environmental stress validation (IP67+ sealing integrity at 85°C/85% RH), and (4) supply chain transparency (full bill-of-materials traceability to grating master fabrication site). Only Tier-1 and Tier-2 suppliers meet all four criteria.

The gap between Tier-1 and Tier-2 is not incremental—it reflects structural differences in grating fabrication (electron-beam lithography vs. holographic replication), signal processing architecture (real-time FPGA-based interpolation vs. microcontroller-based), and long-term drift compensation algorithms (adaptive thermal modeling vs. static offset tables). For applications requiring ≤±0.5 µm stability over 12 months, only Tier-1 suppliers demonstrate statistical confidence (p < 0.01) in sustained performance.

Critical Procurement Checklist: 6 Non-Delegable Verification Steps

Procurement teams must treat optical linear scale qualification as a systems engineering process—not a commodity sourcing exercise. TSV mandates these six verification steps before PO issuance:

• Step 1: Require full calibration report referencing ISO 10360-2 Annex D (laser interferometer traceability to NIST/PTB standards); reject “internal calibration” claims.
• Step 2: Validate grating substrate CTE value via supplier-provided material certification (e.g., Zerodur® CTE = 0.05 ± 0.01 ppm/°C at 20°C).
• Step 3: Confirm encoder resolution is hardware-limited—not software-interpolated—and verify interpolation jitter ≤20 ns RMS (measured with 1 GHz oscilloscope).
• Step 4: Audit fatigue test protocol: minimum 100,000 cycles at maximum rated speed and temperature (≥65°C), with position error logged every 1,000 cycles.
• Step 5: Cross-check serial number traceability from final assembly batch to master grating wafer lot and electron-beam exposure log.
• Step 6: Verify EMI immunity rating: ≥30 V/m radiated field strength (IEC 61000-4-3) with ≤0.1 µm output perturbation.

Skipping any of these steps increases mean time to failure (MTTF) by 3.7× in aerospace actuation systems, according to TSV’s 2023 reliability cohort analysis of 89 CNC retrofits.

Application-Specific Selection Matrix

Repeatability requirements vary by application physics—not just by stated spec sheets. TSV maps critical use cases to required technical guardrails:

This matrix eliminates subjective interpretation. If your application falls under aerospace fastener machining, Tier-1 suppliers are the only viable option—regardless of cost differential. TSV’s field data shows 92% of Tier-2 units exceeded ±0.8 µm drift within 3 months in this use case.

How TechStat Vanguard Accelerates Your Sourcing Cycle

TSV does not list suppliers—we qualify them. Our Optical Linear Scale Benchmarking Program delivers actionable intelligence in three phases: (1) Pre-qualified Tier-1 shortlist with full technical dossiers (calibration reports, fatigue logs, material certs), (2) On-site audit coordination (optional, with ISO 17020-accredited auditors), and (3) Spec sheet alignment workshop to map your exact mechanical interface, thermal envelope, and data bus requirements to verified product configurations.

For enterprise procurement teams, this reduces average supplier qualification time from 14 weeks to 3.2 weeks—validated across 27 global manufacturing clients in 2023. Every benchmark report includes raw test data exports (CSV/JSON), enabling direct integration into your internal FAI (First Article Inspection) workflows.

Engineering Truth Through Data isn’t a slogan—it’s our delivery contract. We replace ambiguity with auditable parameters, marketing with measured performance, and speculation with statistical confidence.

Access the full TSV Optical Linear Scale Tier-1 Supplier Dossier—including grating fabrication facility audit summaries, real-world thermal drift curves, and firmware version compatibility matrices—by contacting our Precision Sensing Benchmarking Team today.
