How to Select Factory Automation IoT Sensors for Harsh Industrial Environments

Publication Date

Aug 03, 2026

author

TSV Data Lab

Start with the failure mode, not the catalog page

Most bad sensor selections happen before anyone compares models. The team starts with a sensing function like proximity, pressure, vibration, temperature, flow, or position, then jumps straight to a shortlist. In harsh production environments, that order is backwards. You need to define what is most likely to make the sensor lie, drift, drop out, or die early.

For factory automation IoT sensors, the hard part is rarely getting a reading on day one. The hard part is getting stable, trustworthy data after months of washdown, cabinet heat, motor noise, shock loads, airborne dust, coolant mist, and maintenance work that is less delicate than the installation manual assumed.

A practical selection process starts with the environment, then the measurement risk, then the network and maintenance model. If you reverse that order, you usually end up paying for signal conditioning, shielding, enclosures, or replacements that should have been avoided in the original spec.

Map the real exposure at the mounting point

Do not accept “indoor industrial” as an environmental description. It tells you almost nothing. The same plant can contain clean panel interiors, welding cells, paint areas, hot process zones, cold storage, chemical wash lines, and stamping equipment that shakes everything nearby.

Before comparing sensors, write down the actual exposure at the installation point:

  • Temperature range at the sensor body, not just room temperature.
  • Whether heat is constant, cyclic, or caused by nearby equipment.
  • Dust type: dry particulate, conductive dust, sticky residue, metal fines.
  • Moisture profile: humidity, splash, washdown, condensation, coolant mist.
  • Mechanical stress: vibration, impact, cable flex, machine movement.
  • Electrical noise sources: VFDs, servo drives, welders, large motors, switching power supplies.
  • Cleaning methods: solvent wipe, compressed air, caustic wash, steam, pressure wash.

This sounds obvious, but teams often spec to the machine’s nominal environment instead of the sensor’s local micro-environment. A sensor mounted beside a motor housing or on a moving axis may see a very different thermal and vibration profile from the rest of the line.

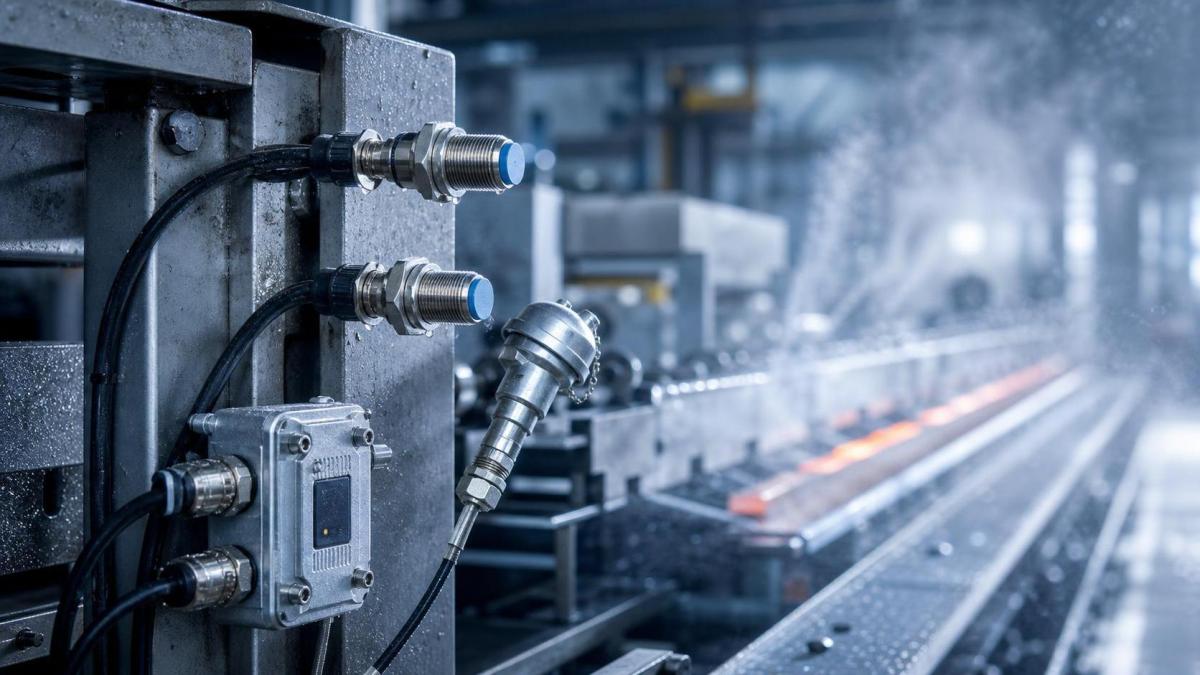

How to Select Factory Automation IoT Sensors for Harsh Industrial Environments

Check whether the sensing principle fits the contamination

A lot of selection errors are really sensing-principle errors. The package may survive the environment, but the measurement itself becomes unreliable.

Optical sensors, for example, may look fine on paper until oil film, dust buildup, or steam affects the beam path. Ultrasonic devices can struggle with target geometry, air turbulence, or temperature variation. Inductive sensors are robust for metal detection, but only if the target material, spacing, and mounting conditions match the real application. Capacitive sensors can detect more material types, but they are also more sensitive to environmental variation and false trips if the surrounding media changes.

The right question is not “Which sensor type is popular for this task?” It is “Which sensing method fails most gracefully in this contamination pattern?” That usually leads to better uptime than chasing the most feature-rich device.

Do not treat IP rating as a full durability answer

Ingress protection matters, but it is only one part of the story. IP67 or IP68 may tell you the enclosure can resist dust and water under certain test conditions. It does not tell you how the sensor handles hot alkaline cleaning agents, repeated thermal shock, cable gland fatigue, or fine metal dust that gets pushed into connectors during maintenance.

For harsh industrial environments, review the full sealing path:

  • Housing material and face material.
  • Connector sealing and mating-cycle durability.
  • Cable jacket compatibility with oils, coolants, and cleaning chemicals.
  • Whether the seal depends on perfect installation torque.
  • How the device behaves after repeated maintenance disconnects.

If the line gets washed down, ask for the cleaning chemistry exposure limits and the allowed cleaning method in the product documentation. A sensor can meet an ingress rating and still age badly when the wrong detergent or high-pressure spray repeatedly hits the front face or connector.

Look closely at temperature limits and drift behavior

Technical evaluators usually check operating temperature range. Fewer check what happens to accuracy across that range. In harsh conditions, that second question is often the one that matters.

A sensor that technically operates at elevated temperature may still drift enough to create nuisance alarms, false edge detections, or poor trend data for predictive maintenance. If the application feeds an edge gateway or condition monitoring system, small drift can become a big problem because the analytics layer assumes the signal is physically meaningful.

Check for:

  • Accuracy or repeatability over the full operating temperature range.
  • Warm-up behavior after power-up.
  • Long-term stability or recalibration interval if the sensor type requires it.
  • Whether the stated range applies to the electronics, the sensing face, or both.

When ambient temperature swings sharply between shifts, startup, or seasonal conditions, the stable sensor is usually the better choice than the most sensitive one.

EMI resistance needs a system view

This is where many IoT sensor deployments become frustrating. The sensor is blamed, but the issue is often the wiring layout, grounding scheme, connector choice, or the way analog and communication lines were routed past noisy equipment.

In environments with VFDs, servo systems, welders, or switching transients, evaluate electromagnetic compatibility as a chain rather than a component property. Ask how the device output is transmitted, how long the cable run is, whether the signal is analog or digital, and where the conversion to the network layer happens. A robust sensing element can still produce bad data if the signal path is weak.

Useful checks include shielding requirements, grounding recommendations, connector pinout sensitivity, and whether the vendor documentation gives installation constraints around noisy equipment. If the documentation is vague here, that is already a signal.

Evaluate mechanical survival separately from measurement performance

A sensor can stay physically intact and still become a poor instrument. This matters in stamping lines, conveyors, robot end effectors, machine tools, and mobile automation where shock and vibration are routine.

Separate the review into two questions. First, will the device remain mounted, sealed, and connected? Second, will it hold measurement quality under the same stress? Those are not the same thing.

What to Review Why It Matters Typical Oversight
Mounting method and bracket rigidity Prevents alignment shift and housing fatigue Assuming the sensor body rating covers weak brackets
Cable strain relief Reduces intermittent faults from flex and pull Testing the sensor, not the installed cable path
Shock and vibration tolerance Affects both survival and reading stability Looking only at enclosure ruggedness
Connector retention Prevents periodic signal loss Ignoring vibration-induced loosening

Check the data path, not just the sensor output

Because these are factory automation IoT sensors, the job does not end at detection. You also need to know how the data will be consumed. A binary output for machine control has different requirements from a condition-monitoring signal that feeds an edge platform for trending or alarms.

Review sampling needs, update frequency, latency tolerance, and failure behavior. If the sensor data is used for maintenance analytics, you need to know whether filtering, batching, or gateway polling will hide the event you actually care about. If it is used in control logic, deterministic behavior matters more than cloud-friendly features.

This is also where power requirements matter. Long cable runs, shared supplies, and noisy panels can create voltage issues that look like sensor instability. Many teams debug “bad sensing” when the real problem is marginal power at the device.

Make maintainability part of the selection criteria

Harsh environments punish anything that is difficult to inspect, replace, clean, or reconfigure. A sensor that is slightly less compact but easier to service may be the better industrial choice.

Ask practical questions:

  • Can maintenance staff replace it without disturbing alignment across the whole station?
  • Are connectors standardized across the line, or does one device introduce a special cable family?
  • Can status be diagnosed locally through indicators, or only through software?
  • Does the sensor require periodic calibration, and who actually performs it?
  • Will contamination on the sensing face be visible during routine inspection?

If the answers make maintenance slow or error-prone, the total ownership cost will usually beat the purchase price difference in the wrong direction.

Ask vendors for evidence that matches your use case

Generic brochures are not enough. For selection work, the useful documents are the detailed datasheet, installation manual, connector and wiring information, environmental limitations, and any application notes that explain how the device behaves under stress conditions similar to yours.

The point is not to collect paperwork. It is to see whether the vendor gives engineering-grade information or mostly marketing language. If a claim about harsh-environment suitability is real, you should be able to trace it to specific operating limits, installation constraints, or documented test conditions.

A simple way to pressure-test a shortlist is to ask each supplier the same narrow questions tied to your environment. The quality of the answer often tells you as much as the product spec.

Run a shortlist review in this order

  1. Eliminate sensor types that are vulnerable to your contamination pattern.
  2. Screen for temperature, sealing, cable, and mechanical fit at the mounting point.
  3. Review EMI exposure along the full signal path.
  4. Match output and data behavior to the control or analytics requirement.
  5. Compare serviceability, replacement effort, and diagnostic visibility.
  6. Use vendor documentation to confirm the shortlist was built on stated limits, not assumptions.

The practical rule is simple: choose the sensor that gives dependable data in your actual factory conditions, not the one with the most impressive spec sheet headline. In harsh industrial environments, reliability comes from fit between sensing principle, installation reality, and data path. That is the combination worth paying for.
