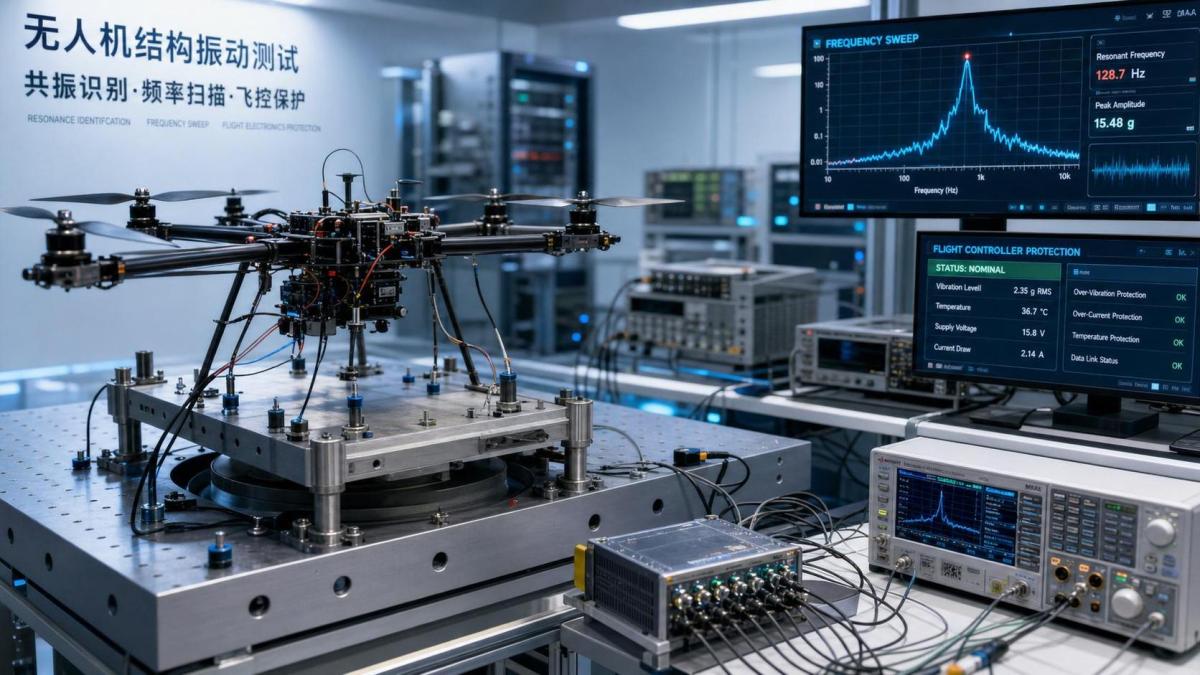

For technical evaluators, UAV vibration testing is not a routine checkbox. It is a direct way to reveal resonance before it harms flight electronics.

That matters because vibration rarely stays isolated. It moves through frames, mounts, arms, fasteners, and wiring until weak points become failure points.

In practice, UAV vibration testing helps expose risks around flight controllers, IMUs, GNSS modules, cameras, payload sensors, ESCs, and battery connectors.

A small amplitude at the motor can become a large response at the airframe. Once resonance appears, control stability and data quality both degrade quickly.

This is why engineering teams should treat UAV vibration testing as a system-level decision tool, not just a validation step before shipment.

At TechStat Vanguard, the rule is simple. Parameters do not lie, and tolerances decide whether a platform survives real mission loads.

Why Resonance Is So Dangerous in UAV Platforms

Resonance happens when an excitation frequency matches a natural frequency of the structure or mounted component. Energy then accumulates instead of dissipating.

For UAV vibration testing, the most common excitation sources are propeller imbalance, motor harmonics, gear mesh, aerodynamic buffeting, and landing impact transfer.

The most exposed electronics are usually the IMU and flight controller. Their performance depends on clean motion data and stable electrical connections.

When vibration grows near a sensor mount, accelerometer bias can drift, gyroscope noise can spike, and control loops may start chasing false motion.

Payload systems also suffer. Gimbals lose stabilization margin, image blur increases, LiDAR point clouds scatter, and mapping accuracy drops without obvious warning.

More importantly, repeated exposure shortens life. Solder joints crack, connectors loosen, wire insulation abrades, and heat sinks lose stable contact.

Core UAV Vibration Testing Methods That Actually Work

Effective UAV vibration testing usually combines bench measurements, modal checks, controlled sweeps, and mission-representative runs. No single test captures the full picture.

1. Baseline static and idle measurement

Start with the airframe secured. Record vibration at idle, low throttle, mid throttle, and near maximum operating speed.

Mount accelerometers near motors, on the central frame, and directly beside critical electronics. This reveals how vibration is transmitted across the structure.

2. Frequency sweep testing

Sweep motor speed gradually through the expected operating band. Look for sharp amplitude peaks rather than average values.

This UAV vibration testing method is one of the fastest ways to identify resonance zones tied to rotor RPM and harmonic multiples.

3. Impact or modal testing

Use an instrumented hammer or equivalent excitation tool to estimate natural frequencies. Measure response at multiple structural points.

This separates structural behavior from motor input. It is especially useful when a resonance issue remains after balancing and prop replacement.

4. Flight-condition verification

Bench data is necessary, but not sufficient. Confirm vibration signatures during hover, climb, forward flight, descent, and aggressive maneuvering.

Real airflow and payload interaction often shift resonance enough to create problems that a static bench setup misses.

How to Interpret UAV Vibration Testing Data Without Guesswork

Raw acceleration numbers are only the start. Useful UAV vibration testing depends on linking amplitude, frequency, location, and operating state.

The first step is to review time-domain behavior. Sudden spikes can indicate intermittent contact, loose hardware, or propeller defects.

Next, move to frequency-domain analysis with FFT. Resonance usually appears as narrow, repeatable peaks at fundamental or harmonic frequencies.

Pay attention to response amplification between the source and the electronics location. A moderate motor peak can become a severe controller peak.

Damping behavior also matters. A broad peak may be manageable, while a sharp high-Q peak often signals a narrow but dangerous resonance band.

In actual review workflows, three questions keep the analysis grounded:

• At what frequency does the peak occur?
• Which subsystem shows the highest amplification?
• Does the peak align with a normal mission operating range?

If the answer to the third question is yes, the issue is not theoretical. It is already a mission reliability problem.

Typical Failure Patterns Exposed by UAV Vibration Testing

Good UAV vibration testing does more than find noise. It helps connect vibration signatures to likely hardware failure modes.

A low-frequency structural peak often points to frame stiffness issues, loose arms, or weak payload support brackets.

A strong peak at motor rotational frequency usually suggests rotor imbalance, bent shafts, bearing wear, or propeller manufacturing variation.

Multiple peaks at harmonic intervals can indicate nonlinear mounting behavior, rigid coupling, or repeated excitation from propulsion control timing.

For electronics, the warning signs are often indirect. EKF instability, intermittent GPS dropouts, image jitter, or unexplained ESC faults can all trace back to vibration.

This is why TSV-style evaluation avoids broad claims. The question is always which measured parameter predicts the next failure first.

Practical Ways to Protect Flight Electronics After Resonance Is Found

Once UAV vibration testing identifies a resonance band, the fix should target the source path before adding isolation everywhere.

Start with propulsion quality. Balance propellers, inspect shafts, verify motor bearings, and compare ESC timing behavior across matched channels.

Then review structural stiffness. Small bracket changes, arm reinforcement, or mount relocation can move natural frequencies outside the operating band.

Isolation mounts help, but only when their stiffness is selected against the measured excitation range. Random soft mounts often create new resonance problems.

Cable management also matters more than many teams expect. Unsupported wire bundles can transmit vibration directly into connectors and sensor housings.

For sensitive electronics, prioritize these actions:

1. Place IMUs near structurally stable zones, not at convenience locations.
2. Use measured damping materials with known frequency response.
3. Secure connectors with retention features suited for cyclic loading.
4. Recheck thermal paths after mount changes.
5. Repeat UAV vibration testing after every structural revision.

A Simple Decision Framework for Technical Evaluation

When comparing suppliers, prototypes, or redesign options, a consistent screening method reduces noise in the decision process.

A practical UAV vibration testing review should document the items below in one table.

This kind of record makes supplier claims easier to audit. It also shortens redesign loops because each change has a measured consequence.

What Strong UAV Vibration Testing Looks Like in Real Programs

Strong programs do not stop at one successful bench run. They build repeatability across prototypes, payload variants, and environmental conditions.

That means recording sensor placement, sampling rates, mounting methods, FFT settings, and pass-fail thresholds in a consistent format.

It also means challenging convenient assumptions. If a mount change reduces IMU vibration but increases camera blur, the solution is incomplete.

From a sourcing perspective, the best partners can show traceable UAV vibration testing results tied to actual design revisions and field outcomes.

That is the difference between technical evidence and polished marketing language. One reduces trial-and-error cost. The other usually adds to it.

In the end, UAV vibration testing is about protecting mission integrity through measurable engineering choices. Identify the resonance, verify the transfer path, correct the structure, and retest until the electronics stay quiet where the aircraft actually flies.
