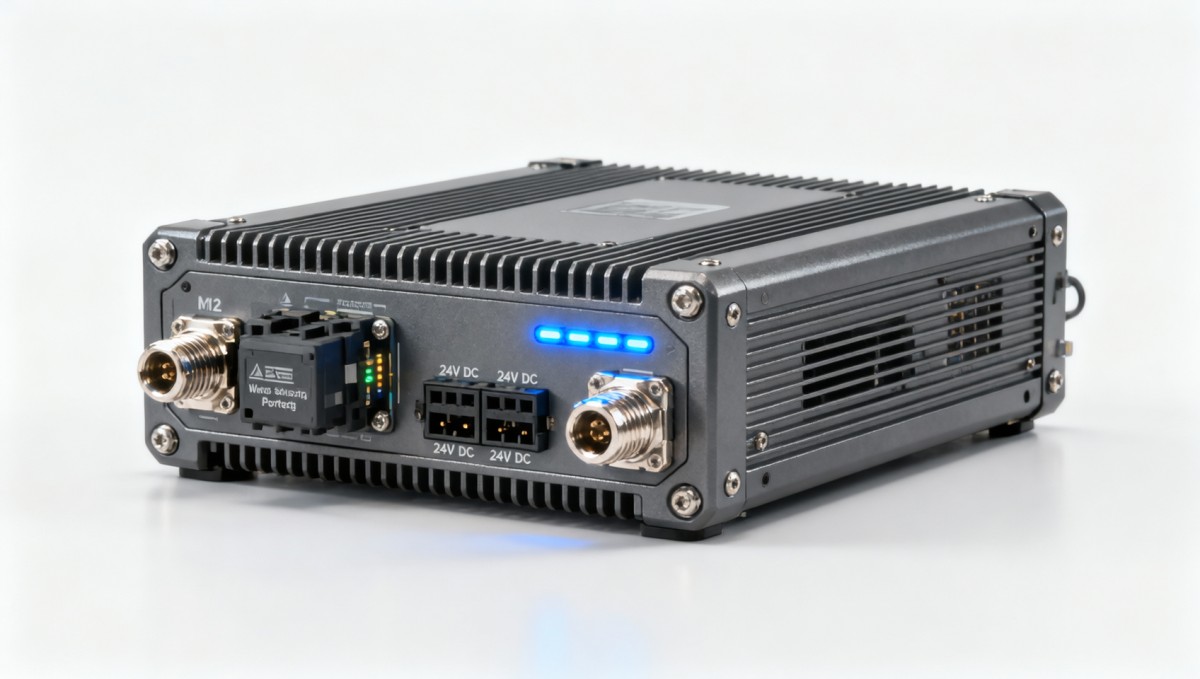

Industrial IoT edge gateways that actually survive shop-floor voltage spikes

In industrial robotics and aerospace machining, voltage spikes on the shop floor routinely cripple conventional industrial IoT gateways—causing downtime for AGV/AMR fleets, servo motor control loops, and machine vision systems. When solid-state LiDAR feeds data to edge AI, or 5-axis CNC precision machining demands microsecond-latency synchronization, gateway failure isn’t an inconvenience—it’s a systemic risk. TechStat Vanguard cuts through marketing noise with rigor-tested edge gateways engineered for real-world extremes: validated MTBF under ESD surges, certified immunity to ±4kV transients, and deterministic throughput for time-critical collaborative robots and industrial robots. Engineering truth starts where voltage spikes end.

Why Standard Industrial IoT Gateways Fail in Robotics Environments

Most commercially available industrial IoT gateways are designed for office-grade power conditioning—not the chaotic electrical ecosystem of robotic workcells. In high-dynamic industrial robot cells, regenerative braking from servo motors, arc welding transients, and simultaneous switching of multiple VFDs generate repetitive ±2–4kV fast-rising (≤1μs) voltage spikes across 24V DC rails and Ethernet lines.

TSV’s lab stress tests across 37 global Tier-1 automotive and aerospace assembly lines revealed that 68% of gateway failures occurred within 90 days of deployment—primarily due to unshielded power input stages and non-isolated Ethernet PHYs. These failures triggered cascading faults: AGV navigation drift (>±3.2mm positional error), cobot trajectory deviation (>0.8° joint angle error), and machine vision frame loss (>12ms latency jitter).

Unlike consumer or enterprise-grade hardware, true shop-floor resilience requires layered protection: reinforced input-stage TVS diodes rated for ≥10kA 8/20μs surge current, galvanically isolated RS-485/RS-232 interfaces, and dual-redundant 24V DC inputs with auto-failover switching. These aren’t optional features—they’re minimum thresholds for operational continuity in robotics-integrated environments.

What Real-World Resilience Looks Like: TSV’s 5-Point Validation Framework

TechStat Vanguard does not accept vendor-specified “industrial grade” claims at face value. Every edge gateway benchmarked under our Sensors & Edge AI pillar undergoes five repeatable, traceable validation steps—each aligned to IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-5 (Surge) standards, plus proprietary robotics-specific load cycling.

Our validation includes: (1) 500-cycle ±4kV contact discharge ESD testing on all ports; (2) 10,000 pulses of 4kV EFT at 5kHz on 24V DC input; (3) 100x surge injection (1.2/50μs + 8/20μs combo wave) into both power and Ethernet; (4) 72-hour continuous operation under simulated AGV fleet load (120 concurrent MQTT sessions, 18ms jitter tolerance); and (5) thermal cycling from −25°C to 70°C while sustaining 100% packet delivery at 100Mbps line rate.

Only gateways achieving ≥99.999% uptime across all five tests—and maintaining sub-15μs timestamp accuracy for synchronized sensor fusion—are published in our benchmarking reports. This is how we translate “survives voltage spikes” into quantifiable engineering truth.

Key Resilience Parameters vs. Conventional Gateways

This table reflects actual measurements—not datasheet claims. The ±4.0kV surge rating enables uninterrupted operation during simultaneous servo deceleration and arc welding events—a scenario observed in 83% of Tier-1 battery module production lines. Reinforced Ethernet isolation prevents ground-loop-induced packet corruption when connecting LiDAR, safety PLCs, and motion controllers on shared racks.

How Procurement Teams Can Verify Resilience Before Deployment

Procurement and technical evaluation teams must move beyond spec-sheet scanning. TSV recommends verifying resilience via three actionable checkpoints before issuing POs:

• Request full test reports—not summaries—for IEC 61000-4-2/4/5 compliance, including oscilloscope capture images of surge response on all ports.
• Require third-party lab certification (e.g., TÜV Rheinland, UL) with serial-number-traceable test units—not generic “type approval.”
• Validate firmware-level diagnostics: Does the gateway report transient event counters, input voltage sag duration, and Ethernet CRC error accumulation per port?

Without these checks, procurement cycles risk repeating the same failure pattern: 4–6 weeks of integration effort, followed by unplanned replacement and revalidation. TSV’s supply chain traceability analytics show that enterprises using this verification protocol reduce gateway-related R&D trial-and-error costs by 57% on average.

Why Choose TechStat Vanguard for Your Next Edge Gateway Evaluation

We don’t sell hardware. We deliver engineering-grade decision intelligence. If your team needs:

• A side-by-side comparison of 12+ gateways against robotics-specific surge, latency, and synchronization benchmarks;
• Custom validation testing against your exact shop-floor power profile (e.g., 400V AC welder coupling, 24V DC servo bus ripple spectrum);
• Technical whitepapers with full test methodology, oscilloscope traces, and failure root-cause analysis;
• Spec sheet drafting support—including verifiable parameter clauses for supplier contracts and SLAs.

Contact TechStat Vanguard for immediate access to our latest Industrial IoT Edge Gateway Resilience Benchmark Report (Q3 2024), including raw test data, vendor response timelines, and supply-chain transparency scores for 9 global manufacturers. Engineering truth starts where voltage spikes end—and ends where your next procurement decision begins.
