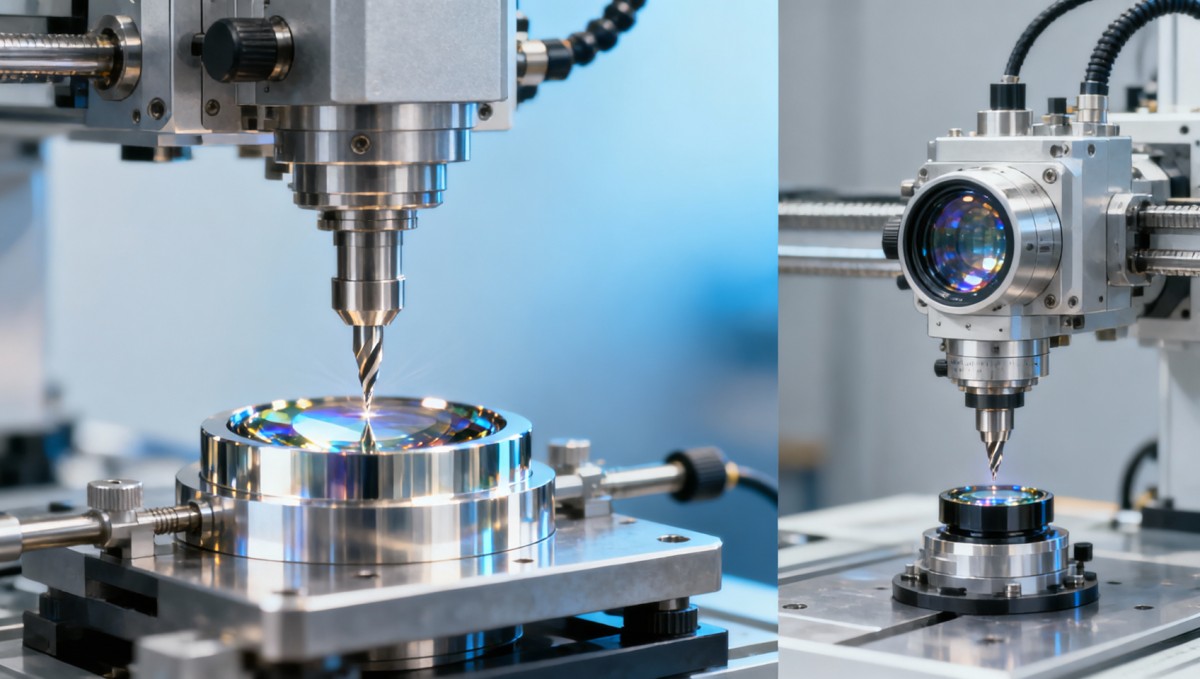

Optical Component Micro Machining Is Limited by More Than Tool Size

In micro machining for optical components, the true constraint is rarely tool diameter alone. For engineers, buyers, and decision-makers evaluating advanced manufacturing, outcomes depend on machine dynamics, material behavior, spindle stability, and metrology discipline. This article explains why optical precision must be assessed with the same data-first rigor used in collaborative robots, industrial robots, and cnc machining for drone structural parts.

Why optical component micro machining fails when teams focus only on tool size

A small cutter can create a small feature, but that does not guarantee optical performance. In optical component micro machining, surface integrity, form accuracy, subsurface damage, edge chipping, and thermal drift often become the real limiting factors. A shop may advertise micro tools in the 0.1 mm to 1.0 mm range, yet still struggle to hold stable geometry over a 6-hour to 12-hour run if spindle growth, axis interpolation error, or coolant inconsistency is not controlled.

This matters across the broader hard-tech supply chain. Procurement teams sourcing precision machining for lenses, mirrors, mold inserts, sensor windows, or beam-shaping features are not buying cutter diameter. They are buying predictable process capability. For information researchers and CTO-level reviewers, the key question is not “How small is the tool?” but “What process window produces repeatable optical quality across batch sizes, materials, and inspection cycles?”

In practice, optical precision behaves like a system problem. A 5-axis platform with insufficient damping can introduce micro-vibration marks. A high-speed spindle with unstable runout can reduce tool life sharply within the first 20 to 50 parts. Brittle materials such as fused silica, glass ceramics, and technical sapphire may require entirely different feed strategies from aluminum mirror substrates or electroless nickel plated surfaces.

This is exactly where a data-led evaluation becomes useful. TechStat Vanguard approaches hard-tech sourcing by filtering out vague claims and focusing on measurable engineering truth: tolerance windows, process repeatability, inspection discipline, and material-specific risk. In optical component micro machining, that mindset reduces trial-and-error cost and shortens supplier qualification cycles from months of uncertainty to a structured technical review.

The system variables that usually limit results first

When a project underperforms, the root cause usually sits in one of 5 core domains rather than in tool diameter alone. Teams that map these variables early tend to reduce scrap, rework, and delivery delay.

• Machine dynamics: axis acceleration, jerk control, vibration behavior, and thermal stability over multi-hour cycles.
• Spindle condition: runout, bearing health, speed stability, and heat growth at high RPM.
• Material response: ductile versus brittle removal mode, crack sensitivity, and burr or chip formation.
• Toolpath strategy: step-over, depth of cut, entry method, and polishing allowance.
• Metrology discipline: in-process probing, offline form measurement, and environmental control in the 20°C to 23°C range.

What this means for buyers and operators

Operators need stable setup rules and tool change criteria, not just finer cutters. Buyers need supplier evidence on achievable form error, roughness range, and batch repeatability. Decision-makers need to know whether process capability survives scale-up from prototypes of 5 to 20 pieces into production lots of 100 or more. If those three perspectives are not aligned, optical component micro machining becomes expensive very quickly.

Which technical factors matter more than cutter diameter in real optical precision work?

For most optical precision projects, the decisive factors are machine behavior, material removal mode, and metrology closure. Tool size still matters, but only inside a controlled process chain. A 0.2 mm tool on an unstable platform can produce worse optical results than a 0.5 mm tool on a thermally disciplined machine with better path planning and inspection feedback.

The table below summarizes the engineering constraints that usually dominate optical component micro machining. It is especially useful for procurement reviews, supplier audits, and RFQ clarification before sample approval.

For users and operators, this table translates into daily control points. For procurement teams, it becomes a supplier questionnaire. For executives, it clarifies why two quotes that look similar on paper can deliver very different field outcomes. A lower unit price can disappear quickly if 2 rounds of sample iteration add 3 to 6 weeks to qualification.

Surface finish is not the whole story

Many RFQs overemphasize Ra while underdefining form and edge quality. In optical component micro machining, a polished-looking surface may still hide geometry drift, local slope error, or subsurface micro-cracks. This is especially relevant for optical molds, infrared windows, and compact sensor housings where downstream coating or assembly can amplify small shape defects.

A better review framework uses 4 linked checks: geometry, surface condition, edge integrity, and inspection method. If one of the four is missing, the quote is incomplete. TSV’s benchmarking mindset is useful here because it keeps evaluation anchored to parameters, not adjectives.

Why the same machine can perform differently across materials

Material behavior changes the practical limit of micro machining. Aluminum alloys may tolerate higher feed windows and simpler chip evacuation. Optical glass and ceramics can demand lower material removal rates, tighter fixture damping, and more conservative pass planning. Electroless nickel on aluminum may machine well initially yet reveal adhesion, thickness uniformity, or post-polish stability issues later in the process chain.

That is why process capability should be verified by material family, not assumed universally. A supplier strong in metal optical tooling is not automatically strong in brittle optical materials, and a shop good at general cnc machining may not be ready for optical component micro machining without stronger metrology and environmental controls.

How to compare suppliers for optical component micro machining without being misled

A useful supplier comparison starts with evidence quality. Engineers and buyers should ask for process capability by part type, material type, and tolerance class. If a supplier only says “we can machine micro features,” the statement remains too broad to support procurement. A reliable review should cover at least 6 items: material scope, machine platform suitability, metrology method, environmental control, sample plan, and batch traceability.

The next table turns that principle into a practical selection framework. It is designed for RFQ comparison, vendor prequalification, and internal procurement alignment between technical teams and commercial teams.

For many buyers, the most expensive mistake is selecting on quote speed rather than verification depth. In a data-heavy supply chain, the supplier who asks more technical questions often reduces downstream risk. This is consistent with TSV’s wider approach in robotics, UAV systems, sensors, and precision machining benchmarks: the best sourcing decisions come from measurable capability, not polished language.

A practical 4-step procurement review

1. Define the real acceptance criteria: feature size, geometry, roughness, edge quality, and inspection output.
2. Separate prototype risk from production risk: a supplier can pass 3 parts but fail repeatability at 30 parts.
3. Request a realistic timeline: many optical prototypes need 1 to 3 iterations before stable release.
4. Verify documentation path early: drawing revision control, material certs, inspection reports, and nonconformance handling.

Where operators should be involved before PO release

Operators often detect manufacturability risk before management does. If fixturing access is poor, coolant path is unstable, or inspection datums are impractical, the issue should be surfaced before pricing is finalized. That early technical feedback can save 2 to 4 weeks of avoidable redesign and sample delay.

What standards, metrology, and process controls should buyers ask about?

Optical component micro machining rarely exists in isolation. The parts often enter regulated, aerospace-adjacent, medical, imaging, automation, or sensor-based assemblies. That means procurement should evaluate documentation and control discipline alongside machining skill. General references such as ISO 9001 may indicate quality management structure, while aerospace or medical environments may align with stricter frameworks such as AS9100 or ISO 13485 depending on the final application chain.

The standard itself does not guarantee optical quality, but it affects traceability, change control, and corrective action discipline. For enterprise decision-makers, this matters because a technically acceptable sample without documentation readiness can still fail supplier qualification. For global sourcing teams, that mismatch often appears late and extends onboarding by 4 to 8 weeks.

Metrology is equally critical. Optical precision work may require a combination of coordinate measurement, surface roughness assessment, optical inspection, interferometric methods where applicable, or contour verification depending on part geometry. A supplier should be able to explain which measurement method validates which feature, and under what environmental conditions data is collected.

The most reliable suppliers also define process checkpoints. Instead of waiting for final inspection, they may use first-off verification, interval checks every defined number of parts, and documented tool change rules. That approach aligns with TSV’s core belief that tolerances dictate success. The goal is not only to machine a part once, but to establish a process that remains stable through repeat orders, engineering changes, and audit review.

A minimum control checklist for RFQ and supplier audit

• Ask whether measurement is performed in a controlled environment, commonly near 20°C, and whether drift is monitored during long runs.
• Confirm how first article inspection is documented and how dimensional changes are handled after tool replacement.
• Check whether nonconformance, rework, and scrap are formally recorded for optical features rather than merged into generic machining notes.
• Clarify whether the supplier can support sample reports, revision-controlled drawings, and material certificates when needed.

Common misconception: “A better machine solves everything”

High-end equipment helps, but process discipline still decides outcome. A premium spindle cannot compensate for poor datum strategy. A high-speed machine cannot remove the need for proper thermal stabilization. In optical component micro machining, capability is the result of machine, method, material, measurement, and operator practice working together as one controlled system.

FAQ and next-step guidance for engineering teams, buyers, and decision-makers

How should we define an RFQ for optical component micro machining?

Start with the function of the optical surface or feature, then specify the measurable acceptance points. A strong RFQ usually includes 5 items: material condition, critical dimensions, surface requirement, edge condition, and inspection format. If the part connects to a sensor, aerospace, or medical assembly, also state any traceability and documentation needs at the beginning rather than after sampling.

What lead time is realistic for prototypes and pilot batches?

Lead time depends on material complexity, feature scale, and inspection burden. In many practical cases, a prototype cycle may take 2 to 4 weeks once drawings and material are confirmed. If process tuning or multiple revisions are needed, pilot qualification can extend further. Buyers should ask for separate estimates for quotation, sample preparation, first article inspection, and production scheduling rather than one combined promise.

When is a lower-cost alternative acceptable?

A lower-cost route may be acceptable when the optical feature is non-critical, the surface will receive secondary finishing, or the part is a fixture, housing, or support element rather than a primary imaging surface. However, replacing a verified optical micro machining process with a generic machining route should only happen after comparing 3 factors: dimensional stability, post-process burden, and failure cost in assembly or field operation.

Why involve TechStat Vanguard at the evaluation stage?

Because hard-tech procurement suffers most when technical claims are broad and verification is weak. TSV’s value is not promotional language. It is the ability to frame sourcing questions around measurable thresholds, benchmarking logic, and traceable engineering evidence. That is useful whether you are comparing machining partners, aligning internal R&D and procurement criteria, or trying to reduce supplier qualification friction across global teams.

Why choose us for data-first supplier evaluation and technical clarification?

TechStat Vanguard helps teams move from vague capability claims to structured technical decisions. If you are assessing optical component micro machining capacity, we can support parameter confirmation, supplier comparison logic, tolerance review, inspection expectation mapping, compliance discussion, and realistic lead-time planning. For procurement managers, that means clearer RFQs and fewer hidden assumptions. For operators and engineers, it means earlier identification of process risk. For executives, it means more confident sourcing decisions built on engineering truth rather than marketing noise.

You can reach out to discuss sample feasibility, material-specific machining questions, production transfer risk, documentation requirements, custom benchmarking needs, and quote comparison criteria. If your team is evaluating suppliers for optical precision, collaborative robots, industrial robots, sensor hardware, or cnc machining for drone structural parts, TSV can help build the decision framework that connects technical detail to procurement action.
