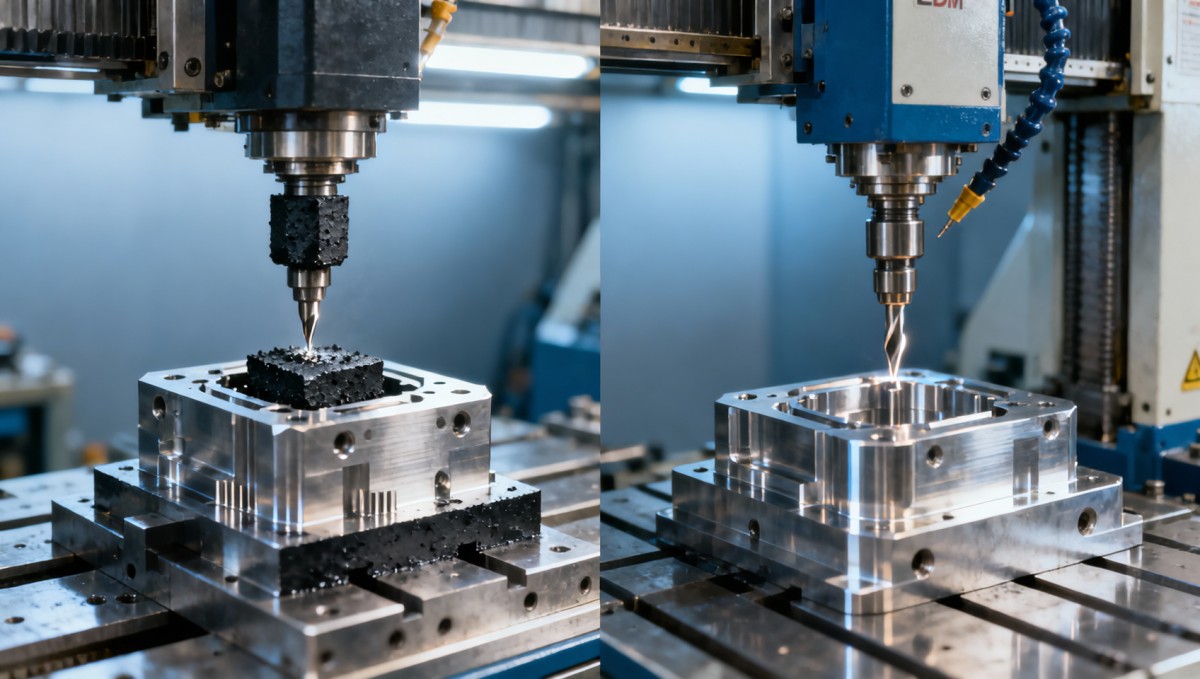

Injection Mold EDM Accuracy Can Slip Long Before a Tool Is Worn

In edm for plastic injection molds, accuracy often degrades long before visible tool wear appears—quietly affecting fit, finish, cycle stability, and downstream quality. For engineers, operators, buyers, and decision-makers comparing precision grinding surface roughness, cnc spindle runout measurement, or custom machining for robotics joints, understanding these early EDM drift signals is essential to preventing costly mold corrections, scrap, and supplier misjudgment.

Why EDM Accuracy Drifts Before the Electrode Looks Worn

In injection mold EDM, visible electrode wear is only one part of the accuracy story. Dimensional slip often starts earlier through thermal variation, flushing instability, servo response changes, machine geometry drift, dielectric contamination, and setup inconsistency. A mold shop may still see an electrode that appears usable, yet the cavity depth, corner condition, or rib profile can already be moving outside the intended tolerance window.

This matters most in precision molds where acceptable deviation may be measured in a narrow band such as ±0.005 mm to ±0.02 mm, depending on feature type and downstream polishing allowance. In these conditions, a small EDM drift can create fitting problems that only appear later during assembly, mold trial, or production startup. By the time flash, mismatch, drag marks, or unstable venting show up, the EDM source error may already be several process steps behind.

For information researchers and sourcing teams, this is a key procurement issue. A supplier may claim stable sinker EDM capability, but if it only reports final inspection and not in-process stability, the purchasing side cannot tell whether the process is controlled or simply corrected afterward. That distinction affects lead time, rework cost, and repeatability in future tool builds.

At TSV, the data-first view is simple: parameters do not lie. When EDM accuracy is evaluated, the right question is not “Does the tool still look fine?” but “What process variables started drifting in the last 8–24 production hours, and how were they measured?” That engineering mindset filters out marketing language and improves supplier judgment.

What typically shifts first in a real mold shop

• Burn depth consistency starts to vary across repeated cavities or inserts, especially when feature depth is narrow and flushing is limited.
• Corner sharpness and small rib edges round off earlier than operators expect, even when gross dimensions still appear acceptable.
• Surface integrity changes from stable texture to mixed crater density, creating polishing variability and local gloss differences.
• Cycle time increases by 5%–15% as servo behavior and spark gap conditions become less consistent.

Which Early Signals Should Engineers and Operators Watch First?

If the goal is to catch EDM accuracy slip before a mold requires correction, the most useful approach is to monitor signals that appear upstream of final dimensional failure. Operators often focus on visual electrode condition, but engineering teams should track burn time trend, spark stability, cavity-to-cavity deviation, recast behavior, and machine repeatability over multiple setups. These indicators reveal process drift earlier than a simple wear check.

A practical rule in many mold environments is to review process stability every shift or every 6–8 operating hours for precision cavities, micro ribs, shutoff areas, and textured surfaces. For less critical features, a daily review may be enough. The right interval depends on part geometry, electrode material, burn depth, dielectric quality, and how tight the tool matching requirement is in assembly.

EDM drift is especially easy to miss when downstream operations hide it temporarily. Light bench fitting, spot polishing, or local hand correction can make a tool pass trial once, but that does not prove the EDM process is stable. For procurement teams comparing mold suppliers, recurring manual correction is not a sign of precision capacity; it is often a sign that the process window is not being held consistently.

The table below summarizes the most useful early indicators for plastic injection mold EDM accuracy control, along with why each one matters to operators, quality staff, and decision-makers.

For buyers comparing suppliers, these are stronger indicators than broad claims about “high precision EDM.” A technically credible supplier should be able to explain which of these signals it records, how often it reviews them, and what corrective action is taken if drift exceeds its internal limit.

Why visual checks alone are not enough

An electrode can look acceptable under routine inspection while still producing measurable variation. In graphite EDM, edge definition may degrade gradually. In copper electrodes, local geometry and heat behavior may shift before wear becomes obvious to the eye. That is why advanced mold programs often combine visual checks with dimensional verification, machine condition review, and historical process comparison.

This logic is familiar across hard-tech manufacturing. In robotics joint machining, small spindle runout can ruin fit long before a tool is visibly damaged. In precision grinding, roughness drift may begin before wheel condition looks severe. EDM follows the same principle: hidden drift usually appears in data before it appears in obvious wear.

How EDM Drift Affects Mold Quality, Production Risk, and Total Cost

EDM inaccuracy is rarely an isolated workshop issue. It can influence mold assembly, sample approval, mass production stability, and warranty exposure. When shutoff faces, parting features, texture zones, and insert transitions are affected, the result may include flash, mismatch, drag, cosmetic defects, venting instability, and cycle inconsistency. Each problem has a direct cost, even if the original EDM deviation looked small.

For procurement teams, the risk is supplier misjudgment. A low quote can appear attractive until hidden EDM instability causes 1–2 extra correction loops, delayed trial shipments, or repeated dimensional tuning. In multi-cavity or export mold projects, a one-week delay can create larger downstream costs than the initial price difference. This is especially true when mold components must also match CNC, grinding, polishing, and fitting processes with tight interdependence.

For enterprise decision-makers, the right metric is not only machining price but total quality cost over the full program cycle. If EDM drift raises polishing hours, scrap risk, sampling iterations, or field adjustment time, the real cost of the tool increases. Data-based supplier evaluation helps reduce that uncertainty during RFQ and technical review.

The comparison below shows how early EDM drift typically translates into business impact across engineering, operations, and sourcing functions.

This is why TSV emphasizes parameter transparency over slogan-based capability claims. In advanced manufacturing, a supplier that can explain correction frequency, in-process verification, and feature-specific risk control is usually a lower-risk partner than one offering only attractive general statements.

Where the risk is highest

• Thin ribs, deep slots, narrow shutoffs, and fine cosmetic surfaces where even small spark instability alters function or appearance.
• Multi-cavity molds where one drifting cavity can create sorting issues, uneven fill behavior, or repeated maintenance complaints.
• Programs combining EDM, precision grinding, and CNC finishing, where stacked variation across 3–4 operations increases final mismatch risk.

What Buyers Should Ask When Comparing EDM Mold Suppliers

A good supplier comparison process should go beyond machine brand and quote price. Buyers should ask how the mold shop controls EDM accuracy over time, how it validates repeatability between burns, and how it decides when an electrode remains usable. A supplier with a stronger data discipline will usually answer with process thresholds, review intervals, and measurable checkpoints instead of broad promises.

For procurement and technical sourcing, three categories matter most: process control, inspection method, and correction policy. These categories help determine whether a shop prevents drift or merely repairs the effects later. This distinction can shorten supplier qualification cycles by reducing the number of unknowns during technical clarification.

The most effective RFQ discussions also connect EDM capability to adjacent processes. If a supplier claims strong EDM performance but cannot explain how it manages CNC datum consistency, precision grinding surfaces, bench fitting, or polishing allowance, the final tool quality may still be exposed to uncontrolled variation.

Use the checklist below during supplier evaluation, sample review, or corrective-action meetings.

A practical EDM sourcing checklist

1. Ask what repeatability band the shop targets for critical mold features and whether limits differ for rough, semi-finish, and finish burns.
2. Confirm how often dielectric condition, burn stability, and machine performance are reviewed: per shift, daily, or by job stage.
3. Request examples of in-process verification for depth, edge fidelity, or cavity matching, especially on small features.
4. Ask when electrodes are replaced: by visible wear, by burn count, by geometry check, or by historical performance trend.
5. Check how EDM interacts with downstream polishing, fitting, and texture control to avoid hidden rework.
6. Discuss the usual correction loop: how many review steps are used, who approves re-burn decisions, and what records are kept.

Questions that separate capable suppliers from generic vendors

A capable supplier can usually explain its process in 4 clear parts: setup control, burn monitoring, intermediate verification, and corrective response. It may not disclose every internal parameter, but it should be able to discuss its control logic. If the answer stays at the level of “our operator has experience,” buyers should treat that as incomplete evidence rather than proof of stability.

This is exactly where TSV’s engineering benchmarking perspective adds value. We help technical buyers focus on measurable criteria, not generic sales language. In hard-tech sourcing, the best procurement outcome often comes from asking fewer broad questions and more specific parameter questions.

Common Misconceptions, Standards Context, and a Better Decision Framework

One common misconception is that EDM accuracy problems begin only when the electrode is obviously worn. Another is that acceptable first-shot dimensions prove a stable process. In reality, a mold may pass an initial check and still show repeatability problems over the next 10–20 hours of production or across multiple inserts. Stability over time matters as much as initial accuracy.

A second misconception is that final hand fitting can compensate for weak EDM control without consequence. While correction may rescue a project, it introduces time, labor, and repeatability risk. In tightly controlled sectors such as aerospace-related machining, medical manufacturing, robotics components, or sensor housings, uncontrolled manual compensation is not a substitute for process capability. The same procurement discipline should apply to high-value plastic injection molds.

Standards such as ISO 9001 can support process discipline at a management level, while industry-specific systems like AS9100 or ISO 13485 may shape documentation and traceability expectations in adjacent precision manufacturing environments. However, certification alone does not prove EDM accuracy. Buyers should treat certification as a baseline and process evidence as the decisive layer.

A better decision framework uses 5 checkpoints: defined tolerance scope, in-process measurement frequency, drift response method, downstream correction burden, and historical repeatability on similar geometry. These checkpoints are more useful than judging a supplier by machine count or sales presentation quality.

FAQ for engineering teams and sourcing managers

How can I tell whether EDM drift is affecting mold quality before trial molding?

Look for three early patterns: repeatability loss between similar cavities, increasing correction effort during bench fitting, and surface inconsistency during finish verification. If burn time also stretches over a 6–8 hour window under similar settings, that is another useful warning sign. Waiting for trial defects is usually too late and more expensive.

Is electrode wear still important if drift starts earlier?

Yes. Electrode wear remains important, but it should be treated as one variable within a broader process-control system. Wear, thermal condition, dielectric cleanliness, spark gap behavior, setup repeatability, and machine status all interact. A visually acceptable electrode does not guarantee acceptable mold EDM accuracy.

What should procurement teams request from a supplier during quotation review?

Request a feature-based control explanation rather than just a general capability claim. Ask how critical features are checked, what review interval is used, how drift is escalated, and what kind of corrective loop is standard. If the mold includes fine shutoffs, ribs, or cosmetic surfaces, ask about those specific zones rather than the mold as a whole.

Does a higher EDM quote always mean better stability?

Not always. A higher quote may reflect stronger process control, but it can also reflect overhead or conservative pricing. The better approach is to compare the technical basis of the quote: inspection steps, burn-stage controls, correction logic, and expected lead time. In many cases, the lowest visible price becomes the highest total cost once rework and delay are included.

Why Technical Decision-Makers Work With TSV

TSV was built for engineering-led decisions in noisy industrial markets. We do not rely on vague claims about being advanced, premium, or industry-leading. Our approach is to translate supplier capability into engineering truth: tolerance logic, process stability signals, benchmarkable performance, and sourcing risk visibility. That is especially valuable when comparing EDM mold capability with related precision processes such as grinding, CNC finishing, surface control, and custom machining for high-value assemblies.

For information researchers, we help separate usable technical evidence from promotional language. For operators and users, we clarify which process signals are worth monitoring on the floor. For procurement teams, we support better RFQ criteria and supplier screening. For enterprise decision-makers, we reduce uncertainty around total quality cost, qualification cycle length, and manufacturing partner selection.

If you are reviewing injection mold EDM accuracy, comparing precision machining suppliers, or building a more defensible sourcing standard, TSV can help you focus on the parameters that matter. We can support discussions around tolerance confirmation, supplier comparison logic, inspection checkpoints, delivery risk, custom process requirements, and technical quotation review.

Contact TSV to discuss 4 practical areas: critical parameter confirmation, mold or component process selection, realistic lead-time expectations such as 2–4 week evaluation cycles or staged technical reviews, and documentation needs for quality, traceability, or customer approval. If your team needs a data-driven benchmark rather than a marketing narrative, this is the right place to start.
