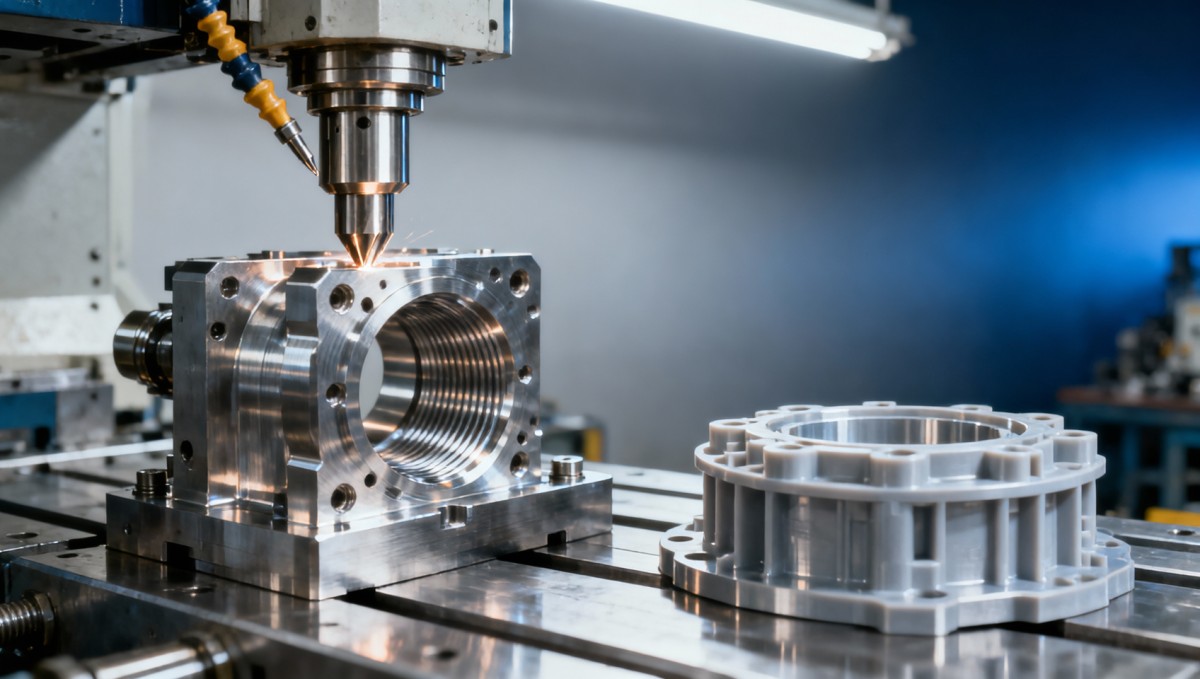

EDM for Plastic Injection Molds Where Surface Finish Changes Cycle Time

In EDM for plastic injection molds, surface finish is not just a quality metric—it directly shapes cycle time, tool wear, and downstream polishing demands. For engineers, buyers, and operations teams comparing precision processes such as industrial robots integration, custom machining for robotics joints, or precision grinding surface roughness control, understanding how EDM parameters influence molding efficiency is essential to making faster, data-backed manufacturing decisions.

Why does EDM surface finish change injection molding cycle time in real production?

For plastic injection molds, EDM surface finish affects more than cavity appearance. It changes how molten polymer flows, how quickly trapped gas escapes, how easily the molded part releases, and how much secondary polishing is required before production approval. In many plants, the discussion starts with Ra value or spark grade, but the real business impact appears later in cycle time, reject rate, and mold maintenance intervals.

A rougher EDM texture can increase drag during ejection, especially on deep ribs, textured walls, and tight shutoff areas. When release force rises, processors often compensate by adding 0.5–2.0 seconds of cooling time, adjusting ejector sequencing, or reducing injection speed. That may look small in isolation, but over medium- to high-volume runs, even a 1-second increase can materially change machine utilization and part cost.

A finer surface finish may improve release and reduce polishing labor, yet it can also raise machining time in the toolroom if multiple skim passes are required. The practical question is not whether smoother is always better. The correct question is whether the chosen EDM finish aligns with resin type, geometry, venting design, cosmetic requirement, and target cycle window, typically evaluated during T0 to T2 mold trials.

This is where a data-driven evaluation matters. TechStat Vanguard (TSV) focuses on engineering truth rather than vague quality claims. For procurement teams and decision-makers, that means comparing process routes through measurable indicators: expected finishing passes, polishing burden, release behavior, cavity wear exposure, and the likely effect on a cycle target such as 18–25 seconds for a standard technical plastic housing.

• Surface finish influences polymer flow marks, gas evacuation, and ejection friction rather than acting as a purely visual specification.
• Cycle time changes often appear indirectly through longer cooling, slower opening speed, or added mold release interventions.
• Toolroom labor can shift from EDM machine time to bench polishing time depending on the selected finish strategy.
• The best decision usually comes from balancing 3 variables together: cavity finish, molding stability, and total cost per accepted part.

What operators and buyers usually miss

Operators often focus on machine settings after the mold enters production, while buyers may focus on upfront tooling cost. Both viewpoints are incomplete. If the EDM finish causes sticking, blush, or unstable demolding, the press team may spend several shifts adjusting hold pressure, cooling, and ejection timing without solving the root cause. What looked like a cheaper tool at RFQ stage can become the more expensive option in the first 3–6 months of production.

For technical procurement, the key is to request finish-related process information before purchase order release. That includes electrode strategy, number of finishing passes, intended polishing allowance, steel grade compatibility, and trial validation criteria. These are not abstract details. They directly affect launch timing, maintenance planning, and whether the mold can consistently hold dimensional and cosmetic targets under normal plant variation.

Which EDM parameters matter most when surface finish drives molding efficiency?

EDM for plastic injection molds is a controlled trade-off between removal rate, recast layer, electrode wear, and final surface texture. In roughing, higher discharge energy removes material faster but leaves a deeper crater structure. In finishing and skimming, lower energy settings reduce surface roughness and help minimize the damaged layer. For many mold shops, the commercial risk is using roughing efficiency logic on areas that later control venting, release, or optical appearance.

The most relevant parameters usually include pulse on-time, pulse off-time, peak current, electrode material, flushing conditions, and the number of finish passes. Shops may describe results through internal spark grades, but buyers should translate those descriptions into practical outputs: expected surface roughness range, benching requirement, and whether manual correction will be needed in narrow ribs, deep pockets, or shutoff details.

For mold applications with engineering plastics, thin-wall parts, or visually sensitive surfaces, a small difference in cavity condition can influence process stability. A finish suitable for hidden structural geometry may be unacceptable for a glossy exterior face or a lens-adjacent component. This is also why TSV emphasizes parameter-backed benchmarking: process names alone do not provide enough decision quality.

The table below summarizes how common EDM process choices can influence downstream molding behavior. These are practical manufacturing tendencies rather than universal guarantees, and they should always be validated against resin, steel, geometry, and texture requirements.

From a sourcing perspective, this table shows why EDM surface finish should be reviewed as part of process capability, not left as a cosmetic footnote. A quote that lacks detail on finish passes, polishing allowance, and cavity-specific strategy often transfers uncertainty downstream to mold trials, production engineering, and maintenance budgets.

Three parameter groups that deserve review

1. Energy settings and pass structure

Ask whether the mold area receives only rough plus one finish pass, or a staged route such as roughing, semi-finishing, and 2–4 skim passes. The difference affects both texture quality and polishing workload. On complex molds, a staged route can reduce handwork variability and improve repeatability across multiple cavities.

2. Electrode and compensation method

Graphite and copper each have advantages depending on geometry and target finish. What matters commercially is not only material choice but how wear is modeled and measured. If the supplier cannot explain compensation on corners, ribs, and deep pockets, the finish quality may vary across the tool.

3. Planned post-EDM finishing

A quoted EDM finish is rarely the whole story. Buyers should confirm whether stone polishing, paper polishing, diamond paste work, or texture preparation is part of scope. A surface that looks acceptable at delivery may still add 8–20 bench hours if cosmetic approval is strict.

How should engineers and procurement teams compare EDM, polishing, and alternative finishing routes?

Not every mold surface should be pushed to the same EDM finish level. The correct route depends on part function, visibility, resin sensitivity, and cost target. Some cavities benefit from fine EDM followed by light polishing. Others need aggressive polishing from a machined base condition. In textured molds, the optimal path may focus on texture consistency rather than mirror quality.

Cross-functional teams often compare machining cost without comparing production impact. That creates blind spots. A lower-cost EDM approach may increase manual polishing and delay sampling by 3–7 days. A premium finishing route may reduce launch friction but make sense only for Class A appearance parts or for tools running high annual volumes. Decision quality improves when the comparison includes total manufacturing effect, not just toolroom hours.

The following comparison helps separate these choices in practical terms for information researchers, mold users, and enterprise buyers evaluating injection mold finishing strategy.

A useful rule for buyers is to compare at least 4 dimensions together: cavity accessibility, annual part volume, appearance requirement, and target trial timeline. When these factors are separated, teams tend to overspecify finish on low-risk surfaces or underspecify finish in areas that control release and part consistency.

Decision logic for common B2B scenarios

For robotics housings, sensor brackets, connectors, and industrial covers, the surface finish strategy should support predictable throughput rather than decorative perfection. If the part has draft-sensitive geometry or glass-filled resin, prioritize release reliability and wear resistance. If the part is customer-facing and lightly textured, focus on finish uniformity and texture readiness rather than maximum smoothness everywhere.

For enterprise decision-makers managing launch deadlines, it is often better to define finish by functional zones. For example, specify one level for hidden structural faces, another for ejection-critical ribs, and a third for cosmetic or texture surfaces. This structured approach can reduce unnecessary tooling cost while improving first-trial readiness.

• Use zone-based finish planning for molds with mixed cosmetic and structural requirements.
• Review annual volume before paying for a premium finish across the full cavity.
• Link finish decisions to resin behavior, especially for filled polymers and tight draft conditions.
• Ask suppliers to separate EDM cost, polishing cost, and texture-prep cost in quotations.

What should a procurement checklist include before approving an EDM-based mold finish?

A strong procurement decision for EDM in plastic injection molds requires more than a drawing note. The RFQ package should define functional surfaces, expected finish route, validation method, and acceptance checkpoints. In practice, many disputes come from vague wording such as “fine EDM finish” or “polish as needed,” which leaves too much room for interpretation between tooling, quality, and production teams.

A disciplined review process usually has 4 stages: design clarification, supplier process confirmation, sample trial review, and production release. Each stage should include measurable checks. For example, before PO award, confirm which surfaces are EDM-only, EDM-plus-polish, or prepared for texturing. Before T1 sampling, confirm cavity release behavior, visible defects, and any areas still requiring bench correction.

The checklist below is especially relevant for procurement managers and CTO-level reviewers who need a compact but technical framework for supplier comparison.

Using a checklist like this helps prevent a common failure mode in hard-tech sourcing: evaluating vendors on headline price while leaving process risk undefined. TSV’s position is straightforward: parameters, tolerances, and verification logic create trust; generic claims do not.

A practical 5-point review before PO release

1. Confirm whether critical surfaces are identified by function, not only by appearance.
2. Ask for the intended EDM and polishing sequence, including how many finish passes are planned.
3. Define whether sample approval depends on visual inspection, release force behavior, or both.
4. Review expected lead time impact if polishing correction is needed after T1 or T2 trials.
5. Separate upfront tooling cost from production cost effect across the first 6–12 months.

For most procurement teams, this review can be completed in one structured technical meeting if the supplier provides process transparency. If not, that lack of clarity is itself a sourcing signal.

Common misconceptions, implementation risks, and FAQ

Many mold programs underperform not because EDM is the wrong process, but because its finish implications are misunderstood. Rougher is not always cheaper once polishing labor and cycle penalties are counted. Finer is not always better if it delays tooling without adding release or cosmetic value. What matters is matching surface finish strategy to the production objective.

There are also implementation risks beyond the EDM machine itself. Deep cavities may suffer unstable flushing. Narrow ribs may hide overburn or shape drift. Excessive benching can alter geometry that EDM originally held well. In other words, finish quality is a system outcome involving design, machining, inspection, and molding trials over a typical 2–4 week refinement window after first sampling.

The FAQ below addresses the questions most often raised by researchers, users, procurement staff, and business leaders comparing EDM-based mold finishing decisions.

How do I know if EDM surface finish is causing longer cycle time?

Look for indirect symptoms rather than only visual clues. If the press team adds cooling time, uses more aggressive ejector settings, applies mold release, or sees sticking in specific ribs and pockets, the cavity finish may be part of the cause. Compare cycle performance before and after local polishing or insert correction. A recurring 1–2 second gain after finish adjustment is a strong practical indicator.

Which surfaces should receive the highest EDM finishing attention?

Prioritize surfaces that control ejection, sealing, visible appearance, or texture uniformity. Deep ribs, low-draft walls, shutoff-adjacent zones, and customer-facing areas usually deserve more attention than hidden structural pockets. This zone-based strategy is often more cost-effective than specifying the same finish standard across the entire mold.

What delivery questions should buyers ask a mold supplier?

Ask for the process route, expected lead time impact of finish level, polishing scope, and trial correction plan. In many tooling programs, a finish upgrade or unexpected benching step can change delivery by several days to over 1 week. It is better to clarify that at quotation stage than during launch escalation.

Are there standard certifications that guarantee the right EDM finish result?

No single certification can guarantee the correct mold surface finish outcome. Quality management frameworks such as ISO 9001 can support process control, and sector-specific systems like AS9100 or ISO 13485 may matter in adjacent precision industries, but the correct result still depends on process planning, measurement discipline, and mold trial validation. Buyers should rely on documented process capability and inspection logic rather than labels alone.

Why work with a data-driven technical partner when evaluating EDM for plastic injection molds?

When surface finish changes cycle time, a mold decision becomes a business decision. Engineering teams need clear process logic. Operators need stable release and less firefighting. Procurement needs comparable supplier data. Executives need confidence that tooling cost, timeline, and production economics are aligned. That is exactly the gap TSV is built to address.

TechStat Vanguard filters out inflated claims and focuses on verifiable manufacturing criteria: tolerance logic, process transparency, benchmark-style comparison, and supply chain traceability. For organizations sourcing molds, precision machining, robotics-related components, or advanced industrial hardware, that approach reduces information noise and shortens qualification cycles.

If you are reviewing EDM for plastic injection molds, you can contact TSV for support on parameter confirmation, process route comparison, supplier evaluation logic, expected delivery windows, polishing versus EDM trade-offs, sample validation criteria, and RFQ language that better reflects production reality. These discussions are especially valuable when tooling must support tight launch schedules, multi-cavity consistency, or technically demanding resin and geometry combinations.

Bring your drawing notes, finish requirements, target cycle time, and any open questions on mold trials or supplier quotes. A well-structured technical review at the front end can save weeks of iteration later and help your team make decisions based on engineering truth through data.
