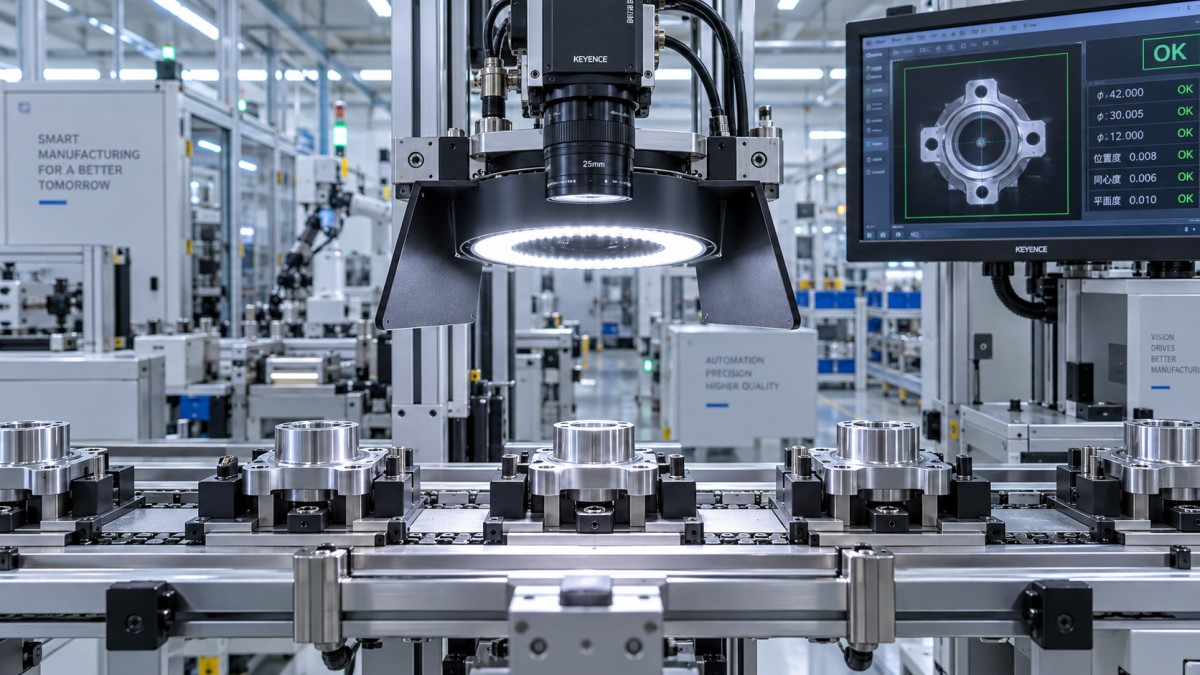

How to reduce false rejects in machine vision factory inspection

A false reject occurs when a conforming part is classified as defective. In a machine vision inspection factory, that error is not merely a nuisance: it creates unnecessary manual review, disrupts line balance, can trigger avoidable holds, and gradually weakens confidence in the inspection system. The dangerous response is to lower the decision threshold until the reject rate looks acceptable. That may reduce nuisance rejects while allowing real defects to pass.

The correct objective is not the lowest possible reject rate. It is a stable and explainable decision boundary that separates acceptable product variation from conditions that genuinely violate the specification. Achieving that boundary requires treating false rejects as a system problem involving the part, presentation, imaging chain, reference data, and inspection logic—not as a single software parameter.

Measure the error before tuning the system

Many inspection stations report only a total reject rate. That number is insufficient. A rejected part should be traced through disposition: confirmed defect, confirmed good part, inconclusive because of handling damage, or unable to verify. Without this feedback, the system may be tuned against assumptions rather than evidence.

A useful starting point is a reject review record that links each event to the image, time, camera or station ID, product variant, lot, fixture position, operator disposition, and stated reject reason. The goal is to identify repeatable patterns. False rejects often cluster around one cavity, one shift, a particular surface finish, a specific batch of packaging, a camera position, or a lighting condition that changes after cleaning or maintenance.

Separate the inspection result from the business disposition. A vision system may correctly identify an unusual visual condition even if the part is later accepted through an approved concession. That is not necessarily a false reject. Conversely, a part that passes functional testing after being rejected for a cosmetic criterion may still reveal that the visual specification or the vision rule is poorly aligned with the actual acceptance standard.

The review process should preserve the original image and the inspection settings used at the time of the decision. Reprocessing an image after settings have changed can be useful for diagnosis, but it must not overwrite the historical evidence. Traceability matters when a recurring nuisance reject becomes a customer complaint, a quality escape investigation, or a safety-related production stop.

Start with the acceptance criterion, not the algorithm

False rejects frequently originate before the camera captures an image. The system is asked to detect “scratches,” “contamination,” “missing material,” or “incorrect assembly” without a measurable definition of what makes the condition rejectable. Human inspectors may apply experience and context; an automated system cannot reliably infer an unwritten rule.

A usable vision criterion should answer practical questions:

• What feature is being assessed: length, width, area, contrast, position, count, completeness, color, or surface continuity?
• What is the allowable range or minimum detectable defect size?
• Where on the part does the rule apply, and which regions are excluded?
• Does orientation, material grain, texture, gloss, print registration, or natural variation affect appearance?
• Which conditions require automatic rejection, which require review, and which are acceptable?

For example, a rule such as “reject visible scratches” is too subjective for reliable automation. A more operational requirement may define a protected zone, a minimum scratch length and contrast relative to its local background, and exclusions for known texture or machining marks. The exact values must come from product requirements and risk assessment, not from what is easiest for the camera to detect.

Where product safety, function, seal integrity, identification, or regulatory marking is involved, acceptance criteria need particular discipline. A false reject is costly, but an overly relaxed rule for a critical feature can create a far larger exposure. The decision logic should reflect defect severity rather than applying the same tolerance philosophy to every visual anomaly.

Lighting is often the real root cause

When a station rejects apparently good parts inconsistently, lighting deserves scrutiny before software thresholds are changed. Machine vision does not inspect a part directly; it inspects reflected, transmitted, or emitted light. A minor change in illumination angle can make a harmless texture appear as a defect or cause a true defect to disappear.

Highly reflective metal, clear film, curved plastic, wet surfaces, textured coatings, and printed materials all create different optical challenges. A bright-field setup may exaggerate glare on a glossy label. Low-angle dark-field lighting may make acceptable surface texture look like scratching. Backlighting can be excellent for measuring a silhouette but cannot reveal many surface defects. Coaxial lighting can improve uniformity on flat reflective surfaces but may be unsuitable for deep features or irregular geometry.

Uniformity matters as much as brightness. If illumination falls off across the field of view, a global grayscale threshold can reject parts at the darker edges while accepting identical parts near the center. The same effect can appear when LEDs age, lenses become contaminated, protective windows haze, or ambient light reaches the inspection zone.

Before changing a threshold, capture images of the same known-good part at different locations in the fixture and at the beginning and end of a production run. Compare background intensity, contrast, reflections, and feature measurements. If the image changes substantially while the part does not, the imaging environment—not part quality—is driving instability.

Lighting control should include mechanical shielding from ambient light, stable power supplies, fixed mounting, cleaning intervals, and checks after lamp, lens, or fixture changes. For demanding surface inspections, a single image may not be enough. Combining lighting geometries or capturing images from more than one angle can distinguish a real surface discontinuity from a reflection. That increases system complexity, but it may be more defensible than forcing one lighting setup to handle incompatible defect mechanisms.

Control part presentation and fixture variation

A vision application can be accurate in a controlled validation image set yet reject good product when parts arrive rotated, shifted, tilted, vibrating, or inconsistently seated. The software may be capable of locating the part, but broad position correction has limits. A feature seen at an angle changes its apparent shape, focus, and contrast; it is not simply translated within the image.

Fixture wear is a common source of gradual drift. Locating pins, nests, clamps, belts, guides, and part stops can change the part’s pose without generating an obvious mechanical alarm. Vibration from nearby equipment may also introduce motion blur, especially where short cycle times force fast exposure.

Inspect the production process around the camera. Ask whether the part is fully seated at image capture, whether the conveyor speed is constant, whether a pneumatic clamp settles before triggering, and whether protective films, oil, dust, or handling marks are present only at certain stages. A reject pattern tied to an assembly sequence may indicate that inspection occurs too early, before a component is fully positioned, rather than that the part itself is nonconforming.

Use reference features that are stable and functionally relevant for alignment. Alignment to an inconsistent printed mark, a reflective edge, or a deformable gasket can cause a correctly manufactured part to be evaluated in the wrong region. The inspection region of interest should follow the actual feature being judged, while still maintaining controls that detect gross part misplacement.

Match optics and image resolution to the tolerance

Software cannot recover detail that the optical system never resolved. If a defect criterion is close to, or smaller than, the pixel scale, small variations in focus, edge interpolation, and contrast can push good parts across the acceptance threshold. The result is an inspection that appears precise because it produces a number, but the number is not repeatable enough for the tolerance being enforced.

The practical question is not simply how many megapixels the camera has. It is how many pixels represent the smallest defect or dimensional change that must be judged, across the actual field of view. Lens distortion, depth of field, working distance, object height variation, and focus stability all affect the usable measurement.

For dimensional inspection, calibrate the image-to-object relationship using an appropriate artifact and verify performance across the inspection area, not only at its center. For presence/absence or surface appearance tasks, verify that focus and contrast remain adequate at the expected extremes of part height and position. A shallow depth of field may produce attractive images at nominal placement but unstable results when normal manufacturing variation occurs.

Do not use aggressive image sharpening, contrast enhancement, or noise filtering as a substitute for optical adequacy. Such processing can improve visual appearance while amplifying texture, suppressing weak defects, or creating inconsistent feature boundaries. Any preprocessing step should be tested against both confirmed-good parts and confirmed-defective parts.

Build a reference data set that includes normal variation

A vision model trained or configured from a handful of ideal samples will often treat routine manufacturing variation as abnormal. Good-part data must represent the approved production range: different material lots, finishes, print density, tooling conditions, orientations, and reasonable environmental conditions. It should also include borderline yet acceptable parts when the specification permits them.

For rule-based inspection, this data set supports threshold selection and exposes where a single global rule is inadequate. For AI-based classification or anomaly detection, it is fundamental. An anomaly model trained only on pristine samples may reject harmless differences in texture, color, or reflectance. A classifier trained with uncertain labels can learn the inconsistency of the disposition process rather than the true quality rule.

Data governance is especially important when “good” labels are created from an operator override. An override may mean the part met the requirement, but it may also mean production pressure influenced the decision. Confirmed labels should be tied to an approved disposition method, such as dimensional verification, functional testing, controlled visual review, or documented engineering judgment.

Keep distinct sets for development, validation, and ongoing monitoring. Reusing the same images to tune and to claim performance gives an overly optimistic result. The system should also be challenged with known defect samples where available, including defects near the reject boundary. False reject reduction is acceptable only if sensitivity to critical defects remains protected.

Use decision bands when the process allows them

A binary pass/fail threshold forces every borderline image into an immediate production decision. Where cycle time and control plans permit, a three-way result can be safer: pass, reject, and review. The review band should be narrow and based on uncertainty near the acceptance boundary, not used as a dumping ground for poor image quality.

Examples include a measurement close to tolerance, a feature partially obscured by a transient reflection, or a classifier score near its calibrated decision limit. Manual review should use a defined work instruction and, for critical characteristics, a second verification method where practical. If the review queue becomes large, that is evidence that the inspection capability or process variation needs correction—not a reason to normalize extensive manual sorting.

Threshold changes must be controlled changes. Record the reason, affected product variants, before-and-after samples, validation results, approval, and rollback path. Unrecorded “small adjustments” create a serious traceability gap, particularly when the same station supports multiple part numbers or critical inspections.

Distinguish algorithm error from process drift

A rising false reject rate can mean the vision system has drifted, but it can also be the earliest visible signal that the upstream process has changed. If a camera begins flagging more seal wrinkles, solder appearance variation, label skew, fill-level variation, or missing components, do not assume the inspection is too sensitive. Compare the images with process data, tooling status, material lots, maintenance activity, and operator interventions.

Trend reject reasons separately. A stable total reject rate can hide a meaningful shift if one defect category rises while another falls. Conversely, a sudden increase in generic “inspection failed” events may indicate communication faults, trigger timing errors, image acquisition failures, or poor part presentation rather than a quality change.

Monitor image-quality indicators alongside quality results: exposure level, focus metric, alignment score, background uniformity, camera temperature where relevant, and failed image acquisition count. These measures create an early warning layer. They help maintenance teams act before optical degradation turns into a flood of false rejects or, worse, reduced defect detection.

Validate changes against both sides of the risk

A reduction in false rejects should be validated as a trade-off study, not celebrated as an isolated improvement. The relevant question is: after the change, how does the station perform on verified good parts and on verified defects, especially defects that affect safety, function, traceability, or customer requirements?

Validation should reflect the real operating envelope: normal shift duration, expected part positioning range, production speed, material variation, and lighting condition. A short demonstration with hand-presented samples is not equivalent to production performance. When the system governs disposition automatically, the validation record should show that the revised method meets the approved control requirements for that feature.

The most durable way to reduce false rejects is to make the visual signal more stable, the acceptance rule more explicit, and the feedback loop more disciplined. A machine vision inspection factory performs reliably when a rejected image can be explained in physical and quality terms: what was observed, why it violated the requirement, and why normal variation was not mistaken for a defect. That standard protects throughput without turning inspection into a blind compromise on quality.
