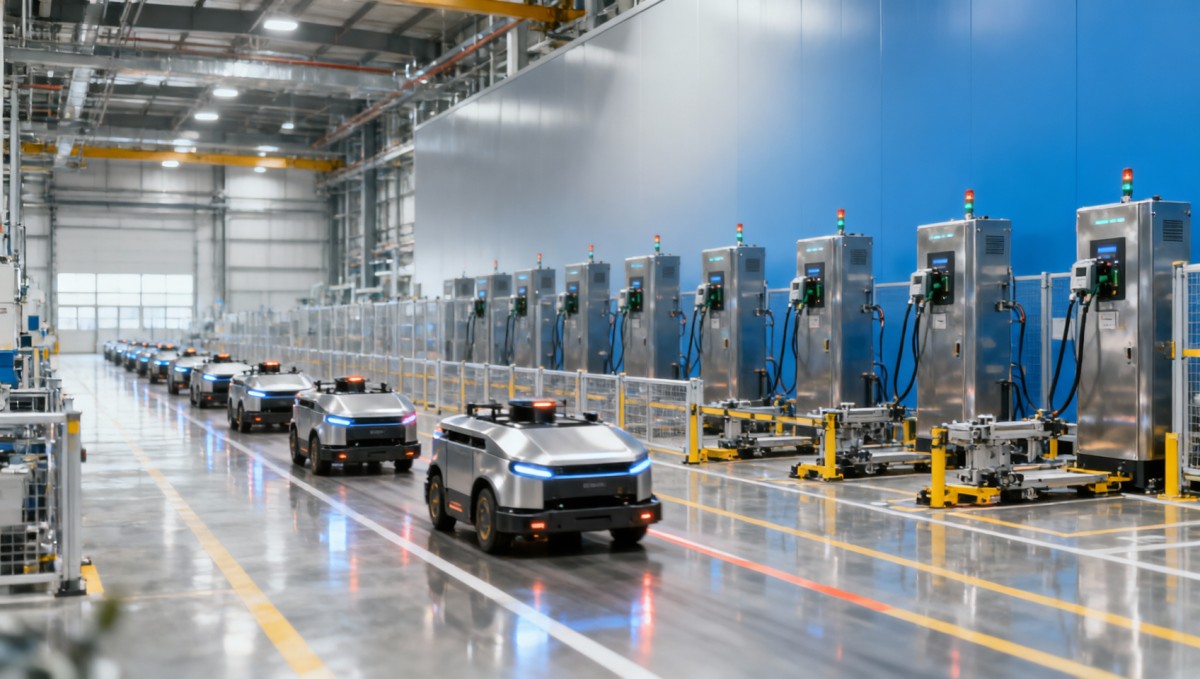

AGV Charging Station Setup: Where to Start

For manufacturers, integrators, and sourcing teams, AGV charging station setup is not just about placing chargers—it directly affects uptime, traffic flow, battery life, safety compliance, and long-term fleet scalability. If you are deciding where to start, the short answer is this: begin with fleet behavior, power demand, charging strategy, and site constraints before choosing hardware. That order helps reduce deployment risk, avoid underbuilt infrastructure, and support better operational and procurement decisions from pilot deployment to full-scale rollout.

For most teams, the biggest mistake is treating charging as an afterthought. In practice, the charging station layout, battery technology, mission profiles, and software orchestration all need to work together. A good setup is one that supports real throughput targets, minimizes AGV idle time, and remains safe and serviceable as the fleet grows.

What should you evaluate first in an AGV charging station setup?

The first step is not selecting a charger model. It is defining the operating context. Before any equipment decision, teams should answer five practical questions:

• How many AGVs will operate today, and how many are expected within 12 to 36 months?
• What are the actual duty cycles? Continuous transport, peak-shift movement, or intermittent work create very different charging requirements.
• What battery chemistry is in use? Lithium-ion, lithium iron phosphate, and lead-acid systems have different charging behaviors, cooling needs, and cycle-life implications.
• Will the fleet use opportunity charging, scheduled charging, or battery swap logic?
• How much floor space, electrical capacity, and protected traffic area are available?

These inputs determine whether the charging system will support production or become a bottleneck. For example, a small pilot fleet may run effectively with centralized charging. But a larger system with high mission density may need distributed charging points integrated into routes so vehicles can top up without creating queueing delays.

This is where users, operators, procurement teams, and decision-makers often align: they all want to know whether the charging design will remain stable under real workload, not just under vendor demo conditions.

How do you choose the right charging strategy for fleet uptime?

The most important decision is the charging strategy itself. In most AGV and AMR environments, there are three common approaches:

1. Centralized charging

All vehicles return to one designated charging zone. This is easier to manage, inspect, and secure. It often works well for smaller fleets, fixed schedules, and facilities with predictable workflows. However, it can create congestion if too many vehicles need charging during the same time window.

2. Opportunity charging

Vehicles charge in short intervals during idle moments or between tasks. This approach can improve fleet availability and reduce the number of spare units required. It is especially useful when paired with AMR fleet management software or AGV traffic control systems that dynamically assign charging windows. The challenge is that route planning, charger placement, and software coordination must be more precise.

3. Battery swap or hybrid logic

Some operations with near-continuous runtime targets prefer battery swap systems or mixed charging architectures. These setups may support high availability, but they increase process complexity, spare inventory requirements, and maintenance planning.

For most modern manufacturing and warehouse environments, opportunity charging is often attractive because it supports higher utilization without requiring oversized fleets. But it only works well if charging points are placed based on traffic patterns and task density rather than convenience alone.

Where should charging stations be placed inside the facility?

Charging station location has a direct effect on fleet efficiency. A poor layout can waste travel time, increase crossing conflicts, and create safety issues for both machines and people.

Good placement usually follows these principles:

• Place chargers near natural dwell zones such as pickup buffers, staging areas, or low-traffic waiting zones.
• Avoid main intersections where parked or charging AGVs could interrupt flow.
• Protect the charging area physically using barriers, markings, and controlled access where needed.
• Maintain service clearance for inspections, connector replacement, cleaning, and emergency access.
• Separate pedestrian and forklift interaction zones whenever possible.

In facilities with mixed automation, the charging area should also be evaluated alongside other electrical and motion systems. For example, if your site is already benchmarking motion infrastructure such as servo motor for CNC router applications or other high-load electrical assets, power quality and peak demand planning should be considered across the wider plant, not only inside the AGV cell.

A useful rule is to map not only AGV routes, but also charging demand by hour, shift, and mission type. This turns charger placement from a static facility decision into a measurable throughput decision.

What technical factors matter most when selecting chargers and infrastructure?

Once the workflow and placement strategy are clear, the next step is infrastructure specification. Buyers and engineers should focus on measurable technical criteria rather than generic supplier claims.

Battery compatibility

The charger must match the battery chemistry, voltage range, thermal profile, and communication requirements of the AGV platform. Mismatched systems can reduce battery life or create unstable charging behavior.

Charge rate and cycle impact

Faster charging is not always better. High-rate charging may support uptime, but it can increase thermal stress and shorten battery service life if not properly managed. The right balance depends on mission frequency, ambient conditions, and battery management system quality.

Connector or contact design

Automatic contact charging systems reduce manual intervention, but they must tolerate alignment variation, dust, and repeated use. Contact wear, cleaning intervals, and docking repeatability should be reviewed carefully.

Power distribution and redundancy

Electrical capacity should be sized not only for current chargers, but also for expansion. If the site will scale from 5 vehicles to 20, upstream capacity planning matters. Some operations also benefit from redundant charging points so a failed unit does not affect fleet continuity.

Data integration

The charging system should ideally provide usable data: charger utilization, charging duration, battery state trends, fault records, and dwell-time impact. These signals are valuable for maintenance teams, operations managers, and procurement reviewers comparing actual asset performance against expected ROI.

What are the main risks teams should avoid during setup?

Most AGV charging problems are not caused by the charger itself. They usually come from weak planning assumptions. Common risks include:

• Undersizing the number of chargers, which creates waiting queues and hidden downtime
• Ignoring future fleet growth, leading to costly retrofits later
• Choosing placement based only on unused floor space instead of route logic
• Overlooking electrical upgrades such as panel capacity, cabling, grounding, and load balancing
• Failing to define charging priority rules in fleet software
• Neglecting maintenance access and cleaning requirements
• Missing safety reviews for fire protection, emergency stops, insulation, and pedestrian exposure

Another recurring issue is assuming pilot behavior will match scaled operations. In a pilot, manual intervention often hides design weaknesses. At scale, those weaknesses become queueing, battery degradation, delayed missions, and poor labor utilization.

How should procurement and management teams evaluate ROI?

For procurement leaders and enterprise decision-makers, the question is rarely just “Which charger costs less?” The better question is “Which charging setup lowers operational risk and supports throughput at the lowest lifecycle cost?”

ROI should be reviewed across several dimensions:

• Fleet uptime: Does the setup reduce idle time and improve mission completion rates?
• Battery longevity: Will the charging method preserve battery health and reduce replacement frequency?
• Infrastructure scalability: Can the system expand without major civil or electrical rework?
• Maintenance burden: How often do contacts, connectors, or docking elements require service?
• Operational simplicity: Can operators and technicians manage the system without excessive intervention?
• Software visibility: Are charger and battery data accessible for continuous optimization?

In data-driven procurement environments, this means asking suppliers for evidence: charging cycle data, alignment tolerance, failure rates, MTBF-related support records, battery compatibility validation, and real deployment case metrics. This approach fits especially well with engineering-led sourcing models that value verified parameters over marketing language.

A practical starting checklist for AGV charging station setup

If you are starting from zero, use this sequence:

1. Define fleet size, task profiles, shift patterns, and expansion expectations.
2. Confirm battery chemistry, runtime requirements, and acceptable charging windows.
3. Select a charging strategy: centralized, opportunity charging, or battery swap.
4. Map routes, dwell zones, and congestion points inside the facility.
5. Assess electrical capacity, safety compliance, and installation constraints.
6. Specify charger count, location, communication needs, and redundancy level.
7. Integrate charging logic into AGV or AMR fleet control software.
8. Run a pilot using real workloads, then measure charger utilization, queueing, and battery trends.
9. Adjust before scaling.

This process gives teams a clearer basis for technical validation, vendor comparison, and budget approval.

Conclusion: Start with operations, not hardware

The best AGV charging station setup starts with how the fleet works, not with where a charger can fit. For operators, that means safer workflows and fewer interruptions. For procurement teams, it means more reliable supplier evaluation. For business leaders, it means better uptime, lower lifecycle cost, and a charging architecture that can support growth instead of limiting it.

If you are deciding where to start, focus first on fleet behavior, charging strategy, and site constraints. Once those are clear, charger selection, layout, and software integration become much easier to evaluate with confidence. In automated operations, charging is not a peripheral detail—it is core infrastructure.
