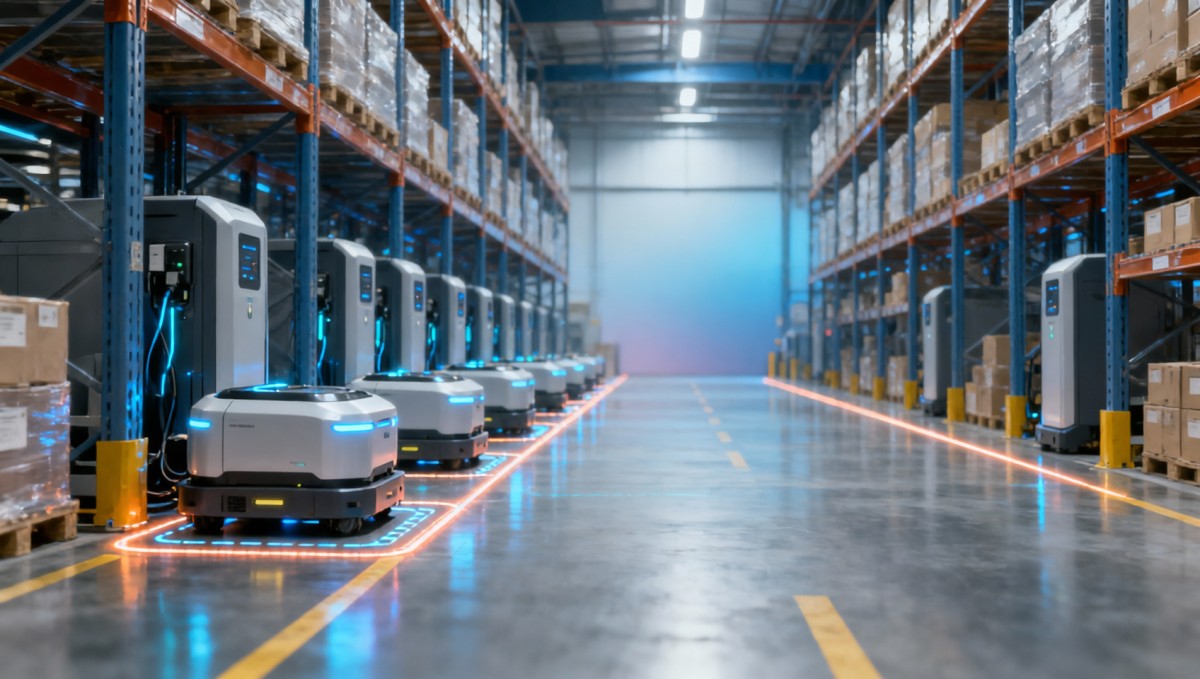

AGV Charging Station Setup: Common Layout Mistakes

A flawed agv charging station setup can quietly undermine uptime, traffic flow, and fleet safety long before problems appear in daily operations. For engineers, operators, buyers, and decision-makers evaluating AGVs, AMRs, servo motor for cnc router systems, robotic bin picking 3d vision, or amr fleet management software, understanding the most common layout mistakes is essential to reducing hidden costs and building a scalable automation foundation.

In most facilities, charging performance problems are not caused by the charger itself. They usually come from layout decisions made too early, with too little attention to traffic, queueing, battery behavior, maintenance access, and future fleet growth. If your charging area creates detours, blocks picking routes, concentrates risk in one corner, or cannot support peak demand, the result is lower vehicle availability and higher operational friction. For buyers and managers, that means hidden ROI loss. For engineers and operators, it means avoidable downtime, manual intervention, and safety exposure.

Why AGV charging station layout matters more than many teams expect

An AGV charging station is not just a power point on the floor. It is part of the fleet control logic, the traffic network, and the uptime model of the whole automation system. A poor layout can reduce effective throughput even when the AGVs, batteries, and chargers all meet specification.

This is why the search intent behind AGV Charging Station Setup: Common Layout Mistakes is usually practical rather than theoretical. Readers typically want to know:

• What layout errors cause avoidable downtime?
• How should charging stations be positioned relative to work zones and traffic lanes?
• How many chargers are needed for current demand and future expansion?
• What safety and maintenance clearances are commonly overlooked?
• How can they evaluate whether a proposed setup is robust before deployment?

For procurement teams and decision-makers, the central question is often simpler: Will this charging layout support reliable operations at scale without creating a hidden bottleneck?

The most common AGV charging station setup mistakes

The following mistakes appear repeatedly across warehouses, manufacturing cells, and mixed automation environments.

1. Placing charging stations too far from high-frequency operating zones

This is one of the most expensive mistakes because it looks harmless during planning. When charging points are located in leftover floor space rather than near actual duty cycles, AGVs spend too much time traveling empty. That increases non-productive motion, adds traffic load, and reduces mission availability.

In practice, charging should be placed based on route density, idle windows, battery strategy, and dispatch logic. A charger that is “out of the way” may actually be damaging overall efficiency.

2. Creating charging areas inside traffic choke points

Some layouts force AGVs to enter or exit charging stations through narrow intersections, forklift crossings, or shared pedestrian corridors. This can trigger local congestion, delayed charging turns, and higher collision risk.

If a charging bay interrupts the natural traffic flow, the problem will worsen as fleet size grows. What works for three vehicles may fail badly at ten or twenty.

3. Underestimating queueing behavior during peak demand

Many teams size chargers using average battery usage instead of peak charging demand. But AGV fleets rarely behave in perfect averages. Shift changes, synchronized task bursts, route disruptions, and temperature effects can push multiple vehicles toward charging at the same time.

Without queue analysis, one blocked charger can cascade into missed tasks and manual recovery. This is especially important when using amr fleet management software, where dispatch logic and charging priority rules directly shape charger utilization.

4. Relying on a single centralized charging cluster

A centralized charging bank can simplify wiring and supervision, but it also concentrates operational risk. If all AGVs must return to one area, that zone becomes a single point of congestion and a single point of failure.

Distributed charging layouts are often more resilient in larger facilities, especially where workflows are segmented by process area, aisle group, or production cell.

5. Ignoring maintenance and inspection access

A charging station setup may look compact on a drawing but become difficult to clean, inspect, repair, or replace in real operation. If technicians cannot access connectors, alignment components, protective barriers, or electrical panels safely, maintenance time rises and failure recovery slows down.

This matters to buyers as much as operators. A layout that saves floor space but increases service complexity may have a worse total cost of ownership.

6. Overlooking battery strategy differences

Opportunity charging, scheduled charging, and battery swap models place very different demands on layout. A setup optimized for short top-up charging near workflows may fail if the actual operation depends on longer charging windows or battery change handling.

Layout decisions should match battery chemistry, duty cycle, charging duration, and fleet software behavior. Otherwise, the physical design and control strategy will work against each other.

7. Designing for the current fleet only

Many charging areas are built around today’s vehicle count with little room for expansion. That can force expensive retrofits later, including rerouting traffic lanes, relocating safety barriers, or upgrading electrical capacity.

If your automation roadmap may expand into adjacent functions such as robotic bin picking 3d vision cells, CNC material flow, or broader AMR logistics, charging infrastructure should be planned as a scalable system, not a fixed accessory.

How poor charging layout affects uptime, safety, and ROI

Charging mistakes rarely appear first as “charging problems.” They show up as low-level operational symptoms:

• AGVs arrive late to tasks even though fleet size seems sufficient
• Battery levels fluctuate unpredictably across vehicles
• Operators manually intervene more often during peak shifts
• Traffic conflicts increase near charger entrances
• Maintenance teams spend extra time on access and recovery
• Additional AGVs are purchased to compensate for poor utilization

For enterprise decision-makers, this is where the financial impact becomes important. A weak agv charging station setup can reduce the effective productivity of an automation investment without triggering a clear alarm. The system still runs, but below its designed economic value.

That hidden loss becomes even more significant in facilities already integrating high-value automation assets, such as servo motor for cnc router workflows, machine vision inspection, or connected material handling systems. In these environments, upstream and downstream timing matters. If AGVs are unavailable when needed, the cost is not limited to transport delay. It can affect machine utilization, order flow, and labor balancing.

What a better AGV charging station setup should include

A strong layout does not come from one universal template. It comes from matching charger placement to real operating conditions. In most cases, the following principles create a more reliable setup:

Place chargers near natural idle windows

The best charging locations are often near process transitions, low-conflict waiting areas, or route edges where AGVs already pause without disrupting throughput.

Separate charging flow from main traffic flow

Entry and exit movement should not interfere with high-priority transport routes. If possible, create dedicated approach space so vehicles can align and depart without blocking others.

Model peak demand, not just average demand

Use real mission data, simulated dispatch logic, and battery consumption patterns to estimate worst-case charging congestion. This is essential before finalizing charger quantity and station spacing.

Allow physical clearance for service and safety

Maintenance teams need room for inspection, connector servicing, cleaning, emergency access, and protective device checks. Clearance should be designed intentionally, not left to chance.

Coordinate layout with fleet software logic

Physical design and software policy should be treated as one system. Charging thresholds, task prioritization, and charger assignment logic all influence whether the layout performs well.

Plan electrical and spatial headroom for expansion

Even if you install only part of the charging capacity today, reserve enough infrastructure for future fleet growth. This reduces retrofit cost and avoids operational disruption later.

Questions buyers, engineers, and managers should ask before approving a layout

If you are evaluating an AGV or AMR supplier, internal project, or system integrator proposal, these questions help expose weak planning early:

• What mission and battery data were used to size charger count and placement?
• How does the layout perform during peak traffic and peak charging demand?
• What happens if one charger is unavailable or one zone is blocked?
• How much non-productive travel is added by the charging strategy?
• Is maintenance access validated on the real floor plan, not only in concept drawings?
• Can the layout scale without major traffic redesign?
• How does the proposed design interact with fleet management rules and dispatch priorities?

For procurement teams, these questions shift the conversation from marketing claims to operational proof. For engineers, they help validate whether the setup is technically sound. For operators, they reveal whether the system will remain manageable under daily pressure.

When to use centralized charging and when distributed charging makes more sense

Neither model is always correct.

Centralized charging can work well when:

• Fleet size is modest
• Traffic is predictable
• Work zones are geographically compact
• Electrical installation simplicity is a major priority

Distributed charging is often better when:

• The facility covers a large area
• Tasks are split across multiple process zones
• Peak demand patterns vary by area
• Resilience and scalability are more important than installation simplicity

The right answer depends on route topology, utilization targets, battery behavior, and future automation plans. In mature operations, hybrid models are often the most practical.

Final takeaway: layout mistakes are usually system mistakes

An agv charging station setup should never be treated as a minor add-on after the vehicles are selected. It is a system-level design decision that affects uptime, traffic stability, maintenance efficiency, safety, and automation ROI.

The most common mistakes are clear: chargers placed too far from work zones, charging areas built into choke points, poor peak-demand planning, lack of service clearance, over-centralization, and no expansion path. The good news is that these problems are preventable when layout is evaluated using real fleet behavior rather than convenience or leftover floor space.

For information researchers, this is the key judgment: charging layout quality is a strong indicator of overall automation maturity. For operators, it determines whether the system feels smooth or frustrating. For buyers and business leaders, it directly influences whether the AGV investment delivers expected value over time.

If the goal is scalable, data-driven automation, then charger placement should be engineered with the same rigor applied to navigation, payload, and control software. In hard-tech operations, small layout decisions often define large performance outcomes.
