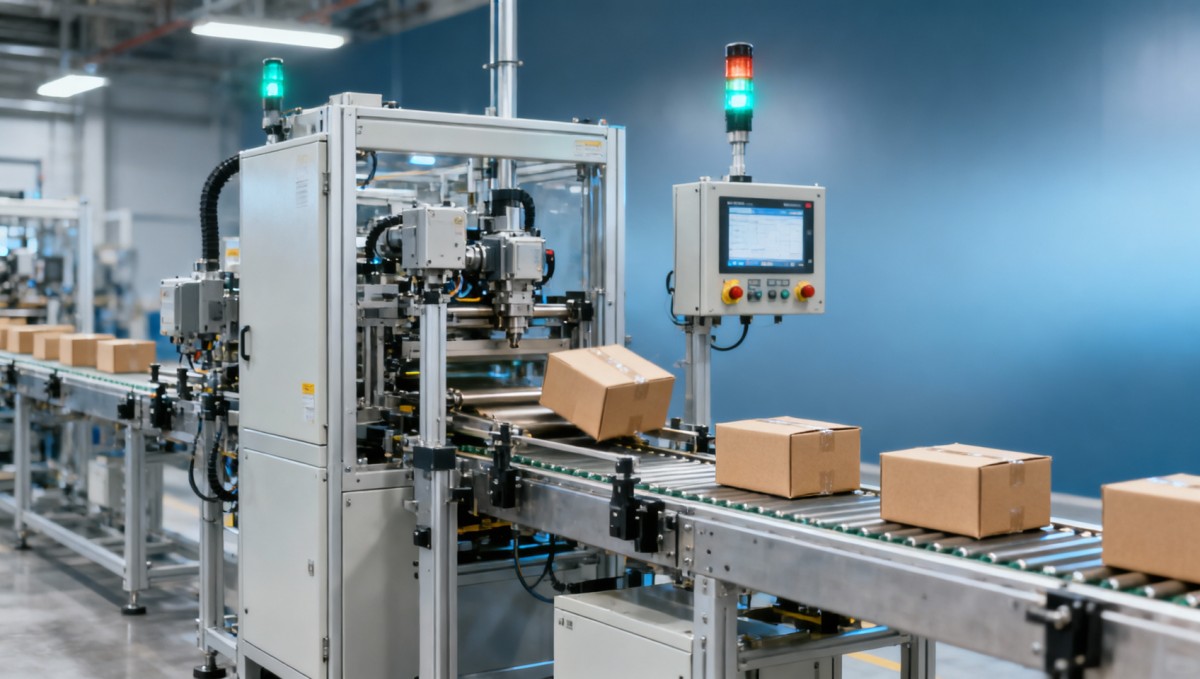

Packaging machine PLC logic that causes jam cycles

Packaging machine PLC logic can silently trigger costly jam cycles, rework, and downtime when sequencing, sensor timing, and interlocks are misaligned. This article breaks down the real control-layer causes behind failures in plc control for packaging machinery, while connecting them to broader plant needs such as hvac automation control logic, industrial iot dashboard visualization, and mes integration with sap erp for faster diagnosis and smarter decisions.

For operators, a jam often looks mechanical: a carton stops, a film web wrinkles, a pusher stalls, or a discharge gate opens too late. For controls engineers and procurement leaders, the deeper issue is usually logic architecture. A packaging line running at 40, 80, or 200 cycles per minute leaves very little margin for scan-time drift, unstable sensor validation, poor state transitions, or inconsistent servo-to-conveyor handshakes.

In data-driven manufacturing environments, jam analysis should not stop at replacing sensors or tightening guide rails. The more durable approach is to identify the specific PLC logic patterns that create repeat faults, define measurable thresholds, and build traceable diagnostics that support maintenance teams, plant managers, and buyers evaluating machine upgrades. That is the engineering-first lens this article follows.

Why Jam Cycles Often Start in the PLC Layer, Not the Mechanical Layer

A jam cycle in packaging equipment is rarely caused by only one event. In most lines, the actual fault develops across 3 layers at once: physical motion, sensor feedback, and PLC decision logic. If the PLC transitions to the next step 50 to 150 milliseconds too early, a product may still be inside a transfer zone when a gripper closes or a sealer starts its stroke. That timing mismatch can create a recurring jam even when all hardware appears functional.

This is common in cartoners, case packers, flow wrappers, pouch fillers, and vertical form-fill-seal systems. A photoeye might detect a leading edge correctly, but if the PLC uses a single-scan trigger without debounce logic, the machine may register false product presence during vibration or reflective glare. At 120 packs per minute, even a 1% false trigger rate can generate multiple nuisance stops in one shift.

Another frequent source is weak interlock design. Many packaging machines depend on permissive chains between conveyors, infeed metering devices, servo axes, pneumatics, and downstream accumulation. If one section reports “ready” before actual settling is complete, upstream motion resumes too soon. What operators experience as a random jam is often a deterministic PLC sequence flaw that repeats under the same load, speed, or product format.

From a plant operations viewpoint, this matters because jam cycles distort OEE, inflate maintenance labor, and trigger avoidable product waste. From a procurement viewpoint, it matters because machine acceptance should evaluate not just throughput, but logic resilience under 3 to 5 real-world operating conditions: startup, speed ramp, changeover, partial blockage, and sensor contamination.

Typical Control-Layer Symptoms That Point to PLC Logic Issues

• Jam alarms occur at nearly the same station every 20 to 60 minutes without obvious wear.
• The machine runs well at 50% speed, but faults increase sharply above 75% rated throughput.
• Manual mode works reliably, while auto mode produces premature motion or missed transfers.
• Product-detect sensors test correctly in isolation, but sequence faults remain during production.

Packaging Line Conditions That Amplify Logic Weakness

Logic problems become more visible when product tolerances widen, line speed changes, or environmental conditions fluctuate. A lightweight pouch, glossy carton, or unstable bottle can change sensor timing by a few tens of milliseconds. If the PLC sequence has no timing window management, no confirmation state, and no fallback branch, small variation becomes a hard stop. In facilities with temperature swings of 5°C to 10°C or high dust load around sealing areas, these issues become even more frequent.

The Most Common PLC Logic Patterns That Cause Packaging Jams

The root causes below appear repeatedly across packaging applications. They are not tied to one PLC brand or one OEM design style. They are logic design patterns that increase jam probability when the machine is exposed to real production variance, not ideal lab conditions.

The first pattern is improper state-machine sequencing. Many machines still rely on loosely connected bits and timers instead of a clean step-based state model. When two sequence branches can become true in the same scan, actuators may receive overlapping commands. A pusher can extend while the product clamp has not yet released, or a discharge conveyor can restart before a reject gate returns home.

The second pattern is timer-only validation. Timers are useful, but when they replace position confirmation, product presence verification, or axis-in-position checks, they become fragile. A 300 ms dwell may work for one SKU, but if a heavier load adds 80 ms of motion lag, the machine transitions too early. This is a classic cause of intermittent jams after changeovers.

The third pattern is missing edge filtering and poor signal conditioning. Inputs from photoeyes, proximity switches, and vacuum sensors often require debounce windows from 20 ms to 100 ms depending on vibration and cycle speed. Without this, a noisy sensor may trigger multiple transitions. Likewise, if a logic routine does not distinguish between rising edge, steady state, and lost confirmation, it may count one product twice or miss one entirely.

High-Risk Logic Mistakes in Packaging Control

The following table summarizes common logic issues, their field symptoms, and the operational effect they create. These are useful checkpoints during troubleshooting, FAT review, and machine procurement discussions.

A useful takeaway is that logic quality should be tested under variable conditions, not only nominal speed. If a machine passes at one SKU and one speed only, the controls architecture may still be weak. Buyers should ask whether logic includes state validation, sensor filtering, alarm latching with root-cause stamps, and trendable cycle timestamps.

Minimum Engineering Checks Before Blaming Hardware

1. Measure scan time stability during normal and peak load; variation above expected range can affect fast sequence logic.
2. Verify every critical transition has both a time condition and a real status confirmation.
3. Review interlocks for conveyor clear, axis done, cylinder home, and product presence consistency.
4. Check alarm history for repeated fault order; the first fault is usually more valuable than the final jam alarm.

How to Diagnose Jam Cycles Faster with Better Data and System Integration

Troubleshooting by observation alone is too slow for modern packaging lines. A line producing 12,000 to 30,000 units per shift cannot rely only on handwritten downtime notes or operator memory. The faster route is event-driven diagnostics: timestamped PLC states, sensor transitions, servo status, alarm sequences, and speed context all captured in a structured way.

This is where broader plant infrastructure becomes relevant. Industrial IoT dashboard visualization helps maintenance and production teams see which jam occurs most often, under what speed band, and after which state transition. Instead of a generic “product missing” alarm, the dashboard can show that 68% of stops happen within 2 seconds after conveyor restart, and only on one SKU width range. That shifts the discussion from guesswork to engineering evidence.

MES integration with SAP ERP adds another layer of value. When jam events are linked to batch, order, material code, format setup, and shift data, plants can determine whether faults are tied to machine logic, material variation, or setup discipline. Procurement leaders also gain a clearer basis for deciding whether to retrofit controls, renegotiate machine support, or standardize a common platform across sites.

HVAC automation control logic also plays a supporting role in some packaging environments. In pharmaceutical, food, electronics, or moisture-sensitive packaging areas, temperature, pressure balance, and particulate control can influence film tracking, adhesive behavior, static load, and sensor reliability. If room control fluctuates outside a defined operating band, PLC jam analysis can become misleading because the environment itself is destabilizing the process.

Useful Data Points to Capture During Jam Analysis

A practical diagnostic model is to log the 10 to 20 most critical tags around each station. Even smaller facilities can begin with one high-loss machine. The table below outlines a sensible starting set.

The key insight is not to collect more data than teams can use. Start with fault repeatability. If 80% of stops come from 2 stations, instrument those first. Over 2 to 4 weeks, trend the events and compare them with sequence changes, maintenance interventions, and product changeovers. That usually produces clearer corrective action than broad system replacement.

Engineering and Procurement Criteria for More Reliable PLC Control in Packaging Machinery

When companies source new packaging equipment or upgrade legacy machines, the controls architecture should be evaluated with the same discipline applied to throughput, format range, and mechanical construction. A machine that advertises 150 cycles per minute but lacks transparent diagnostics, stable sequencing, and usable alarm history may create a higher total cost of ownership than a slightly slower but more controllable system.

For procurement teams, a practical review framework includes 4 dimensions: logic transparency, diagnostic depth, integration readiness, and supportability. Logic transparency means the supplier can explain state sequencing, interlock philosophy, restart behavior, and alarm hierarchy without hiding behind generic language. Diagnostic depth means the HMI and controller expose event history, tagged root causes, and timing values that maintenance teams can interpret in minutes, not hours.

Integration readiness matters because packaging lines no longer operate as isolated cells. Plants increasingly expect machine data to connect with SCADA, MES, industrial IoT dashboards, and enterprise systems. Supportability matters because even good logic needs lifecycle management. Spare I/O capacity, version-controlled backups, documented change logs, and remote support pathways can reduce mean time to repair by 20% to 40% in many real operating settings.

For operators and production leaders, the goal is simpler: shorter recovery time and fewer repeat faults. That means a machine should guide fault clearance in a structured order, prevent accidental restart into a blocked zone, and preserve the first-fault record even when secondary alarms cascade afterward.

Procurement Checklist for Controls Quality

• Ask whether the machine logic is state-based, recipe-managed, and revision-controlled.
• Verify alarm history depth, such as 500 to 5,000 events, with timestamps and station references.
• Confirm whether sensor filters, timing windows, and restart delays are adjustable within controlled limits.
• Request a demonstration at multiple speed points, including at least one stress condition above normal operating load.
• Check whether data tags are available for MES integration, SAP-linked reporting, or plant dashboard use.

What Buyers Should Require During FAT or SAT

A useful FAT or SAT should include more than simple throughput confirmation. Require at least 3 production scenarios, such as nominal speed, speed ramp, and induced downstream blockage. During each scenario, verify that alarms occur in the correct order, restart logic is safe, and event logs preserve the initial trigger. For high-value packaging assets, this level of validation often prevents months of post-installation tuning.

Implementation Roadmap: Reducing Jam Cycles Without Overengineering the Line

A strong corrective program does not always require a full controls replacement. Many plants can reduce packaging jams through a staged approach over 4 to 12 weeks, starting with one machine family and expanding after measurable improvement. The objective is to improve sequence stability, visibility, and maintainability while avoiding unnecessary downtime or software complexity.

Phase 1 is evidence capture. Identify the top 3 recurring jam types, record cycle context, and validate whether the first-fault alarm matches the actual sequence trigger. Phase 2 is logic cleanup. Add debounce, rewrite weak timer-only transitions, isolate mode-change behavior, and strengthen interlocks between infeed, transfer, and discharge zones. Phase 3 is operational integration. Publish key tags to dashboards, connect fault context to MES, and standardize maintenance response steps.

Plants should also define acceptance metrics. Common examples include reducing repeat jam frequency by 30% within 60 days, cutting average recovery time from 12 minutes to 7 minutes, or lowering unclassified downtime to under 10% of total stops. Clear metrics help maintenance, engineering, and management stay aligned on value.

This approach aligns with the TSV principle that engineering decisions should be grounded in measurable parameters rather than generic claims. In packaging control, that means reviewing real timing windows, state integrity, signal quality, and system interoperability, not just judging whether the machine “usually runs fine.”

Practical 5-Step Improvement Sequence

1. Map each jam to a station, state number, and elapsed time from cycle start.
2. Separate mechanical causes from PLC logic causes using trend data and manual-mode comparison.
3. Revise the highest-risk sequences first, especially transfer zones and restart logic.
4. Validate changes at 3 speed levels and at least 2 product formats.
5. Push alarm and state data upward to dashboards or MES for continuous review.

FAQ for Operations, Engineering, and Buyers

How can we tell if a jam is caused by PLC logic rather than mechanics?

Look for repeatability tied to sequence timing. If the fault happens in the same station, at the same transition, or only above a certain speed threshold such as 70% to 80% of design rate, the PLC layer is a strong suspect. Manual mode stability combined with auto-mode faults is another common indicator.

What timing values deserve the closest review?

Start with sensor debounce windows, actuator dwell times, servo in-position tolerance, and conveyor clear delays. In many packaging cells, differences as small as 20 ms to 100 ms can separate stable transfer from repeated jams, especially on lightweight or unstable products.

Is integration with MES or SAP really necessary for jam reduction?

Not always on day one, but it becomes highly valuable when a line runs multiple SKUs, shifts, or sites. MES integration with SAP ERP helps tie faults to batch, order, setup, and material context. That improves long-cycle decisions such as standardizing recipes, scheduling maintenance, or comparing supplier performance.

Should buyers prioritize machine speed or controls transparency?

In most B2B packaging environments, controls transparency has a greater lifecycle impact than a small speed advantage. A machine rated at 100 units per minute with stable logic, clear diagnostics, and fast recovery can outperform a 120-unit-per-minute machine that loses 30 to 60 minutes per shift to repeated jam events.

Packaging jam cycles are often the visible symptom of invisible control flaws: weak sequencing, poor sensor handling, unstable interlocks, and limited diagnostic visibility. When plants treat jam analysis as a PLC logic and data problem rather than only a mechanical problem, they can reduce waste, improve uptime, and make smarter investment decisions across packaging, HVAC-linked environments, and connected factory systems.

For research teams, operators, procurement managers, and enterprise decision-makers, the most resilient path is to demand measurable control behavior, not vague performance claims. If you are reviewing a packaging line, retrofitting an existing machine, or building a plant-wide diagnostics strategy, now is the right time to assess sequence logic, event data quality, and integration readiness. Contact TSV to discuss a more data-grounded evaluation framework, request a tailored benchmarking approach, or explore broader hard-tech solutions for packaging automation reliability.
